KFR-HD2103UC0085816 DW SENSOR 345MHz

Door/Window Contact Introduction This is a supervised, wireless, door/window contact intender for use with certain 345Mhz Alarm systems. Please has qualified servic e persons install this device for you. Product Description and Specification *** For indoor use only *** Specification: Package Content: Frequency Range: 345MHz +/- 150KHz Operating Range: Up to 100 feet line of sight Dimensions: 74x42x28 mm Operating Temp.: -15 C~ 60 C (5 F~140 F) Battery: Panasonic CR123A * 1PC 1pc 1pc 1pc 1pc 3pc 1pc Door/Window sensor Magnet set Bracket Holder Adhesive tape for sensor Screw CR123A Lithium Battery Installation Notice: Select a mounting location free from exposure to moisture and humidify. 1. Install Battery: Use care when installing the battery. Press the locking tab on the top sensor cover, and then gently pull up the cover. Observe the correct polarity before insert the battery. 2. If a wired contact loop is to be used with concealed wiring, feed the wires through the concealed wiring entry hole. A thin breakout area I provided on the side of case. Wiring can be run through the breakout in the case. 3. Using the adhesive tape or fixing screws to fix the bracket holder with sensor. 4. Find the notch on the outside of the door/window enclosure. Align the magnet with the notches that the distance between m agnet & transmitter can’t exceed 3/4”. Mount the magnet by supplied adhesive tape. Federal Communications Commision Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer ence in a residential installation. This equipment generates, uses and can radiate r adio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. Howeve, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determi ned by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: - Reorient or relocate the receiving antenna, - Increase the separation between the equipment and receiver, - Connect the equipment into and outlet on a ci rcuit different from that to which the receiver is connected. - Consult the dealer or an experien ced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this devic e may not cause harmful interference, and (2) this device must accept any interference received, in cluding interference that may cause undersired operation. FCC Caution: Any changes or modification s not expressly approved by the party responsible for compliance could void the us er’s authority to operate this equipment. Limited Warranty We Guarantees that every wireless Door/Window sensor is free form physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective dur ing this one-year warranty period, we will replace it free of charge. We does not issue any refunds. Th is warannty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthoriz ed repair, opened, taken apart, or otherwise modified; (3) units not used in accordance wi th instruction; (4) damanges exceeding the cost of the product; (5) transit damage, init ial installation costs, removal cost, or reinstallation cost. Please contact local dealer for more information.

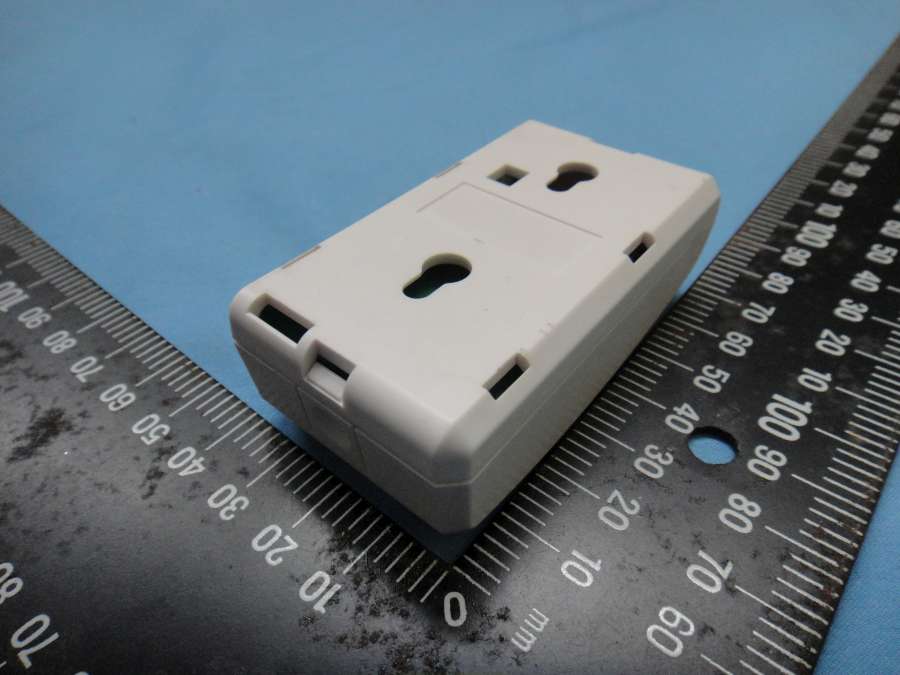

Compliance Certification Services Inc. Report No.:T110322402 Date of Issue: May 12, 2011 Page A1 Total Page: 4 PHOTOGRAPHS OF EUT External Photo (Model:HD2103)

Diagram Label location Label location FCC ID：KFR-HD2103UC008

Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: May 12 , 2011 Page A2 Internal Photo(Model:HD2103) Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: May 12 , 2011 Page A3 Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: May 12 , 2011 Page A4

Compliance Certification Services Inc. Report No.: T110322402-RP1 FCC ID: KFR-HD2103UC008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 32 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For 5816 DW SENSOR 345MHz Model : HD2103 Brand : N/A Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Ceng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: May 12, 2011 Compliance Certification Services Inc. Report No.: T110322402-RP1 FCC ID: KFR-HD2103UC008 Page 2/32 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 12, 2011 Initial Issue ALL Daphne Liang Compliance Certification Services Inc. Report No.: T110322402-RP1 FCC ID: KFR-HD2103UC008 Page 3/ 32 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. TEST METHODOLOGY................................................................................................. 6 3.1 EUT CONFIGURATION................................................................................................... 6 3.2 EUT EXERCISE.............................................................................................................. 6 3.3 GENERAL TEST PROCEDURES........................................................................................ 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................... 7 3.5 DESCRIPTION OF TEST MODES....................................................................................... 7 4. INSTRUMENT CALIBRATION .................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION................................................................. 8 4.2 MEASUREMENT EQUIPMENT USED................................................................... 8 4.3 MEASUREMENT UNCERTAINTY......................................................................... 9 5. FACILITIES AND ACCREDITATIONS .................................................................... 10 5.1 FACILITIES................................................................................................................. 10 5.2 EQUIPMENT................................................................................................................ 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................ 10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS................................................................ 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................... 12 6.1 SETUP CONFIGURATION OF EUT.................................................................................. 12 6.2 SUPPORT EQUIPMENT......................................................................................... 12 7. FCC PART 15.231 REQUIREMENTS ......................................................................... 13 7.1 20 DB BANDWIDTH .............................................................................................. 13 7.2 LIMIT OF TRANSMISSION TIME.................................................................................... 15 7.3 DUTY CYCLE ......................................................................................................... 17 7.4 RADIATED EMISSIONS................................................................................................. 20 7.5 POWERLINE CONDUCTED EMISSIONS............................................................ 26 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP....................................................... 27 APPENDIX II PHOTOGRAPHS OF EUT.....................................................A1 Compliance Certification Services Inc. Report No.: T110322402-RP1 FCC ID: KFR-HD2103UC008 Page 4/32 1. TEST RESULT CERTIFICATION Product: 5816 DW SENSOR 345MHz Model: HD2103 Brand Name: N/A Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Tested: April 21, 2011 ~ April 23, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2008 ANSI C63.4 : 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231(a). The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Report No.: T110322402-RP1 FCC ID: KFR-HD2103UC008 Page 5/32 2. EUT DESCRIPTION Product 5816 DW SENSOR 345MHz Model Number HD2103 Brand Name N/A Received Date March 22, 2011 Operating Frequency 345MHz ± 150KHz Data Rate 7.2kbps Number of Channels 1 Channel Type of Modulation ASK Power Supply Powered from battery , 3Vdc Antenna Type Wire antenna Gain: -10 dBm Temperature Range -15°C ~ +60°C Re…
