KFR-ZM1601US-5Wireless Siren & Strobe Alarm (Battery Power)

Installation & Operation Manual ZM1601IN-5 ZM1601MY-5 ZM1601EU-5 ZM1601RU-5 ZM1601US-5 ZM1601IL-5 ZM1601KR-5 ZM1601HK-5 ZM1601JP-5 ZM1601BR-5 Wireless Siren & Strobe Alarm Battery Power ZM 1601-5 V0 1031128 6B1Z-16005 Introduction Thanks for choosing the Vision’s wireless siren & strobe alarm of the home security device. This siren is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network and it’s security framework. Every mains powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sport”. Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This product will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network. When the device is secure included into Z-Wave network, above communication will be encrypted. Product Description and Specification *** For indoor use only *** Specification: Package Content: Protocol: Z-Wave™ (ZM5202) Frequency Range: 865.22MHz (ZM1601IN-5) 868.10MHz (ZM1601MY-5) 868.42MHz (ZM1601EU-5) 869.00MHz (ZM1601RU-5) 908.42MHz (ZM1601US-5) 916.00MHz (ZM1601IL-5) 919~923MHz (ZM1601KR-5) 919.80MHz (ZM1601HK-5) 922~926MHz (ZM1601JP-5) 921.42MHz (ZM1601BR-5) Operating Range: Up to 100 feet line of sight Loud Audible Alarm: > 105db@1meter LED Strobe Lighting Operating Temp.: -15°C~ 60°C (5°F~140°F) Battery: 4pcs x AA Energizer Batteries 1pc 1pc 2pcs 4pcs 1pc ZM 1601 Siren Adhesive tape Screw AA Energizer Batteries User Manual Z-Wave™ Command Classes: COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_BATTERY COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_NOTIFICATION_V4 COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_SECURITY COMMAND_CLASS_SWITCH_BINARY (mapping COMMAND_CLASS_BASIC) COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_ZWAVEPLUS_INFO Installation Note: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZM 1601. 1. Remove the bracket from the siren by press the locking tab, and then gently slide up the siren. Observe the correct polarity before insert the batteries. 2. Using the screws or adhesive tape to affix the bracket on the chosen location. 3. Slide back the front cover, and then the LED should go off. 4. LED Status for Z-Wave Network: After power on, the LED setting light will flash if the siren has not been included yet. After power on, the LED setting light will go off if the siren has been included. 5. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1601 to your controller. To get in the “inclusion” mode, the distance between siren and controller is suggested to be in one meter. Open the bracket and press the program switch of ZM 1601 for 1 second at least & release to be included. After setting, the LED Setting Light should go off, if not, please try again. (After sending one time’s Z-Wave NIF and not be included then it will send 4 times NWI in every 4 ~ 6 seconds for auto inclusion. The LED setting light will flash again if the siren has not been included or the LED setting light will go off after inclusion.) For “Exclusion” from (removing from) a network: Set up the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1601 from your controller. Press the program switch of ZM 1601 for 1 second at least & release to be excluded. After setting The LED setting light will flash again -2- -1- Note: a. LED setting light will flash continuously in Exclusion condition. b. All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. For “Association”: removing the back cover of the ZM1601 to get into “Awake” mode, then put the Z-Wave Interface Controller into “association”, and following its instruction to association the ZM1601 with other device. Close the back cover after “association” done, afterward the ZM1601 will get into “Sleep” mode for power saving. Support one association group (5 nodes). 6. Configuration command class: Byte Value Parameter 1 (Siren/Strobe Mode) 1 0 (All Enable) - Default 1 (Siren Only) 2 (Strobe Only) Parameter 2 (Alarm Auto Stop Time) 1 0 (30 seconds) - Default 1 (60 seconds) 2 (120 seconds) 3 (Will Not Automatically Stop) (Parameter 1) Siren/Strobe Mode: User can change value from 0 to 2 to turn either Siren sound, Strobe light, or both when triggered. (Parameter 2) Alarm Auto Stop Time: User can change the duration of siren time when triggered. 7. Support OTA Firmware update from controller. Please refer to your controller manual. We recommend to exclude then include the devices from system after OTA. 8. All the rest commands depend on Z-Wave standard. Operation 1. Normal operation, the LED light will not on. 2. Alarm Mode: Active: It will active the Alarm Mode after receiving Basic Set (ON) or Binary Switch (ON). The LED Strobe Light & SIREN will be active according to the Configuration’s setting value. Stop: It will stop the Alarm Mode after receiving Basic Set (OFF) or Binary Switch (OFF) which depends on Configuration’s setting value. Auto Stop: After stopping alarm, it will send Binary Switch Report (0x00) 3. Self-Protection Mode: After put back the bracket over 5 seconds, ZM 1601 will enter the Self-Protection Mode which will active LED Strobe Light & SIREN at the same time. The Alarm Mode will be triggered If the back cover has been opened during the Self-Protection Mode If the device is at low battery status, then it will send Low Voltage Rep…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A1 / 6 External Photo ( ZM1601US-5 ) Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A2 / 6

ZM1601US-5 Diagram Label location Label location Model：ZM1601US-5 IC： 3318A- ZM1601U5 FCC ID： KFR-ZM1601US-5

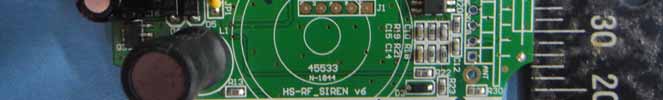

Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A3 / 6 Internal Photo ( ZM1601US-5 ) Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A4 / 6 Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A5 / 6 Antenan Compliance Certification Services Inc. Report No.T150727N03 Date of Issue: August 28, 2015 Page A6 / 6

Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZM1601US-5 Report No.: T150727N03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 30 FCC 47 CFR PART 15 SUBPART C: 2013 ANSI C63.10: 2009 TEST REPORT For Wireless Siren & Strobe Alarm (Battery Power) Model: ZM1601US-5 Brand: Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: August 28, 2015 Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZM1601US-5 Report No.: T150727N03-RP1 Page 2 / 30 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 28, 2015 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZM1601US-5 Report No.: T150727N03-RP1 Page 3 / 30 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................19 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................28 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................29 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZM1601US-5 Report No.: T150727N03-RP1 Page 4 / 30 1. TEST RESULT CERTIFICATION Product: Wireless Siren & Strobe Alarm (Battery Power) Model: ZM1601US-5 Brand: Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Tested: August 05, 2015 ~ August 07, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2013 ANSI C63.10: 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZM1601US-5 Report No.: T150727N03-RP1 Page 5 / 30 2. EUT DESCRIPTION Product Wireless Siren & Strobe Alarm (Battery Power) Model Number ZM1601US-5 Brand Name Received Date July 10, 2015 Frequency Range 908.42MHz 20kHz Transmit Peak Power 88.54 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply 4pcs x AA Energizer Batteries Antenna Type Wire antenna Model: ZM1601US-5 Gain: -10 dBi RF Module Model ZM5202 AU Hardware Version V1.0 Software Ve…
