KFR-ZD2201US-5Wireless 4 IN 1 Multi-Sensor

Installation & Operation Manual ZD2201IN-5 ZD2201MY-5 ZD2201EU-5 ZD2201RU-5 ZD2201US-5 ZD2201IL-5 ZD2201KR-5 ZD2201HK-5 ZD2201JP-5 ZD2201BR-5 Wireless 4 IN 1 Multi-Sensor (Dry Contact, Humidity, Temperature & Light) ZD 2201 V0 1050225 6B1Z-22001 Introduction Thanks for choosing the Vision’s wireless 4 in 1 Multi-Sensor (door window contact sensor, humidity sensor, temperature sensor, and light sensor) of the home security device. This sensor is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network and its security framework. Every main powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-spots” Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This multi-sensor sends Z-Wave™ signal when door or window is opened and closed or humidity, temperature, luminous change. When the device is secure included into Z-Wave network, above communication will be encrypted. Product Description and Specification *** For indoor use only*** Specification: Package Content: Protocol: Z-Wave™ (ZM5202) Frequency Range: 865.22MHz (ZD2201IN-5) 868.10MHz (ZD2201MY-5) 868.42MHz (ZD2201EU-5) 869.00MHz (ZD2201RU-5) 908.42MHz (ZD2201US-5) 916.00MHz (ZD2201IL-5) 919~923MHz (ZD2201KR-5) 919.80MHz (ZD2201HK-5) 922~926MHz (ZD2201JP-5) 921.42MHz (ZD2201BR-5) Operating Range: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F ~140°F) Battery: AAA Battery * 2PC 1pc 1pc 1pc 2pcs 2pcs 2pc 1pc 1pc ZD 2201-5 sensor Bracket for Magnet Magnet Screw to fix magnet Adhesive tape for Magnet / sensor Battery: AAA Battery Installation & Operation manual Magnet (flat type) (ZD2201JP only, or Optional) Z-Wave Command Classes: COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_BATTERY COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_NOTIFICATION_V4 COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_SECURITY COMMAND_CLASS_SENSOR_MULTILEVEL_V7 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Notification V4 Type SWITCH TYPE STATUS Notification Type Reed Switch 0x06 Tamper Switch 0x07 Event Reed Switch Close: 0x17, Open: 0x16 Tamper Switch Close:0x00; Open:0x03 V1 Alarm: Configuration -Temperature Parameter Number Size VALUE Preset 1 1 °C 0x00 °C(0x00) °F 0x01 2 1 1~50 (Set up from 0.1°C~5°C) 1 (°C) Switch Type Status Alarm Type Reed Switch 0x06 Tamper Switch 0x07 Alarm Level Close: 0x00; Open 0xFF -1- -1- -1- -2- Configuration – Humidity Parameter Number Size VALUE Preset 3 1 1~50 (Set up from 1%~50%) 10% Configuration – Light Parameter Number Size VALUE Preset 4 1 0,5~50 (Set up from 0 for Off or 5%~50%) 10% Installation Notice: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZD2201. 1. Push release button to open the rear cover. 2. Using adhesive tape to affix the rear cover on the frame along the opening edge of door / window. 3. Insert ENERGIZER AAA battery *2 into the battery compartment, if user press the program switch, ZD2201 will send the NIF. ZD2201 will go to sleep if user didn’t press the program switch within 20 seconds. LED Status for Z-Wave Network: * If user presses the program switch, the red LED will flash 5 times if the ZD2201 has not been included yet. * If user presses the program switch, the red LED will flash 1 time if the ZD2201 has been included. 4. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZD2201 to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the program switch of ZD2201 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion; otherwise, ZD2201 will go to sleep after 20 seconds. 5. For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZD2201 from your controller. Press the program switch of ZD2201 for 1 second at least to be excluded. Note: All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. 6. Push back the rear cover, the LED should go off. 7. Fix the Magnet by using the adhesive tape; locate the Magnet close to the ZD2201 sensor the distance between these two devices should be in 1.9cm. Make sure the location of device without shelter above or block the sensor area. 8. Awake Mode: Press the Program SW, the LED will flash one time and ZD2201 will send “Wake Up Notification” after 5 seconds. If ZD2201 received “Wake Up No More Information” command then the ZD2201 will go to sleep or it will wait 10 seconds then go to sleep. It will precede all the commands after sending the “Wake Up Notification” 9. Auto Wake Up: Use “Wake Up” command to set up the awaking time and send the wake up notification to controller. User can use command to change the auto wake up from 10 minutes to 1 week, Interval increment is 3 minutes. 10. Battery Capacity Detection: * Use “Battery Get” command to have the battery capacity back in % * It will detect the battery capacity automatically * Low Battery Auto Report (low battery is set as 2.6+/-0.1 Voltage, detects every 2 hours) 11. Association: * Support one group with 5 nodes * All triggering reports & low voltage report will be sent to the associated nodes 12. Power Level Control: * Use “Power Level Set” to set up the RF strength * Use “Power Level Test Node Set” to test specific node’s RF sensitivity 13. Support Explorer Frame Function 14. All the…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A1 / 6 External Photo (ZD2201US-5) Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A2 / 6

Label drawing Label location Label location FCC ID：KFR-ZD2201US-5

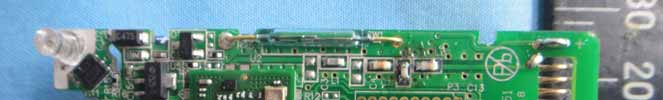

Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A3 / 6 Internal Photo (ZD2201US-5) Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A4 / 6 Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A5 / 6 Compliance Certification Services Inc. Report No.T150710N09 Date of Issue: August 11, 2015 Page A6 / 6

Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZD2201US-5 Report No.: T150710N09-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 31 FCC 47 CFR PART 15 SUBPART C: 2013 ANSI C63.10: 2009 TEST REPORT For Wireless 4 IN 1 Multi-Sensor Model: ZD2201US-5 Brand: Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: August 11, 2015 Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZD2201US-5 Report No.: T150710N09-RP1 Page 2 / 31 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 11, 2015 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZD2201US-5 Report No.: T150710N09-RP1 Page 3 / 31 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................19 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................28 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................29 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZD2201US-5 Report No.: T150710N09-RP1 Page 4 / 31 1. TEST RESULT CERTIFICATION Product: Wireless 4 IN 1 Multi-Sensor Model: ZD2201US-5 Brand: Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Tested: August 05, 2015 ~ August 07, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2013 ANSI C63.10: 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No: T120817N01-RP1 FCC : KFR-ZD2201US-5 Report No.: T150710N09-RP1 Page 5 / 31 2. EUT DESCRIPTION Product Wireless 4 IN 1 Multi-Sensor Model Number ZD2201US-5 Brand Name Received Date July 10, 2015 Frequency Range 908.42MHZ 20kHz Transmit Peak Power 79.17 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation Frequency Shift Keying (FSK) Power Supply DC 3V Antenna Type Wire antenna Model: ZD2201US-5 Gain: -10 dBi RF Module Model PCB: ZM5202AU IC: SD3502A-CNE3 Temperature Range -15°C ~ +60°C Hardware Version V1.0 So…
