KFR-LSRRPS/2 & USB Pocket Point RF Receiver

Vision Automobile Electronics Industrial Co Ltd
PS/2 & USB Pocket Point RF Receiver - FCC ID KFR-LSRR - Vision Automobile Electronics Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
CRR - Superregenerative Receiver
Date of Grant
Jul 16, 2001
Application Purpose
Original Equipment
Date of Application
Jul 16, 2001
Equipment Note
PS/2 & USB Pocket Point RF Receiver
Frequency Range
433.92000000 - 433.92000000
Company
Vision Automobile Electronics Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

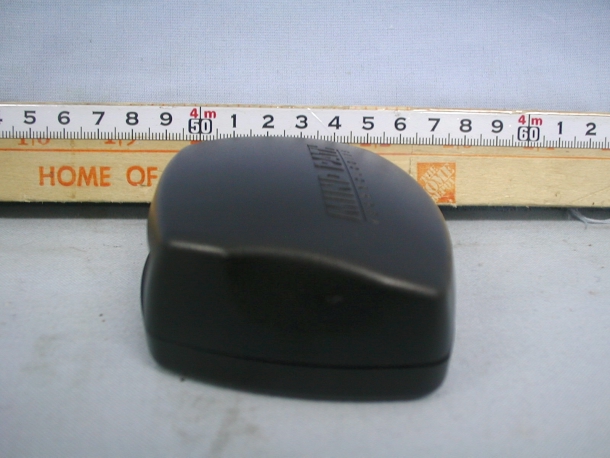

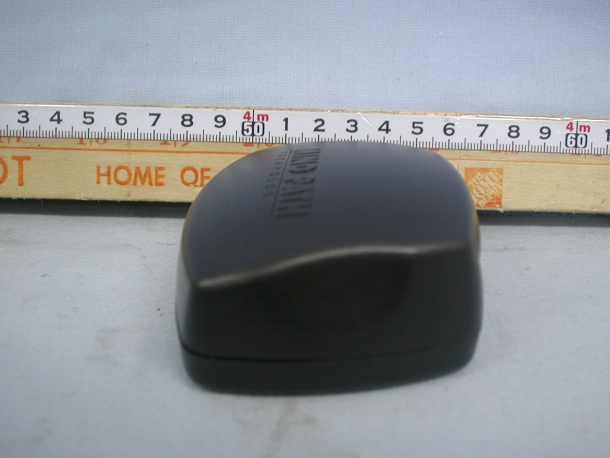

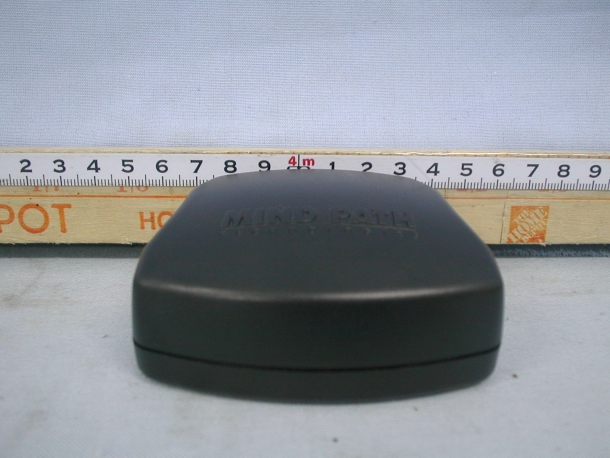

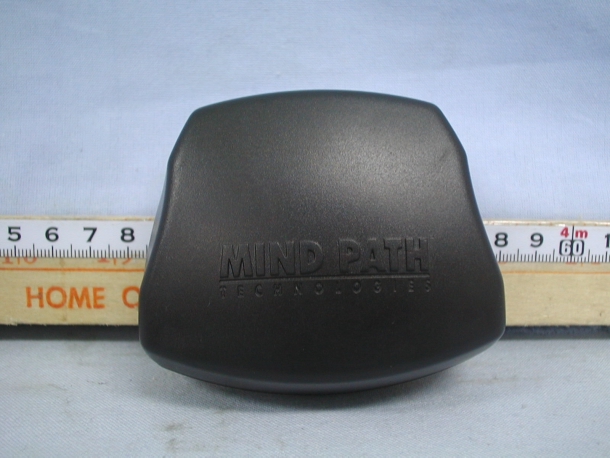

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Note 009-0582-00 27700B Parkway Avenue • Wilsonville, Oregon 97070-9215 • 800-294-6400 • 503-685-8888 • Fax: 503-685-8887 Europe: Hilversum, The Netherlands (31) 35-6474000, Fax: (31) 35 6423999 • Asia: Singapore (65) 334-9005, Fax: (65) 333-4525 www.mindpath.com The PocketPoint™ RF Remote is a handy, compact presentation tool. It allows you to control slides in a PowerPoint presentation and includes a built in laser pointer. The kit includes a remote with laser pointer (battery included), a receiver, a USB cable, a PS/2 cable, and a nylon carrying case. The remote uses radio frequency technology, so you don’t have to point the remote at the receiver to control your slides. The maximum distance between the remote and the receiver is 75 feet, depending on operating environment. System Requirements The only system requirements are USB or PS/2 compatibility. The PocketPoint RF is “plug and play” compatible with MAC OS 8 or higher and Windows 95 (PS/2 only), 98, NT, 2000 or higher. Connecting the Receiver to the Computer For maximum range, the receiver should be placed as far away as possible from any electronic devices. Power on your computer and let it boot up. If your computer has a USB port, plug one end of the USB cable into the USB port on the receiver and the other end into USB port on your computer. The computer should recognize the receiver as a “Human Interface Device” after about 15 seconds. Follow the instructions for installing new hard- ware (you may need to load the necessary USB driver from your operation system disk). Next time you plug the receiver into the same computer, it will take about 5 to 10 seconds to recognize the receiver. During the 5 to 10 sec- onds there will be little or no indication that the computer is communicating with the receiver. If your computer only has a PS/2 port, plug one end of the PS/2 cable into the PS/2 port on the receiver and the other end into PS/2 port on your computer (you may need to disconnect the keyboard from the PS/2 port on desktop computers). The computer should take about 5 to 15 seconds to recognize the receiver. However depending on your system, you may need to reboot to allow the computer to recog- nize the receiver. Training the Remote to the Receiver The remote has been trained to the receiver in the factory. Follow the following instructions if you ever need to re-train the remote to the receiver (for example, if you add another remote to the system). The receiver supports up to 7 remotes. Press and release the program button on the receiver (the LED lights solid). Press the advance button (the largest button) on the remote three times. On the third press, the LED will turn off, indicating the remote has been successful trained. To delete the remote’s memory, press and hold the program button. The LED lights for 3 seconds, then goes out. Release the program button. Product: PocketPoint RF Remote (HW-RF-POCKTPNT) PS/2 port USB port LED program button RF remote.fm Page 1 Friday, May 4, 2001 10:30 AM Product Note Using the Remote After connecting the receiver properly, simply start your PowerPoint presentation, put it in SlideShow mode, and press the larger advance button to advance the slides and the smaller reverse button to go back to the previous slide. The advance button mimics the “N” (next) button on the keypad and the reverse button mim- ics the “P” (previous) button. Press the smallest button to activate the laser pointer. Changing the Battery in the Remote 1 There are two “alignment dots” on the back of the remote case and one “alignment dot” on the battery cover. Insert a quarter into the slot on the battery cover and turn counter clockwise until the dot on the battery cover is lined up with the LEFT dot on the remote case. The battery cover will release. 2 Pry the battery out of the holder. Dispose of the battery in an environmentally proper manner. 3 Insert the new battery with the positive side facing you. The lithium 3.0 volt battery number is CR2032. 4 Make sure that the “alignment dot” on the battery cover is lined up with the LEFT “alignment dot” on the remote case as you replace the battery cover. Then turn clockwise until the dot on the battery cover is lined up with the RIGHT dot on the remote case. It is recommended that you always carry a spare battery. Troubleshooting “I’m pressing the advance button but the slides are not advancing.” 1 Check the cable connections. 2 Verify that the LED on the remote comes on solid when the advance or reverse button is pushed and that the laser pointer is at full brightness when the laser button is pushed. If not, replace the battery. 3 Verify that the transmitter has been trained to the receiver. 4 If using USB, verify that the correct operating system driver is loaded on your computer. 5 If using PS/2, try restarting the computer with the receiver plugged into the PS/2 port. Try reloading the driver, or try unplugging the receiver, waiting 10 seconds, and then plugging it back in. “The LED on the remote flashes or does not turn on when I push the advance or reverse button, or the laser pointer is dim or does not work when the laser button is pushed.” 1 The battery is dead. Replace the battery. “My slides are not advancing, and I see the letters “N” or “P” on the screen.” 1 Make sure that you have your presentation software in slide show mode. Pressing the advance button on the remote mimics pressing the “N” (next) button on the keypad and pressing the reverse button mimics pressing the “P” (previous) button while in SlideShow mode of PowerPoint. Other presentation applications may not interpret “N” and “P” as Next and Previous. Product Specifications Transmitter: · Range: Up to 75 feet, depending upon operating environment · Dimension: 2.6” (66mm)L x 1.5"(38mm)W x 0.5”(13mm)H · Weight: 1 oz (24 g) with batteries · Radio Frequency: 433 MHz · Laser: Diode Laser, 5mW max output at 650NM, Class IIIa · Power: CR2032 battery · Battery life: 1 year under normal operat…

Text truncated - open the document above for the full version.

External Photos



ID Label/Location Info

                                            !  "     #  $!    "   #   "

Internal Photos



Test Report

                   !    "                   !  " " "#   $ " %& "   '  """     & & ! " (" %&%&  %   ' """ )*# $ +)*# ,         , REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: June 22, 2001 0 OF 14                           !"#$ %                   . TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TESTED SYSTEM DETAILS...................................................2 4. TEST FACILITY...........................................................2 5. ACCREDITATION AND LISTING...............................................2 6. MEASUREMENT INSTRUMENTATION.............................................3 7. MEASURING INSTRUMENT CALIBRATION........................................3 8. UNITS OF MEASUREMENT....................................................3 9. ANTENNAS................................................................4 10. CLASSIFICATION OF DIGITAL DEVICE........................................4 11. RADIATED EMISSION LIMITS................................................4 12. CONDUCTED EMISSION LIMITS...............................................5 13. CONDUCTED EMISSION TEST PROCEDURE.......................................5 14. RADIATED EMISSION TEST PROCEDURE........................................6 15. AMBIENT CONDITIONS......................................................6 16. SYSTEM TEST CONFIGURATION...............................................7 17. EQUIPMENT MODIFICATIONS.................................................7 18. EUT SETUP PHOTOS........................................................8 19. TEST EQUIPMENT LIST....................................................10 20. CORRECTION FACTOR......................................................11 21. TEST RESULT SUMMARY....................................................12 APPENDICES ..................................................................14 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: June 22, 2001 2 OF 14                           !"#$ %                   . 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 433.92MHz POWER REQUIREMENTS DC 5V INTERFACE PS/2, USB 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type Manufacturer Model Number Serial No. FCC ID / DoC MONITOR COMPAQ MV925 HS-12 DoC HOST COMPUTER VIVA VIVA 686-350 HS-12 DoC MODEM DATATRONICS 2496CF N/A DoC PRINTER HP 2225C 2550540697 BS46XU2225C MOUSE LOGITECH M-M34 LZED1303050 DZL211029 Pocket Point RF Remote TX VISION CEZY-PPT N/A KFR-LSRT 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:SL2-IN-E-0005 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by BSMI or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission (reference no: 31040/SIT(1300F2)) REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: June 22, 2001 3 OF 14                           !"#$ %                   . 6. MEASUREMENT INSTRUMENTATION Radiated emissions were measured with one or more of the following types of linearly polarized antennas: tuned dipole, biconical, log periodic, bi-log, ridged waveguide, liner horn. EMI receivers were used for line conducted readings, spectrum analyzers with pre-selectors and quasi-peak detectors were used to perform radiated measurements. Receiving equipment (i.e., receiver, analyzer, quasi-peak adapter, pre-selector) and LISNs conform to CISPR specification for “Radio Interference Measuring Apparatus and Measurement Methods,” Publication 16. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. 7. MEASURING INSTRUMENT CALIBRATION The measuring equipment which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 8. UNITS OF MEASUREMENT Measurements of radiated interference are reported in terms of dB(uV/m) at a specified distance. The indicated readings on the spectrum analyzer were converted to dB(uV/m) by use of appropriate conversion factors. Measurements of conducted interfer…

Text truncated - open the document above for the full version.

Test Report

                  !         "               !              "!"  "#!!$! "!%&"!  ! '!" ""      &  &   ! " ("!%& %&  %   !  ! '" ""  )*#$ + )*#,         , REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: July 6, 2001 2 OF 14                           !"#$ %                   . 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 433.92MHz POWER REQUIREMENTS DC 5V INTERFACE PS/2, USB 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type Manufacturer Model Number Serial No. FCC ID / DoC MONITOR COMPAQ MV925 HS-12 DoC HOST COMPUTER VIVA VIVA 686-350 HS-12 DoC MODEM DATATRONICS 2496CF N/A DoC PRINTER HP 2225C 2550540697 BS46XU2225C MOUSE LOGITECH M-M34 LZED1303050 DZL211029 Pocket Point RF Remote TX VISION CE2Y-PPT N/A KFR-LSRT 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:SL2-IN-E-0005 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by BSMI or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission (reference no: 31040/SIT(1300F2)) No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 33File#: 9409e.EMI Date: 2001-06-18 Time: 15:02:18 Trace: 24 Ref Trace: Condition: LINE Report No. : 01E9409 Test Engr. : STANLEY CHENG Company : VISION AUTOMOBILE ELECTRONICS INDUSTRIAL EUT : CE2Y-PPR Test Config : EUT/PC/MD/ME/PRN Type of Test: FCC CLASS B Mode of Op. : NORMAL MODE Page: 1 Read Limit Over Freq Level Factor Level Line Limit Remark _________ ______ ______ ______ ______ ______ ______ MHz dBuV dB dBuV dBuV dB 1 0.505 35.09 0.05 35.14 48.00 -12.86 Peak 2 0.658 34.87 0.06 34.93 48.00 -13.07 Peak 3 1.503 32.56 0.11 32.67 48.00 -15.33 Peak 4 3.642 30.73 0.21 30.94 48.00 -17.06 Peak 5 16.055 43.10 0.41 43.51 48.00 -4.49 Peak 6 24.015 40.42 0.49 40.91 48.00 -7.09 Peak No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 34File#: 9409e.EMI Date: 2001-06-18 Time: 15:10:22 Trace: 32 Ref Trace: Condition: NEUTRAL Report No. : 01E9409 Test Engr. : STANLEY CHENG Company : VISION AUTOMOBILE ELECTRONICS INDUSTRIAL EUT : CE2Y-PPR Test Config : EUT/PC/MD/ME/PRN Type of Test: FCC CLASS B Mode of Op. : NORMAL MODE Page: 1 Read Limit Over Freq Level Factor Level Line Limit Remark _________ ______ ______ ______ ______ ______ ______ MHz dBuV dB dBuV dBuV dB 1 0.505 37.68 0.05 37.73 48.00 -10.27 Peak 2 1.005 34.49 0.08 34.57 48.00 -13.43 Peak 3 2.321 32.07 0.15 32.22 48.00 -15.78 Peak 4 4.952 28.23 0.27 28.50 48.00 -19.50 Peak 5 16.055 41.86 0.41 42.27 48.00 -5.73 Peak 6 24.015 40.10 0.49 40.59 48.00 -7.41 Peak No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 9File#: 9409.emi Date: 2001-06-18 Time: 13:28:25 Trace: 3 Ref Trace: Condition: VERTICAL / 3M Report No. : 01E9409 Test Engr. : VINCE CHIANG Company : VISION AUTOMOBILE ELECTRONICS INDUSTRIAL EUT : CE2Y-PPR Test Config : EUT/PC/MD/ME/MT/PRN Type of Test: FCC CLASS B Mode of Op. : Tx / Rx Mode Page: 1 Read Freq Level _________ ______ MHz dBuV 1 * 433.910 64.31 No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 7File#: 9409.emi Date: 2001-06-18 Time: 13:15:20 Trace: 3 Ref Trace: Condition: VERTICAL / 3M Report No. : 01E9409 Test Engr. : VINCE CHIANG Company : VISION AUTOMOBILE ELECTRONICS INDUSTRIAL EUT : CE2Y-PPR Test Config : EUT/PC/MD/ME/MT/PRN Type of Test: FCC CLASS B Mode of Op. : Tx / Rx Mode Page: 1 Read Limit Over Freq Level Factor Level Line Limit Remark _________ ______ ______ ______ ______ ______ ______ MHz dBuV dB dBuV/m dBuV/m dB 1 429.590 35.41 -6.38 29.03 46.00 -16.97 Peak 2 432.110 40.95 -6.35 34.59 46.00 -11.41 Peak 3 433.444 47.27 -6.33 40.94 46.00 -5.06 QP 4 435.221 46.87 -6.31 40.56 46.00 -5.44 QP 5 438.170 36.37 -6.28 30.10 46.00 -15.90 Peak 6 443.870 37.09 -6.20 30.88 46.00 -15.12 Peak 7 445.580 35.10 -6.18 28.92 46.00 -17.08 Peak 8 447.290 34.82 -6.16 28.66 46.00 -17.34 Peak No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 10File#: 9409.emi Date: 2001-06-18 Time: 13:28:53 Trace: 4 Ref Trace: Condition: HORIZONTAL / 3M Report No. : 01E9409 Test Engr. : VINCE CHIANG Company : VISION AUTOMOBILE ELECTRONICS INDUSTRIAL EUT : CE2Y-PPR Test Config : EUT/PC/MD/ME/MT/PRN Type of Test: FCC CLASS B Mode of Op. : Tx / Rx Mode Page: 1 Read Freq Level _________ ______ MHz dBuV 1 * 433.880 71.72 No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R.O.C. Tel:02-2217-0894 Fax:02-2217-1254 Data#: 8File#: 9409.emi Date: 2001-06-18 Time: 13:25:49 Trace: 4 Ref Trace: Condition: HORIZONTAL / 3M Report No. : 01E9…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: June 22, 2001 8 OF 14                           !"#$ %                   . 18. EUT SETUP PHOTOS Radiated Emission Setup Photos (Worst Emission Position) REPORT NO:01E9409 FCC ID: KFR-LSRR DATE: June 22, 2001 9 OF 14                           !"#$ %                   . Conduction Emission Setup Photos (Worst Emission Position)

Contact Information

Applicant

Sarah Wan(Manager)
[email protected]+886-6-2470776Fax: +886-6-2554484

Test Firm

Compliance Engineering ServicesSteve Hsu

Technical Specifications

#Rule PartsFrequency RangePower Output
115B433.92 MHz - 433.92 MHz-
