POWER PRESENTER PLUS 64/128 Part # PPRF64/128 Part # PPRF64/128Part # PPRF64/128 Part # PPRF64/128 Instruction Manual The POWER PRESENTER PLUS 64/128 remote is a handy, compact presentation tool. It allows the user to control slides in most presentation or slide show applications while storing up to 64 or 128MB of data on the internal Flash Memory Drive. The POWER PRESENTER PLUS remote includes a built in laser pointer. The kit includes: 64 or 128MB of Flash Random Access Memory (RAM), a remote with laser pointer (battery included), a receiver, a USB cable, one USB 1.1 hub port (used for connecting one additional USB device to your PC), and a nylon carrying case. The POWER PRESENTER PLUS uses radio frequency technology, so there is no need to point the remote at the receiver to control your slides. The maximum operating distance between the remote and the receiver is 100 feet, depending upon operating environment. System Requirements The system requires USB 1.1 or greater compatibility. The POWER PRESENTER PLUS 64/128 is “plug and play” compatible with MAC OS 10 or higher and Windows XP or higher. Connecting the Receiver to the Computer For maximum range, the receiver should be placed as far away as possible from any electronic devices. 1) Turn on your computer and let it fully boot-up (start-up). 2) Plug the Type-A end of the USB cable into the USB port on your computer (using the rectangular shaped end of the USB cable). 3) Plug the Type-B end of the USB cable into the USB port on the receiver (using the square shaped end of the USB cable). Note: Note:Note: Note: The Type-A USB port on the receiver is used for connecting additional USB devices to your computer through your Power Presenter Plus receiver unit. 4) The computer should automatically recognize the receiver as a new hardware after 5 to 15 seconds, depending on the computer. Follow the instructions for installing new hardware (you may need to load the necessary USB driver from your operating system disk). Once your computer has installed the receiver as new hardware it will not need to run through the same steps again. Next time you plug the receiver into the same computer, it will take about 5 to 10 seconds to recognize the receiver. During the 5 to 10 seconds there may be little or no indication that the computer is communicating with the receiver. 5) The USB memory drive should be recognized in the same process as above. If a driver is needed, please visit our website www.powerremote/resources_drivers.htm to download the required drivers. Using the USB Flash Drive 1) The USB Flash drive will be displayed on your desktop as a drive under Windows and the Mac OS. If the Flash Device is not automatically displayed you may need to load a USB Flash driver. This driver is available at our website www.powerremote/resources_drivers.htm . 2) Use the drive just as you would an internal or external drive. For presentations you may run them from your Flash drive or from the computer’s hard disk drive. In some cases, the presentation might run faster if the file is saved to the computer’s internal hard disk drive for the presentation. Connecting Another USB Device The USB Type-A, female port (rectangular shaped USB female connector) on your POWER PRESENTER PLUS 64 or 128 receiver is connected to an internal USB hub port. This port will allow you to connect other USB devices to your computer through your POWER PRESENTER PLUS 64 or 128 receiver unit. To use this port, simply connect a USB device with a Type-A connector into the port. Note: Note: Note: Note: USB 2.0 devices will work at USB 1.1 speeds when connected to this port as the POWER PRESENTER PLUS is a USB 1.1 compatible device. Training the Remote to the Receiver The remote has been trained into the receiver at the factory. The receiver can support up to 7 total remotes. To train a new remote, or re To train a new remote, or reTo train a new remote, or re To train a new remote, or re- -- -train an existing remote, into the receiv train an existing remote, into the receivtrain an existing remote, into the receiv train an existing remote, into the receiver: er:er: er: 1) Press and release the program button on the receiver. The LED lights solid. 2) Press the advance button (the largest button) on the remote three times. On the third press, the LED will turn off, indicating the remote has been successfully trained. To dele To deleTo dele To delete all of the remotes from the receiver: te all of the remotes from the receiver:te all of the remotes from the receiver: te all of the remotes from the receiver: 1) Press and hold the program button on the receiver. The LED will light for 3 seconds then go out. 2) Release the program button. Using the Remote After connecting the receiver properly, simply start your presentation or slide show software, put it in slide show mode, and press the remote’s larger advance button to advance the slides and the smaller reverse button to go back to the previous slide. Press the smallest button to activate the laser pointer. AVOID EXPOSURE - LASER RADIATION EMITTED FROM THIS APERATURE LASER ACTIVATION BUTTON REVERSE BUTTON ADVANCE BUTTON How to Change the Remote Keystrokes The Power Presenter Plus comes preprogrammed to use the commands page-up/advance (remote – top button), page-down/reverse (remote-middle button) and b for Blank screen (remote top and middle buttons simultaneously). For other applications, the user may wish to change the keystrokes. The Power Presenter has a predetermined list of available keystrokes. Setup: Setup:Setup: Setup: 1) With your computer fully logged-in and running. Plug the USB into the back of your computer. 2) Plug the Power Presenter Base/Receiver into the cable. 3) Launch a text editing software application (i.e. MS Word). 4) Open a blank document and display it as the front window of your monitor. Program Keys: Program Keys:Program Keys: Program Keys: 1) On the back of the Base/Receiver, press the Program Button three…

Text truncated - open the document above for the full version.

PPRF USB CONNECT USB HUB MCU DECODE IC RF FLASH MEMORY

Helen Zhao Subject: FW: ??: FW: VISION AUTOMOBILE ELECTRONICS INDUSTRIAL CO., LTD., F CC ID: KFR- LSRRFS, Assessment NO.: AN04T4126, Notice#1 Importance: High 10/4/2004 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, Oct. 4, 2004 4:33 AM To: Helen Zhao Subject: ??: FW: VISION AUTOMOBILE ELECTRONICS INDUSTRIAL CO., LTD., FCC ID: K FR-LSRRFS, Assessment NO.: AN04T4126, Notice#1 Importance: High Dear Helen Zhao: Question #1: The EUT is USB Pocket Point RF receiver. The USB portion is subject to either FCC DoC or certification under FCC equipment class JBP: Personal computer peripheral; The receiver portion is subject to certiification under FCC equipment class CYY: Communication receiver used with Part 15 transmitter. If USB portion is through FCC DoC procedure, please make sure to include FCC DoC labeling requirement on the FCC ID label format. If it is through certification process, you need to file as composite device. Two TCB submissions are necessary (one under JBP, one under CYY). Please confirm above assessment finding and inform what is desired action from the applicant. ---> Sorry for the inconvenience that brought you. Attached please find FCC_ID LAB.pdf! Question #2: The user manual (page 6) indicates "FCC ID: Transmitter: KFR-LSRT Receiver: KFR-LSRR" which does not match the FCC ID with this filing. For your information, FCC ID is not required to be included in the user manual. But if it is included, it should be consistent with the FCC ID with the fling. Please revise the user manual. --->Sorry about that!After confirming by our customer, they revised the Transmitter and Receiver to KFR-LSRTS and KFR-LSRRFS. Attached please find User Manual.pdf! Question #3: The user manual (page 5) indicates "Radio Frequency: 433 MHz". But all the other documents in the filing indicate the working frequency is 433.92 MHz and the device was tested at 433.92 MHz. Please revise the user manual to make it consistent with all the other documents. --->Sorry about that! Attached please find User Manual.pdf! Question #4: Please confirm whether this device is a Superregenerative Receiver. If it is, per Section 12.1.1.1 of ANSI C63.4, please provide coherent testing data. Otherwise, please update form 731 accordingly. ---> We would like to define this device (KFR-LSRRFS) is not a Superregenerative Receiver. Best regards, Joy 10/4/2004

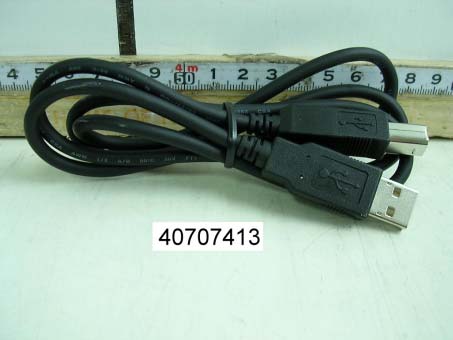

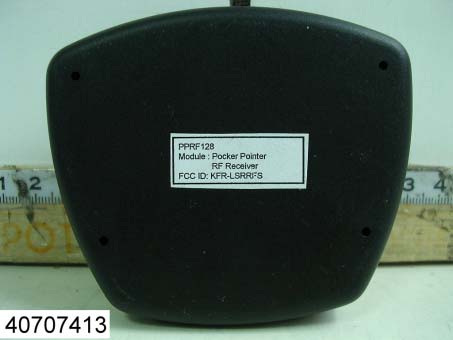

Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page

Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page Compliance Certification Services Inc. Report No: 40707413 Date of Issue: August 06, 2004 Page

Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page 1 FCC 47 CFR PART 15 SUBPART B TEST REPORT For USB Pocket Point RF Receiver Model: PPRF64/128 Trade Name: VISION Issued for Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..................................................................... 3 2 EUT DESCRIPTION............................................................................................. 4 3 TEST METHODOLOGY ..................................................................................... 5 3.1 EUT SYSTEM OPERATION ........................................................................ 5 3.2 DECISION OF FINAL TEST MODE........................................................... 5 4 SETUP OF EQUIPMENT UNDER TEST .......................................................... 6 5 FACILITIES AND ACCREDITATIONS ........................................................... 7 5.1 FACILITIES .................................................................................................... 7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................ 7 6 INSTRUMENT AND CALIBRATION ............................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ........................................ 8 6.2 TEST AND MEASUREMENT EQUIPMENT ............................................ 8 7 LINE CONDUCTED & RADIATED EMISSION TEST .................................. 9 7.1 LIMIT............................................................................................................... 9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION ................... 10 7.3 TEST PROCEDURE OF RADIATED EMISSION................................... 12 7.4 TEST RESULTS............................................................................................ 14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ........................................... 16 APPENDIX II - TEST RESULT OF FINAL DATAS........................................... 18 Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page 1 TEST RESULT CERTIFICATION Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan, Taiwan, R.O.C. Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan, Taiwan, R.O.C. Equipment Under Test: USB Pocket Point RF Receiver Trade Name: VISION Model: PPRF64/128 Detailed EUT Description: See Item 2 of this report Date of Test: July 15, 2004 & August 2, 2004 Applicable Standard Class / Limit Te s t R e s u l t FCC Part 15 Subpart B Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page 2 EUT DESCRIPTION Product USB Pocket Point RF Receiver Trade Name VISION Model PPRF64/128 Housing Type Plastic EUT Power Rating DC 5V from Host PC AC Power During Test 120VAC / 60Hz to Host PC Power Supply Manufacturer COMPAQ Power Supply Model Number DPS-250RB A AC Power Cord Type Unshielded, 1.8m (Detachable) OSC/Clock Frequencies 13.225MHz; 6MHz; 12MHz Receiver Frequency 433.92MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT EUT I/O Cable Type USB: Shielded, 1.4m (Detachable) Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: KFR-LSRRFS filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: KFR-LSRTS is compliance with FCC Part 15 Subpart C Rules. I/O PORT OF EUT I/O Port Type Q’TY TESTED WITH 1). USB Port 2 2 Note: Client consigns only one model sample (Model Number is PPRF64/128) to test. Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Windows XP boots system. 2. Select a PowerPoint file in EUT to execute and page up or down by remote controller. 3. Run Emctest.exe to activate all peripherals and display “H” pattern on the screen. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode(s) were scanned during the preliminary test: Conduction: 1. NORMAL MODE Radiation: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Conduction: Mode 1 Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page 4 SETUP OF E…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page APPENDIX I - PHOTOGRAPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services Inc. Report No: 40707413-F FCC ID: KFR-LSRRFS Date of Issue: August 06, 2004 Page RADIATED EMISSION TEST
