KFR-LSRTS433.92 MHz Pocket Point RF Remote Transmitter

POWER PRESENTER PLUS 64/128 Part # PPREM Part # PPRPart # PPRF Part # PPRF Instruction Manual The POWER PRESENTER PLUS 64/128 remote is a handy, compact presentation tool. It allows the user to control slides in most presentation or slide show applications while storing up to 64 or 128MB of data on the internal Flash Memory Drive. The POWER PRESENTER PLUS remote includes a built in laser pointer. The kit includes: 64 or 128MB of Flash Random Access Memory (RAM), a remote with laser pointer (battery included), a receiver, a USB cable, one USB 1.1 hub port (used for connecting one additional USB device to your PC), and a nylon carrying case. The POWER PRESENTER PLUS uses radio frequency technology, so there is no need to point the remote at the receiver to control your slides. The maximum operating distance between the remote and the receiver is 100 feet, depending upon operating environment. System Requirements The system requires USB 1.1 or greater compatibility. The POWER PRESENTER PLUS 64/128 is “plug and play” compatible with MAC OS 10 or higher and Windows XP or higher. Connecting the Receiver to the Computer For maximum range, the receiver should be placed as far away as possible from any electronic devices. 1) Turn on your computer and let it fully boot-up (start-up). 2) Plug the Type-A end of the USB cable into the USB port on your computer (using the rectangular shaped end of the USB cable). 3) Plug the Type-B end of the USB cable into the USB port on the receiver (using the square shaped end of the USB cable). Note: Note:Note: Note: The Type-A USB port on the receiver is used for connecting additional USB devices to your computer through your Power Presenter Plus receiver unit. 4) The computer should automatically recognize the receiver as a new hardware after 5 to 15 seconds, depending on the computer. Follow the instructions for installing new hardware (you may need to load the necessary USB driver from your operating system disk). Once your computer has installed the receiver as new hardware it will not need to run through the same steps again. Next time you plug the receiver into the same computer, it will take about 5 to 10 seconds to recognize the receiver. During the 5 to 10 seconds there may be little or no indication that the computer is communicating with the receiver. 5) The USB memory drive should be recognized in the same process as above. If a driver is needed, please visit our website www.powerremote/resources_drivers.htm to download the required drivers. Using the USB Flash Drive 1) The USB Flash drive will be displayed on your desktop as a drive under Windows and the Mac OS. If the Flash Device is not automatically displayed you may need to load a USB Flash driver. This driver is available at our website www.powerremote/resources_drivers.htm . 2) Use the drive just as you would an internal or external drive. For presentations you may run them from your Flash drive or from the computer’s hard disk drive. In some cases, the presentation might run faster if the file is saved to the computer’s internal hard disk drive for the presentation. Connecting Another USB Device The USB Type-A, female port (rectangular shaped USB female connector) on your POWER PRESENTER PLUS 64 or 128 receiver is connected to an internal USB hub port. This port will allow you to connect other USB devices to your computer through your POWER PRESENTER PLUS 64 or 128 receiver unit. To use this port, simply connect a USB device with a Type-A connector into the port. Note: Note: Note: Note: USB 2.0 devices will work at USB 1.1 speeds when connected to this port as the POWER PRESENTER PLUS is a USB 1.1 compatible device. Training the Remote to the Receiver The remote has been trained into the receiver at the factory. The receiver can support up to 7 total remotes. To train a new remote, or re To train a new remote, or reTo train a new remote, or re To train a new remote, or re- -- -train an existing remote, into the receiv train an existing remote, into the receivtrain an existing remote, into the receiv train an existing remote, into the receiver: er:er: er: 1) Press and release the program button on the receiver. The LED lights solid. 2) Press the advance button (the largest button) on the remote three times. On the third press, the LED will turn off, indicating the remote has been successfully trained. To dele To deleTo dele To delete all of the remotes from the receiver: te all of the remotes from the receiver:te all of the remotes from the receiver: te all of the remotes from the receiver: 1) Press and hold the program button on the receiver. The LED will light for 3 seconds then go out. 2) Release the program button. Using the Remote After connecting the receiver properly, simply start your presentation or slide show software, put it in slide show mode, and press the remote’s larger advance button to advance the slides and the smaller reverse button to go back to the previous slide. Press the smallest button to activate the laser pointer. AVOID EXPOSURE - LASER RADIATION EMITTED FROM THIS APERATURE LASER ACTIVATION BUTTON REVERSE BUTTON ADVANCE BUTTON How to Change the Remote Keystrokes The Power Presenter Plus comes preprogrammed to use the commands page-up/advance (remote – top button), page-down/reverse (remote-middle button) and b for Blank screen (remote top and middle buttons simultaneously). For other applications, the user may wish to change the keystrokes. The Power Presenter has a predetermined list of available keystrokes. Setup: Setup:Setup: Setup: 1) With your computer fully logged-in and running. Plug the USB into the back of your computer. 2) Plug the Power Presenter Base/Receiver into the cable. 3) Launch a text editing software application (i.e. MS Word). 4) Open a blank document and display it as the front window of your monitor. Program Keys: Program Keys:Program Keys: Program Keys: 1) On the back of the Base/Receiver, press the Program Button three (3) times. Keyboard com…

Text truncated - open the document above for the full version.

LASER TX SW 1 & 2 SW3 HCS 300 Transmitter LASER MODULE

Helen Zhao Subject: FW: VISION AUTOMOBILE ELECTRONICS INDUSTRIAL CO., LTD., FCC ID: K FR-LSRTS, Assessment NO.: AN04T4125, Notice#1 Importance: High 9/27/2004 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, September 27, 2004 4:52 AM To: Helen Zhao Subject: RE: VISION AUTOMOBILE ELECTRONICS INDUSTRIAL CO., LTD., FCC ID: K FR-LSRTS, Assessment NO.: AN04T4125, Notice#1 Importance: High Dear Helen: Question #1: Page 9 of the test report indicated the test results for both botton #1 and botton #2, but only the plots of button #1 were provided. Please provide the duty cycle plots and bandwidth plot for botton #2. --->Sorry about that! Attached please find 40707411-RP _Vision PPREM_.pdf! Question #2: The user manual (page 6) indicates "FCC ID: Transmitter: KFR-LSRT Receiver: KFR-LSRR" which does not match the FCC ID with this filing. For your information, FCC ID is not required to be included in the user manual. But if it is included, it should be consistent with the FCC ID with the fling. Please revise the user manual. --->Sorry about that!After confirming by our customer, they revised the Transmitter and Receiver to KFR-LSRTS and KFR-LSRRFS. Attached please find User Manual.pdf! Question #3: The user manual (page 5) indicates "Radio Frequency: 433 MHz". But all the other documents in the filing indicate the working frequency is 433.92 MHz and the device was tested at 433.92 MHz. Please revise the user manual to make it consistent with all the other documents. --->Sorry about that! Attached please find User Manual.pdf! Question #4: This is for your information, please do fill in frequency range on the FCC 731 form. In this case, please fill in from 433.92 MHz to 433.92 MHz as Frequency range. --->Thanks for your information. Best regards, JOy Hsiao

Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page

FCC ID LABEL FORMAT AND LOCATION Applicant: Vision Automobile Electronics Industrial Co., Ltd. FCC ID: KFR-LSRTS FCC ID: KFR-LSRTS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411 FCC ID: KFR-LSRTS Page

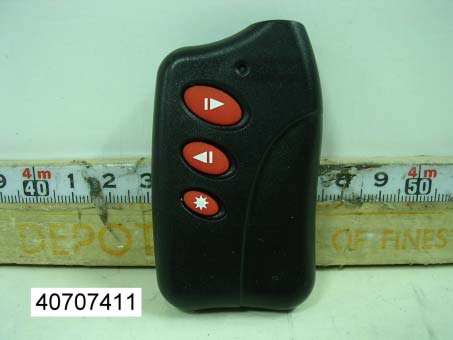

Pocket Point RF Remote Operational Description The pocket Point RF Remote is a low powered, for controlling power point presentation software on notebook and desktop personal computers, the third channel with laser light output. The transmitter is powered by a 3 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 2 button trigger the integrated circuit (U1) which produces digital control and will modulate the carrier signal (ASK). The carrier signal is generated by a SAW (X1), Q1, Q2. The modulated output of the RF stage is coupled to the on board antenna. The on board antenna is attached on PCB around 160 mm. The transmitter is manually operated by the button pushed momentarily within 3 seconds and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

42671.DSN LASER POINT 433.92MHZ SAW SS A 11 Tuesday, June 29, 2004 D:\WORK\CLPAN-NEW\42671-LASER TX SAW\42671.DSN TitleSize Document Number Rev Date: Sheet of VCC VCC VCC VCC VCC DATA IN DATA IN BT13V 12 SW1CH-1 1 2 U1HCS 300 S0 1 S1 2 S2 3 S3 4 VSS 5 PWM 6 LED 7 VDD 8 JP1 4 HEADER 1234 LED1LED 1 2 SW2CH-2 1 2 SW3 1 2 R31K 12 JP2HEADER 2 12 C9104 12 R1100K 1 2 C55P 12 C65.6P 1 2 C73P 12 ANT 12 L110nH 1 2 X1 433.92MHZ/±75KHZ EPCOS 12 C8X 12 C22P 12 C42P 1 2 R2100 12 Q12SC3356 3 2 1 Q22SC3356 3 2 1 L227nH 12 C1390P 12 C3390P 12

Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 1 of 21 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of 433.92 MHz Pocket Point RF Remote Transmitter FCC ID Number : KFR-LSRTS Trade Name : VISION Model Number : PPREM Agency Series : N/A Report Number : 40707411-RP Date : July 26, 2004 Prepared for Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ..............................................................3 2. PRODUCT DESCRIPTION................................................................................4 3. TEST FACILITY..................................................................................................4 4. MEASUREMENT STANDARDS ......................................................................4 5. TEST METHODLOGY .......................................................................................4 6. MEASUREMENT EQUIPMENT USED ..........................................................5 7. POWERLINE RFI LIMIT ..................................................................................5 8. RADIATED EMISSION LIMITS ......................................................................6 9. SYSTEM TEST CONFIGURATION ................................................................6 10. TEST PROCEDURE ............................................................................................7 11. EQUIPMENT MODIFICATIONS.....................................................................8 12. TEST RESULT .....................................................................................................9 12.1. MAXIMUM MODULATION PERCENTAGE (M%) ................................9 12.2. THE EMISSIONS BANDWIDTH ..................................................................9 APPENDIX I TEST DATA.......................................................................................10 Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan, Taiwan, R.O.C. CONTACT PERSON : Joy Wu TELEPHONE NO. : 06-2551269 EUT DESCRIPTION : 433.92 MHz Pocket Point RF Remote Transmitter MODEL NAME/NUMBER : PPREM FCC ID : KFR-LSRTS DATE TESTED : July 12, 2004 REPORT NUMBER : 40707411-RP TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Pocket Point RF Remote Transmitter MEASUREMENT PROCEDURE ANSI 63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: PPRF64/128 / FCC ID: KFR-LSRRFS 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # J Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS J Site N/A 09/26/2004 MEASURE RECEIVER SCHAFFNER SCR3501 330 06/27/2005 SPECTRUM ANALYZER ADVANTEST R3132 120900003 11/04/2004 ANTENNA SCHAFFNER CBL 6112B 2800 09/27/2004 PRE- AMPLIFIER SCHAFFNER CPA9231A 3629 10/10/2004 CABLE BELDEN 9913 N-TYPE #J1 10/10/2004 ATTENUATOR MCL UNAT-6 AT06-8 12/10/2004 THERMO- HYGRO METER TFA N/A NO.3 11/23/2004 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BAT…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Date of Issue: August 05, 2004 Report No: 40707411-RP FCC ID: KFR-LSRTS Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
