KFR-SAIC2Car Alarm Remote Transmitter

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:- (1) This device may not cause harmful interference. (2) This device must accept any interference received : including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio of TV interference caused by unauthorized modification to this equipment. Such modification could void the user’ authority to operate the equipment.

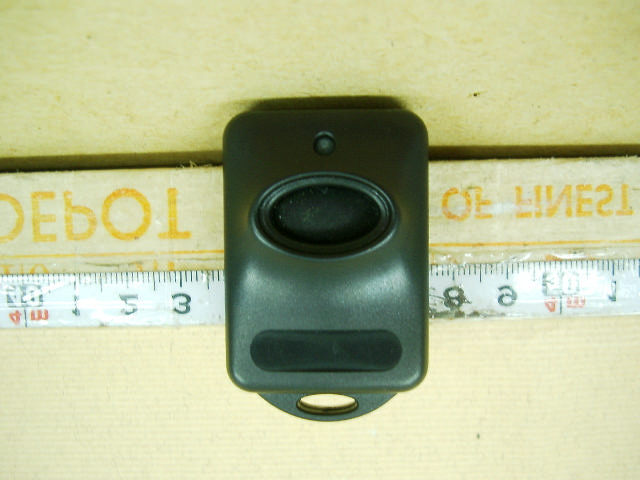

External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Vision Automobile Electronics Industrial Co., Ltd. FCC ID: KFR-SAIC2 FCC ID: KFR-SAIC2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Internal of EUT

Operational Description The SAIC transmitter is a low powered, hand held unit for remote controlling the home security and other features. See the function descriptions in attached. The transmitter is powered by a 6 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There is button trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a S.A.W oscillator/amplifier circuit comprised of a 433.92 MHz crystal (X1) and npn transmitter (Q1). The modulated output of the RF stage is coupled to the strip antenna. The strip antenna is attached on PCB around 80mm. The transmitter is manually operated by the buttons pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

A 11Thursday, December 19, 2002 Title SizeDocument NumberRev Date:Sheetof SW1 SW PUSHBUTTON 12 U1 HCS 300 S0 1 S1 2 S2 3 S3 4 VSS 5 PWM 6 LED 7 VDD 8 BT1 6V 1 2 JP1 4 HEADER 1 2 3 4 R3 3K 12 D1 LED 1 2 L1 150nH L2 R1 22K 12 C2 3P 1 2 C5 102 1 2 X1 433.92MHz 12 C3 104 1 2 Q1 MMBTH10 3 1 2 R2 47nH 1 2 C7 470P 1 2

Report Number: 02E0693-D December 23, 2002 Page 1 of 14 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transmitter FCC ID Number : KFR-SAIC2 Trade Name : N/A Model Number : CEREM1-SANEW Agency Series : N/A Report Number : 02E0693-D Date : December 23, 2002 Prepared for : Vision Automobile Electronics Industrial Co., Ltd. NO. 17, ALLEY 92, LANE 189, SEC. 1, AN CHUNG RD., TAINAN, TAIWAN, R.O.C. Prepared by : C&C LABORATORY CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Report Number: 02E0693-D December 23, 2002 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................3 2. PRODUCT DESCRIPTION.....................................................................4 3. TEST FACILITY.......................................................................................4 4. MEASUREMENT STANDARDS.............................................................4 5. TEST METHODLOGY............................................................................4 6. MEASUREMENT EQUIPMENT USED.................................................5 7. POWERLINE RFI LIMIT........................................................................5 8. RADIATED EMISSION LIMITS.............................................................6 9. SYSTEM TEST CONFIGURATION.......................................................6 10. TEST PROCEDURE................................................................................7 11. EQUIPMENT MODIFICATIONS...........................................................8 12. TEST RESULT..........................................................................................9 12.1. MAXIMUM MODULATION PERCENTAGE(M%)...........................9 12.2. THE EMISSIONS BANDWIDTH.........................................................9 APPENDIX 1 PHOTOGRAPHS OF EUT....................................................10 APPENDIX 2 TEST DATA...........................................................................14 Report Number: 02E0693-D December 23, 2002 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Vision Automobile Electronics Industrial Co., Ltd. NO. 17, ALLEY 92, LANE 189, SEC. 1, AN CHUNG RD., TAINAN, TAIWAN, R.O.C. CONTACT PERSON : Jessica Chang TELEPHONE NO. : (886-6) 255-1269 EUT DESCRIPTION : Car Alarm Transmitter MODEL NAME/NUMBER : CEREM1-SANEW FCC ID : KFR-SAIC2 DATE TESTED : December 18, 2002 REPORT NUMBER : 02E0693 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transmitter MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by C&C Laboratory Co., Ltd. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Engineering Services, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C Laboratory Co., Ltd. will constitute fraud and shall nullify the document. James Chan / Manager C&C Laboratory Co., Ltd. Report Number: 02E0693-D December 23, 2002 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 6V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: SAIC (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: 02E0693-D December 23, 2002 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8595EM Spectrum Analyzer (9KHz – 6.5GHz) 02/2003 H.P. 8593A Spectrum Analyzer (9KHz-22GHz) 01/2003 EMCO 3115 Antenna (1-18GHz) 02/2003 SCHWARZBECK VULB 9160 Antenna (30-2000 MHz) 05/2003 H.P. 8447D Amplifier 05/2003 H.P. 8449B Amplifier (1-26.5GHz) 02/2003 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: 02E0693-D December 23, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Report Number: 02E0693-D December 23, 2002 Page 7 Rev. 00 10. TEST PROCEDURE Radiated Emissions, 15.231(4)(b) Test Set-up for frequency …

Text truncated - open the document above for the full version.

02E0693 0693D1 2002/12/18 STANLEY HUANG Vision Automobile Electronics Industrial Co., Ltd. CEREM1-SANEW (433.92MHz / Car Alarm Transmitter) EUT ONLY FCC 15.231(b) NORMAL MODE M% = ((t1+t2+t3+...)/T) * 100% = 41.7 %Av Reading = Pk Reading + 20*log(M%) 20*log(M%) =-7.5973 Freq.Pk Rdg Av RdgAFCloss Pre-ampLevelLimitMarginPolAzHeight (MHz)(dBuV) (dBuV)(dB)(dB)(dB)(dBuV/m) FCC_B(dB)(H/V)(Deg)(Meter) Button #1: X 434.1270.3462.7418.143.1920.8363.2480.83-17.593mV2701.00 868.2444.2636.6624.135.0520.2645.5860.83-15.253mV2701.20 Y 434.1386.0478.4418.143.1920.8378.9480.83-1.893mV01.00 868.2451.7644.1624.135.0520.2653.0860.83-7.753mV01.30 Z434.1384.6877.0818.143.1920.8377.5880.83-3.253mV901.00 868.2450.4742.8724.135.0520.2651.7960.83-9.043mV901.40 X 434.1282.7375.1318.143.1920.8375.6380.83-5.203mH901.00 868.2444.8937.2924.135.0520.2646.2160.83-14.623mH901.50 Y 434.1381.7374.1318.143.1920.8374.6380.83-6.203mH1801.00 868.2647.6640.0624.135.0520.2648.9860.83-11.853mH1801.40 Z434.1380.1872.5818.143.1920.8373.0880.83-7.753mH2701.10 868.2446.7439.1424.135.0520.2648.0660.83-12.773mH2701.30 Peak: RBW= 120KHz VBW= 300KHz A(Average): Pk Reading - 7.5973dB Total Data #12 Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: Project #: Report #: Date& Time: Test Engr: D-Site nmlkji D-Site nmlkji FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP Hsin Tien City, Taipei, Taiwan, R.O.C. PHONE: 02-2217-0894 FAX: 02-2217-1254 No. 199 Chung Sheng Road 02E0693 0693D2 2002/12/18 STANLEY HUANG Vision Automobile Electronics Industrial Co., Ltd. CEREM1-SANEW (433.92MHz / Car Alarm Transmitter) EUT ONLY FCC 15.231(b)/FCC 15.209 NORMAL MODE Freq.Pk Rdg Av RdgAFCloss Pre-ampLevelLimitMarginPolAzHeigh tMark (MHz)(dBuV) (dBuV)(dB)(dB)(dB)(dBuV/m) FCC_B(dB)(H/V)(Deg) (Meter)(P/Q/A) 130262.59 54.99324.93.637.0746.3954.0-7.613mV01.0A 173763.91 56.31326.44.436.4750.6560.8-10.183mV01.0A 217158.72 51.12327.84.536.0647.2860.8-13.523mV01.0A 260551.43 43.83328.85.636.0242.2760.8-18.533mV01.0A 303953.17 45.57330.45.836.0645.7060.8-15.103mV01.0A 347351.60 44.00331.36.135.6445.7560.8-15.083mV01.0A 390748.61 41.01332.36.735.2144.7854.0-9.223mV01.0A 434149.35 41.75332.47.235.1746.0954.0-7.913mV01.0A 130269.71 62.11324.93.637.0753.5154.0-0.493mH01.0A 173767.16 59.56326.44.436.4753.9060.8-6.933mH01.0A 217063.03 55.43327.84.536.0651.5960.8-9.213mH01.0A 260551.00 43.40328.85.636.0241.8460.8-18.963mH01.0A 303959.69 52.09330.45.836.0652.2260.8-8.583mH01.0A 347358.55 50.95331.36.135.6452.7060.8-8.133mH01.0A 390755.15 47.55332.36.735.2151.3254.0-2.683mH01.0A 434154.87 47.27332.47.235.1751.6154.0-2.393mH01.0A * No other emission were found within 20dB under the limits upto 4.5 GHz. Total data #16P(Peak): RBW=VBW=1MHz V.2dA(Average): Pk Reading -7.5973dB Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: Project #: Report #: Date& Time: Test Engr: D-Site nmlkji D-Site nmlkji FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP Hsin Tien City, Taipei, Taiwan, R.O.C. PHONE: 02-2217-0894 FAX: 02-2217-1254 No. 199 Chung Sheng Road

Report Number: 02E0693-D December 23, 2002 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
