KFR-WTX-01Transmitter Watch

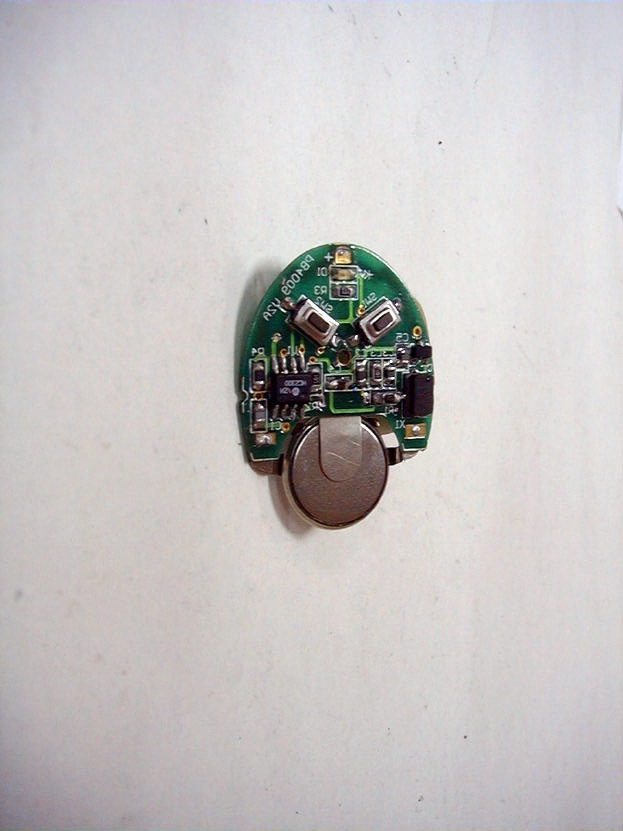

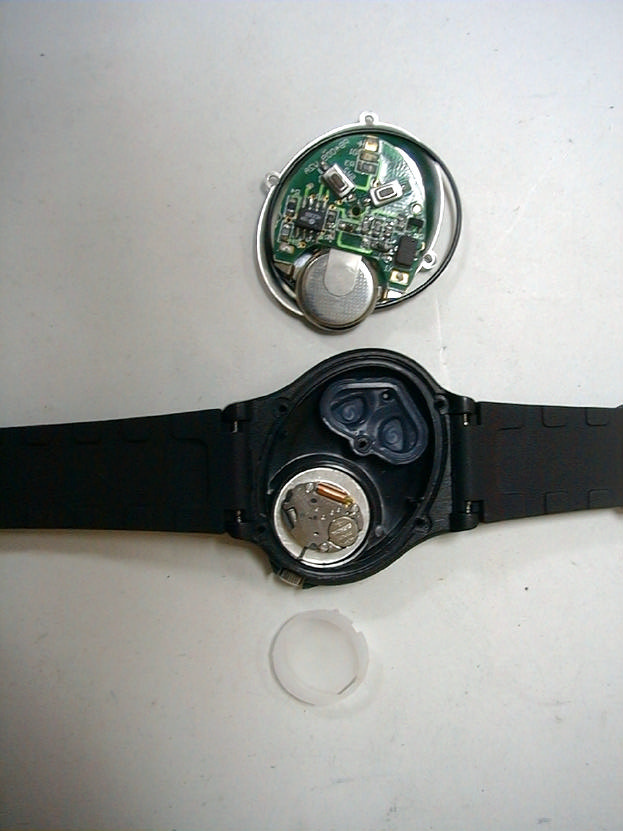

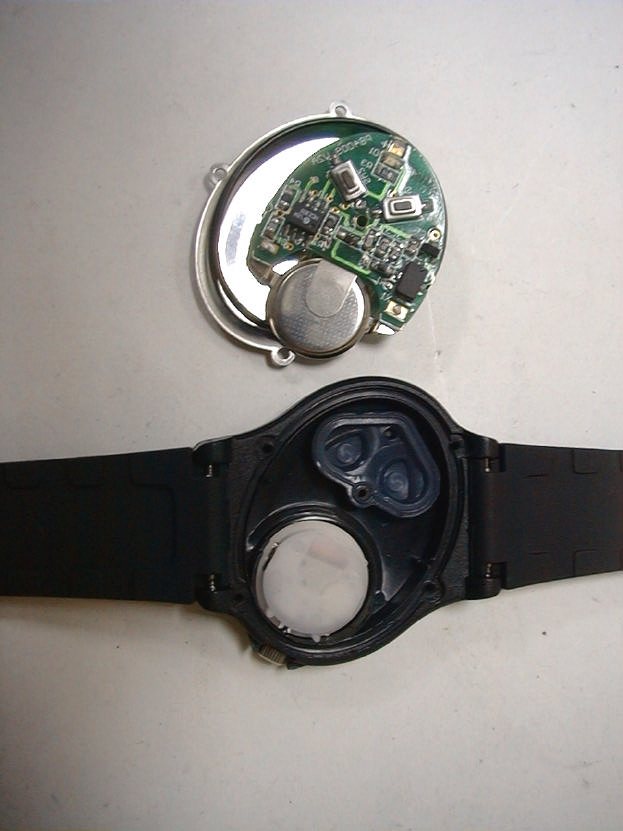

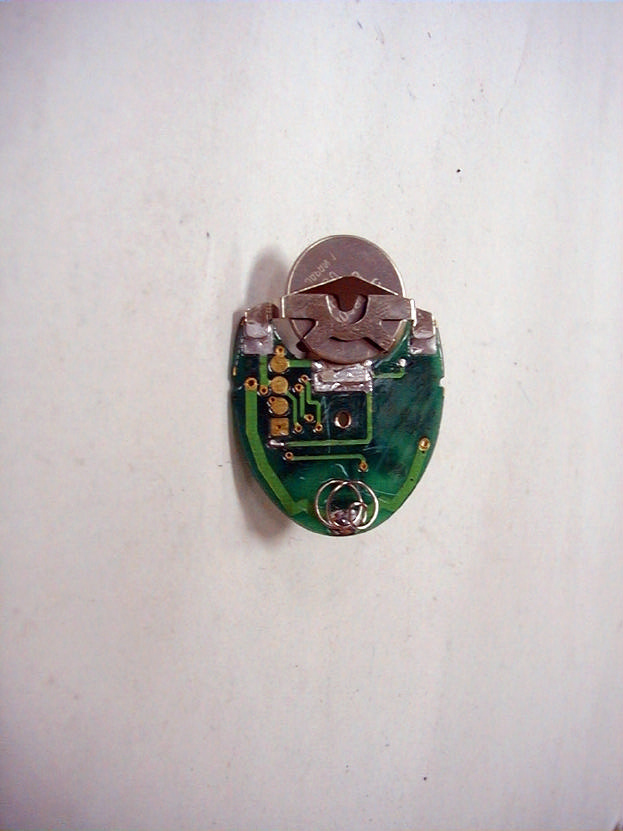

EXHIBIT F Photographs of EUT

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:WTX – 01 FCC ID:KFR–WTX – 01 LABEL Size: 35 X 20 mm LABEL Position:

EXHIBIT B Test Report Test Report -------------------------------------------------------------------------------------------------------------- 2/21 Report No.: V1115121, Transmitter Watch, FCC Part 15, Class B – Certification Test date: 01/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents Chapter 1GENERAL 1.1Introduction.................................................................................................................4 1.2Description of EUT.....................................................................................................4 1.3Description of Support Equipment..............................................................................4 1.4Test Procedure.............................................................................................................5 1.5Location of the Test Site..............................................................................................5 1.6General Test Condition................................................................................................5 Chapter 2Transmitter Duty Cycle Measurements 2.1Test Condition and Setup............................................................................................6 2.2List of Instruments......................................................................................................7 2.3Test Configuration.......................................................................................................8 2.4 Test Result...................................................................................................................9 Chapter 3Transmitter Bandwidth Measurements 3.1Test Condition and Setup...........................................................................................10 3.2 Test Result..................................................................................................................10 Chapter 4Conducted Emissions Measurements.....................................11 Test Report -------------------------------------------------------------------------------------------------------------- 3/21 Report No.: V1115121, Transmitter Watch, FCC Part 15, Class B – Certification Test date: 01/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Chapter 5Radiated Emissions Measurements 5.1General Configuration................................................................................................12 5.2Test Condition and Setup...........................................................................................12 5.3List of Test Instruments..............................................................................................14 5.4Test Instruments Configuration..................................................................................15 5.5Test Result of Radiated missions...............................................................................17 TABLES Table 1Open Field Radiated Emissions For 30MHz ~ 1GHz [HORIZONTAL]............17 Table 2Open Field Radiated Emissions For 1GHz ~ 18GHz [HORIZONTAL]............18 Table 3Open Field Radiated Emissions For 30MHz ~ 1GHz [VERTICAL]..................19 Table 4Open Field Radiated Emissions For 1GHz ~ 18GHz [VERTICAL]..................20 Appendix A List of Modifications.........................................................................................................21 Test Report -------------------------------------------------------------------------------------------------------------- 4/21 Report No.: V1115121, Transmitter Watch, FCC Part 15, Class B – Certification Test date: 01/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Chapter 1 GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an Intentional Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT:Transmitter Watch Model No.:WTX-01 FCC ID:KFR-WTX-01 Frequency Range:Operated in 303.810 MHz Power Type:Powered by CR-1616 size, 3V battery Applicant:VISION AUTOMOBILE ELECTRONICS INDUSTRIAL CO., LTD. Applicant address:No. 17, Alley 92, Lane 189, An Chung Rd., Sec. 1, Tainan, Taiwan , R.O.C. The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position which transmit the maximum emission. 1.3Description of Support Equipment The EUT itself forms a system. No support equipment is requited for its normal operation. Test Report -------------------------------------------------------------------------------------------------------------- 5/21 Report No.: V1115121, Transmitter Watch, FCC Part 15, Class B – Certification Test date: 01/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 1.4Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13. 1.5Location of the Test Site The radiated emission measurement required by the rule were performed on the three- meter, open-field test site maintained by Training Research Co., Ltd., 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Complete description data have been placed on file with the Commission. The conducted power line emissions tests were performed in a shielded enclosure also located at the above facility. Training Research Co., Ltd. Listed is by the FCC as a facility available to do measurement work for other on a contract basis. 1.6General Test Condition The conditions under which the EUT operates were varied to deter…
