Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Federal Communications Commission Statement This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reside ntial installation. This equipment generates, uses and can radiate radio frequency ene rgy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference wi ll not occur in a particular installation. If this equipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following mea sures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and r eceiver, Consult the dealer or an experienced radio/TV techn ician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmf ul interference, and (2) this device must accept any interference received, including in terference that may cause undersired operation. FCC Caution: Any changes or modifications not expre ssly approved by the party responsible for compliance could void the user’s au thority to operate this equipment. Limited Warranty Vision Guarantees that every wireless lighting modu le is free from physical defects in material and workmanship under normal use for one y ear from the date of purchase. If the product proves defective during this one-year warra nty period, Vision will replace it free of charge. Vision does not issue any refunds. This war ranty is extended to the original end user purchase only and is not transferable. This wa rranty does not apply to : (1) damage to units caused by accident, dropping or abuse in h andling, or any negligent use; (2) units which have been subject to unauthorized repair, tak en apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation c osts, removal cost, or reinstallation cost. For information on addional devices, plesae visit u s at www.visionsecurity.com.tw -3- Operation Manual 2GIG-Z-BRG1-433 Z-Wave Bridge – 433MHz 2GIG-Z-BRG1- 433 V0 1011218 Introduction Thanks for choosing the Vision’s CT Clamp Bridge of the home automation device. This module is a Z-Wave TM enabled device (interoperable, two-way RF mesh net working technology) and is fully compatible with any Z-Wave TM enabled network. Every main powered Z-Wave TM enabled device acts as a signal repeater and multip le devices result in more possible transmission routes which helps elimi nate “RF dead-sport”. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with it regardless of the manufacturer, and ours can also b e used in other manufacturer’s Z-Wave TM enabled networks. This module will receive the mo st update energy usage from CT Clamp, and send to the controller by its si gnal. This module will also send dimmer signal to the appliance that attached to thi s module by receiving Z-Wave TM signal from controller or manually switch. With special d esign, this module won’t interfere the other power outlet when plug into the AC outlet. T his module also acts as repeater (supporting FLiRS). Product Description and Specification * For indoor use * Specification: Package Content: Protocol: Z-Wave TM (ZM3102N) Frequency Range: 908.42MHz (2GIG-Z-BRG1-433) Operating Range: Up to 100 feet line of sight Operating Temp.: -15 °C ~ 60 °C (5 °F ~140 °F ) Operating Voltage: 120V~, 15A, 60Hz For 2GIG-Z-BRG1-433 only Max. Load: 300W for Resistive Load -1- 1pc 2GIG-Z-BRG1-433 (CT Clamp Bridge) 1pc User Manual Z-Wave ™ ™™™ Command Class: COMMAND_CLASS_SWITCH_MULTILEVEL (Mapping COMMAND_CLASS_BASIC) COMMAND_CLASS_SWITCH_ALL COMMAND_CLASS_METER_V2 COMMAND_CLASS_PROTECTION COMMAND_CLASS_VERSION COMMAND_CLASS_MANUFACTURER_SPECIFIC Operation If you are installing the entire Z-Wave TM system for the first time, please refer to the installation guide of Z-Wave TM Interface Controller before installing 2GIG-Z-BRG1 -433. 1. Learning CT Clamp: Press program button before p ower on and green LED will flash 3 times, release the button till the green LED stay on. Switch on the CT Clamp. LED shall go off after learning. 2. For “ Inclusion ” in (adding to) a network: Put the Z-Wave TM Interface Controller into “inclusion” mode, and following its instruction to add the 2GIG-Z-BRG1-433 into your controller. To get in the “Inclusion” mode, the di stance between 2GIG-Z-BRG1-433 and controller is suggested to be in one meter. Us er can press program switch once to be included. For “ Exclusion ” from (removing from) a network: Set up the Z-Wave TM Interface Controller into “exclusion” mode, and following its instruction to delete the 2GIG-Z-BRG1-433 from your controller. Press progra m button to be excluded. 3. 2GIG-Z-BRG1-433 will store the latest energy usa ge (W & kWh) from CT Clamp, and send to controller if the controller is asking for information. 4. Manually turn the connected lighting On/Off by y our controller or pressing the program button. This is toggle switch. If the lig ht is Off, pressing the button turns the light On and vice versa. User can also adjust the brightness level of the connected lighting by your controller or pressing a nd holding the program button. Release the button when the desired level is attain ed. This is toggle function. The lighting will dim until the minimum level is attain ed or the button is released. The next time the button is pressed and held, the level will increase until the maximum level is attained or the button is released. 5. Protection Function: User can use the Protection command class to disable the Program Switch. (1) Protection State=0x00 …
Text truncated - open the document above for the full version.
Specification of Antenna Model No.: 2GIG-Z-BRG1-(433RF) Antenna Type: Wire Antenna Length Closed: 88mm Length Open: N/A Diameter: 4.5mm No. of element: N/A Antenna Gain: -10 dbi Total Resistance: 1.5Ω Temperature: -20°C ~ 70°C
Specification of Antenna Model No.: 2GIG-Z-BRG1-(Z-WAVE) Antenna Type: PCB Antenna Length Closed: 73mm Length Open: N/A Diameter: 2mm No. of element: N/A Antenna Gain: -13 dBi Total Resistance: 1.7Ω Temperature: -20°C ~ 70°C

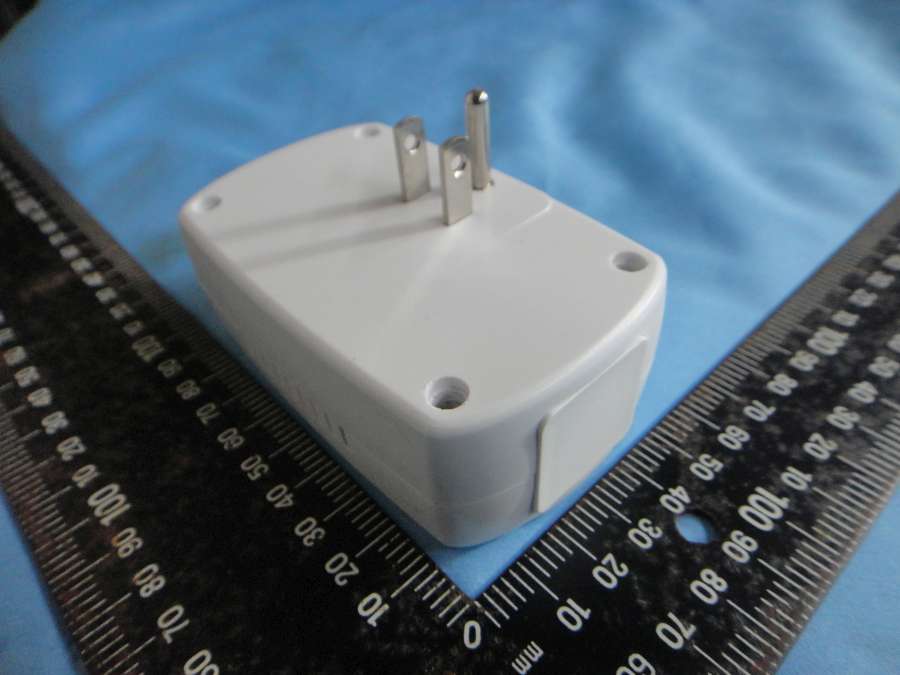

Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 1 Total Page: 6 Rev. 00 PHOTOGRAPHS OF EUT EXTERNAL PHOTO
Diagram Label location Label location Model: 2GIG-Z-BRG1-433 FCC ID:KFR-ZBRG433 IC:3318A-ZBRG433 Model: 2GIG-Z-BRG1-433 FCC ID:KFR-ZBRG433 IC:3318A-ZBRG433
Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 2 Rev. 00 INTERNAL PHOTO Antenna 2 Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 3 Rev. 00 Antenna 1 Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: T130307N01-RP1 Date of Issue: May 15, 2013 Page 6 Rev. 00
Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 32 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2009 TEST REPORT For Z-Wave Bridge Model: 2GIG-Z-BRG1-433 Brand: Vision Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: May 15, 2013 Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 2 / 28 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 15, 2013 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 3 / 28 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION...............................................................................................6 3.2 EUT EXERCISE...........................................................................................................6 3.3 GENERAL TEST PROCEDURES ...............................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ...................................7 3.5 DESCRIPTION OF TEST MODES ..............................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..............................................................8 4.2 MEASUREMENT EQUIPMENT USED ........................................................................8 4.3 MEASUREMENT UNCERTAINTY...............................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ................................................................................................................10 5.2 EQUIPMENT..............................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................10 5.1 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..........................................................................12 6.2 SUPPORT EQUIPMENT ...........................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH ..................................................................................................13 7.2 BAND EDGES MEASUREMENT...............................................................................15 7.3 SPURIOUS EMISSION..............................................................................................16 7.4 POWERLINE CONDUCTED EMISSIONS.................................................................26 APPENDIX I PHOTOGRAPHS OF TEST SETUP....................................................29 APPENDIX II PHOTOGRAPHS OF EUT ................................................................ A1 Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 4 / 28 1. TEST RESULT CERTIFICATION Product: Z-Wave Bridge Model: 2GIG-Z-BRG1-433 Brand: Vision Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Tested: April 3, 2013 – April 17, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 5 / 28 2. EUT DESCRIPTION Product Z-Wave Bridge Model Number 2GIG-Z-BRG1-433 Brand Name Vision Received Date March 7, 2013 Frequency Range 908.42MHz ± 20kHz Transmit Peak Power 89.49 dBμV/m Data Rate 9.6kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply 120Vac, 60Hz Antenna Type Antenna 1: Manufacturer: Vision Model: 2GIG-Z-BRG1-(433RF) Type: Wire Gain: -10 dBi Antenna 2: Manufacturer: Vision Model: 2GIG-Z-BRG1-(Z-WAVE) Type: PCB Gain: -13 dBi Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: 2GIG-Z-BRG1-433). Therefore, the testing Lab. just…
Text truncated - open the document above for the full version.
Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 29 / 28 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 30 / 28 RADIATED RF EMISSION MEASUREMENT SETUP(FOR TX) Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 31 / 28 Compliance Certification Services Inc. FCC ID: KFR-ZBRG433 Report No.: T130307N01-RP1 Page 32 / 28 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
No.8,Jiucengling, Xinhua Dist., · Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 908.42 MHz - 908.42 MHz | - |
