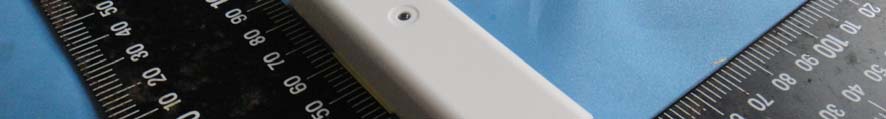

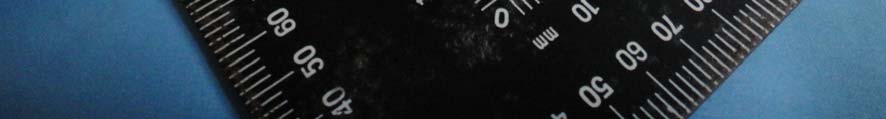

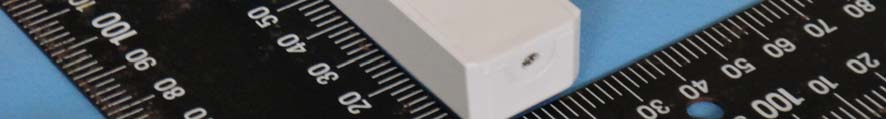

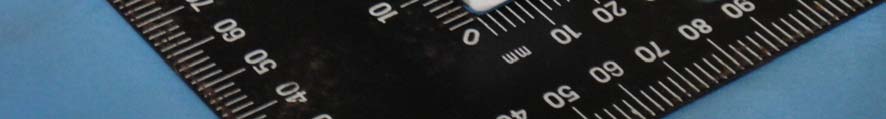

Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A1 Total Page: 6 Rev. 00 PHOTOGRAPHS OF EUT External Photo
Diagram Label location Label location FCC ID:KFR-ZD2102US
Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A2 Rev. 00 Internal Photo Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A3 Rev. 00 Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A4 Rev. 00 Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A5 Rev. 00 Compliance Certification Services Inc. Report No.:T110301402 Date of Issue: March 24 , 2011 Page A6 Rev. 00
Specification of Antenna Model No.: ZD 2102 Antenna Type: Wire Antenna Length Closed: 80mm Length Open: N/A Diameter: 0.9mm No. of element: N/A Antenna Gain: -10 dbm Total Resistance: 1.5Ω Temperature: -20°C ~ 70°C
Description of Operation The EUT is a Z-Wave door sensor, it acts when reed switch(SW1) or tamper switch(SW3A) has been triggered, the MCU(U2) will receive the trigger report and forward it to ZM3102N(U1) via radio frequency to transmit the data to control unit for two-way communication 1. Opening the door/window to separate the magnet from the sensor will send the status of "ON"(Basic Set,Value:0xFF) to any associated nodes, and the LED will flash once. 2. Closing the door/window to align the magnet with the sensor will send the status of "OFF"(Basic Set,Value:0x00) to any associated nodes, and the LED will flash once. 3. Normal operation, the LED will not light. 4. The ZD2102 sensor equipped with tamper switch. If the cover of sensor is removed, the door sensor will send an alarm report (type:01, level:11) to the Z-Wave Interface Controller, and the LED will go solid. Before replacing the cover, the sensor is under “Awake" mode. The device adapts FSK modulation. And the antenna was a Wire Antenna, RF Data rate 9.6 kbps / 40kbps Modulation Frequency Shift Keying (FSK) Frequency deviation Center frequency 908.42MHZ ± 20kHz
Compliance Certification Services Inc. Report No.: T110301402-RP1 FCC ID: KFR-ZD2102US Date of Issue: April 10, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 32 Rev. 00 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2009 TEST REPORT For Z-WAVE DOOR SENSOR Model: ZD2102 Trade Name: N/A Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Ceng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: April 10, 2011 Compliance Certification Services Inc. Report No.: T110301402-RP1 FCC ID: KFR-ZD2102US Date of Issue: April 10, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................ 3 2. EUT DESCRIPTION ........................................................................................................ 4 3. TEST METHODOLOGY................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................... 5 3.2 EUT EXERCISE................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES........................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ...................................... 6 3.5 DESCRIPTION OF TEST MODES.......................................................................................... 6 4. INSTRUMENT CALIBRATION .................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ...................................................................... 7 4.3 MEASUREMENT UNCERTAINTY............................................................................ 8 5. FACILITIES AND ACCREDITATIONS ...................................................................... 9 5.1 FACILITIES....................................................................................................................... 9 5.2 EQUIPMENT..................................................................................................................... 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS...................................................................... 9 5.1 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST ................................................................... 11 6.1 SETUP CONFIGURATION OF EUT..................................................................................... 11 6.2 SUPPORT EQUIPMENT ............................................................................................ 11 7. FCC PART 15.249 REQUIREMENTS ......................................................................... 12 7.1 20 DB BANDWIDTH.................................................................................................. 12 7.2 BAND EDGES MEASUREMENT ............................................................................. 14 7.3 SPURIOUS EMISSION .............................................................................................. 17 7.4 POWERLINE CONDUCTED EMISSIONS ............................................................... 26 APPENDIX I PHOTOGRAPHS OF TEST SETUP .......................................................... 27 APPENDIX II PHOTOGRAPHS OF EUT ....................................................................... A1 Compliance Certification Services Inc. Report No.: T110301402-RP1 FCC ID: KFR-ZD2102US Date of Issue: April 10, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Product: Z-WAVE DOOR SENSOR Model: ZD2102 Brand Name: N/A Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Tested: March 16, 2011 ~ April 10, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Report No.: T110301402-RP1 FCC ID: KFR-ZD2102US Date of Issue: April 10, 2011 Page 4 Rev. 00 2. EUT DESCRIPTION Product Z-WAVE DOOR SENSOR Model Number ZD2102 Brand Name VISION Frequency Range 902MHz ~ 928MHz Operating Frequency 908.42MHz ± 20kHz Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply Powered from Lithium battery , 5Vdc Antenna Type Wire antenna Gain: -10 dBm Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: ZD2102). Therefore, the testing Lab. ju…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 908.41 MHz - 908.41 MHz | - |
