KFR-ZM1601USZ-Wave Wireless Siren

Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Vision Guarantees that every wireless siren & strobe alarm is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw -3- Installation & Operation Manual ZM 1601 EU ZM 1601 US ZM 1601 BR ZM 1601 JP ZM 1601 IN Wireless Siren & Strobe Alarm Battery Power ZM 1601 V0 1001228 6B1Z-16001 Introduction Thanks for choosing the Vision’s wireless siren & strobe alarm of the home security device. This siren is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network. Every main powered Z-Wave™ enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports”. Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This product will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network. Product Description and Specification *** For indoor use only *** Specification: Package Content: Protocol: Z-Wave™ (ZM3102N) Frequency Range: 868.42MHz (ZM1601EU) 908.42MHz (ZM1601US) 921.42MHz (ZM1601BR) 920.00MHz~928.00MHz (ZM1601JP) 865.22MHz (ZM1601IN) Operating Range: Up to 100 feet line of sight Loud Audible Alarm: > 105Db@1meter LED Strobe Lighting Operating Temp.: -15°C~ 60°C (5°F~140°F) Battery: 4pcs x AA Energizer Batteries Z-Wave™ Command Classes: COMMAND_CLASS_BASIC COMMAND_CLASS_BATTERY COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_MANUFACTURER_SPECIFIC Note: COMMAND_CLASS_BASIC Mapping 1pc 1pc 2pcs 4pcs 1pc ZM 1601 Siren Adhesive tape Screw AAEnergizer Batteries Installation & Operation Manual Installation Note: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZM 1601. 1. Remove the bracket from the siren by press the locking tab, and then gently slide up the siren. Observe the correct polarity before insert the batteries. 2. Using the screws or adhesive tape to affix the bracket on the chosen location. 3. Slide back the front cover, and then the LED should go off. 4. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1601 to your controller. To get in the “inclusion” mode, the distance between siren and controller is suggested to be in one meter. Open the bracket and press the program switch of ZM 1601 for 1 second at least & release to be included. After setting, the LED Setting Lighting should go off, if not, please try again. For “Exclusion” from (removing from) a network: Set up the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1601 from your controller. Press the program switch of ZM 1601 for 1 second at least & release to be excluded. Note: LED setting light will flash (orange color) continuously in Exclusion condition. 5. Configuration command class: Parameter 0: Siren/ Strobe Mode, 1 Byte Value: 0=siren and Strobe enable (default), 1=siren only, 2= Strobe only. Parameter 1: Alarm auto stop time command, 0=30 seconds (default), 1= 60 secs, 2= 120 secs, 3= siren will not automatically stop. Operation 1. Normal operation, the LED light will not on. 2. Self-Protection Mode: After put back the bracket over 5 seconds, ZM 1601 will enter Self-Protection Mode. If the back cover is opened will trigger the Self-Protection Mode. The alarm time is default 30 seconds. 3. User’s controller should support Z-wave FLiRS technolog…

Text truncated - open the document above for the full version.

Specification of Antenna Model No.： ZM1601US Antenna Type： PCB Antenna Length Closed： 72mm Length Open： N/A Diameter： 2.3mm No. of element： N/A Antenna Gain： -10 dbm Total Resistance： 1.5Ω Temperature： -20°C ~ 70°C

Compliance Certification Services Inc. Report No.T150126N06 Page A1 / 7 External Photo ( ZM1601US )

ZM1601US Diagram Label location Label location FCC ID：KFR-ZM1601US

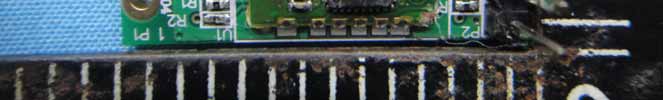

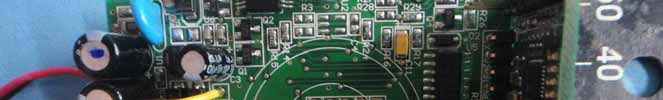

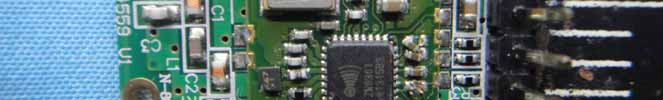

Compliance Certification Services Inc. Report No.T150126N06 Page A2 / 7 Internal Photo ( ZM1601US ) Compliance Certification Services Inc. Report No.T150126N06 Page A3 / 7 Compliance Certification Services Inc. Report No.T150126N06 Page A4 / 7 Compliance Certification Services Inc. Report No.T150126N06 Page A5 / 7 Compliance Certification Services Inc. Report No.T150126N06 Page A6 / 7 RF Module (Chip) Compliance Certification Services Inc. Report No.T150126N06 Page A7 / 7 Antenna

Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 30 FCC 47 CFR PART 15 SUBPART C: 2013 ANSI C63.10: 2013 TEST REPORT For Z-Wave Wireless Siren Model: ZM1601US Brand: Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: January 29, 2015 Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 2 / 30 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 January 29, 2015 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 3 / 30 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................19 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................28 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................29 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 4 / 30 1. TEST RESULT CERTIFICATION Product: Z-Wave Wireless Siren Model: ZM1601US Brand: Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd.,Technology Industrial Park,Tainan City 70955, Taiwan (R.O.C.) Tested: January 16, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2013 ANSI C63.10 : 2013 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 5 / 30 2. EUT DESCRIPTION Product Z-Wave Wireless Siren Model Number ZM1601US Brand Name Received Date January 16, 2015 Frequency Range 908.42MHZ 20kHz Transmit Peak Power 89.10 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply 4pcs x AA Energizer Batteries Antenna Type PCB antenna Model: ZM1601US Gain: -10 dBi RF Module Model ZW0301 Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: ZM1601US). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: KFR-ZM1601US filing to …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 29 / 30 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZM1601US Report No.: T150126N06-RP1 Page 30 / 30
