KFR-ZG8101USZ-WAVE GARAGE DOOR SENSOR

Vision Automobile Electronics Industrial Co Ltd
Z-WAVE GARAGE DOOR SENSOR - FCC ID KFR-ZG8101US - Vision Automobile Electronics Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jul 20, 2014
Application Purpose
Original Equipment
Date of Application
Jul 20, 2014
Equipment Note
Z-WAVE GARAGE DOOR SENSOR
Frequency Range
908.42000000 - 908.42000000
Company
Vision Automobile Electronics Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operation 1. Opening the garage door to change angle of detector will send the status of "ON"(Basic Set,Value:0xFF) to any associated nodes, and the LED will flash once. 2. Closing the garage door to change angle of detector will send the status of "OFF"(Basic Set,Value:0x00) to any associated nodes, and the LED will flash once. 3. Normal operation, the LED will not light. 4. The ZG8101 detector equipped with tamper switch. If the cover of detector is removed, the garage detector will send an alarm report (type:0x07, level:0xFF) to the Z-Wave™ Interface Controller, and the LED will go solid. Before replacing the cover, the detector is under “Awake” mode. Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Vision Guarantees that every wireless garage door detector is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw ZG 8101 V1 1020717 6B1Z-81001 -3- Installation & Operation Manual ZG 8101 IN ZG 8101 EU ZG 8101 RU ZG 8101 US ZG 8101 JP ZG 8101 BR Wireless Garage Door Detector Introduction Thanks for choosing the Vision’s wireless garage door detector of the home security device. This sensor is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network. Every mains powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports” Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This detector monitors garage door and send Z-Wave™ signal when angel is changed. Product Description and Specification *** For indoor use only*** Specification: Package Content: Protocol: Z-Wave™ (ZM3102N) Frequency Range: 865.22MHz (ZG8101IN) 868.42MHz (ZG8101EU) 869.00MHz (ZG8101RU) 908.42MHz (ZG8101US) 920.00MHz (ZG8101JP) 921.42MHz (ZG8101BR) Operating Range: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F ~140°F) Battery: Panasonic CR123A * 1PC 1pc 1pc 1pc 3pcs 1pc 1pc ZG 8101 detector Bracket Holder Adhesive tape for detector Screw for bracket CR123A Lithium Battery Installation & Operation manual Installation Notice: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZG8101. 1. Install Battery: Use care when installing the battery. Press the locking tab on the top detector cover, and then gently pull up the cover. Observe the correct polarity before insert the battery. 2. After insert the battery, the LED will start to flash slowly, which means the sensor has not yet been “inclusion”. 3. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into -1- “inclusion” mode, and following its instruction to add the ZG8101 to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the program switch of ZG8101 for 1 second at least. The LED on the ZG8101 should go solid, if not, please try again. For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZG8101 from your controller. Press the program switch of ZG8101 for 1 second at least to be excluded. For “Association”: removing the cover of the ZG8101 to get into the “Awake” mode, then put the Z-Wave™ Interface Controller into “Association”, and following its instruction to associate the ZG8101 with other device. Close the cover back after “association” done, afterward the ZG8101 will get into “Sleep” mode for …

Text truncated - open the document above for the full version.

Cover Letter(s)

Specification of Antenna Model No.: ZG8101US Antenna Type: Wire Antenna Length Closed: 91.3mm Length Open: N/A Diameter: 1mm No. of element: N/A Antenna Gain: -10 dbm Total Resistance: 1.5Ω Temperature: -20°C ~ 70°C

External Photos

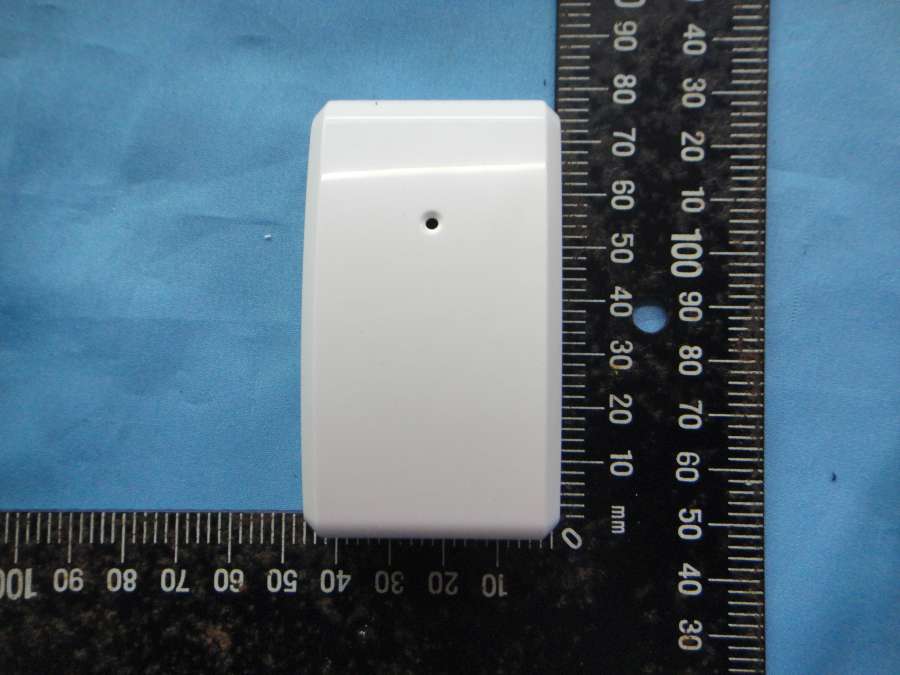

Compliance Certification Services Inc. Report No.:T140613N06 Page A1 / 5 External Photo ( ZG8101US ) Compliance Certification Services Inc. Report No.:T140613N06 Page A2 / 5

ID Label/Location Info

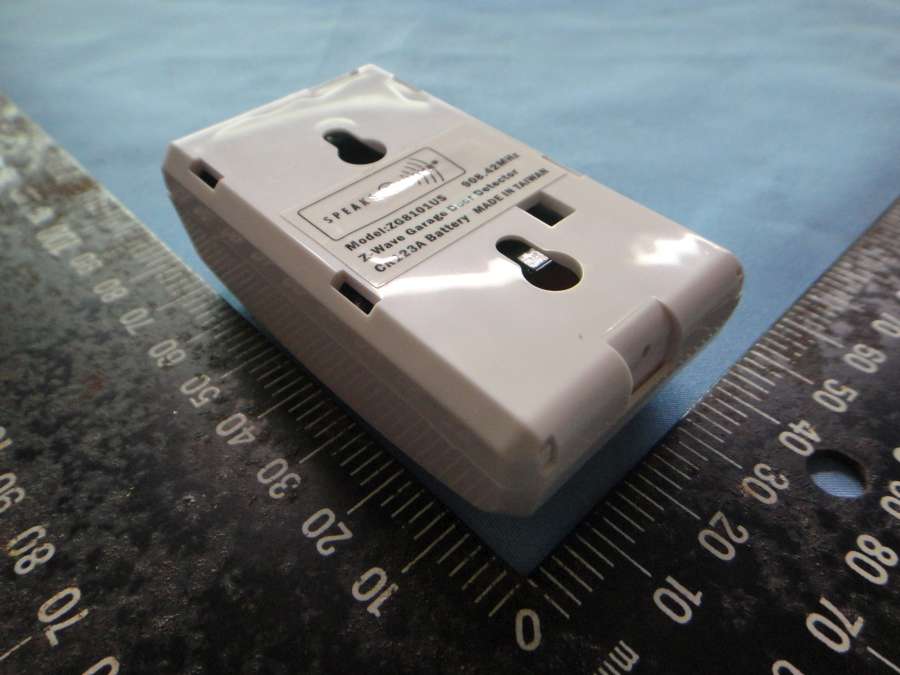

Diagram Label location Label location FCC ID:KFR-ZG8101US

Internal Photos

Compliance Certification Services Inc. Report No.:T140613N06 Page A3 / 5 Internal Photo ( ZG8101US ) Compliance Certification Services Inc. Report No.:T140613N06 Page A4 / 5 Compliance Certification Services Inc. Report No.:T140613N06 Page A5 / 5

Operational Description

Description of Operation The EUT is a Z-WAVE GARAGE DOOR SENSOR, it acts when shock witch (SW4) or COVER witch(SW3A) has been triggered, the MCU(U2) will receive the trigger report and forward it to ZM3102N(U1) via radio frequency to transmit the data to control unit for two-way communication The device adapts FSK modulation. And the antenna was a Wire Antenna, RF Data rate 9.6 kbps / 40kbps Modulation Frequency Shift Keying (FSK) Frequency deviation Center frequency 908.42MHZ ± 20kHz

Test Report

Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 32 FCC 47 CFR PART 15 SUBPART C: 2012 ANSI C63.4: 2009 TEST REPORT For Z-WAVE GARAGE DOOR SENSOR Model: ZG8101US Brand: N/A Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: July 2, 2014 Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 2 / 32 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 July 2, 2014 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 3 / 32 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................20 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................29 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................30 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 4 / 32 1. TEST RESULT CERTIFICATION Product: Z-WAVE GARAGE DOOR SENSOR Model: ZG8101US Brand: N/A Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Tested: June 16, 2014 – June 20, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 5 / 32 2. EUT DESCRIPTION Product Z-WAVE GARAGE DOOR SENSOR Model Number ZG8101US Brand Name N/A Received Date June 13, 2014 Frequency Range 908.42MHz ± 20KHz Transmit Peak Power 92.45 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply DC 3V (Powered by Battery) Antenna Type Wire antenna Gain: -10 dBi Temperature Range -15°C ~ +60°C Power Adapter : No. Manufacturer Model No. Power Input Power Output 1 N/A --- --- --- Remark: 1. Client consigns only one model sample to test (Model Number: ZG8101US). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This s…

Text truncated - open the document above for the full version.

Test Setup Photos

Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 30 / 32 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 31 / 32 Compliance Certification Services Inc. FCC ID: KFR-ZG8101US Report No.: T140613N06-RP1 Page 32 / 32 RADIATED EMISSION SETUP
