KFR-ZL7201-USZ-WAVE LIGHT-RELAY

Federal Communications Commission Statement This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reside ntial installation. This equipment generates, uses and can radiate radio frequency ene rgy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cau se harmful interference to radio or television reception, which can be determined by tu rning the equipment off and on, the user is encouraged to try and correct the interfere ne by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and r eceiver, Consult the dealer or an experienced radio/TV techn ician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmf ul interference, and (2) this device must accept any interference received, including in terference that may cause undersired operation. FCC Caution: Any changes or modifications not expre ssly approved by the party responsible for compliance could void the user’s au thority to operate this equipment. Limited Warranty Vision Guarantees that every wireless lighting modu le is free from physical defects in material and workmanship under normal use for one y ear from the date of purchase. If the product proves defective during this one-year w arranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transfer able. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthori zed repair, taken apart, or otherwise modified; (3) units not used in accordance with ins truction; (4) damages exceeding the cost of the product; (5) transit damage, initial in stallation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit u s at www.visionsecurity.com.tw -3- Operation Manual ZL 7101 US ZL 7101 CN ZL 7101 JP Dimmer Module ZL 7201 US ZL 7201 CN ZL 7201 JP Appliance On/Off Module (Power Plug In Type) ZL7101/ZL7201 V0 1010423 Introduction Thanks for choosing the Vision’s lighting control o f the home automation device. This module is a Z-Wave TM enabled device (interoperable, two-way RF mesh net working technology) and is fully compatible with any Z-Wave TM enabled network. Every main powered Z-Wave TM enabled device acts as a signal repeater and multip le devices result in more possible transmission routes which helps el iminate “RF dead-sport”. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with it regardless of the manufacturer, and ours can also b e used in other manufacturer’s Z-wave TM enabled networks. This module will send dimmer (Z L 7101) or On/Off (ZL 7201) signal to the appliance that attached to this module by receiving Z-Wave TM signal from controller or manually switch. With special d esign, this module won’t interfere the other power outlet when plug into the AC outlet. T his module also acts as repeater (supporting FLiRS). Product Description and Specification * For indoor use * Specification: Package Content: Protocol: Z-Wave TM (ZM3102N/ZM4102AH) Frequency Range: 908.42MHz (ZL 7101 / ZL 7201 US) 868.42MHz (ZL 7101 / ZL 7201 CN) 920-928 MHz (ZL 7101 / ZL 7201 JP) Operating Range: Up to 100 feet line of sight Operating Temp.: -15 °C ~ 60 °C (5 °F ~140 °F ) Operating Voltage: 110VAC (for ZL7101/ZL7201US) 100~240VAC (for ZL7101/ZL7201CN & JP) -1- 1pc ZL 7101, Plug-in Type Dimmer Module Or ZL 7201, Plug-in Type Appliance On/Off Module 1pc User Manual For ZL7101 only Max. Load: 300W for Resistive Load For ZL7201 only Max. Load: 600 W for Incandescent Load 1800 W for Resistive Load Relay: Load 10A/277 VAC Z-Wave ™ ™™™ Command Class: COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_PROTECTION COMMAND_CLASS_SWITCH_ALL COMMAND_CLASS_SWITCH_BINARY (for ZL 7201 only) COMMAND_CLASS_SWITCH_MULTILEVEL (for ZL 7101 onl y) COMMAND_CLASS_VERSION Operation If you are installing the entire Z-Wave TM system for the first time, please refer to the installation guide of Z-Wave TM Interface Controller before installing ZL 7101 & Z L 7201. -1- 1. For “ Inclusion ” in (adding to) a network: Put the Z-Wave TM Interface Controller into “inclusion” mode, and following its instruction to add the ZL 7101 or ZL 7201 into your controller. To get in the “Inclusion” mode, t he distance between ZL 7101 or ZL 7201 and controller is suggested to be in one meter . Press program button once to be included. Noted: for ZL71017/ZL7201 JP, to get i ncluded by power up, no need to press program button For “ Exclusion ” from (removing from) a network: Set up the Z-Wave TM Interface Controller into “exclusion” mode, and following its instruction to delete the ZL 7101 or ZL 7201 from your controller. Press program but ton to be excluded. 2. Manually turn the connected lighting On/Off by y our controller or pressing the program button. This is toggle switch. If the lig ht is OFF, pressing the button turns the light ON and vice versa. 3. For ZL 7101 only : Adjust the brightness level of the connected ligh ting by your controller or pressing and holding the program butt on. Release the button when the desired level is attained. This is a toggle fun ction. The lighting will dim until the minimum level is attained or the button is released . The next time the button is pressed and held, the level will increase until the maximum level is attained or the button is released. -2- Industry Canada Notice Operation is subject to the following two co…

Text truncated - open the document above for the full version.

Specification of Antenna Model No.： ZL 7201 Antenna Type： Wire Antenna Length Closed： 74mm Length Open： N/A Diameter： 0.9mm No. of element： N/A Antenna Gain： -10 dbm Total Resistance： 1.5Ω Temperature： -20°C ~ 70°C

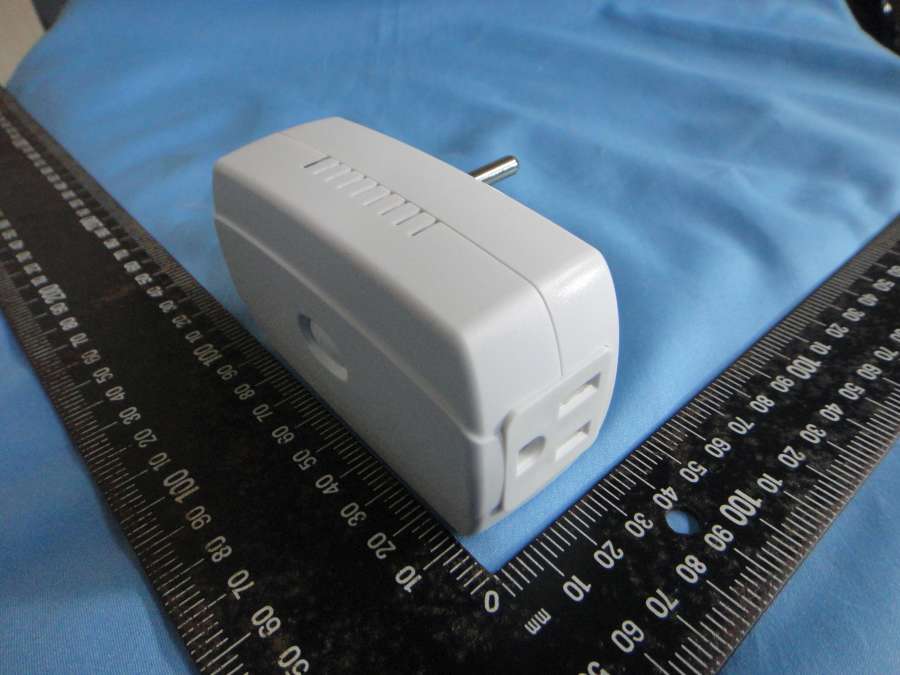

Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 1 Total Page: 6 Rev. 00 PHOTOGRAPHS OF EUT EXTERNAL PHOTO

ZL7201 diagram Label location Label location FCC ID：KFR-ZL7201-US

Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 2 Rev. 00 INTERNAL PHOTO Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: T130416N03-RP1 Date of Issue: April 30, 2013 Page 6 Rev. 00

Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 32 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2009 TEST REPORT For Z-WAVE LIGHT-RELAY Model: ZL7201 Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: April 30, 2013 Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 2 / 28 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 April 30, 2013 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 3 / 28 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION...............................................................................................6 3.2 EUT EXERCISE...........................................................................................................6 3.3 GENERAL TEST PROCEDURES ...............................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ...................................7 3.5 DESCRIPTION OF TEST MODES ..............................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..............................................................8 4.2 MEASUREMENT EQUIPMENT USED ........................................................................8 4.3 MEASUREMENT UNCERTAINTY...............................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ................................................................................................................10 5.2 EQUIPMENT..............................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................10 5.1 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..........................................................................12 6.2 SUPPORT EQUIPMENT ...........................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH ..................................................................................................13 7.2 BAND EDGES MEASUREMENT...............................................................................15 7.3 SPURIOUS EMISSION..............................................................................................16 7.4 POWERLINE CONDUCTED EMISSIONS.................................................................26 APPENDIX I PHOTOGRAPHS OF TEST SETUP....................................................29 APPENDIX II PHOTOGRAPHS OF EUT ................................................................ A1 Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 4 / 28 1. TEST RESULT CERTIFICATION Product: Z-WAVE LIGHT-RELAY Model: ZL7201 Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Road, Tainan, Taiwan Tested: April 17, 2013 – April 18, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 5 / 28 2. EUT DESCRIPTION Product Z-WAVE LIGHT-RELAY Model Number ZL7201 Received Date April 16, 2013 Operating Frequency 908.42MHz ± 20kHz Transmit Peak Power 93.19 dBμV/m Data Rate 9.6kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply 120Vac, 60Hz Antenna Type Wire antenna Gain: -10 dBi Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: ZL7201). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: KFR-ZL7201-US filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B)…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 29 / 28 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 30 / 28 RADIATED RF EMISSION MEASUREMENT SETUP(FOR TX) Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 31 / 28 Compliance Certification Services Inc. FCC ID: KFR-ZL7201-US Report No.: T130416N03-RP1 Page 32 / 28 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
