KFR-ZM1701USZ-Wave Door Lock

5. Visual feedback message definitions: Valid Programming: one long beeps and lights green. Invalid Programming: one long beeps and lights red. Lock error: three long beeps and lights red flash. Low battery warning: Beeps and lights red flash 5 seconds. Please replace with good quality alkaline batteries. Note: Please re-enter Year-Month-Date-Hour-Minute after batteries are complete dead. Federal Communications Commission Statement This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Vision Guarantees that every wireless deadbolt door lock is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw -3- Operation Manual ZM 1701 EU ZM 1701 US ZM 1701 BR ZM 1701 IN Wireless Electronic Deadbolt Door Lock (Real Time Version) ZM1701 V0 1020613 6B1Z-17001 Introduction Thanks for choosing the Vision’s wireless deadbolt door lock of the home security device. This deadbolt lock is a Z-Wave TM enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave TM enabled network. Every main powered Z-Wave TM enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sport”. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-wave TM enabled networks. This deadbolt lock monitors who and when the door is opened and closed and send Z-Wave TM signal to the controller. User can also control which user code can only unlock the door at certain period of time. It is Security Enable Z-Wave TM deadbolt lock and a Security Enabled Z-Wave Controller must be used to fully utilize the product. Product Description and Specification * For outdoor use * * For indoor use * Specification: Package Content: Protocol: Z-Wave TM (ZM3102N) Frequency Range: 865.22MHz (ZM 1701 IN) 868.42MHz (ZM 1701 EU) 908.42MHz (ZM 1701 US) 921.42MHz (ZM 1701 BR) Operating Range: Up to 100 feet line of sight Operating Temp.: -10°C~ 50°C (14°F~122°F) Battery: 4pcs x AA Energizer (E91) Batteries 1pc 2pcs 1pc 1pc 1pc 4pc ZM 1701 Door Key Operation Manual Installation Manual Drilling Template AA Energizer Battery Operation -1- Operating with Z-Wave TM Network: If you are installing the entire Z-Wave TM system for the first time, please refer to the installation guide of Z-Wave TM Interface Controller before installing ZM 1701. 1. Remove battery cover and observe the correct polarity before insert the batteries. 2. For “Inclusion” in (adding to) a network: Put the Z-Wave TM Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1701 into your controller. To get in the “Inclusion” mode, the distance between ZM1701 and controller is suggested to be in one meter. Press Keypads © manually turn the Turn Piece from inside to be included. User shall hear one long beep sound and controller shall indicate device is successfully inclusion into network. Inclusion will take approximately 2 minutes, please wait the Inclusion finished before doing next step. For “Exclusion” from (removing from) a network: Set up the Z-Wave TM Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1701 from your controller. Press Keypads ©manually turn the Turn Piece from inside to be excluded. For “Association”: the Z-Wave™ Interface Controller set “Association”, and following its instruction to associate the ZM1701 with other device. Support one group (5 nodes). ZM1701 will report back every time lock and unlock status. 3. How to setup the user code, how to delete user code or delete all user code, please follow the Z-Wave TM Interface controller’s instruction. 4. ZM 1701 supports the following class command: COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_BASIC, COMMAND_CLASS_BATTERY, COMM…

Text truncated - open the document above for the full version.

Specification of Antenna Model No.： ZM1701US Antenna Type： Wire Antenna Length Closed： 270mm Length Open： N/A Diameter： 1.4mm No. of element： N/A Antenna Gain： -12 dbm Total Resistance： 1.8Ω Temperature： -20°C ~ 70°C

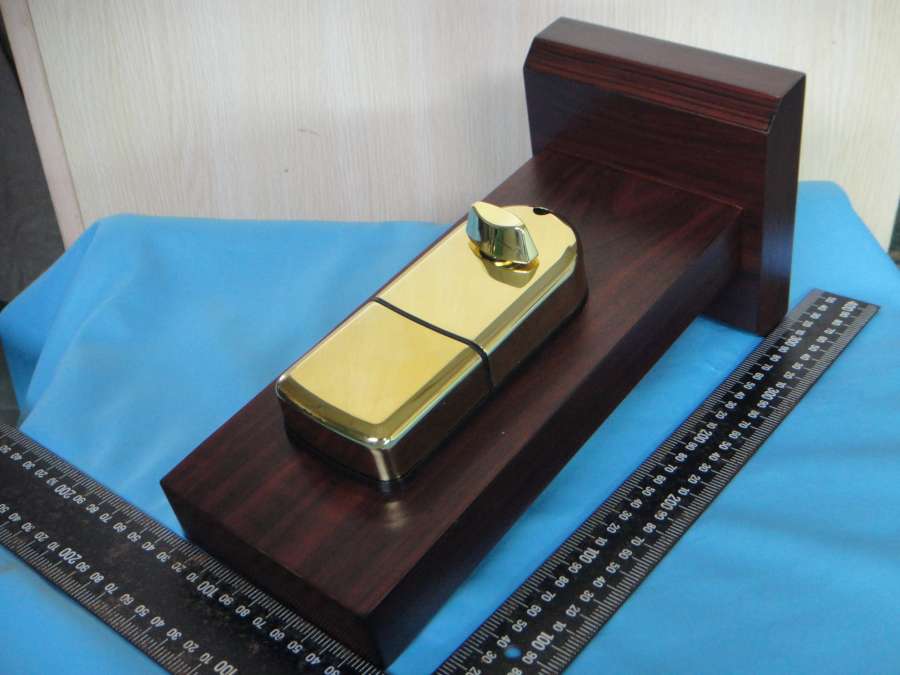

Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A1 / 9 External Photo ( ZM1701US ) Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A2 / 9

ZM1701US Diagram Label location FCC ID：KFR-ZM1701US

Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A3 / 9 Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A4 / 9 Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A5 / 9 Internal Photo ( ZM1701US ) Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A6 / 9 Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A7 / 9 Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A8 / 9 Compliance Certification Services Inc. Report No.：T140422N01 Date of Issue: May 02, 2014 Page A9 / 9

Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 35 FCC 47 CFR PART 15 SUBPART C: 2012 ANSI C63.4: 2009 TEST REPORT For Z-Wave Door Lock Model: ZM1701US Brand: Issued to Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8, Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: May 02, 2014 Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 2 / 35 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 02, 2014 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 3 / 35 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................20 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................32 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................33 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 4 / 35 1. TEST RESULT CERTIFICATION Product: Z-Wave Door Lock Model: ZM1701US Applicant: Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Tested: April 24, 2014 ~ April 29, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 5 / 35 2. EUT DESCRIPTION Product Z-Wave Door Lock Model Number ZM1701US Received Date April 22, 2014 Frequency Range 908.42MHz ± 20KHz Transmit Peak Power 92.83 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply DC 6V (Power by battery) Antenna Type Wire antenna Gain: -10 dBi Temperature Range 0°C ~ +49°C Remark: 1. Client consigns only one model sample to test (Model Number: ZM1701US). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: KFR-ZM1701US filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and Section …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 33 / 35 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 34 / 35 Compliance Certification Services Inc. FCC ID: KFR-ZM1701US Report No.: T140422N01-RP1 Page 35 / 35 RADIATED EMISSION SETUP
