KFR-ZS6101USZ-Wave Smoke Detector

Installation & Operation Manual ZS 6101 IN ZS 6101 EU ZS 6101 RU ZS 6101 US ZS 6101 JP ZS 6101 BR Wireless Smoke Detector ZS 6101 V1 1020710 6B1Z-61001 Introduction Thanks for choosing the Vision’s wireless smoke detector of the home security device. This detector is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network. Every mains powered Z-Wave™ enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports”. Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This detector is designed to sense smoke that comes into the detector chamber and send Z-Wave™ signal when the detector detects a certain density of smoke then the horn of smoke detector will sound. Product Description and Specification *** For indoor use only *** Specification: Package Content: Protocol: Z-Wave™ (ZM3102N) 1pc ZS 6101 Smoke Detector Frequency Range: 1pc Bracket Holder 865.22MHz (ZS6101IN) 1pc Plastic Anchor 868.42MHz (ZS6101EU) 2pcs Screw 869.00MHz (ZS6101RU) 1pc CR123A Lithium Battery 908.42MHz (ZS6101US) 1pc Installation & 920.00MHz (ZS6101JP) Operation Manual 921.42MHz (ZS6101BR) Operating Range: Up to 100 feet line of sight Operation Temperature: 0°C~49°C Alarm Audibility: 85dB/3m Relative Humidity: 10~95% Size: 120mm diameter x 5.3mm depth Battery: 3V Lithium Battery; Panasonic CR123A * 1 pc Sensitivity: Meet with both UL217 and EN14604 standard Z-Wave™ Command Classes: COMMAND_CLASS_ ALARM_V2 COMMAND_CLASS _ASSOCIATION_V1 COMMAND_CLASS_BATTERY COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_SENSOR_BINARY mapping COMMAND_CLASS_BASIC COMMAND_CLASS_VERSION COMMAND_CLASS_WAKE_UP_V2 Installation Notice: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZS6101. 1. Remove the bracket from the detector by rotating it counter-clockwise. 2. Place the bracket where you are going to install the detector. In each of key hole slots, draw a mark to locate plastic anchor and screw. Using a 3/16-inch (5mm) drill bit, drills two holes at the marks and insert plastic anchor, and attached the bracket by using the screws. 3. Open the battery cover to insert the battery, and then replace the cover. Fix the detector with bracket by rotating it clockwise. 4. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZS 6101 to your controller. To get in the “inclusion” mode, the distance between detector and controller is suggested to be in one meter. Press the program switch of ZS 6101 for 1 second at least to be included. For “Exclusion” from (removing from) a net work: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZS 6101 from your controller. Press the program switch of ZS6101 for 1 second at least to be excluded. Please note: LED setting light will flash (red) continuously in Exclusion condition. For “Awake” mode: it is to leave the “Sleep” mode by pressing the program switch for 1 sec. at least to allow the Z-Wave™ Interface Controller to do “Inclusion”, “Exclusion”, “Association” and to reply and receive the commands from controller. It will take about 3 sec. and the red LED light on for awaking the system. LED light will be off after setting. For “Association”: After “Awake” mode, then put the Z-Wave™ Interface Controller into “Association”, and following its instruction to associate the ZS6101 with other device. Afterward the ZS6101 will get into “Sleep” mode for power saving. One association group supports 5 nodes. For “Auto Wake-up” mode: The user’s could set Auto Wake-Up mode in min. 10 minutes to max. a week. Default setting is based on 1 hour, each increment in 200 sec. 5. Suggestion of the Smoke Detector Location: -2- -1- Tamper Switch Operation 1. Power-on Mode: 1) Install the battery into the module 2) Close the bracket 3) the detector will take 8 to 12 sec. and emit a beep to confirm and start the burglar system. The detector will alarm once remove the bracket. 2. STANDBY MODE: The red LED, as the ALARM indicator, are featured with the smoke alarm. It can be seen through the clear test button on the cover of the unit. When red LED flashes once 334 seconds, it indicates the smoke alarm is under normal operation. When smoke alarm senses smoke and simultaneously sounds an audible alarm with 3 beeps, pause and 3 beeps. The red LED will flash continuously and rapidly. 3. SILENCE FEATURE: The silence feature can temporarily quite an alarm for up to 10 minutes. To use this feature, press test button on the cover when it alarms. However, if the smoke concentration around the smoke alarm unit is still at alarming level after 10 minutes of silence, the unit will re-alarm immediately. 4. LOW BATTERY WARNING SIGNAL: If the alarm horn begins to chirp once in 43 seconds with red and yellow LED flashing, this signal means that the smoke alarm’s battery is weak. This low battery warning signal should last for up to 30 days, but you should replace the battery immediately to secure your protection. 5. TAMPER SWITCH FEATURE: If the smoke alarm is not mounted into the bracket properly within 5 minutes after battery is installed, the tamper function is triggered and the Yellow LED is steadily on. If the smoke alarm is still not mounted into the bracket properly 5 minutes after battery is installed, you will hear temporal three sound with yellow LED steadily on until smoke alarm is mounted back into bracket properly. 6. MALFUNCTION (ERROR) SIGNAL: If you hear 3 “beep” with yellow LED flashing 3 times in 43 seconds, it indicates that the smoke alarm does not work properly, please have it repaired …

Text truncated - open the document above for the full version.

Specification of Antenna Model No.： ZS6101US Antenna Type： PCB Antenna Length Closed： 72mm Length Open： N/A Diameter： 2.3mm No. of element： N/A Antenna Gain： -10 dbm Total Resistance： 1.5Ω Temperature： -20°C ~ 70°C

Compliance Certification Services Inc. Report No.T140422N02 Page A1 / 5 External Photo ( ZS6101US )

ZS6101US Diagram Label location Label location FCC ID：KFR-ZS6101US

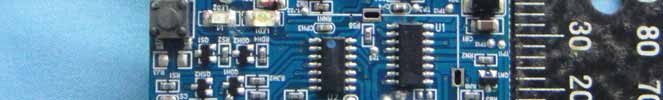

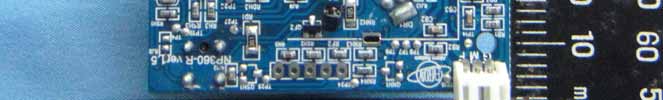

Compliance Certification Services Inc. Report No.T140422N02 Page A2 / 5 Internal Photo ( ZS6101US ) Compliance Certification Services Inc. Report No.T140422N02 Page A3 / 5 Compliance Certification Services Inc. Report No.T140422N02 Page A4 / 5 Compliance Certification Services Inc. Report No.T140422N02 Page A5 / 5

Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 35 FCC 47 CFR PART 15 SUBPART C: 2012 ANSI C63.4: 2009 TEST REPORT For Z-Wave Smoke Detector Model: ZS6101US Brand: Issued to Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: May 02, 2014 Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 2 / 35 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 02, 2014 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 3 / 35 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................20 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................32 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................33 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 4 / 35 1. TEST RESULT CERTIFICATION Product: Z-Wave Smoke Detector Model: ZS6101US Applicant: Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Tested: April 24, 2014 ~ April 29, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 5 / 35 2. EUT DESCRIPTION Product Z-Wave Smoke Detector Model Number ZS6101US Received Date April 22, 2014 Frequency Range 908.42MHz 20KHz Transmit Peak Power 85.92 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply DC 3V (Power by battery) Antenna Type PCB antenna Gain: -10 dBi Temperature Range 0°C ~ +49°C Remark: 1. Client consigns only one model sample to test (Model Number: ZS6101US). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: KFR-ZS6101US-US filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 33 / 35 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 34 / 35 Compliance Certification Services Inc. FCC ID:KFR-ZS6101US Report No.:T140422N02-RP1 Page 35 / 35 RADIATED EMISSION SETUP
