KFR-ZU1401US-5Z-WAVE USB Dongle

Operation Manual ZU 1401 US ZU 1401 EU ZU 1401 BR ZU 1401 JP ZU 1401 IN Z-WAVE USB Dongle ZU1401 V0 1020617 6B1Z-14001 Introduction Thanks for choosing Vision’s Z-Wave USB dongle of the home automation device. This USB dongle is a Z-Wave TM enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave TM enabled network. Every main powered Z-Wave TM enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sport”. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave TM enabled networks. This USB dongle which compliant to ZDK6.XX and above exports Z-Wave Serial API through a USB CDC/ACM compliant connection with a USB A Plug. A PC/Notebook which runs Z-Wave software can control Z-Wave Home Area Network through this USB dongle. Product Description and Specification Specification: Package Content: Protocol: Z-Wave TM (ZM4101N) Frequency Range: 908.42MHz (ZU1401US) 868.42MHz (ZU1401EU) 921.42MHz (ZU1401BR) 920-928 MHz (ZU1401JP) 865.22MHz (ZU1401IN) Operating Range.: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F~140°F) 1pc ZU1401 USB Dongle 1pc User Manual Operation If you are installing the entire Z-Wave TM system for the first time, please refer to the installation guide of Z-Wave TM Interface Controller before installing ZU1401 USB dongle As the device export a USB CDC/ACM compliant interface, it appears as a serial port which uses the existing standard driver on most of popular PC/Notebook operating systems. 1. Simply plug this USB dongle in PC/Notebook USB port. 2. System requirement： - Windows 2000/XP/Vista/7 32&64 bit UZB.INF is provided that reuses the standard Windows usbser.sys or usbser64.sys driver - Linux kernel 2.6.24+ The device appears as “/dev/ttyACMxx” where xxx is the tty number assigned by the OS - MAC OS X 6.4 The device appears as “/dev/tty.usbmodemxxx” where xxx is the tty number assigned by the OS 3. Please download USB driver software from below location to install this Z-Wave USB dongle.  http://www.visionsecurity.com.tw/ha_files_3.html This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: - Reorient or relocate the receiving antenna, - Increase the separation between the equipment and receiver, - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Vision Guarantees that every USB Dongle is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to: (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw Federal Communications Commission Statement Limited Warranty -1- -2 - -2-

Specification of Antenna Model No.： ZU1401US-5 Antenna Type： PCB Antenna Length Closed： 73mm Length Open： N/A Diameter： 1.778mm No. of element： N/A Antenna Gain： -15 dbm Total Resistance： 1.5Ω Temperature： -20°C ~ 70°C

Diagram Label location Label location FCC ID：KFR-ZU1401US-5

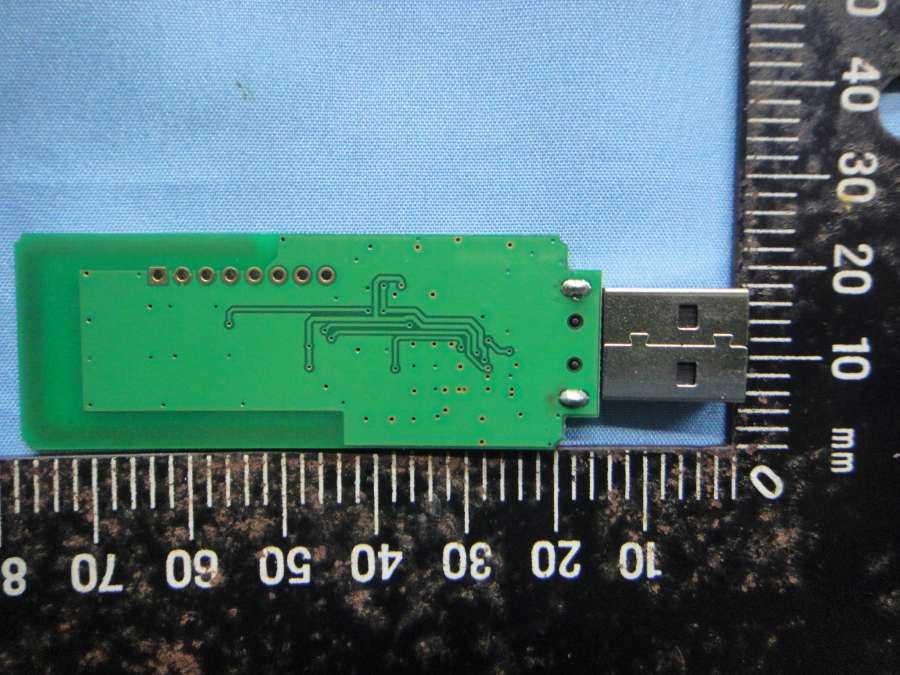

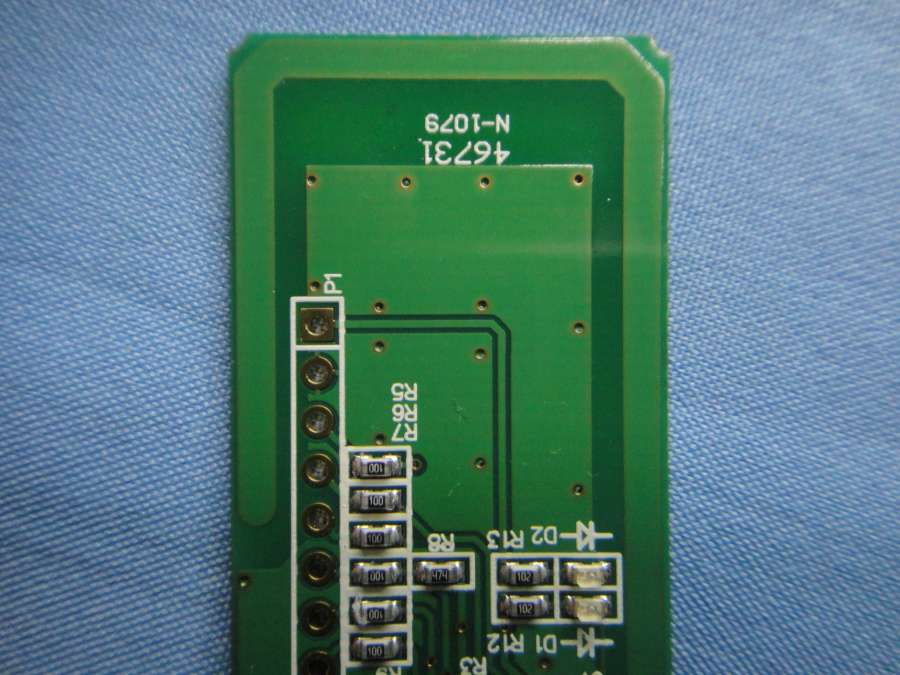

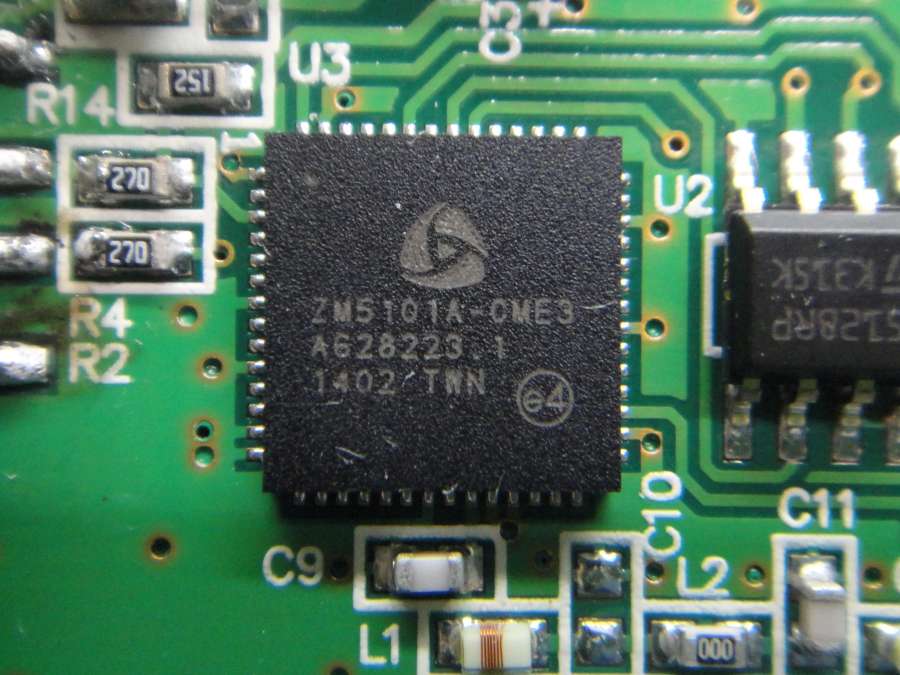

Compliance Certification Services Inc. Report No.：T140704N02 Page A2 / 4 Internal Photo ( ZU1401US-5 ) Compliance Certification Services Inc. Report No.：T140704N02 Page A3 / 4 Antenna Compliance Certification Services Inc. Report No.：T140704N02 Page A4 / 4 RF Module

ZU1401US-5 Z-Wave USB dongle Description of Operation The Z-Wave USB dongle, (U3) Z-WAVE receive the specified message transfer RF transmitter RF (U3)Z-WAVE message to the specified device The device adapts FSK modulation. And the antenna was a Antenna, RF Data rate 9.6 kbps / 40kbps Modulation Frequency Shift Keying (FSK) Frequency deviation Center frequency 908.42MHZ ± 20kHz

Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 32 FCC 47 CFR PART 15 SUBPART C: 2012 ANSI C63.4: 2009 TEST REPORT For Z-WAVE USB Dongle Model: ZU1401US-5 Brand: N/A Issued to Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: July 22, 2014 Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 2 / 32 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 July 22, 2014 Initial Issue ALL Eva Lin Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 3 / 32 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ...................................................................................6 3.2 EUT EXERCISE ...............................................................................................6 3.3 GENERAL TEST PROCEDURES ....................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................7 3.5 DESCRIPTION OF TEST MODES...................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................8 4.2 MEASUREMENT EQUIPMENT USED ............................................................8 4.3 MEASUREMENT UNCERTAINTY ...................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES ....................................................................................................10 5.2 EQUIPMENT ..................................................................................................10 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT ..............................................................12 6.2 SUPPORT EQUIPMENT................................................................................12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 20 DB BANDWIDTH.......................................................................................13 7.2 BAND EDGES MEASUREMENT ...................................................................16 7.3 DUTY CYCLE.................................................................................................17 7.4 SPURIOUS EMISSION..................................................................................20 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................29 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................30 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 4 / 32 1. TEST RESULT CERTIFICATION Product: Z-WAVE USB Dongle Model: ZU1401US-5 Brand: N/A Applicant: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan City 70955, Taiwan (R.O.C.) Tested: July 11, 2014 – July 16, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 5 / 32 2. EUT DESCRIPTION Product Z-WAVE USB Dongle Model Number ZU1401US-5 Brand Name N/A Received Date June 13, 2014 Frequency Range 908.42MHz ± 20KHz Transmit Peak Power 88.34 dBμV/m Data Rate 9.6 kbps , 40kbps Number of Channels 1 Channel Type of Modulation FSK Power Supply DC 5V Antenna Type PCB antenna Model: ZU1401US-5 Gain: -15 dBi RF Module Model ZM5101 Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: ZU1401US-5). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: KFR-ZU1401US-5 filing…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 30 / 32 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 31 / 32 Compliance Certification Services Inc. FCC ID: KFR-ZU1401US-5 Report No.: T140704N02-RP1 Page 32 / 32 RADIATED EMISSION SETUP
