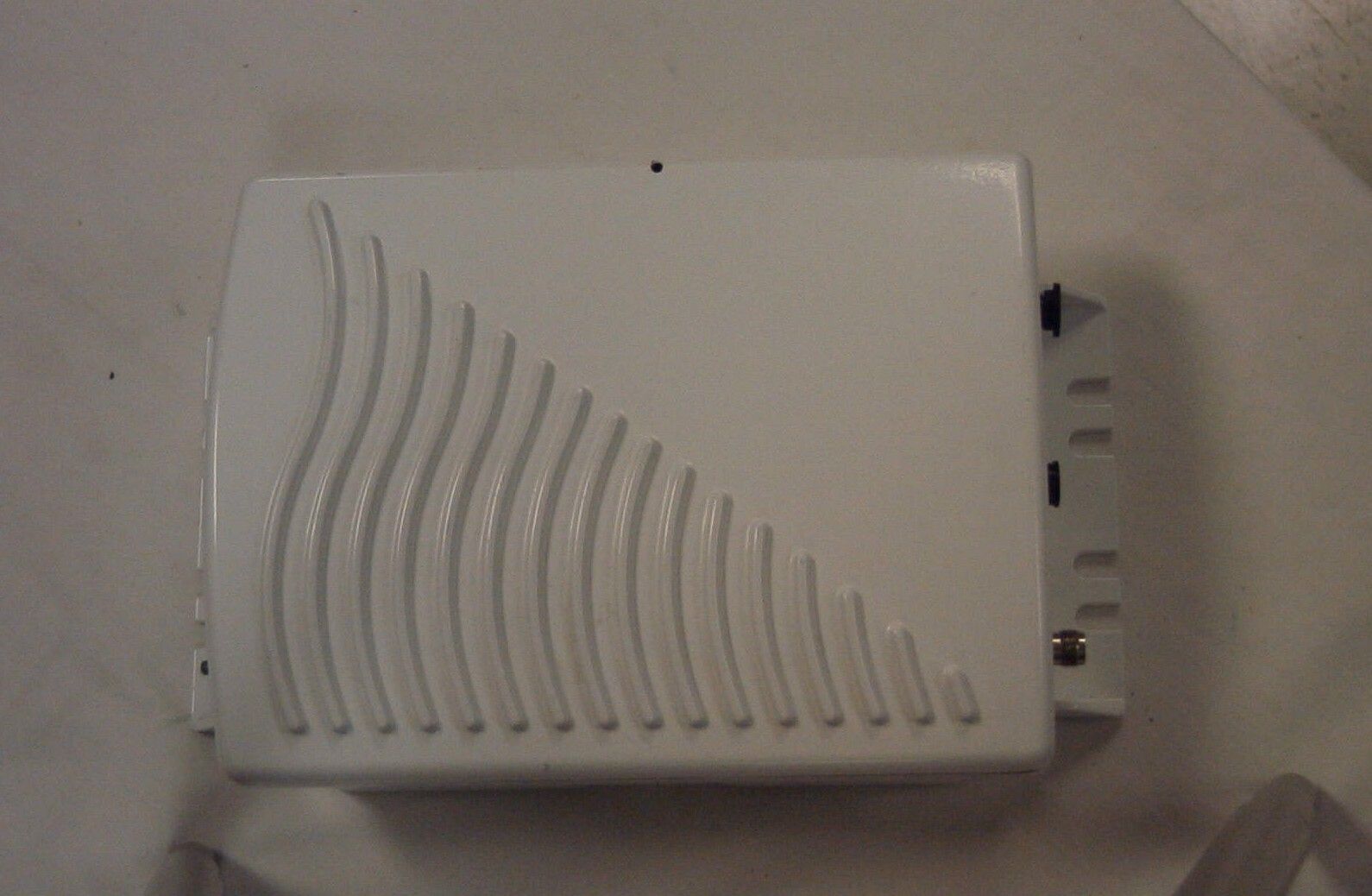

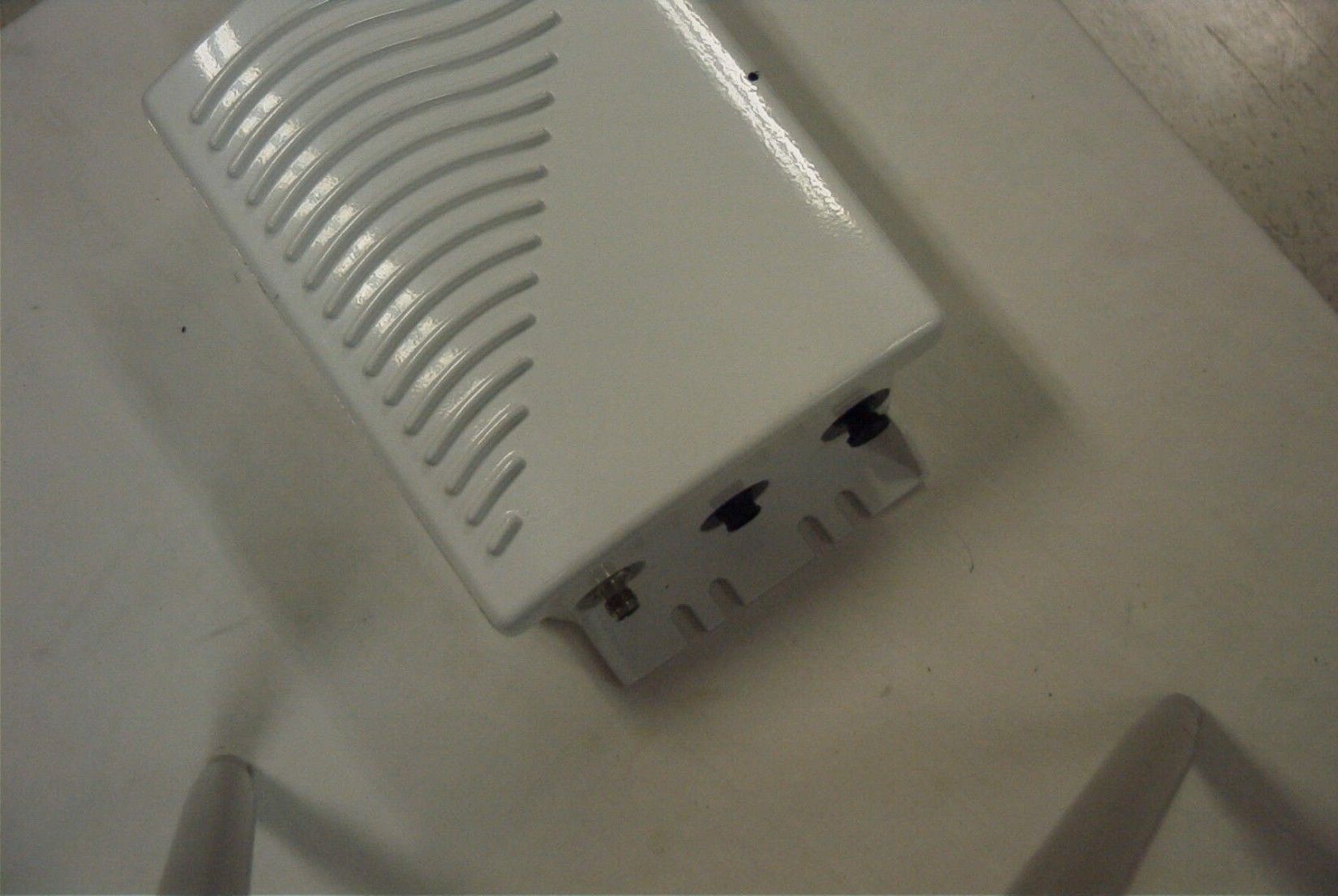

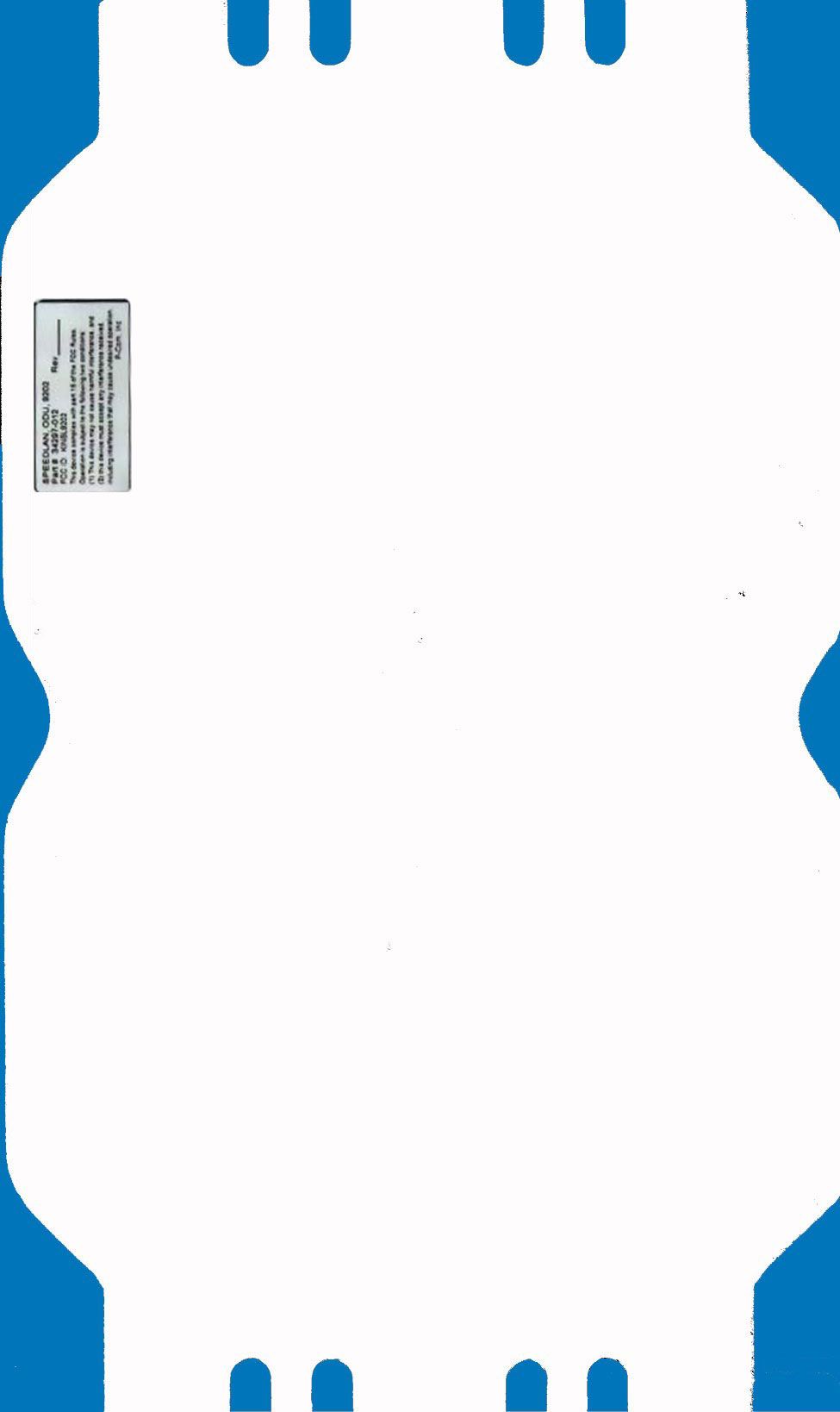

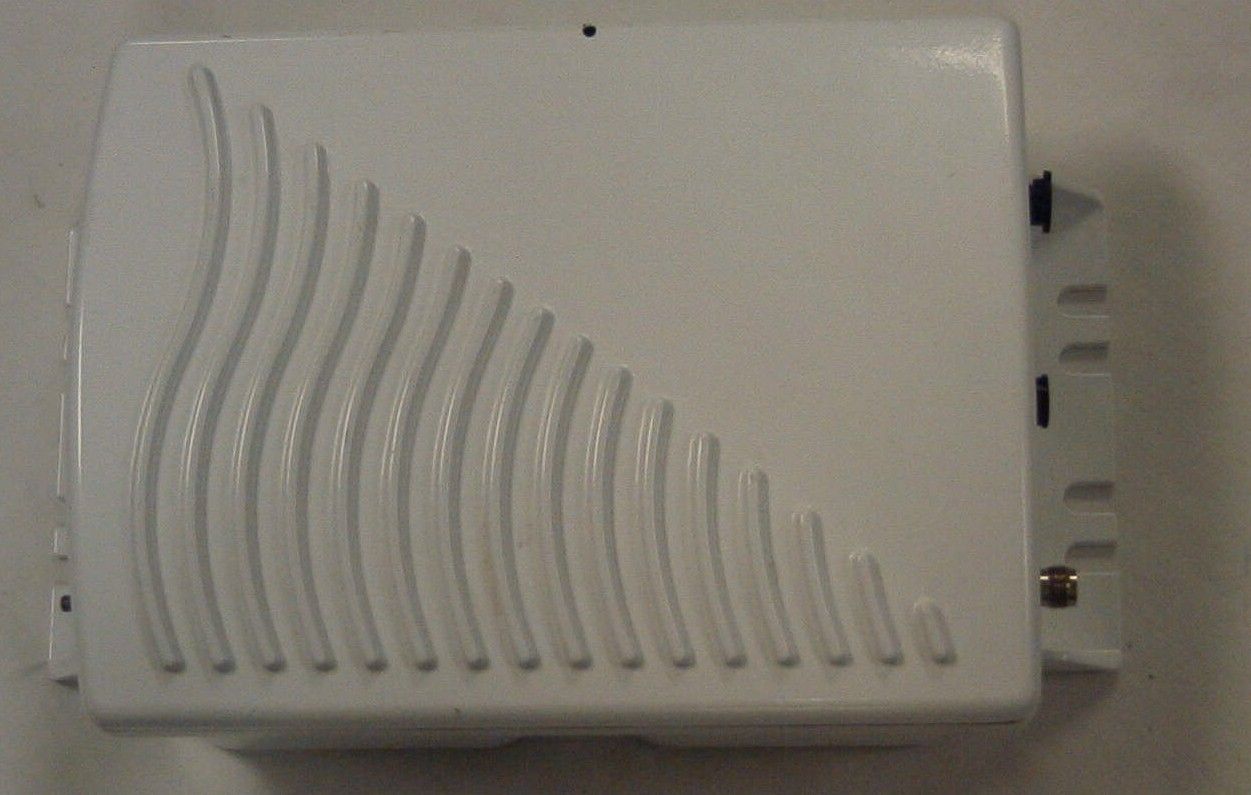

KINSL9202Wireless LAN

SPEEDLAN 9200 User Guide Part Number 34357-MNL Rev. 03 Last Revised: 10/7/04 P-Com Copyright Statement (c) 2004. P-Com Inc. provides this Installation Guide without warranty of any kind, either express or implied, including, but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose. P-Com Inc. may make improvements and changes to the product described in this manual at any time and without any notice. P-Com Inc. assumes no respon- sibility for its use, nor any infringements of patents or other rights of third parties that would result. This publication may contain technical inaccuracies or typographical errors. Periodic changes are made to the information contained herein. These changes, and mechanical corrections, will be incorporated in subsequent revision levels of the publication. No part of this publication may be stored in a retrieval system, transmitted, or reproduced in any way, including but not limited to photocopy, photograph, magnetic or other records, without the prior written permission of P-Com Inc. All other brand and product names are the trademarks of their respective holders. P- Com Sarasota Office 7020 Professional Parkway East Sarasota, FL 34240 Technical Support 941-907-2300 (phone) 941-355-0219 (fax) SPEEDLAN 9200 User Guide Part # 34357-MNL Rev.03 Contents-1 CHAPTER 1 - Introduction Features and Benefits ................................................................................................................. 1-2 SPEEDLAN 9200 Features................................................................................................... 1-2 ISP Functionality ................................................................................................................. 1-3 IP Router Functionality ........................................................................................................1-3 Configuration Management ................................................................................................ 1-4 SPEEDManage................................................................................................................... 1-4 Features (and Benefits)........................................................................................................1-4 Priority Queuing................................................................................................................. 1-5 SNMP ............................................................................................................................... 1-6 Equipment and Hardware ................................................................................................... 1-6 SPEEDLAN 9200 Mesh Protocol -- How It Works in Mesh Cells ..................................................... 1-6 SPEEDLAN’s Mesh Cell Architecture..................................................................................... 1-8 SPEEDLAN 9200 Mesh Core Components ........................................................................... 1-9 Neighbor Discovery .................................................................................................... 1-9 Topology Updates ...................................................................................................... 1-9 Routing.................................................................................................................... 1-10 Why SPEEDLAN Outperforms Other Routing Equipment............................................... 1-10 Document Changes/Corrections ............................................................................................... 1-11 What’s New for Firmware ................................................................................................. 1-11 Contacting Technical Support ...................................................................................................1-12 CHAPTER 2 - 9200 Hardware Rooftop and Tower Installations Warning ..................................................................................... 2-2 Regulatory Information ............................................................................................................... 2-2 Declaration of Conformity for RF Exposure................................................................................... 2-3 General Safety Requirements for Installation of SPEEDLAN 9200 Models........................................ 2-3 Hardware Overview ................................................................................................................... 2-4 Tips for Antenna Alignment.......................................................................................... 2-5 Drawings of Outdoor, Remote-Mounted Components .................................................................. 2-6 Indoor Junction Box............................................................................................................2-6 The SPEEDLAN 9201/9204 with an Integrated Omni-Directional........................................... 2-7 Bottom View of SPEEDLAN 9201/SPEEDLAN 9204 .............................................................. 2-8 System Description .............................................................................................................2-8 Package Contents ............................................................................................................. 2-8 Installation Steps for the SPEEDLAN 9201/SPEEDLAN 9204 .................................................. 2-9 Installation Diagram of the SPEEDLAN 9201/SPEEDLAN 9204 ............................................ 2-11 The SPEEDLAN 9202/SPEEDLAN 9203 with External Antenna ..................................................... 2-12 Bottom View of SPEEDLAN 9202/SPEEDLAN 9203 ............................................................. 2-13 System Description .........................................................................................................…

Text truncated - open the document above for the full version.

Corporate Headquarters 3175 S. Winchester Blvd. Campbell, CA 95008 (408) 866-3666 Fax: (408) 866-3655 October 12, 2004 Federal Communications Commission Authorization and Evaluation Division RE: Confidentiality Request regarding application for certification of FCC ID: (KINSL 9201 and KINSL 9202). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram of SL9201 and SL9202 Schematics of Zcomax, AG-621 radios The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Janusz Dyndul Product Certification Manager P-Com, Inc. 941-907-2390 [email protected]

Operational Description of Wireless Outdoor Mount Ethernet Router SPEEDLAN 9202 Technical Specification of SPEEDLAN 9202 Series Router Operational Description of Wireless Outdoor Mount Ethernet Router SPEEDLAN 9200 Series RF INFORMATION Topologies Star & Mesh Compatibility Full Interoperable with 2.4 GHz DSSS/OFDM & 5 GHz OFDM 2.4 GHz DSSS/OFDM: 11 Channels 5 GHz OFDM: 5 Regulatory FCC Part 15, CE US/Canada-5 GHz OFDM : 5.725-5.825 GHz Frequency Range US/Canada-2.4 GHz DSSS/OFDM: 2.412-2.462GHz Frequency Band Spread Spectrum Signaling Rate ( Mb/s) Modulation DSSS 1 DBPSK 2 DQPSK 5.5 2.4 GHz 11 CCK OFDM 6 9 BPSK 12 18 QPSK 24 36 16 QAM 48 2.4 GHz & 5 GHz 54 64 QAM Communication Method Half duplex Receive Sensitivity @ PER < 0.10 5 GHz OFDM -82 dBm @ 6 Mb/s 2.4 GHz OFDM -82 dBm @ 6 Mb/s 2.4 GHz DSSS -87 dBm @ 1 Mb/s The outdoor wireless Ethernet router, FCC ID: KINSL9202, is a high performance router that creates interconnectivity between buildings, and it is provides links for LAN-to-LAN applications. This system can be used in star or mesh configuration. The functional block diagram of the bridge is presented on Figure 1. The outdoor wireless Ethernet routers are installed on the pole or tower. The router containing the Atheros Dual Band 2.4 & 5 GHz Transmitter / Receiver, Embedded Processor and Voltage Regulator is enclosed in a metal enclosure that is connected to the ground. The Ethernet data and DC supply voltage (36 Vdc) are injected through a junction box via a 300 ft. CAT5 Ethernet cable ( 2 pairs are used for DC voltage and other 2 for Ethernet data ), and then it is connected to the router. Then, the DC voltage is separated and connected to a Voltage Regulator, and Ethernet data are processed and transferred to an Atheros transmitter that is connected to a 9 dBi external omni, 10 dBi external omni, 17 dBi directional grid, 23 dBi flat panel or 29 dBi directional dish antenna. If the system is not transmitting, it is in a receiving mode. The received signal from the antenna is amplified, processed and demodulated via CAT5 Ethernet cable connected to the LAN system. Tx Power Frequency 5GHz 2.4GHz Specific Channels All 1, 2, 10, and 113-9 13 dBm (20mW) 13 dBm (20mW) 17 dBm (50mW) 15 dBm (30mW) 17 dBm (50mW) Tx Power Supported Power Supply Wall unit: 100/240 VAC, 47/63Hz, 0.7A; output 24V DC, 1.0A Media Access Protocol CSMA/CA SECURITY Wireless Encryption 128 bit-AES (for 92xx) and WEP (for SPEEDMesh-enabled client) ENVIRONMENTAL Storage Temperature -40 o C to 60 o C Working Temperature -33 o C to 55 o C Start-up Temperature -20 o C to 55 o C WIRED LAN INTERFACE Compliance IEEE 802.3 Ethernet Physical Interface 10Base-T, 10/100Base-TX WIRELESS LAN INTERFACE RF Physical Interface RTNC bulkhead RF connector or integrated antenna Bit Error Rate Better than 10 -5 CONFIGURATION & MANAGEMENT Upgradeability Firmware is upgradeable via in-band management Configuration & MonitoringWeb-based, HTTPS MECHANICAL 92xx Enclosure NEMA 4 metal chassis; tower or pole-mount Dimensions (H x W x D) 9201 31.5” x 7” x 3.5” (80.0 cm x 17.8 cm x 8.9 cm) 9204 25.0” x 7” x 3.5” (63.5 cm x 17.8 cm x 8.9 cm) 9202 9” x 7” x 3.5” (22.9 cm x 17.8 cm x 8.9 cm) Weight 9201 5.5 lbs 9204 5.1 lbs 9202 4.5 lbs WARRANTY Service Warranty 1 year depot warranty, extended warranty available

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: P-COM, INC. FCC ID: KINSL9202 REPORT #: P\P-COM_KIN\1469BUT4\1469BUT4TestReport.doc COVER PAGE Test Report Product Name: SPEEDLAN FCC ID: KINSL9202 Applicant: P-COM, INC. 7020 PROFESSIONAL PARKWAY EAST SARASOTA FL 34240-8415 Date Receipt: SEPTEMBER 8, 2004 Date Tested: SEPTEMBER 29, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: P-COM, INC. FCC ID: KINSL9202 REPORT #: P\P-COM_KIN\1469BUT4\1469BUT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2-7...........LIST OF TEST EQUIPMENT PAGE 8.............TEST PROCEDURES PAGE 9.............POWERLINE CONDUCTED INTERFERENCE PAGE 10-11.........POWERLINE CONDUCTED PLOTS PAGE 12-13.........RADIATED INTERFERENCE TEST DATA PAGE 14-15.........6 dB BANDWIDTH PLOTS PAGE 16............POWER OUTPUT PAGE 17-18.........SPURIOUS EMISSIONS AT ANTENNA TERMINALS DATA PAGE 19............METHOD OF MEASURING RF CONDUCTED AND PAGE 20-27.........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 28............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 29-47.........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BANDS PAGE 48-50.........POWER SPECTRAL DENSITY PAGE 51............ANTENNA SPECIFICATION PAGE PAGE 52............MPE CALCULATION EXHIBITS INCLUDED: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: P-COM, INC. FCC ID: KINSL9202 REPORT #: P\P-COM_KIN\1469BUT4\1469BUT4TestReport.doc Page 1 of 52 SEPTEMBER 29, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: P-COM, INC. FCC ID: KINSL9202 To Whom It May Concern: The attached report is for a wireless lan device with both DSSS and OFDM modulations. The device operates in the 2.4 and 5.6 GHz ISM bands. The assembly, made up of the Bridge/Radio (FCC ID:KINSL9202, 50 to 300 feet of special ethernet/power cable, 10 feet of coax, lightning suppressor, and antenna. P-Com sells only professionally installed equipment. This unit has output power control via software and is not user selectable or accessible. The following table shows the power output verses channel availability. Model Frequency Channel Antenna Output Power Number Band - GHz Mode Number Gain & Type mW dBm 9202 2.4 OFDM 1, 2, 10 and 11 18 dBi grid 22 13.4 9202 2.4 DSSS 1, 2, 10 and 11 18 dBi grid 26 14.2 9202 2.4 OFDM 3 through 9 18 dBi grid 50 17.0 9202 2.4 DSSS 3 through 9 18 dBi grid 50 17.0 9202 2.4 OFDM 1, 2, 10 and 11 9 dBi omni 22 13.4 9202 2.4 DSSS 1, 2, 10 and 11 9 dBi omni 26 14.2 9202 2.4 OFDM 3 through 9 9 dBi omni 50 17.0 9202 2.4 DSSS 3 through 9 9 dBi omni 50 17.0 9202 5.8 OFDM 149 through 165 29 dBi dish 40 16.0 9202 5.8 OFDM 149 through 165 23 dBi flat panel 40 16.0 9202 5.8 OFDM 149 through 165 10 dBi omni 40 16.0 P-COM, INC. purchases standard antennas from the manufacturer. The antenna is intended to be used outside. The KINSL9202 radio uses unique connector (reverse TNC). Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: P-COM, INC. FCC ID: KINSL9202 REPORT #: P\P-COM_KIN\1469BUT4\1469BUT4TestReport.doc Page 2 of 52 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 9/23/03 9/23/05 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 9/23/03 9/23/05 Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 9/23/03 9/23/05 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 9/23/03 9/23/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 3/22/04 3/22/06 Silver Tower RF Preselector HP 85685A 2926A00983 CAL 3/22/04 3/22/06 Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 3/22/04 3/22/06 Silver Tower Preamplifier HP 8449B 3008A01075 CAL 3/22/04 3/22/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 BiconiLog Antenna EMCO 3143 9409-1043 No Cal Required Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 8/26/04 8/26/06 Log-Periodic Antenna Electro- Metrics LPA-30 409 CAL 3/4/03 3/4/05 Log-Periodic Eaton 96005 1243 CAL 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: P-COM, INC. FCC ID: KINSL9202 REPORT #: P\P-COM_KIN\1469BUT4\1469BUT4TestReport.doc Page 3 of 52 Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status Antenna 5/8/03 Dipole Antenna Kit Electro- Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro- Metrics TDA-30/1-4 153 CAL 9/26/02 9/26/05 Double-Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 Horn Antenna *(at 3 meters) Electro- Metrics EM-6961 6246 CAL 3/31/03 3/31/05 Horn Antenna *(at 10 meters) Elec…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOS FOR P-COM INC.’S FCC ID: KINSL9202 29 dBi – Andrews 52 Series Parabolic 23 dBi flat panel – Model MT-485002 9 dBi Omni Antenna – Pacific Wireless Model PAWODH24-9 10 dBi Omni Antenna – Radiall/Larsen Model R380.700.205 18 dBi Grid Antenna – Conifer – Model 18T2400 POWERLINE CONDUCTED TEST SET UP HHOTO
