KJ8-0001115AZ-Wave X-10 Bridge

Response to Inquiry to FCC (Tracking Number 474491) Joseph Brunett <[email protected]> Generic Office of Engineering Technology <[email protected]> Fri, Sep 22, 2006 at 12:32 PM To: [email protected] Inquiry: Please address the following two questions. 1) Is it permissible for a Part 15 device to be sold without a users manual (or other paper/electronic document) so long as all required statements (id number, rf hazard and interference warnings, etc...) are placed directly on the device? 2) If all required statements are placed on a device, must a users manual (or other paper/electronic document) be provided when applying for certification? Thanks. JDB Response: If the device is sold with the user manual attached to the product like a label, then the text of that label/manual document should be submitted as the User Manual in the FCC application for Certification. Please note that a User Manual exhibit is required for most Certification applications. Do not reply to this message. Please select the Reply to an Inquiry Response lin! k from the OET Inquiry System to add any additional information pertaining to this inquiry. Page 1 of 1Gmail - Response to Inquiry to FCC (Tracking Number 474491) 2/1/2007http://mail.google.com/mail/?ik=4cddaab9f2&view=pt&search=query&q=label%3AFCC-C ... Response to Inquiry to FCC (Tracking Number 474491) Joseph Brunett <[email protected]> Generic Office of Engineering Technology <[email protected]> Wed, Sep 27, 2006 at 11:30 AM To: [email protected] Inquiry: Please address the following two questions. 1) Is it permissible for a Part 15 device to be sold without a users manual (or other paper/electronic document) so long as all required statements (id number, rf hazard and interference warnings, etc...) are placed directly on the device? 2) If all required statements are placed on a device, must a users manual (or other paper/electronic document) be provided when applying for certification? Thanks. JDB ---Reply from Customer on 09/22/2006--- Just to verify I am understanding this correctly. Most applications require a users manual exhibit. However, that exhibit may be comprized of an ID label drawing or photograph, so long as that label clearly demonstrates all information required of the users manual for compliance. Please confirm. JDB Response: Your understanding is correct. Since the manufacturer does not supply an actual user manual, ! then they may use the product label which contains the required FCC information as a user manual exhibit. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. Page 1 of 1Gmail - Response to Inquiry to FCC (Tracking Number 474491) 2/5/2007http://mail.google.com/mail/?ik=4cddaab9f2&view=pt&search=cat&cat=FCC%20Correspo ...

DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of A X-10 Z-Wave B ridge X-10 Z-Wave B ridge HXT 8/1/06 MDN248 A 8/1/06 1 HXT F.C AC 9V BATTERY + 3.3V DC battery off control AC power line carrier 120K HZ bursts X10 signal control Zensys ZW0102 Integrated RF transceiver build in 8051 microcontroller external crystal: 7.376974MHZ ATMEL AT89LS52 8051 microcontroller external crystal: 11.0592MHZ X10 signals transmiter X10 signals receiver 6 keys input circuit power supply (AC/BATTERY) Switch and control circuit power supply and zero cross generator zero cross -15V -30V +5.1V Battery on control LEDS driver serial communication baude rate 115200 RF FILTER EEPROM RF input RF output 908.42MHZ ANTENNA 2 dail switches input X10_zwave.vsd

RE: Wayne Dalton Corporation FCC ID: KJ8-0001115A The following is in response to the comments made on the above referenced application. 1) FYI....Please note that the X-10 portion of the device must be Verified for compliance under 15.31(d) & (h) and 15.201 of the FCC rules (RSS-310 for IC), including 3 typical in-situ installations. The scope of this is not covered in the Certification of this application, but the manufacturer is responsible to ensure this testing has been performed. Please confirm this has been performed. The carrier current portion of this device has been tested at three in-situ installations, including two with overhead power lines and one with buried power. The device meets the limits without issue, and a report is being prepared for Wayne Dalton. The report will be supplied to them at the time the FCC and IC grants are available. 2) The IC label/test report vs. the IC form/cover letters does not match. Please review and correct as necessary. Our apologies, the forms have been corrected to match the ID label drawing. 3) Please update the labeling exhibit to show the placement of the label on the device as well. The exhibit has been updated. 4) Label and block diagram cite an operational frequency of 908.42 MHz. If correct, please update the FCC and IC forms. The forms have been updated. 5) Users Manual not provided. Note compliance to 15.21 not found. FCC 15.21 compliance has been added to the ID Label. 6) It would be assumed that the device would normally be positioned upright, but this position does not appear to be tested. Please review. As stated in the test report, the device was tested in all orientations. The photographs provided are intended only to depict the test configuration, and cannot represent all DUT orientations tested. Note that there are three referenced test positions reported in the data table, the “end” position corresponding to the device in the upright position (i.e. standing on end).

Re: Certification for Wayne Dalton Transceiver Model(s): WDHA-10 FCC ID: KJ8-0001115A IC: 3540A-0001115 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Wayne Dalton Transceiver Model(s): WDHA-10 FCC ID: KJ8-0001115A IC: 3540A-0001115 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Wayne Dalton requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Wayne Dalton has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan February 5, 2007 Re: Certification for Wayne Dalton Transceiver Model(s): WDHA-10 FCC ID: KJ8-0001115A IC: 3540A-0001115 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Wayne Dalton Transceiver Model(s): WDHA-10 FCC ID: KJ8-0001115A IC: 3540A-0001115 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 It will be manufactured by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 Canadian Contact: Bob McEwan, General Manager Wayne-Dalton of Canada 254 Matheson Blvd East Mississauga, Ontario L4Z 1P5 Canada Tel 905-890-1402 Fax 905-890-5182

Label Location

Z-Wave X-10 Bridge Instructions Intro Thank you for purchasing the XXXX Z-Wave X-10 Bridge. The HomeSettings Home Automation system allows you to control your home by remote control. You can create a complete Home Control and Access Network by combining your Z-Wave X-10 Bridge with other HomeSettings Home Automation System products. Indoor and outdoor lighting, security systems, garage door openers, and thermostats are just a few of the items you can easily control with additional HomeSettings Home Automation Systems products. Home Control Basics HomeSettings Home Automation Products allow you to easily control multiple devices in a home with the push of a button in what is known as a “Scene”. Turning on all of the lights as you come home is an example of a scene. Dimming lights and closing your curtains to watch TV is another type of scene. Glossary (Same as HAC, except the following:) DeleteModule and Operator Add: Z-Wave Module: Any HomeSettings or Z-Wave product that is controlled with a HomeSettings or Z- Wave remote controller. A module can be part of more than one scene. X-10 Module: Any product compatible with the X-10 protocol that can receive X-10 signals. X-10 Controller: Any product compatible with the X-10 protocol that can send X-10 signals. X-10 Address: The combination of Home-ID and Unit-ID that is the identifier of an X-10 node (for example, B-3). Bridge Basics The X-10/Z-Wave Bridge acts as a bi-directional bridge between your Z-Wave Modules and Controllers, and X-10 Modules and Controllers. It allows you to control X-10 Modules using a Z- Wave controller, and add them to Z-Wave scenes. It also allows you to control Z-Wave Modules using an X-10 controller, and add them to X-10 scenes. Up to three scenes can be created and controlled directly from the Bridge itself. These scenes can contain both Z-Wave and X-10 Modules. The Z-Wave Modules can be included in the scene in an On, Off, or Dimmed state, and X-10 Modules can be included in an On or Off state. Dimming an X-10 Module is not supported by the Bridge, but can be done with an X-10 Controller. The Bridge can also take the role of a primary Z-Wave controller in your network, allowing you to add or delete Modules from the network. Basic Functions Adding a Z-Wave Module to the network Note: You can only use the Bridge to add Z-Wave modules to the network if it is the primary controller. If the Bridge is a secondary controller you must use your primary controller to add Z-Wave nodes. If so, refer to those instructions for the proper procedure. 1. Unplug the Bridge. Z-Wave nodes can only be added while the Bridge is running on battery power. 2. Take the Bridge to the location where the Module is plugged in. You will need access to both during the programming procedure. 3. Set the X-10 knobs to the Home ID and unit ID that you would like to assign to the Z-Wave module 4. Press and hold the ADD button on the bridge until the green LED blinks 5. Press and release the PROGRAM button on the module 6. When the LED on the Bridge flashes green, the Module has been successfully added to the network. Adding an X-10 Module to the network Note: You can add X-10 Modules if the Bridge is either a primary or secondary controller. 1. Take note of the X-10 address of the X-10 Module. 2. Ensure that the Bridge is plugged in to AC-Power. In order to add an X-10 node the Bridge must be plugged in. 3. Set the X-10 dials on the Bridge to match the address of the X-10 module you want to add. 4. Press and hold the ADD button on the Bridge until the green LED blinks, then release the button. 5. The green LED will turn off. 6. When the green LED flashes again, the X-10 node has been added to the Z-Wave network. Assigning an X-10 address to a Z-Wave node Note: You can assign an X-10 address to a Z-Wave Module if the Bridge is either a primary or secondary controller. More than one Z-Wave Module can be assigned to the same X-10 address. 1. Unplug the Bridge. You can only assign an X-10 address to a Z-Wave node if the unit is running on battery power. 2. Take the Bridge to the location where the Module is plugged in. You will need access to both during the programming procedure. 3. Set the X-10 dials on the Bridge to the address you want to assign to the Z-Wave module 4. Press and hold the ADD button on the bridge until the green LED blinks, then release the button. 5. Press and release the PROGRAM button on the module. 6. When the light on the Bridge flashes green the X-10 address has been successfully assigned to the Z-Wave module. Copying modules and scenes from another controller (I think that the same instructions from the HAC can be used) Copying modules and scenes to a secondary controller (I think that the same instructions from the HAC can be used) Manually activating a scene (Same instructions as the HAC) Resetting the Bridge (Same instructions as the HAC) Advanced Functions Adding a Z-Wave Module to a scene Note: You can add a Z-Wave module to a scene if the Bridge is either a primary or secondary controller. 1. Unplug the Bridge. You can only add a Z-Wave Module to a scene if the unit is running on battery power. 2. Take the Bridge to the location where the Module is plugged in. You will need access to both during the programming procedure. 3. Press and hold the ADD button on the Bridge until the green LED blinks. 4. Press and hold the SCENE button you wish to add the Z-Wave Module to, either Scene 1, Scene 2, or Scene 3. 5. While holding the SCENE button, press the PROGRAM or OPERATE button(s) on the Z- Wave module you wish to add to the scene, until the Module is in the desired state for the scene (On, Off, or Dimmed). 6. Release the SCENE button 7. When the green LED flashes the Module has been added to the scene. Remove a Z-Wave Module from a scene Note: You can remove a Z-Wave module from a scene if the Bridge is either a primary or secondary controller. 1. Unplug the Bridge. You can only remove a Z-Wave Module from a scene if the B…

Text truncated - open the document above for the full version.

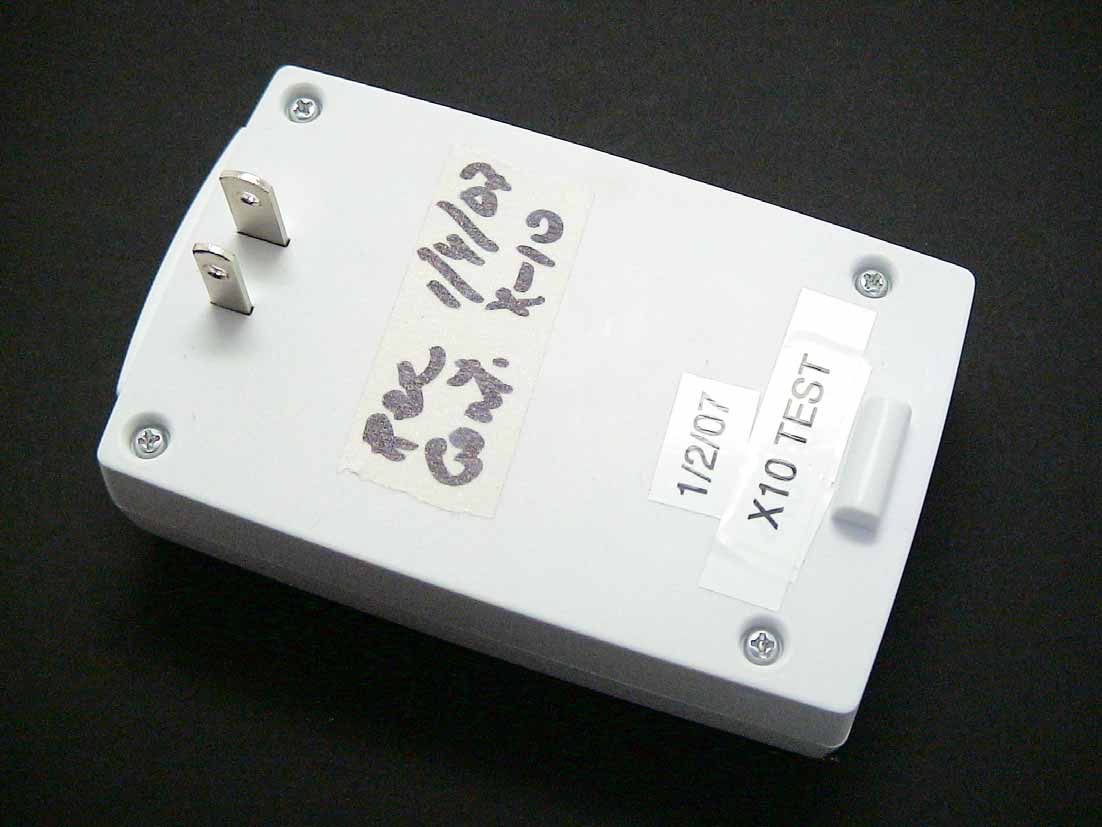

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-347 Page 1 of 14 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Wayne Dalton Tranceiver 908 MHz Transmitter Report FCC ID: KJ8-0001115A Model(s): WDHA-10 Report No. 415031-347 February 1, 2007 Copyright © 2007 For: Wayne Dalton 240 Sheffield Street 3395 Addison Drive Contact: (850) 484-4239 Tel: Pensacola, Florida 32514 Fax: (850) 475-6126 PO: Vebal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Martec model WDHA-10 transceiver. This device also contains an In-Home Carrier Current system not subject to certification. In testing completed on February 1, 2007, the device tested met fundamental emission limits by more than 3.2 dB and harmonic limits by more than 14.6 dB. Spurious emissions meet the FCC/IC Class B limit by more than 6.3 dB. AC power line conducted emissions meet the FCC/IC Class B limit by more than 15.3 dB. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-347 Page 2 of 14 1. Introduction Wayne Dalton model WDHA-10 transceiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz" and the document, "FCC Regulatory Requirements for Design and Sale of SDARS In-Home Repeater v.2.3" The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn X University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box X University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-347 Page 3 of 14 3. Configuration and Identification of Device Under Test The Device Under Test (DUT) is a 908.4 MHz transceiver used to control ambient lighting and other X- 10 style products in a residential environment. The size of the DUT is 3(W) x 5(H) x 2(D) inches. Nominal operating voltage is 120 VAC, and the device is also operated from an internal 9 VDC battery. The DUT was designed by Wayne Dalton, 240 Sheffield Street , 3395 Addison Drive. It is identified as: Wayne Dalton Transceiver Model(s): WDHA-10 FCC ID: KJ8-0001115A IC: 3540A-0001115 3.1 Models There is only a single model of the device. Two software modified versions of the device were supplied, including one capable of repeated Carrier Current transmission, and one in the receive-only mode. The normal operating module was tested to demonstrate transmitter compliance as reported herein. Receive mode testing is performed in the associated receiver test report. Carrier current emissions, subject only to verification, have their compliance demonstrated in a verification report supplied to Wayne Dalton. 3.2 Modes of Operation The device is capable of only a single mode of operation. The 908.4 MHz transmission is FM modulated at 47.5 kHz and transmits a data pulse with 20 ms duration every 2.0 seconds. See Figure 6.1. 3.3 EMI/EMC Relevant Modifications No changes where made to the DUT by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits (FCC 15.249, 15.209; IC RSS-210e:A2.9) The DUT tested is a 902-928 MHz ISM band transmitter, subject to FCC 15.249, and all other sections referred to therein. The applicable critical testing frequencies…
