KJ8-0001142Z-WAVE PRODRIVE

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.249 Transmitter Certification Test Report FCC ID: KJ8-0001142 FCC Rule Part: 15.249 ACS Report Number: 07-0047 - 15C Manufacturer: Wayne-Dalton Corporation Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z User’s Manual InstallatIon InstructIons and owner’s Manual chain/ Belt drive Models: 3220c, 3221c, 3222c, 3224c, 3320B, 3322B, 3324B 3220c-Z, 3221c-Z, 3222c-Z, 3224c-Z, 3320B-Z, 3322B-Z, 3324B-Z IMportant notIce! Read the enclosed instructions carefully before installing/operating this garage door opener. Pay close attention to all warnings and notes. This manual MUST be attached to the wall in close proximity to the garage door. © Copyright 2006 Wayne-Dalton Corp. Part No. 325809 Rev.1 12/01/2006 For resIdentIal sectIonal overhead garage doors only! do not use on one pIece doors! IMportant! the door and opener wIll not FunctIon properly untIl InFrared saFety sensors are Installed and properly adjusted! Keychain/Visor Transmitter (1 or 2) Entrapment Label Light Diffuser Opener Emergency Release Tag Bell Wire Red Emergency Release Knob Wall Mounting Brackets Door Arm Lower Door Bracket Rail Assembly W/Upper Door Arm note: Depending on the opener model, some parts listed may not be supplied. package contents Multifunction Wall Station W/Hardware Wired Deluxe Wall Station W/Hardware 5 Button Wireless Keyless Entry W/ Hardware 1/4” x 4” Hex Head Bolt (2) 1/4”-20 x 3/4” Machine Bolts(2) 1/4” Nylock Nuts 3/8”-16 x 1” Machine Bolt3/8” Plastic Insert Locking Nut (2) 1/4” - 20 x 2” Carriage Bolts 1/4” Plastic Insert Locking Nut (2) 1/4” - 20 x 5/8” Self Drilling Screws (2) 1/4” x 1-1/2” Lag Screws 3/8” Flat Washer Infrared Safety Sensors (1 Sender + 1 Receiver) (2) Safety Sensor Brackets Wired Safety Sensors W/ Hardware (2)1/4” Locking Nuts please do not return this product to the store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com I Owner’s Manual Nylon Shoulder Bushing5/16” x 1-1/4” Multi Grip Clevis Pin Hairpin Cotter PRE-INSTALLATION INSPECTION OF YOUR GARAGE DOOR PRIOR TO PRODRIvE ™ OPENER INSTALLATION To ensure your new Prodrive ™ opener works as intended, your garage door must be properly installed and balanced. Before installing your garage door opener, open and close you door manually to ensure it operates smoothly from top to bottom. A properly balanced door should not take a lot of effort to open or close by hand. The door should stay in the open and in the closed position without drifting down or creeping up. If a door opens fast, the door may need spring tension reduced. If the door drops fast, the door may need spring tension increased. If the door operates properly, then proceed to your Prodrive ™ installation manual for instructions on how to install the Prodrive ™ garage door opener. If the operation of the door does not meet these requirements, adjust the spring balance per your door’s installation manual or call a professional installer to make adjustments before installing Prodrive ™ . Instruction manuals are available for download on www.wayne-dalton.com. Use the web site to also find the location of your nearest professional dealer. Once the door is properly balanced and operates smoothly, you may proceed with the installation of your Prodrive ™ garage door opener. please do not return this product to the store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com II pre-Installation IMportant! Before starting the installation read these instructions thoroughly to familiarize yourself with all aspects of installation and adjustment. IMportant: IF yOUR GARAGE HAS NO SERVICE ENTRANCE DOOR, INSTALL AN OPTIONAL OUTSIDE qUICK RELEASE LOCK. THIS ACCESSORy ALLOWS MANUAL OPERATION OF GARAGE DOOR FROM OUTSIDE IN CASE OF POWER FAILURE. IdentIFy your door Identify your door by referring to illustrations below and verify that your door type is a sectional door with curved track. Do not install if the door is any type of one piece door. note: The opener has been designed for sectional doors. Do not attempt to install this opener on any style one piece door. Using this opener on a one-piece door may result in serious personal injury or property damage. test your door Before you begin, complete the following two tests to insure that the door is balanced and working properly. A door that binds, sticks or is out of balance could cause severe injury. Do not attempt to compensate for an improperly adjusted door by the installation of an opener. This will interfere with the proper operation of the opener’s safety features and/or may damage the door or opener. Have a qualified service person make any needed adjustments or repairs before proceeding with installation. door test one Raise and lower the door and check closely for any sticking or binding that may occur. Lift the door approximately half way open, as illustrated. When releasing the door, it should stay in position. If spring tension pulls the door further open or door weight pulls it down, your door is not properly adjusted. door test two When properly installed, a door should remain clear of the opening, when allowed to rest at its natural, full open position. If “door drift” pulls door back into opening or spring tension is not sufficient to pull door totally clear of opening, the door is not properly adjusted. pre-asseMBly check Every opener is factory tested and shipped with the limit switch adjustment in the door CLOSED position. If the opener has been powered up before assembly, perform the following steps to insure that the limit switch adjustment is in the door CLOSED position. Connect the opener to a …

Text truncated - open the document above for the full version.

Wayne-Dalton Corp * 4400 River Green Pkwy, Suite 220B, Duluth, Ga. 30096 * 678-417-0115 CONFIDENTIALITY REQUEST February 9, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD. 21046 Gentlemen: Wayne-Dalton Corp. respectfully requests confidentiality of certain materials provided with the submission of the NETWORK PRODRIVE under FCC ID: KJ8-0001142 in accordance with FCC Regulations 0.459. The confidentiality request applies to the (1) Schematic, (2) Bill of Materials, (3) Detailed Operational Description, and (4) Detailed Block Diagram contained in this filing and the exhibits listed below. 07-0047 – System Block Diagram.pdf 07-0047 – Theory of Operation.pdf 07-0047 – Parts List.pdf 07-0047 – Schematics.pdf The NETWORK PRODRIVE has been developed at considerable effort and expense by Wayne-Dalton Corp. These items are considered as Trade Secrets and, therefore, public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, David Ayer RF Design Engineer – N6WJD Wayne-Dalton Corp.

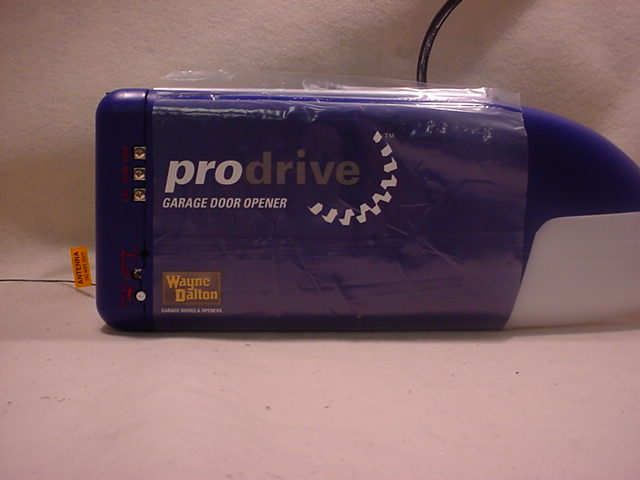

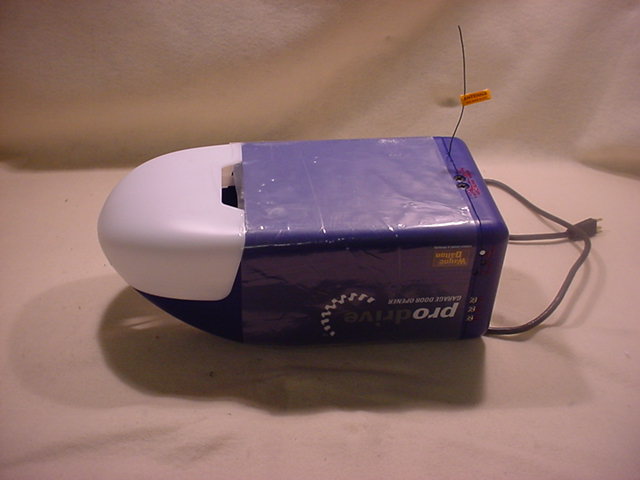

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.249 Transmitter Certification Test Report FCC ID: KJ8-0001142 FCC Rule Part: 15.249 ACS Report Number: 07-0047 - 15C Manufacturer: Wayne-Dalton Corporation Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z External Photographs Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External Photographs Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External Photographs Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External Photographs

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.249 Transmitter Certification Test Report FCC ID: KJ8-0001142 FCC Rule Part: 15.249 ACS Report Number: 07-0047 - 15C Manufacturer: Wayne-Dalton Corporation Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z Label Information Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Label Location LABEL LOCATION

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.249 Transmitter Certification Test Report FCC ID: KJ8-0001142 FCC Rule Part: 15.249 ACS Report Number: 07-0047 - 15C Manufacturer: Wayne-Dalton Corporation Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z Internal Photographs Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal Photographs - Assembled Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal Photographs – Motor Control Board Front Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal Photographs - Motor Control Board Back Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal Photographs – RF Board Front Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Internal Photographs – RF Board Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.249 Transmitter Certification Test Report FCC ID: KJ8-0001142 FCC Rule Part: 15.249 ACS Report Number: 07-0047 - 15C Manufacturer: Wayne-Dalton Corporation Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z Test Begin Date: February 7, 2007 Test End Date: February 8, 2007 Report Issue Date: March 13, 2007 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Prepared by: Reviewed by: Ken Rivers Wireless Certifications Technician ACS, Inc. J. Kirby Munroe Manager Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 16 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Intended Use 3 1.2.3 Model Designations 4 1.3 Test Methodology and Considerations 4 2.0 Test Facilities 5 2.1 Location 5 2.2 Laboratory Accreditations/Recognitions/Certifications 5 2.3 Radiated Emissions Test Site Description 6 2.3.1 Semi-Anechoic Chamber Test Site 6 2.3.2 Open Area Tests Site (OATS) 7 2.4 Conducted Emissions Test Site Description 8 3.0 Applicable Standards and References 8 4.0 List of Test Equipment 9 5.0 Support Equipment 10 6.0 EUT Setup Block Diagram 10 7.0 Summary of Tests 11 7.1 Section 15.203 - Antenna Requirement 11 7.2 Section 15.207 – Power Line Conducted Emissions 11 7.2.1 Test Methodology 11 7.2.2 Test Results 11 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 12 7.3.1 Test Methodology 12 7.3.2 Test Results 12 7.4 Section 15.215 - 20dB Bandwidth 13 7.4.1 Test Methodology 13 7.4.2 Test Results 13 7.5 Section 15.249(a) Fundamental Field Strength 14 7.5.1 Test Methodology 14 7.5.2 Test Results 14 7.6 Section 15.249(a), (c) – Band-edge Compliance and Spurious Emissions 15 7.6.1 Section 15.249(c) - Band-Edge Compliance 15 7.6.1.1 Test Methodology 15 7.6.1.2 Test Results 15 7.6.2 Section 15.249(a), (c) - Radiated Spurious Emissions 16 7.6.2.1 Test Methodology 16 7.6.2.2 Duty Cycle Correction 16 7.6.2.3 Test Results 16 7.6.2.4 Sample Calculations 16 8.0 CONCLUSION 16 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling Schematics Installation/Users Guide Theory of Operation BOM (Parts List) System Block Diagram Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 ACS Report: 07-0047-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The models referenced in this report, 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, and 3221C-Z, are garage door openers part of the Wayne-Dalton Z-Wave™ enabled prodrive™ system. The ProDrive™ series of garage door openers opens your garage door(s) via a directly wired- wallstation (button pad) located near the interior door, or a wireless keypad typically located outside the garage door (PIN req’d), or a 3-button RKE (Remote Keyless Entry) keyfob typically found in the car or on the keychain. The Z-Wave enabled ProDrive takes the original ProDrive version a step further. In addition to the features of ProDrive, the Z-Wave enabled ProDrive allows users to remotely access electronics and luminaries in their home via a 908.42 MHz Z-Wave transceiver. Applicant Information: Wayne-Dalton Corporation 3395 Addison Drive Pensacola, FL 32514 850-474-9890 Detailed photographs of the EUT are filed separately with this filing. 1.2.2 Intended Use The models referenced in this report, 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, and 3221C-Z, are garage door openers part of the Wayne-Dalton Z-Wave™ enabled prodrive™ system. Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 ACS Report: 07-0047-15C Advanced Compliance Solutions Page 4 1.2.3 Model Designations The major differences in models 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, and 3221C-Z are described below. The model designators are provided to distinguish between the accessories, drive method, and HP offered for each system package. The garage door opener in each system identified by the model designation is electrically identical according to 47 CFR Part 2.924. ITEM Model P/N Portable Transmitters Wall Station Type Motor HP Keyless entry NETWORK - PRODRIVE: prodrive chain 3220C-Z (Z-wave Enabled) 3220C-Z 326581 1 2-button deluxe 1/2 6 pole no prodrive chain 3222C-Z (Z-wave Enabled) 3222C-Z 327227 1 7-function wireless 1/2 6 pole no prodrive chain 3224C-Z (Z-wave Enabled) 3224C-Z 327228 2 7-function wireless 1/2 6 pole yes prodrive belt 3320B-Z (Z-wave Enabled) 3320B-Z 327229 1 2-button deluxe 1/2 6 pole no prodrive belt 3322B-Z (Z-wave Enabled) 3322B-Z 327230 1 7-function wireless 1/2 6 pole no prodrive belt 3324B-Z (Z-wave Enabled) 3324B-Z 327231 2 7-function wireless 1/2 6 pole yes prodrive 1/3 promo chain 3221C-Z (Z-wave Enabled) 3221C-Z 327232 1 2-button deluxe 1/3HP no 1.3 Test Methodology and Considerations The Z-Wave Prodrive contains a 908.42 MHz transceiver and a separate 372 MHz discrete IC receiver. This report covers the 908.42 MHz Z-Wave operation only. The 372 MHz discrete IC receiver is addressed in a separate Declaration of Conformity equipment authorization. Model(s): 3220C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z, 3221C-Z FCC ID: KJ8-0001142 ACS Report: 07-0047-15C Advanced Compliance Solutions Page 5 2.0 TEST FACILITIES 2.1 Location The radiated and conduc…
