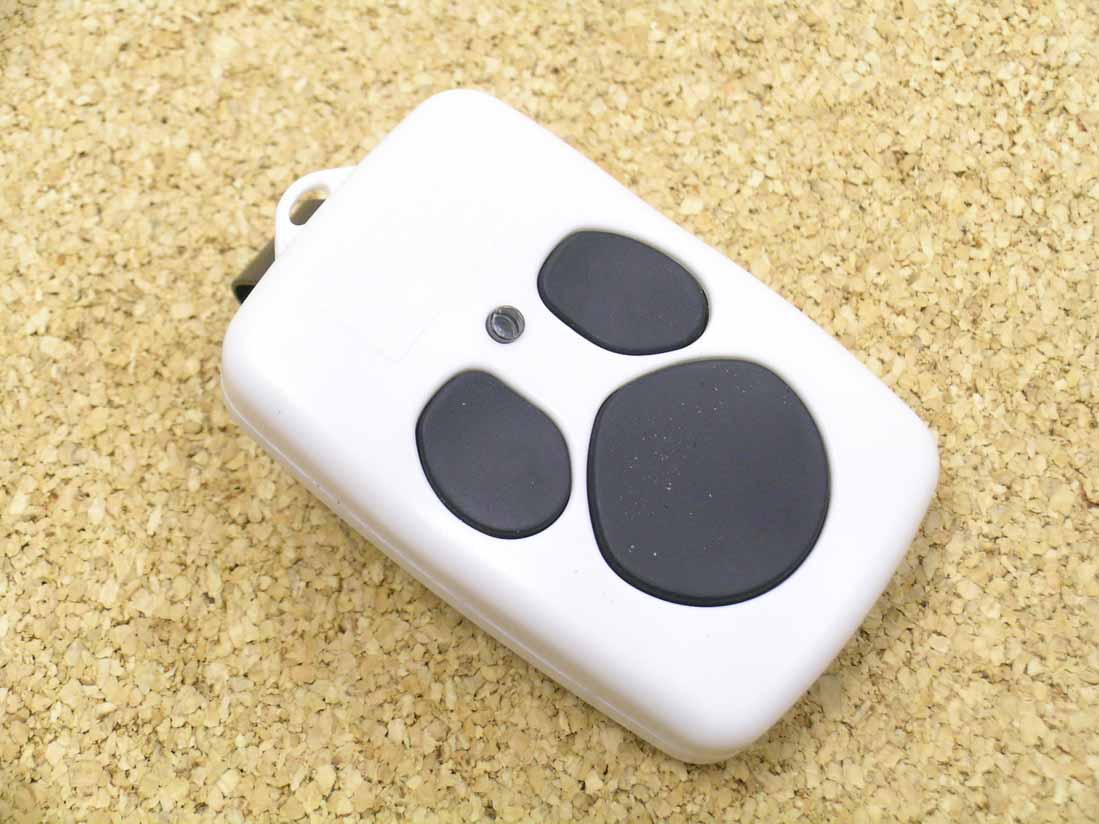

KJ80000593Wireless Keychain Remote Control

Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: KJ80000593 IC: 3540A-0000593 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Micro 11.625 MHz XTAL SW1SW2SW3 BATT RF OSC (372 MHz) LPF

Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Wayne Dalton requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Wayne Dalton has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan January 15, 2007 Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 STATEMENT OF MODIFICATIONS Fundamental output power was optimized closer to the allowable limit by changing R7 from 510 ohms to 430 ohms. No other modifications were made by the test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 It will be manufactured by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 Canadian Contact: Bob McEwan, General Manager Wayne-Dalton of Canada 254 Matheson Blvd East Mississauga, Ontario L4Z 1P5 Canada Tel 905-890-1402 Fax 905-890-5182

January 14, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KJ80000593 IC: 3540A-0000593 Model(s): 3973C, 3150C Please find enclosed application materials for certification of Wayne Dalton 3973C, 3150C Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

January 14, 2007 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 Please find enclosed application materials for certification of Wayne Dalton 3973C, 3150C Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist January 14, 2007 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Wayne Dalton Transmitter Model(s): 3973C, 3150C FCC ID: KJ80000593 IC: 3540A-0000593 Please find enclosed application materials for certification of Wayne Dalton 3973C, 3150C Transmitter. We tested the device and found it to comply with RSS- GEN/102/210. The product is identified by: IC: 3540A-0000593 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

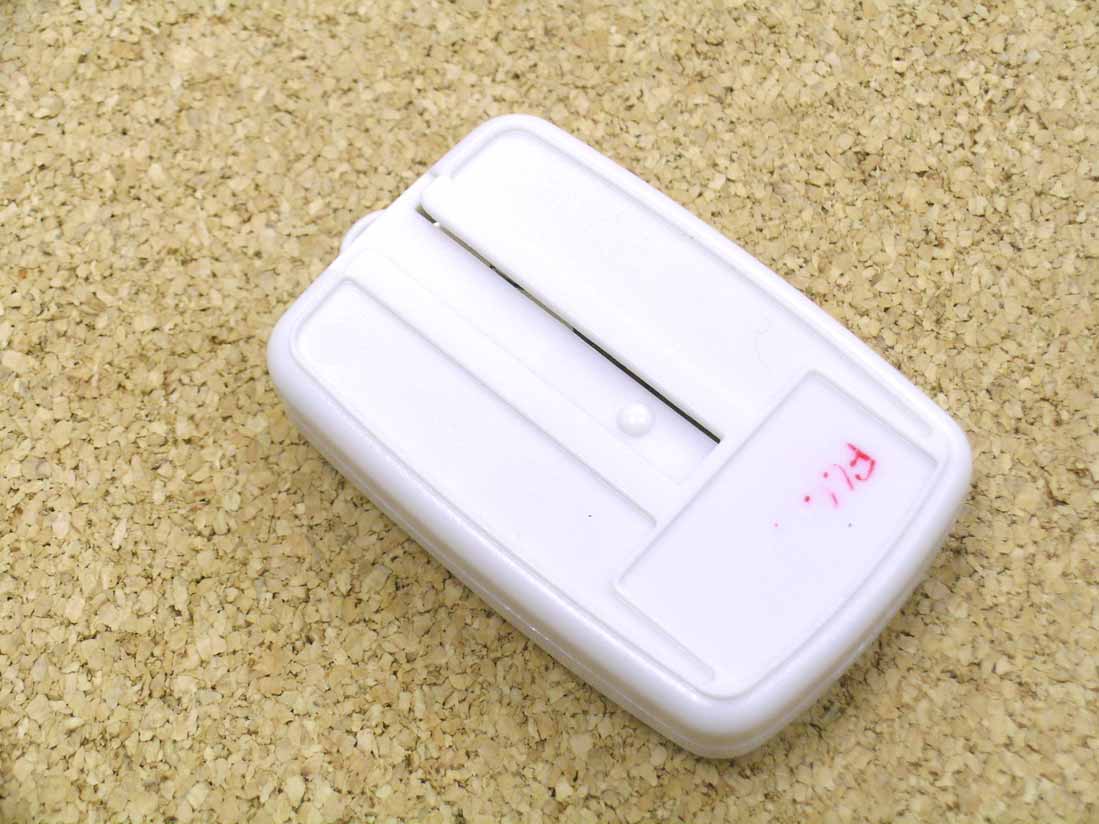

DUT (bottom) with metal clip

1 Look for the symbol for basic instructions. Wireless Keychain Remote Control Model 3150R Operating Instructions and Owner’s Manual Package Content....................................................................................................... 1 Warnings and Glossary ............................................................................................. 2 Setup..................................................................................................................... 3-4 Examples.................................................................................................................. 5 Advanced Features ................................................................................................... 6 Troubleshooting ..................................................................................................... 6-7 Compliance .............................................................................................................. 8 Table of Contents Control Garage Door Opener and HomeSettings System from your car Thank you for purchasing the 3150R HomeSettings Wireless Keychain Remote Control. HomeSettings products by Wayne-Dalton allow you to control your home by remote control. You can create a complete Home Control and Access Network by combining your Wireless Keychain Remote Control with other HomeSettings products. Indoor and outdoor lighting, security systems, garage door openers, and thermostats are just a few of the items you can easily control with additional HomeSettings products. Your new Wireless Keychain Remote Control is compatible with Wayne-Dalton garage door openers, the Garage Door Opener Conversion Module and the Wireless Gateway to give you control of Z-Wave™ enabled modules. Home Control Basics HomeSettings products will allow you to easily control multiple devices in a home with the push of a button in what is known as a “scene”. Turning on all of the lights as you come home is an example of a scene. Dimming lights and closing your curtains to watch TV, it’s also a scene. Visit www.wayne-dalton.com/access to get ideas on how to create scenes with your Remote Control and other Z-Wave™ enabled HomeSettings products. PACKAGE CONTENTS Instruction Manual 3150R WIRELESS KEYCHAIN REMOTE CONTROL Quick Sta rt

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-343 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Wayne Dalton Corporation Transmitter Model(s): 3973C, 3150C Report No. 415031-343 January 14, 2007 Copyright © 2007 For: Wayne Dalton 3395 Addison Drive Pensacola, Florida 32514 Contact: Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Wayne Dalton Corporation model(s) 3973C, 3150C. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on December 5, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 1.6 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-343 Page 2 of 11 1. Introduction Wayne Dalton Corporation model 3973C, 3150C was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-343 Page 3 of 11 3. Device Under Test 3.1 Identification The DUT is 1.5 x 2.5 x 0.5 inches in size, it operates at 372 MHz and the carrier is referenced from an 11.625 MHz crystal. Antenna is a trace on the PCB. The DUT was designed and manufactured by Wayne Dalton, 3395 Addison Drive, Pensacola, Florida 32514. It is identified as: Wayne Dalton B Model: 3973C, 3150C FCC ID: KJ8-0000593 IC: 3540A-0000593 3.2 Models The two models are identical in construction and use the same PCB / components. One sample was provided in normal operating mode, and one sample was provided capable of continuous transmission. 3.3 Modes of Operation Note: The DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.4 EMI/EMC Relevant Modifications Fundamental output power was optimized closer to the allowable limit by changing R7 from 510 ohms to 430 ohms. No other modifications were made by the test laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210 (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.209; IC: RSS-210, 2.7 Table 2). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200…
