Coin Slot Front Case Battery Replacement How Your Keyless Entry Operates Your Opener NOTE: IF, AT ANY TIME, AN ERROR WAS MADE IN ENTERING THE CODES, SIMPLY PRESS AND HOLD BOTH THE "7/8" AND "9/0" BUTTONS FOR 2 SECONDS TO RESET THE KEYLESS ENTRY. REPEAT THE ABOVE PROCEDURES. Note: One 3966 Keyless Entry can be programmed to open multiple gar age door openers. To program for additional openers, repeat steps A thru D above except input a different five digit PIN number for each additional opener. Under normal operating c onditions, the battery should be chan ged once every 12 months. Dispose of used batteries properly. To replace battery perform the following steps: A. Snap open case with a coin and remove old batteries. B. Replace batteries (two CR2032 or equivalent) and snap case t ogether. A. With new installations, it is recommended that the keyless entry be programmed before mounting to wall, otherwise proc eed to step B. B . Unit should be programmed with garage door in the down position. For the iDrive openers, pull the emergency disconnect handle to the m anual operated position (lower position). C. Press the program button on the garage door opener to switch the opener to the transmitter learn mode (see illustrations above). O pener will remain in the learn mode for at least 30 seconds. D. Press the desired five digit PIN (PERSONAL IDENTIFICATION NUMBER) number, (example: 1-2-3-4-5). Garage door opener should beep or lamp s hould blink. For the iDrive openers, return the emergency disconnect handle to the motor operated position (upper position). Wait 5 seconds and press any button; the door should move. Programming is now complete. Programming or Changing Personal Identification Number Unit remains active for next 25 sec. Pressing any key, will stop the door if opening, and stop or reverse the door if closing. NOTE: If you inadvertently enter an incorrect code, the door will not move To Reset, press and hold the "7/8" and "9/0" buttons for 2 seconds and reenter your PIN number. Enter your 5-digit PIN (personal identification number); door will begin to move The following explains how your Keyless Entry can be used to OPEN, CLOSE, START, and STOP your door. START HERE Always keep moving door in sight and away from people and objects until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.Never let children operate or play with door controls. Keep all controls away from children. To comply with FCC rules, adjustment or modification of transmitter is prohibited. THERE ARE NO USER SERVICEABLE PARTS EXCEPT FOR BATTERY REPLACEMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING FCC WARNING Before your Wireless Keypad will be able to operate the opener, there are several programming steps that have to be completed. PLEASE READ ALL INSTRUCTIONS THOROUGHLY TO FAMILIARIZE YOURSELF WITH THE PROGRAMMING PROCEDURE BEFORE BEGINNING. SAVE THESE INSTRUCTIONS FOR REFERENCE WHENEVER YOU WISH TO CHANGE YOUR PERSONAL IDENTIFICATION NUMBER (PIN) program button Torsion dr ve program button dr ve FOLD LINE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio fr equency energy and, if not installed and used in accor dance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help. Two screws are included for proper mounting into wood or other similar material. If you're mounting into some other material, consult a building contractor to insure proper hardware is used for a secure mounting. Snap open the Keyless Entry case with a coin. Separate the front case from the back case. Mount the back case and secure with screws provided. Do not over tighten the screws as this may bend or damage the back case. Install and snap the front case onto the back case. Remove paper backing from "C hanging Personal Identification Number" l abel and apply label to a clean surface inside gar age. Pre-drill a 5/64 pilot hole 3/4" deep Drilling Template For Keyless Entry Once you have determined the mounting location, use the drilling template to determine hole positions and drill a 5/64" pilot hole 3/4" deep for the two m ounting screws. (2) Coin Cells Batteries (CR2032) NOTE: With new installations, it is recommended that the keyless entry be programmed before mounting to wall. Choose a convenient location that does not interfere with the normal opening and closing operation of the door, such as the door jamb. Locate Keyless Entry Unit: within sight of door, at a minimum height of 5 feet so it cannot be reached by small children, and away from all moving parts of the door. Pre-drill a 5/64 pilot hole 3/4" deep CAUTION: The keypad should be mounted a minimum of 5 feet from the floor to keep it out of the reach of small children. Mounting 2. 1. DoorMaster program button ClassicDrive program button Quantum BACK Your new Model 3966 Wireless Keyless Entry…

Text truncated - open the document above for the full version.

Attestation Statements

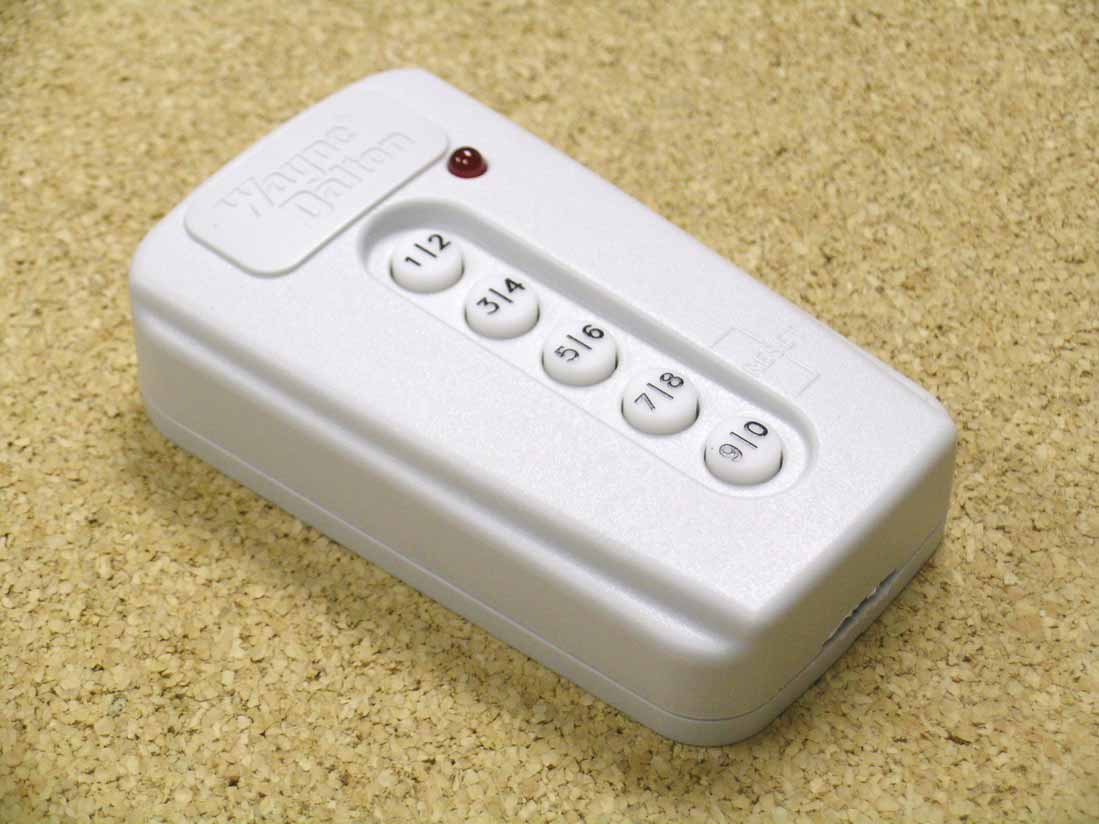

Re: Certification for Wayne Dalton Transmitter Model(s): 3966-372C FCC ID: KJ8KYE5-3720C IC: 3540A-KYE5372C POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Wayne Dalton Transmitter Model(s): 3966-372C FCC ID: KJ8KYE5-3720C IC: 3540A-KYE5372C REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Wayne Dalton requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Wayne Dalton has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan September 12, 2006 Re: Certification for Wayne Dalton Transmitter Model(s): 3966-372C FCC ID: KJ8KYE5-3720C IC: 3540A-KYE5372C STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Wayne Dalton Transmitter Model(s): 3966-372C FCC ID: KJ8KYE5-3720C IC: 3540A-KYE5372C GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 It will be manufactured by: Wayne Dalton Corporation 3395 Addison Drive Pensacola, Florida 32514 Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 Canadian Contact: Bob McEwan, General Manager Wayne-Dalton of Canada 254 Matheson Blvd East Mississauga, Ontario L4Z 1P5 Canada Tel 905-890-1402 Fax 905-890-5182

ID Label/Location Info

DOM: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. J. Hughes J. Hughes INFORMATION IN THIS DRAWING AND ORAL INFORMATION REGARDING THIS PART OR THE SYSTEM IN WHICH IT IS USED IS CONSIDERED CONFIDENTIAL TO THE WAYNE DALTON CORP. THIS PRINT IS ONLY TO BE USED FOR THE PURPOSES OF QUOTATION AND ANY DISCUSSION OF FUNCTION OF THE PART OR THE SYSTEM IN WHICH THIS PART IS USED IS TO BE WITHIN THE INTERNAL COMMUNICATIONS OF THE QUOTING COMPANY AND WAYNE DALTON CORP. WEIGHT SCALE SHEET OF 1 REV CAGE CODE SIZE DRAWING NUMBER R TITLE (678) 417-0115 4400 River Green Parkway, Suite 220B Duluth, GA 30096 DATEDATEDATE A ANGLEPROJECTDRAWN BYCHK.APPR.MATERIAL:FINISH: INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M-1995 LIMITS UNLESS OTHERWISE NOTED: APPLICATION USED ON NEXT ASSY 0000987 KEP3 FCC IDENTIFICATION LABEL PLACEMENT, 372.0 MHz 1:1 KEP3See NotesSee NotesJ. Hughes 08/23/06 A 1 TOL 0.1TOL 0.01TOL 0.005ANGLE CODE PROJECTION TOL .XTOL .XXTOL .XXXANGLE B A 1 A B 2 3 1 2 3 Notes:1. Label to be positioned as shown, centered on the horizontal axis with rotation no greater than 2 degrees.2. No air pockets to be visible under label after placement.3. Adhesive residue and finger prints to be cleaned from unit after placement.4. No visible fingerprints allowed on pressure sensitive adhesive. 08/23/06 08/23/06

Operational Description

Operational Requirements 1. If the product is in stand-by mode (low power consumption mode), the pressing any one of the five buttons for 100ms minimum shall bring the product out of stand-by mode and be used as the first digit of a five digit access code. 2. The LED shall be extinguished while any button is pressed. 3. The product shall enter stand-by mode 30 s after the last activated (pressed) button is released or if one or more buttons are held continuously pressed. 4. Upon entering a 5 digit code, the product shall RF transmit the proper KeeLoq formatted data word with the five button code embedded in the discriminator as the access code. 5. A 5 second timeout period is imposed between each button press until all 5 presses have been entered. If this time out limit is reached between any subsequent press, the product will go into stand by mode. The entire 5 digit code will have to be reentered. 6. Upon entering a 5 digit code, pressing any one of the five buttons while not in stand- by mode, shall cause the product to RF transmit the proper KeeLoq formatted data word with a new KeeLoq sync value 7. After any RF transmission, the LED shall blink on and off at a 1.5s rate, 33 duty- factor, for 30 s. Then the LED shall turn off (stand-by mode activated). 8. Pressing the two lower most buttons simultaneously shall cause the product to enter stand-by mode. (per Markings, item 1, lower most buttons refer to “7/8”, “9/0”)

Test Report

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-325 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Wayne Dalton Corporation Transmitter Model(s): 3966-372C Report No. 415031-325 September 12, 2006 Copyright © 2006 For: Wayne Dalton 3395 Addison Drive Pensacola, Florida 32514 Contact: Doug Gilmore Tel: (850) 475-6126 Fax: (850) 484-4239 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Wayne Dalton Corporation model(s) 3966-372C. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on August 15, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 1.9 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-325 Page 2 of 11 1. Introduction Wayne Dalton Corporation model 3966-372C was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS- 210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-325 Page 3 of 11 3. Configuration and Identification of Device Under Test The DUT is a 372.0 MHz transmitter, 2.5 x 1 x 3.5 inches in size, and the carrier is pulse width modulated. RF is generated by the onboard RFIC with 11.625 MHz crystal reference. The antenna is a trace on the PCB. The DUT was designed and manufactured by Wayne Dalton, 3395 Addison Drive, Pensacola, Florida 32514. It is identified as: Wayne Dalton Transmitter Model: 3966-372C S/N: FCC, FCC-1 FCC ID: KJ8KYE5-3720C IC: 3540A-KYE5372C 3.2 Models Only one model number exists for this device. Two modules were provided by the manufacturer, SN: FCC was normally operating, SN: FCC-1 was modified for repeated transmission and was the primary device used for testing. 3.3 Modes of Operation The DUT is capable of only a single operating mode, and is manually activated. The device ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.3 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210 (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.209; IC: RSS-210, 2.7 Table 2). (Digital Class B) Freq. (MHz) E lim (…
