KJ802-3039

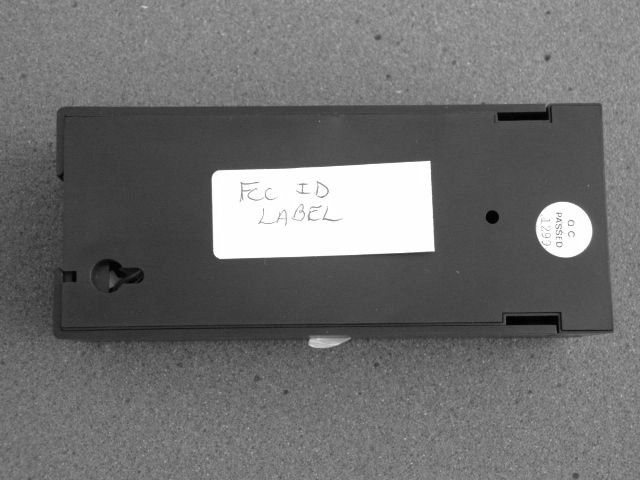

EXHIBIT 1 – FCC Labeling Diagram of where ID Label will appear on unit.

EXHIBIT 1 – FCC Labeling Diagram of where ID Label will appear on unit.

Schematics for KWT transmitter To: Katie Hawkins From: Bridget Keesser, Instrument Specialties Co, [email protected] RE: FCC ID KJ802-3039 Confirmation number EA97734 Correspondence reference number 14800

Schematics for KWT transmitter To: Katie Hawkins From: Bridget Keesser, Instrument Specialties Co, [email protected] RE: FCC ID KJ802-3039 Confirmation number EA97734 Correspondence reference number 14800

INSTRUMENT SPECIALTIES CO., INC. – WORLD COMPLIANCE CENTER EMC MEASUREMENT/TECHNICAL REPORT FCC PART 15 Subpart C Section 15.231 Document No.RevisionIssue Date MFGR: Martec Access Products 112384-A015 May 2000 EUT: KWT Transmitter Purchase Order No.Page FCC ID: KJ802-3039 1702-001 of 25 EMC MEASUREMENT/TECHNICAL REPORT Manufacturer:Martec Access Products, Inc. Equipment Under Test:KWT Transmitter FCC ID No.:KJ802-3039 Test Report No.:112384-A Purchase Order No.:1702-00 DOCUMENT HISTORY RevisionIssue Date Affected Page(s)Description of Modifications Revised By Approved By 015 May 2000Initial release FILE: I:\WORKING\MARTEC ACCESS PRODUCTS\112384\112384\KWT MARTEC FCC REPORT.DOC, NB#: 126 INSTRUMENT SPECIALTIES CO., INC. – WORLD COMPLIANCE CENTER EMC MEASUREMENT/TECHNICAL REPORT FCC PART 15 Subpart C Section 15.231 Document No.RevisionIssue Date MFGR: Martec Access Products 112384-A015 May 2000 EUT: KWT Transmitter Purchase Order No.Page FCC ID: KJ802-3039 1702-003 of 25 TABLE OF CONTENTS (This document contains a total of 25 pages plus attachments.) 1MEASUREMENT/TECHNICAL REPORT SUMMARY...........................................................................................4 2GENERAL INFORMATION ......................................................................................................................................... 5 2.1P RODUCT D ESCRIPTION ................................................................................................................................................. 5 2.2R ELATED S UBMITTAL ( S )/G RANT ( S ) ...............................................................................................................................5 2.3T ABLE : T ESTED S YSTEM D ETAILS ................................................................................................................................5 2.4T EST M ETHODOLOGY .................................................................................................................................................... 5 2.5T EST F ACILITY ............................................................................................................................................................... 5 3PRODUCT LABELING.................................................................................................................................................. 5 3.1FCC ID L ABEL .............................................................................................................................................................. 5 3.2L OCATION OF L ABEL ON EUT........................................................................................................................................ 5 4SYSTEM TEST CONFIGURATION ............................................................................................................................ 6 4.1J USTIFICATION ............................................................................................................................................................... 6 4.2S PECIAL A CCESSORIES ................................................................................................................................................... 6 4.3E QUIPMENT M ODIFICATIONS .......................................................................................................................................... 6 5BLOCK DIAGRAM(S) OF THE EUT .......................................................................................................................... 6 5.1B LOCK DIAGRAM ........................................................................................................................................................... 6 5.2F IGURE : C ONFIGURATION OF T ESTED S YSTEM .............................................................................................................. 7 6TEST DATA..................................................................................................................................................................... 8 6.1R ADIATED E MISSIONS D ATA .......................................................................................................................................... 8 6.1.1Table: FCC Part 15, Subpart C, Section 15.231 Radiated Emissions Limits ..................................................... 8 6.1.2Table: Judgement ............................................................................................................................................... 8 6.1.3Correction Factors ............................................................................................................................................... 9 6.1.4Table: Section 15.209 Radiated Emissions Limits General Requirements.......................................................... 9 6.1.5Data Collection Procedure................................................................................................................................... 9 6.1.6Table: Judgement ............................................................................................................................................... 9 6.1.7Table: Summary of Highest Radiated Emissions Levels .................................................................................... 9 6.1.8Field Strength Calculation ................................................................................................................................. 10 6.1.9Measurement Uncertainty.................................................................................................................................. 10 6.2S ECTION 15.231 B ANDWIDTH M EASUREMENTS ........................................................................................................... 10 6.3S ECTION 15.203 A NTENNA R EQUIREMENT .................................................................................................................. 10 7TEST EQUIPMENT............…

Text truncated - open the document above for the full version.

INSTRUMENT SPECIALTIES CO., INC. – WORLD COMPLIANCE CENTER EMC MEASUREMENT/TECHNICAL REPORT FCC PART 15 Subpart C Section 15.231 Document No.RevisionIssue Date MFGR: Martec Access Products 112384-A015 May 2000 EUT: KWT Transmitter Purchase Order No.Page FCC ID: KJ802-3039 1702-001 of 25 EMC MEASUREMENT/TECHNICAL REPORT Manufacturer:Martec Access Products, Inc. Equipment Under Test:KWT Transmitter FCC ID No.:KJ802-3039 Test Report No.:112384-A Purchase Order No.:1702-00 DOCUMENT HISTORY RevisionIssue D ate Affected Page(s)Description of Modifications Revised By Approved By 015 May 2000Initial release FILE: I:\WORKING\MARTEC ACCESS PRODUCTS\112384\112384\KWT MARTEC FCC REPORT.DOC, NB#: 126 INSTRUMENT SPECIALTIES CO., INC. – WORLD COMPLIANCE CENTER EMC MEASUREMENT/TECHNICAL REPORT FCC PART 15 Subpart C Section 15.231 Document No.RevisionIssue Date MFGR: Martec Access Products 112384-A015 May 2000 EUT: KWT Transmitter Purchase Order No.Page FCC ID: KJ802-3039 1702-002 of 25 EMC MEASUREMENT/TECHNICAL REPORT Document No.: 112384-A From Instrument Specialties Co., Inc. World Compliance Center Test for Martec Access Products, Inc. KWT Transmitter Written By Bridget A. Keesser, EMC Sales RepresentativeDate Reviewed By Grant Metzgar, Senior EMC TechnicianDate Authorized By J. Fred Gardner, EMC Quality Assurance ManagerDate TEST PERSONNEL – Instrument Specialties Co., Inc. Grant Metzgar, Senior EMC Technician21, 23 December 1999 EUT RECEIPT/DISPOSITION INFORMATION Date of Receipt of Equipment Under Test (EUT)21 December 1999 Disposition of EUTIn House Test Facility Instrument Specialties Company Incorporated Address Shielding Way City, State Zip Code Delaware Water Gap, PA 18327 Phone (570) 424-8510 ext. 1216 Fax (570) 421-4227 This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the equipment tested. This report may not be used to claim product endorsement by NVLAP or any agency of the U.S. government. INSTRUMENT SPECIALTIES CO., INC. – WORLD COMPLIANCE CENTER EMC MEASUREMENT/TECHNICAL REPORT FCC PART 15 Subpart C Section 15.231 Document No.RevisionIssue Date MFGR: Martec Access Products 112384-A015 May 2000 EUT: KWT Transmitter Purchase Order No.Page FCC ID: KJ802-3039 1702-003 of 25 TABLE OF CONTENTS (This document contains a total of 25 pages plus attachments.) 1MEASUREMENT/TECHNICAL REPORT SUMMARY .............................................................................................. 4 2GENERAL INFORMATION............................................................................................................................................ 5 2.1P RODUCT D ESCRIPTIO N ................................................................................................................................................... 5 2.2R ELATED S UBMITTAL ( S )/G RANT ( S ).................................................................................................................................. 5 2.3T ABLE : T ESTED S YSTEM D ETAILS ................................................................................................................................... 5 2.4T EST M ETHODOLOGY ....................................................................................................................................................... 5 2.5T EST F ACILITY ................................................................................................................................................................. 5 3PRODUCT LABELING.................................................................................................................................................... 5 3.1FCC ID L ABEL ................................................................................................................................................................. 5 3.2L OCATION OF L ABEL O N EUT.......................................................................................................................................... 5 4SYSTEM TEST CONFIGURATION...............................................................................................................................6 4.1J USTIFICATIO N ................................................................................................................................................................. 6 4.2S PECIAL A CCESSORIES ..................................................................................................................................................... 6 4.3E QUIPMENT M ODIFICATIONS ........................................................................................................................................... 6 5BLOCK DIAGRAM(S) OF THE EUT............................................................................................................................. 6 5.1B LOCK DIAGRAM ............................................................................................................................................................. 6 5.2F IGURE : C ONFIGURATION OF T ESTED S YSTEM ................................................................................................................ 7 6TEST DATA....................................................................................................................................................................... 8 6.1R ADIATED E MISSIONS D ATA ............................................................................................................................................ 8 6.1.1Table: FCC Part 15, Subpart C, Section 15.231 Radiated Emissions Limits ....................................................... 8 6.1.2Table: Judgement.................................................................................................................................................. 8 6.1.3Correction Factors...................................…

Text truncated - open the document above for the full version.

Data Sheets for Instrument Specialties Test Report No: 112384-A Dated: 15 May 2000 Title: FCC PART 15 Subpart C Section 15.231 For: Martec Access Products Equipment under test (EUT): KWT Transmitter FCC ID: KJ802-3039

Data Sheets for Instrument Specialties Test Report No: 112384-A Dated: 15 May 2000 Title: FCC PART 15 Subpart C Section 15.231 For: Martec Access Products Equipment under test (EUT): KWT Transmitter FCC ID: KJ802-3039 Part 1 of 4 Radiated Emissions

Data Sheets for Instrument Specialties Test Report No: 112384-A Dated: 15 May 2000 Title: FCC PART 15 Subpart C Section 15.231 For: Martec Access Products Equipment under test (EUT): KWT Transmitter FCC ID: KJ802-3039 Part 2 of 4 CW Vertical Antenna Height- CW Mode fundamental Page 1 Center 303.12Page 2 Center 303.178Page 3

Data Sheets for Instrument Specialties Test Report No: 112384-A Dated: 15 May 2000 Title: FCC PART 15 Subpart C Section 15.231 For: Martec Access Products Equipment under test (EUT): KWT Transmitter FCC ID: KJ802-3039 Part 3 of 4 Pulse Width2 pages

Data Sheets for Instrument Specialties Test Report No: 112384-A Dated: 15 May 2000 Title: FCC PART 15 Subpart C Section 15.231 For: Martec Access Products Equipment under test (EUT): KWT Transmitter FCC ID: KJ802-3039 Part 4 of 4 Pulse Train Repetition/ duration 2 pages

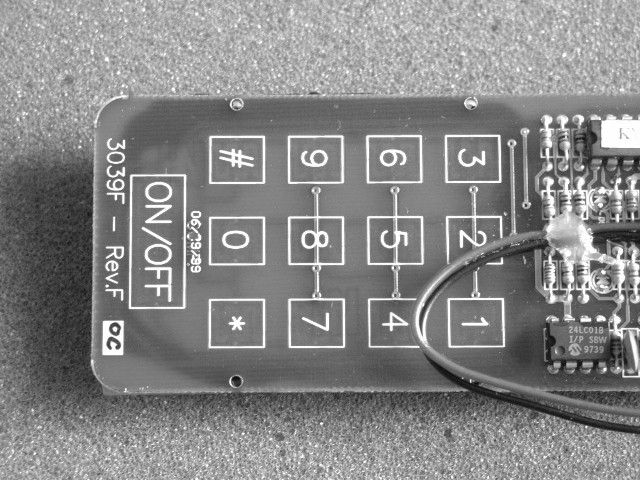

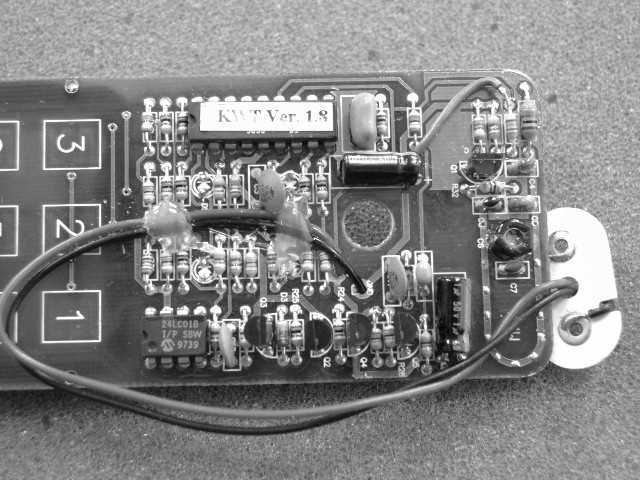

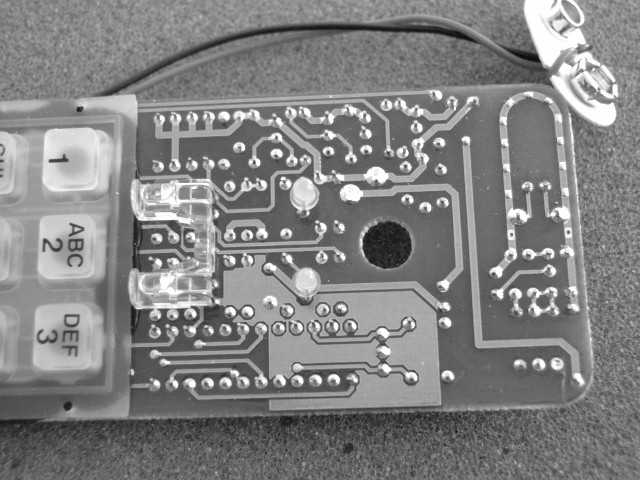

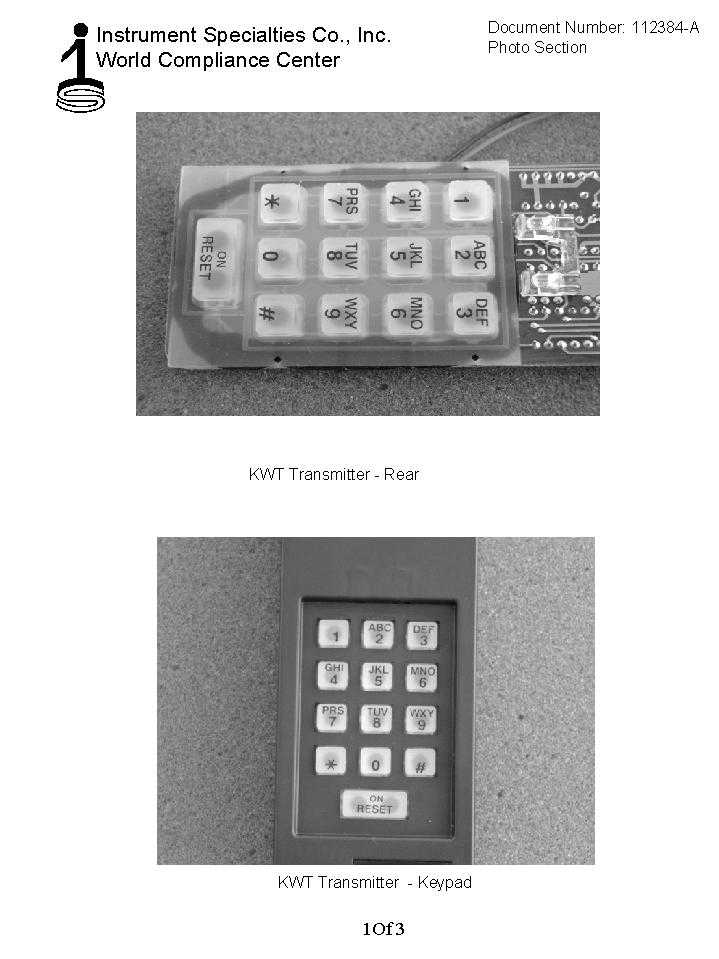

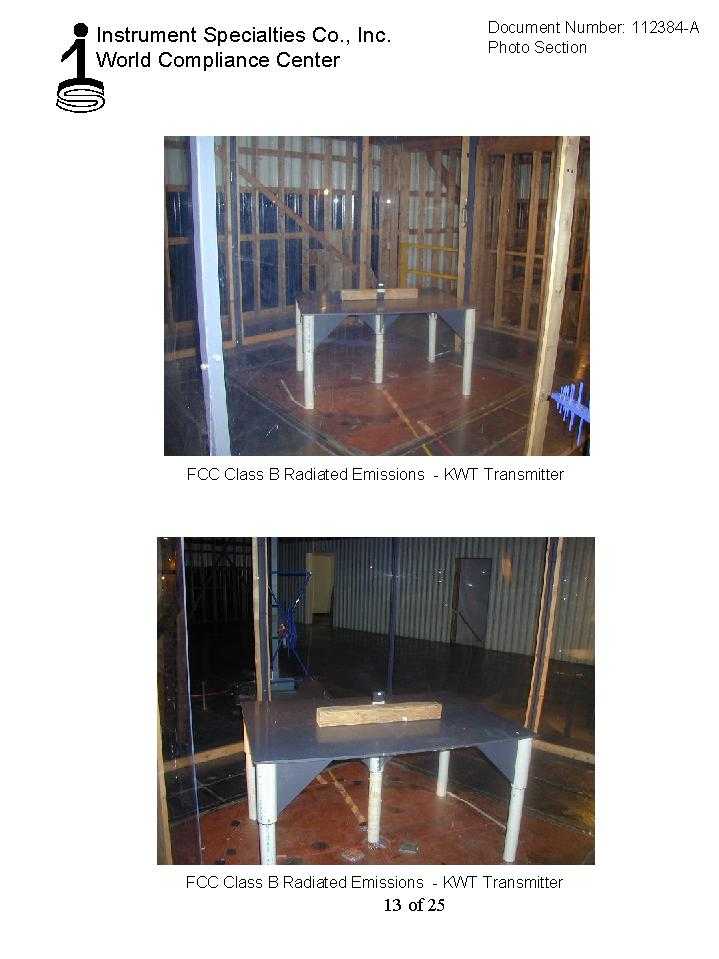

Instrument Specialties Co., Inc. World Compliance Center Document Number: 112384-A Photo Section 13 of 25 FCC Class B Radiated Emissions - KWT Transmitter FCC Class B Radiated Emissions - KWT Transmitter Instrument Specialties Co., Inc. World Compliance Center Document Number: 112384-A Photo Section 14 of 25 FCC Class B Radiated Emissions - above 1 GHz - KWT Transmitter FCC Class B Radiated Emissions - above 1 GHz - KWT Transmitter
