KJ8HAC010290842HOME ACCESS CONTROLLER

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: KJ8HAC010290842 FCC Rule Part: 15.231/15.249 ACS Report Number: 06-0050-15-XXX Manufacturer: Wayne-Dalton Corp. Trade name: Home Access Controller Model: WDHA-12 Operator and Installation Guide Important notIce! Read the enclosed instructions carefully before programming the 3-Button Transmitter. Pay close attention to all warnings and notes. This manual should be retained for future reference. Wireless Gateway model WDHa-12 Operating Instructions and Owner’s Manual Package Content ...................................................................................................................................................2 FCC and IC Statement ...........................................................................................................................................2 Safety Information ................................................................................................................................................3 Activating Transmitter ...........................................................................................................................................4 Programming Transmitter ..................................................................................................................................5-7 Table of contents Open to Page 2 © Copyright 2006 Wayne-Dalton Corp. Part No. 0000000 New 2/22/06 Package Contents 2 You can reach us Toll Free 1-866-57CAR2U (1-866-572-2728) for Consumer Assistance or online at WWW.LEARCAR2U.COM FCC Regulatory Information: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IC Regulatory Information: This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Cet appareillage numérique de la classe B répond a toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée. WARNING: Changes or modifications to this receiver not expressly approved by Wayne-Dalton Corp. could void the user’s authority to operate this equipment. Fcc and Ic Statement Wireless Gateway Instruction Manual Definition of Symbol 3 You can reach us Toll Free 1-866-57CAR2U (1-866-572-2728) for Consumer Assistance or online at WWW.LEARCAR2U.COM Unfold to go to Page 4 Information You can reach us Toll Free 1-866-57CAR2U (1-866-572-2728) for Consumer Assistance or online at WWW.LEARCAR2U.COM 8 programming aa PRELIMINARY PRELIMINARY Use the following procedure to teach a hand held transmitter button to a SCENE button. This procedure also is used to reassign a transmitter button to a different SCENE button. 1. Press and Hold SCENE button you wish to program, either Scene 1, 2 or 3. The LED on the Wireless Gateway will turn on immediately. 2. Press and hold the desired Transmitter button. 3. Release the SCENE button. The LED on the Wireless Gateway will flash three (3) times quickly to indicate the programming is successful. 4. Release the transmitter button. Use this procedure to teach a Homelink button to a SCENE button. This procedure can also be used to reassign a homelink button to a different SCENE button. 1. Place Wireless Gateway within 3 inches of the Homelink transceiver. 2. On the Wireless Gateway, Press and Hold the SCENE button you wish to program, either Scene 1, 2 or 3. The LED on the Wireless Gateway will turn on immediately. 3. Press and hold the desired Homelink button. The Homelink LED will flash slowly. Continue to Hold the Wireless Gateway within 3 inches of the Homelink transceiver until the successful completion of the programming which is indicated by rapid blinking of the Homelink LED or if the Homelink LED turns off. 4. Release the SCENE button. 5. Press the Homelink button again and the Wireless Gateway LED’s will flash three (3) times indicating the programming is successful. Disconnect from SCENE Programming to Homelink Programming To Transmitter Use this procedure to Disconnect a hand-held transmitter or Homelink transceiver from a Wireless Gate- way SCENE button. 1. Press the DELETE button on the Wireless Gateway. All three (3) LED’s on the Wireless Gateway will turn on. 2. Within five (5) seconds, press the SCENE button you wish to disconnect from on the Wireless Gateway. The LED on the selected SCENE will turn on until it is disconnected or there is a 5 second timeout. 3. Within five (5) seconds, press the…

Text truncated - open the document above for the full version.

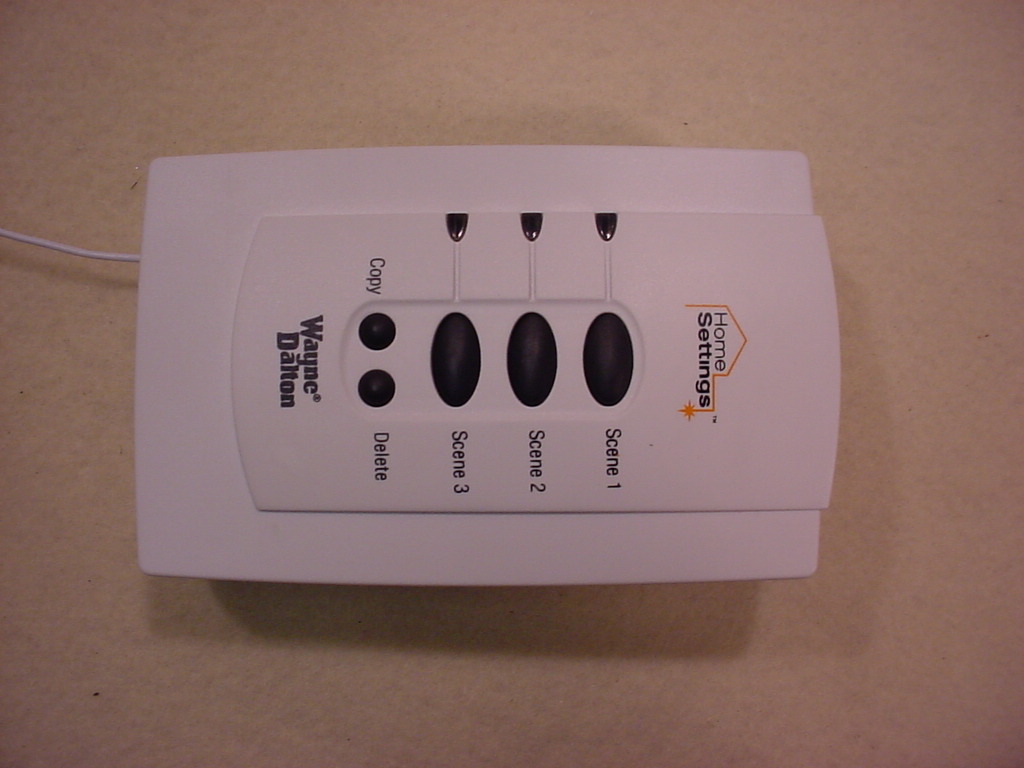

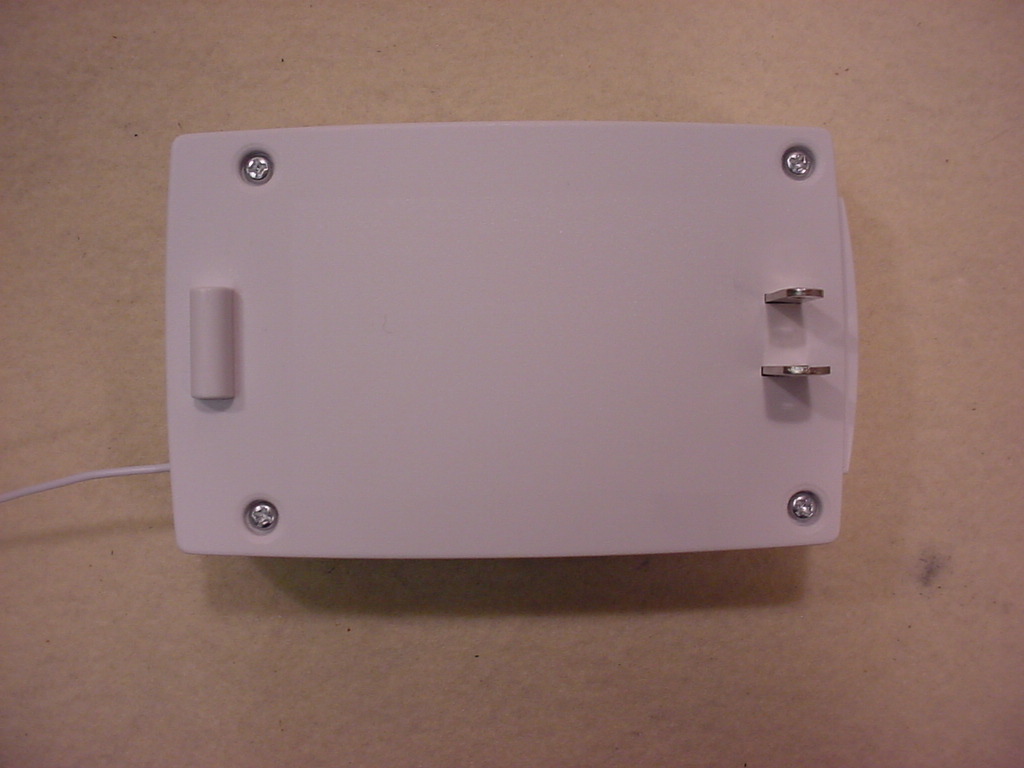

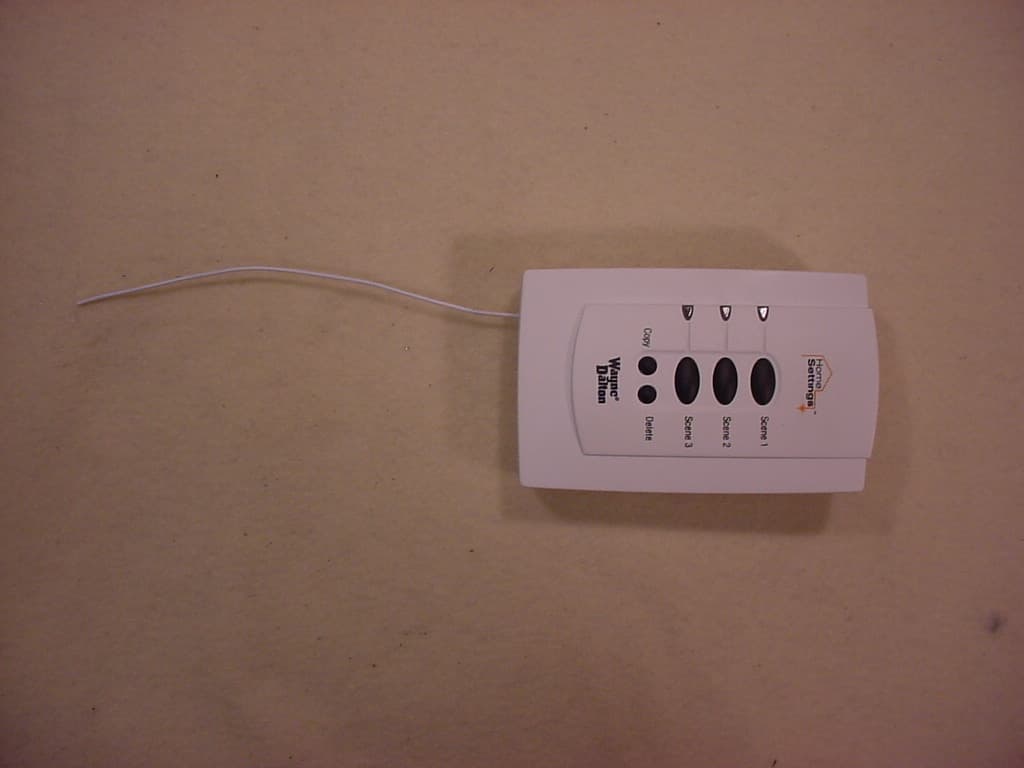

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: KJ8HAC010290842 FCC Rule Part: 15.231/15.249 ACS Report Number: 06-0050-15-XXX Manufacturer: Wayne-Dalton Corp. Trade name: Home Access Controller Model: WDHA-12 External Photographs Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – Front View Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Front View Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – Back View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: KJ8HAC010290842 FCC Rule Part: 15.231/15.249 ACS Report Number: 06-0050-15-XXX Manufacturer: Wayne-Dalton Corp. Trade name: Home Access Controller Model: WDHA-12 Internal Photographs Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Front View – Z-Wave Board Z-Wave 908.42MHz Antenna Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – Back View – Z-Wave Board Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – Front View – PIC PCB (372MHz) 372MHz Transmitter Antenna 372MHz Receiver Antenna Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – Back View - PIC PCB (372MHz)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification 908.42MHz Z-Wave Transceiver Test Report FCC ID: KJ8HAC010290842 FCC Rule Part: 15.249 ACS Report Number: 06-0050-15-249 Manufacturer: Wayne-Dalton Corp. Trade name: Home Access Controller Model: WDHA-12 Test Begin Date: February 6, 2006 Test End Date: February 27, 2006 Report Issue Date: March 29, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: Ken Rivers Engineering Technician ACS, Inc. Kirby Munroe Manager Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 15 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Intended Use 3 1.2.3 Technical Specifications 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 4 2.3.1 Semi-Anechoic Chamber Test Site 4 2.3.2 Open Area Tests Site (OATS) 5 2.4 Conducted Emissions Test Site Description 6 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment 9 6.0 EUT Setup Block Diagram 9 7.0 Summary of Tests 10 7.1 Section 15.203 - Antenna Requirement 10 7.2 Section 15.207 - Power Line Conducted Emissions 10 7.2.1 Test Methodology 10 7.2.2 Test Results 10 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 12 7.3.1 Test Methodology 12 7.3.2 Test Results 12 7.4 Section 15.231(c) – Occupied Bandwidth 13 7.4.1 Test Requirement 13 6.4.2 Test Methodology 13 6.4.3 Test Results 13 7.5 Section 15.249 – Band-Edge Compliance and Spurious Emissions 13 7.5.1 Test Methodology 13 7.5.2 Duty Cycle Correction 13 7.5.3 Test Results 14 7.5.4 Sample Calculation 15 8.0 CONCLUSION 15 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling Installation/Users Guide Theory of Operation BOM (Parts List) System Block Diagram Schematics Model: WDHA-12 FCC ID: KJ8HAC010290842 ACS Report: 06-0050-15-249 Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General Automotive-based transmitters exist to activate garage door openers and similar devices. This technology is not compatible (hardware or software) with Z-Wave protocol. The Home Access Controller will function as a "bridge" between the Wayne-Dalton® Z-Wave Home Network System and automobile-based transmitters. The Home Access Controller exchanges signals with the Z-Wave Home Network System over a radio frequency link. It also exchanges signals with the automotive transmitters over a 372MHz radio frequency link (different parameters than Z-Wave). The Home Access Controller is made up of eight subsystems. These subsystems are... • Battery • Power Supply System • Z-Wave ASIC (908.42MHz) • Microcontroller • 372MHz Transmitter • 372MHz Receiver • Housing • User Interface The purpose of this report is to demonstrate compliance of the Z-Wave 908.42 transceiver only. Other components of this composite device, such as the 372MHz transmitter, are covered under separate test reports. 1.2.2 Intended Use The intended use of this device is in home automation environments. 1.2.3 Technical Specifications (Z-Wave) Model: WDHA-12 FCC ID: KJ8HAC010290842 ACS Report: 06-0050-15-249 Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612 2.3 Radiated Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shielded enclosure. The chamber is lined with Toyo Ferrite Grid Absorber, model number FFG-1000. The ferrite tile grid is 101 x 101 x 19mm thick and weighs approximately 550 grams. These tiles are mounted on steel panels and installed directly on the inner walls of the chamber. The turntable is 150cm in diameter and is located 160cm from the back wall of the chamber. The chamber is grounded via 1 - 8’ copper ground rod, installed at the center of the back wall, it is bound to the ground plane using 3/4" stainless steel braided cable. The turntable is all steel, flush mounted table installed in an all steel frame. The table is remotely operated from inside the control room located 25’ from the range. The turntable is electrically bonded to the surrounding ground plane via steel fingers installed on the edge of the turn table. The steel fingers make constant contact with the ground plane during operation. Behind the turntable is a 3’ x 6’ x 4’ deep shielded pit used for suppor…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: KJ8HAC010290842 FCC Rule Part: 15.231/15.249 ACS Report Number: 06-0050-15-XXX Manufacturer: Wayne-Dalton Corp. Trade name: Home Access Controller Model: WDHA-12 Test Setup Photographs Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Test Setup – Radiated Emissions Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Test Setup – Radiated Emissions Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Test Setup – Radiated Emissions Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Test Setup – Radiated Emissions - Unintentional Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Test Setup – Radiated Emissions - Unintentional Model: WDHA-12 Advanced Compliance Solutions FCC ID: KJ8HAC010290842 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Test Setup – Conducted Emissions
