KJ8HHT-372ESWGarage Door Opener Remote Control

FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW

FCC ID: KJ8HHT-372ESW

FCC ID: KJ8HHT-372ESW

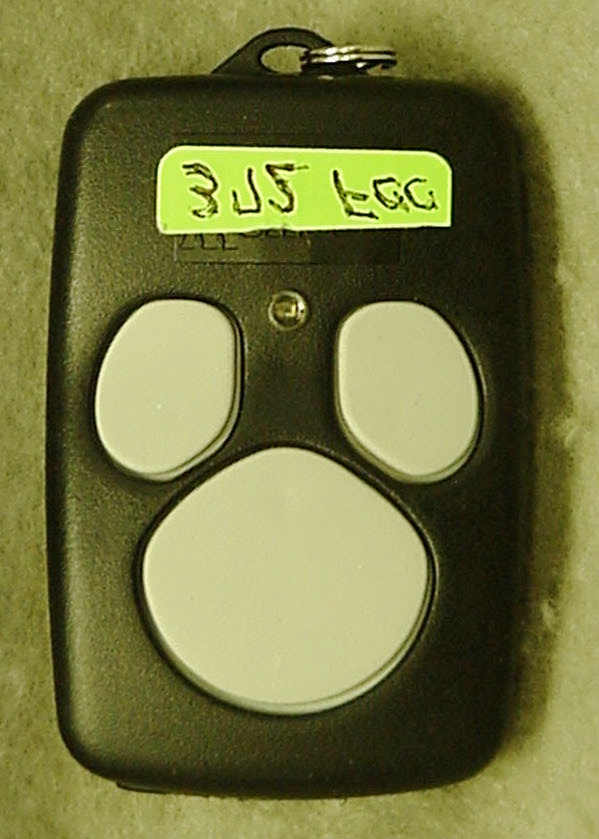

FCC ID: KJ8HHT-372ESW Photo 1. EUT, Front View FCC ID: KJ8HHT-372ESW Photo 2. EUT, Rear View

FCC ID: KJ8HHT-372ESW FCC ID: KJ8HHT-372ESW

FCC ID: KJ8HHT-372ESW Photo 3. Internal View, Top Side FCC ID: KJ8HHT-372ESW Photo 4. Internal View, Bottom Side

FCC ID: KJ8HHT-372ESW GENERAL INFORMATION Product Description The Equipment Under Test (EUT) is a Wayne-Dalton Corp., Model 3BTM-E372. The EUT is a 3-button hand transmitter operating at 372.5 MHz using OOK modulation for use with Wayne-Dalton Corp. garage door openers. The EUT incorporates an internal antenna only. The antenna is etched directly on the PCB board. It has an irregular shape which resembles the letter “G”. The upper horizontal track measures 0.325” x 0.040”, the vertical track measures 1.185” x 0.040”, and the lower horizontal track measures 0.515” x 0.040”, and the last vertical track 0.0555” x 0.040”. Related Submittal(s)/Grant(s) The EUT will be used with DoC approved receivers.

Wayne-Dalton Corp. FCC Part 15, Certification Application Model 3BTM-E372 November 9, 2001 FCC ID: KJ8HHT-372ESW MEASUREMENT/TECHNICAL REPORT COMPANY NAME:Wayne-Dalton Corp. MODEL:3BTM-E372 FCC ID:KJ8HHT-372ESW DATE:November 9, 2001 This report concerns (check one): Original grant X Class II change_____ Equipment type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: KJ8HHT-372ESW TABLE OF CONTENTS AGENCY AGREEMENT LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION Product Description SECTION 2 TESTS AND MEASUREMENTS Configuration of Tested Test Facility Test Equipment Modifications Periodic Operation Field Strength of Fundamental Emission Field Strength of Spurious Emissions 20 dB Bandwidth of Fundamental Emission Frequency Tolerance of Carrier Signal Radiated Digital Device Emissions Power Line Conducted Emissions SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/SCHEMATICS SECTION 5 PHOTOGRAPHS SECTION 6 USER'S MANUAL FCC ID: KJ8HHT-372ESW LIST OF FIGURES AND TABLES FIGURES Test Configuration Photograph(s) for Spurious and Fundamental Emissions Field Strength of Fundamental Emission Field Strength of Spurious Emissions Bandwidth of Fundamental Emission TABLES EUT and Peripherals Test Instruments Field Strength of Fundamental Emission Field Strength of Spurious Emissions Bandwidth of Fundamental Emission Radiated Emissions Power Line Conducted Emissions FCC ID: KJ8HHT-372ESW SECTION 1 GENERAL INFORMATION FCC ID: KJ8HHT-372ESW GENERAL INFORMATION Product Description The Equipment Under Test (EUT) is a Wayne-Dalton Corp., Model 3BTM-E372. The EUT is a 3-button hand transmitter operating at 372.5 MHz using OOK modulation for use with Wayne-Dalton Corp. garage door openers. The EUT incorporates an internal antenna only. The antenna is etched directly on the PCB board. It has an irregular shape which resembles the letter “G”. The upper horizontal track measures 0.325” x 0.040”, the vertical track measures 1.185” x 0.040”, and the lower horizontal track measures 0.515” x 0.040”, and the last vertical track 0.0555” x 0.040”. Related Submittal(s)/Grant(s) The EUT will be used with DoC approved receivers. FCC ID: KJ8HHT-372ESW SECTION 2 TESTS AND MEASUREMENTS FCC ID: KJ8HHT-372ESW TESTS AND MEASUREMENTS Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. Since the EUT is a hand held device, it was placed into a continuous mode of transmit and rotated about all 3 axis to obtain worse case results. Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. Modifications No modifications were made to bring the EUT into compliance with FCC Part 15, Class B Requirements. Test Equipment Table 2 describes test equipment used to evaluate this product. FCC ID: KJ8HHT-372ESW FIGURE 1 TEST CONFIGURATION EUT FCC ID: KJ8HHT-372ESW FIGURE 2 Photograph(s) for Spurious and Fundamental Emissions FCC ID: KJ8HHT-372ESW TABLE 1 EUT and Peripherals PERIPHERAL MANUFACTURER MODEL NUMBER SERIAL NUMBER FCC ID:CABLES P/D Transmitter Wayne-Dalton Corp. (EUT) 3BTM-E3723BTM- E433 KJ8HHT-372ESW (Pending) None FCC ID: KJ8HHT-372ESW TABLE 2 TEST INSTRUMENTS TYPEMANUFACTURERMODELSN. SPECTRUM ANALYZERHEWLETT-PACKARD8593E3205A00124 SPECTRUM ANALYZERHEWLETT-PACKARD8558B2332A09900 S A DISPLAYHEWLETT-PACKARD853A2404A02387 COMB GENERATORHEWLETT-PACKARD8406A1632A01519 RF PREAMPHEWLETT-PACKARD8447D1937A03355 RF PREAMPHEWLETT-PACKARD8449B3008A00480 HORN ANTENNAEMCO31153723 BICONICAL ANTENNAEMCO31109307-1431 BILOG ANTENNACHASECBL61122584 MULTIMETERFLUKE8553710469 PLOTTERHEWLETT-PACKARD7475A2325A65394 FCC ID: KJ8HHT-372ESW Periodic Operation (47 CFR 15.231(a1)) A transmitter manually activated must automatically deactivate within not more than 5 seconds of being released. The transmitter is a 3 button transmitter. The EUT continues to transmit while each button is being pressed. The EUT ceases transmission almost immediately upon being released and appears to finish the current packet being transmitted. Therefore the longest period of time the transmitter should take to deactivate is a packet length, or 48.750 msec as shown in Figure 3. FCC ID: KJ8HHT-372ESW FIGURE 3 Periodic Operation 15.231(a)(c1) FCC ID: KJ8HHT-372ESW Field Strength of Fundamental Emission (47 CFR 15.231b) Measurements were made using a peak detector. Field strength of the peak fundamental emission is shown in Table 3 and Figure 4. Duty Cycle Correction During 100 msec: Each function key sends a different series of characters, but each packet period (93.750 msec) never exceeds a series of *66 long (500.0 μs) and short (350.0 μs) pulses. Assuming any combination of short or long pulses may be obtained for the data due to en…

Text truncated - open the document above for the full version.

FCC ID: KJ8HHT-372ESW FIGURE 2 Photograph(s) for Spurious and Fundamental Emissions
