KRE-E2-TRX500AUHF BASE STATION

Eclipse2 UHF / VHF / 800MHz Base Station Technical Manual Publication Reference – TPR-03XX920015 Issue 1.5 – July 2009. Eclipse2 Technical Manual V1.5 Page 2 of 16 Revisions Version Description Publication Date 1.0 Initial release March 9 2008 1.5 2009 List of Associated Publications Document Number Description TPR-0308920019 IP Commander User Manual TPR-0309920010 Eclipse2 Application Guide Disclaimer Due to our policy of continuous improvement of our products and services, technical specifications and claims that were correct at time going to print maybe subject to variation without notice. RF Technology has endeavoured to ensure that the information in this document is correct, but does not accept liability due to typographical, omissions or other errors or subsequent modifications of the product. Specifications may vary from those given in this document in accordance with the requirements of local regulatory authorities. Copyright All information contained in this manual is the property of RF Technology Pty Ltd. All rights are reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced in any manner without prior written permission. All trade names referenced are the trademarks or registered trademarks of the respective manufacturers.  Copyright 2009 RF Technology Pty Ltd. RF Technology Pty Limited Unit 46 / 7 Sefton Road Thornleigh NSW 2120 Sydney Australia Phone +61 2 9484 1022 Fax +61 2 9484 1288 Web www.rftechnology.com.au Eclipse2 Technical Manual V1.5 Page 3 of 16 Contents REVISIONS ........................................................................................................... 2 CONTENTS ........................................................................................................... 3 INTRODUCTION ..................................................................................................... 6 FEATURES ........................................................................................................... 6 SPECIFICATIONS .................................................................................................... 6 Overall .................................................................................................. Error! Bookmark not defined. Receiver ...................................................................................................................................... 7 Exciter ......................................................................................................................................... 7 OPERATING BASICS................................................................................................. 7 Front Panel Controls and Indicators ............................................................................................ 7 Buttons: ............................................................................................................................................ 8 Indicators: ........................................................................................................................................ 8 Connectors: ...................................................................................................................................... 8 Rear Panel Connectors ............................................................................................................... 8 System I/O: ...................................................................................................................................... 8 E/M Line: .......................................................................................................................................... 9 Ethernet: .......................................................................................................................................... 9 RF input: .......................................................................................................................................... 9 RF output: ........................................................................................................................................ 9 RS232 and external reference clock (optional) ............................................................................... 10 Programming and monitoring .............................................................................................................10 Connecting with Ethernet .......................................................................................................... 10 Connecting with USB ................................................................................................................ 10 Connecting with RS232 (optional) ............................................... Error! Bookmark not defined. Circuit Description ..............................................................................................................................11 Processor (Master) board ......................................................................................................... 11 Interface (Main) board ............................................................................................................... 11 Audio signal processing .................................................................................................................. 11 I/O and Controls ............................................................................................................................. 12 Clock generator .............................................................................................................................. 13 Voltage regulators .......................................................................................................................... 13 RF modules ............................................................................................................................... 13 TX module .....................…

Text truncated - open the document above for the full version.

Getting Started with the Eclipse 2 1. Unpack your Eclipse 2. Compare the contents of the box with the packing list and visually check that the unit is in good condition. 2. Install the IP Commander software on your computer. Do this by CD, that came with your Eclipse 2, into your computer, and program “IPCommander.exe” 3. Connect the RF output of the Eclipse 2, load. 4. Connect the RF input of the Eclipse 2 source. 5. Connect the Ethernet port of the panel, closest to the DB25 connector Use a standard Ethernet cable, 6. Set your computer to have a static IP address subnet mask of 255.255.255.0 7. Turn on the power to the Eclipse 2. 8. Wait for the base station to boot. This will take a the completion of booting the base station will say its IP address, loudspeaker. 9. Start IP Commander, by double clicking on the IP Commander icon on your computer’s desktop. 10. When the “Base Station Configuration” window appears, button. 11. Enter the Admin Password, provided with your Eclipse 2, and the base station to be 12. Click on the IP address hand corner of the “Base Station 13. You will now see the “ 14. Enter the desired receiver frequency, in MHz, into the “Rx Freq” field of IP Commander. 15. Enter the desired transmitter frequency, in MHz, into the “Tx Freq” field of IP Commander. 16. You should now be able to When you do this, you will Commander “Overview 17. You are now ready to f Reference Manual, to customise your Eclipse 2, to suit your particular circumstances. Getting Started with the Eclipse 2 Unpack your Eclipse 2. Compare the contents of the box with the packing list and visually check that the unit is in good condition. Install the IP Commander software on your computer. Do this by inserting the CD, that came with your Eclipse 2, into your computer, and running the program “IPCommander.exe”, from the CD. Connect the RF output of the Eclipse 2, the rear panel N-type connector Connect the RF input of the Eclipse 2, the rear panel BNC connector, Ethernet port of the Eclipse 2, the rectangular socket on the rear , closest to the DB25 connector, to the Ethernet port of your computer. Ethernet cable, cat 5 or higher, to make this connection Set your computer to have a static IP address in the range 10.21.48. subnet mask of 255.255.255.0. Turn on the power to the Eclipse 2. Wait for the base station to boot. This will take approximately one minute the completion of booting the base station will say its IP address, through Start IP Commander, by double clicking on the IP Commander icon on your When the “Base Station Configuration” window appears, click the “Add Enter the Admin Password, provided with your Eclipse 2, and the IP the base station to be accessed, eg. “10.21.48.1”. Click the “OK” button. address, then click the blue “Connect” button, at the bottom left hand corner of the “Base Station Configuration” window. Overview” panel of IP Commander. Enter the desired receiver frequency, in MHz, into the “Rx Freq” field of IP Enter the desired transmitter frequency, in MHz, into the “Tx Freq” field of IP You should now be able to receive and transmit a signal, using the Eclipse 2 When you do this, you will see the Eclipse 2’s signal path activate on the Overview” panel. follow the detailed instructions in the IP Commander Reference Manual, to customise your Eclipse 2, to suit your particular Getting Started with the Eclipse 2 Unpack your Eclipse 2. Compare the contents of the box with the packing list inserting the running the type connector, to a BNC connector, to a the rectangular socket on the rear to the Ethernet port of your computer. to make this connection. 10.21.48.xx and a pproximately one minute. At through its Start IP Commander, by double clicking on the IP Commander icon on your click the “Add” IP address of Click the “OK” button. the blue “Connect” button, at the bottom left Enter the desired receiver frequency, in MHz, into the “Rx Freq” field of IP Enter the desired transmitter frequency, in MHz, into the “Tx Freq” field of IP signal, using the Eclipse 2. path activate on the IP Commander Reference Manual, to customise your Eclipse 2, to suit your particular

echnology Date 1 February 2012 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia, MD 21046 United States of America To whom it may concern Re: E2 TRX 500 A The Eclipse2 UHF Band A Base station/Repeater operates from 406.1 MHz to 430 MHz frequency range, the operating frequency can only be pre-programmed into the unit by the RF Technology's IP commander software, and this software will not be supplied with the Eclipse2 equipment to the end user. We attest that we will apply the Declaration of Conformity procedure to any peripheral portion of any composite filing. We will comply with all requirements of part 90 and part 15 as required. Yours Faithfully Frank Romanin CEO ABN 14 131 764 14 Untt 46. Thomleigh Technology Park 7 Sefton Road Thornleagh NSW 2120 R.F Technology Pty Ltd T: +61 2 9484 IOU ext 101 F: + 61 2 9484 18U anfo@r fcechnology.co m.a u www.rftechnology.com.au

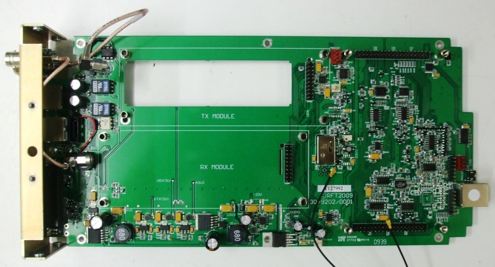

____________________________________________________________________________________________________________________________________________________________________________ Page 30 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. 10. PHOTOGRAPH (S) Base station external view Rack ____________________________________________________________________________________________________________________________________________________________________________ Page 31 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Rack Main PCB ____________________________________________________________________________________________________________________________________________________________________________ Page 34 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Rx module Rx module Tx module Tx module

____________________________________________________________________________________________________________________________________________________________________________ Page 31 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Rack Main PCB ____________________________________________________________________________________________________________________________________________________________________________ Page 32 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Main PCB Sub board ____________________________________________________________________________________________________________________________________________________________________________ Page 33 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Sub board Front panel

Page 1 of 3 RF Exposure Requirements General information: Device category: Fixed per Part 2.1091/1.1307/1.1310 Environment: Uncontrolled Exposure Fixed devices that operate under Part 90 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more. Compliance with the power density limits of 1.1310 is required. Antenna: The manufacturer does not specify an antenna. A typical fix mounted antenna has a gain of anywhere from 3 dBi. This device has provisions for operation from a fixed location. Configuration Antenna p/n Type Max. Gain (dBi) Fixed mounted Any omni or directional 3 Operating configuration and exposure conditions: The conducted output power is 3 Watts. Although the device is fixed mounted control of exposure is an uncontrolled environment but the duty cycle will be approximately 100% or less and is controlled thru the software of the system. - Part 2.1091 states that devices are excluded from routine evaluation if the EIRP is less than 2.46Watt (or 1.5WERP). - Fixed operation: A typical installation consists of an antenna system with a coaxial cable of the type RG 8U which has a loss of 1dB for a length of 30 feet at UHF. frequencies. MPE Calculation: The minimum separation distance is calculated as follows: The limit for uncontrolled exposure environment above 300 MHz is f/1500 mW/cm 2 . Page 2 of 3 Frequency: 406.1 MHz The conducted power output is: 3 Watts The coax loss was taken as: 1 dB (30 ft RG-8 type). Antenna gain was taken as: 3 dBi Page 3 of 3 Conclusion: The device complies with the MPE requirements when providing a safe separation distance of 37 cm (1.2 ft) between the antenna, including any radiating structure, and any persons when operated as described in the report which is typical of its intended use. Proposed RF exposure safety information to include in User’s Manual: “FCC RF Exposure Requirements: See Users Manual

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Eclipse 2, 500 Series, Band A (40 6.1-430 MHz) UHF Base Station tested to the Code of Federal Regulations (CFR) 47 Part 90 –Private Land Mobile Services Part 15 – Radio Frequency Device for RF Technology Pty Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler- General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. COMPLIANCE STATEMENT AND RESULT SUMMARY 4 4. TEST SAMPLE DESCRIPTION 5 5. TEST CONDITIONS 6 6. ATTESTATION 7 7. TEST RESULTS 8 8. TEST EQUIPMENT USED 23 9. ACCREDITATIONS 23 10. PHOTOGRAPH (S) 24 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. 1. CLIENT INFORMATION Company Name RF Technology Pty Ltd Address Unit 46/ 7 Sefton Rd Thornleigh State NSW Country Australia Contact Mr Guang Lou 2. DESCRIPTION OF TEST SAMPLE Brand Name Eclipse 2 Model Number 500 Series, Band A Product Base Station (400-430 MHz) Manufacturer RF Technologies Manufactured in Australia Serial Number 00285 FCC ID - This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interfernce at his own expense. RF Exposure: This transmitter must use antennas that are fixed mounted on permanent structures and maintain a separation distance of at lea st 6 ft between any part of the radiating structure (antenna) and the general population. ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. 3. COMPLIANCE STATEMENT AND RESULT SUMMARY The Eclipse 2, 500 series, Band A (400-430 MHz) UHF Base station complies with the limits defined in 47 CFR Part 15, 47 CFR Part 90 and 47 CFR Part 2 when tested in- accordance with the test methods described in 47 CFR Part 2. Clause Description Result 90.203 Certification required Noted 2.1046 90.205 RF power output Power and antenna height limits Noted Complies 2.1047 2.1047(a) 2.1047(b) 90.211(a) Modulation Characteristics Low pass filter response Modulation limiting characteristics Modulation characteristics Noted Noted Noted Complies 2.1049 2.202 22.357 22.359(a) 90.207 90.209 90.210 Occupied bandwidth Bandwidths Emission types Emission masks Types of emissions Bandwidth limitations Emission masks Noted Noted Complies Complies Complies Complies Complies 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Complies 2.1055 22.355 90.213 Frequency stability Frequency stability Frequency stability Noted Complies Complies 90.214 Transient frequency behaviour Complies 15.109 15.111 Receiver radiated emissions Receiver local oscillator voltage Complies Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. 4. TEST SAMPLE DESCRIPTION The sample tested has the following specifications: Rated Transmitter Output Power 3.0 Watts (34.7 dBm) Test frequencies Chl Frequency MHz Power Watts Spacing kHz Mode 1 421.950 3.0 12.5 F1E 2 421.950 3.0 12.5 F3E FCC Bands Part 90: 421- 512 MHz Emission Designators / Modes of operation 8k10F1E – C4FM digital speech 11k2F3E – Analogue speech Power Supply AC voltage supply typically 110.0 V ac ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. 5. TEST CONDITIONS Standard Temperature and Humidity Temperature: +15C to + 30 maintained. Relative Humidity: 20% to 75% observed. Standard Test Power Source Standard Test Voltage: 110.0 V ac. Extreme Temperature High Temperature: + 50C maintained. Low Temperature: - 30 C maintained. Extreme Test Voltages Low Voltage: 93.5 Vac High Voltage: 126.5 Vac ____________________________________________________________________________________________________________________________________________________________________________ Page 7 of 30 Test Report No 110131.3b 23 June 2011. This report may not be reproduced except in full. 6. ATTESTATION The Eclipse 2, 500 series, Band A (400-430 MHz) UHF Base station complies with the Code of Federal Re…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 35 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full. Open air test setup ____________________________________________________________________________________________________________________________________________________________________________ Page 36 of 36 Test Report No 110131.3a 23 June 2011. This report may not be reproduced except in full.
