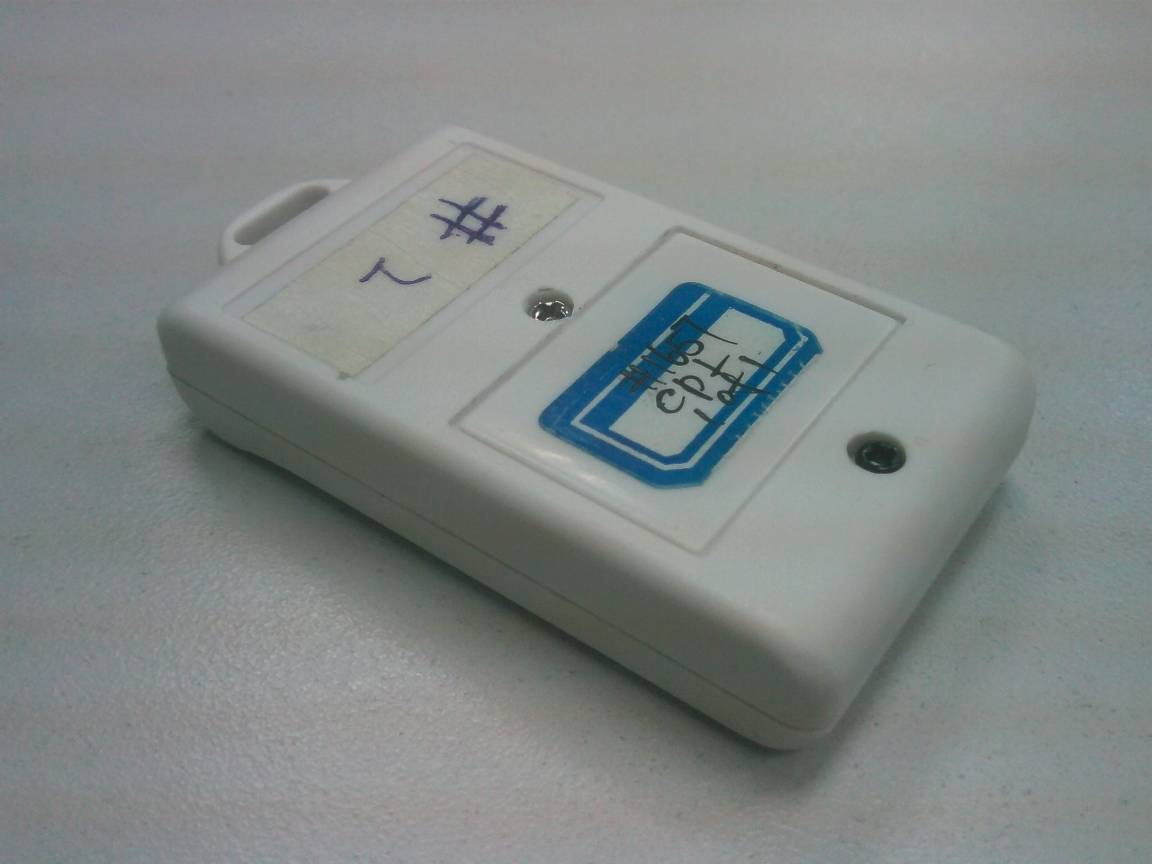

KUT4BXTRemote Control Transmitter

4-Button Remote Control Model 4B-101, 4B-201, 4B-103, 4B-434 The Remote Control allows you to operate the control panel remotely with a press of a button. You can arm the system, disarm the system and activate the alarm instantly. In this package, you should find a remote control, with a 12V alkaline battery installed. MA Series Please follow the instructions below to program the remote control to the MA Series control panel. 1. INTRODUCTION 2. LEARN REMOTE CONTROL TO MA SERIES CONTROL PANEL In order for the remote control to communicate with the control panel properly, the remote control must be programmed to the control panel. Follow the brief instructions below or refer to the detail instructions from the MA Series User’s Instructions to program the remote control to the control panel. Step 1: Press and hold the Learn Button on the Control Panel for 3 seconds. Control Panel beeps once and you may release the Learn Button. Step 2: Press the zone button (1, 2, 3, or 4) once, for which you want to program the remote control to. The selected Zone LED will flash. Step 3: Activate the Remote Control by pressing the red Panic Button. Step 4: You will hear a long beep and the zone LED stops flashing. The remote control is now programmed to the Control Panel. MU TE MU TE IN PU T D C 12 V IN PU T D C 12 V LE AR N LE AR N AL ER T AL ER T CH IM E CH IM E OF F OF F Press 3 sec. Press Button Long Beep Control Panel long beep Zone LED flashing OFF Note: You may program 1 remote control to one zone. If you have multiple remote controls, you need to program them into different zones. (one per zone) 12V Lithium battery Press the zone button Zone LED flashing Remote Control 3. OPERATION 4. BATTERY REPLACEMENT The remote control can be used to arm, disarm, activate the alarm instantly. Arm Away - Pressing the Arm Away button on the keychain remote will arm the system in Away mode, which will result in a 45-second exit delay. Arm LED will flash. Arm Home - Pressing the Arm Home button on the keychain will arm the system in Home mode. Arm LED will be steadily on instantly. Disarm - Pressing the disarm button on the keychain remote will disarm the system instantly. Arm LED will also be off. Panic - Pressing the panic button will cause the siren to sound instantly. ARM AWAY DISARM PANIC ARM HOME The battery of the keychain remote (Alkaline, Type 23A, 12V) needs to be replaced when either one of the followings occurs: 1. The LED on the keychain doesn’t flash or on when a key is pressed; or 2. The operating range starts to decrease. To replace the battery: + 5. OTHER MA SERIES ACCESSORIES The MA Series control panel can work with different accessories include: Motion Sensor, Door/Window Sensor, Flood Sensor, External Keypad, Audio Alarm, Emergency Dialer, etc. Please visit www.skylinkhome.com or contact us at [email protected] for more information of how to fully utilize your Wireless Alarm System - MA Series. 7. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 301489-3, EN300220-3, EN60950-1, EN50371. This equipment conforms to the essential requirement of the Directive (1999/5/EC) of the European Parliament and of the Council. 1. Undo the two screws on the back of the transmitter. The bottom case will then come off. 2. Using a small screwdriver or pen, pry out the old battery from one end. 3. Place the new battery in position. A diagram in the battery compartment indicates which end is positive and which is negative. 4. Close the battery cover and reinsert two screws. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 6. FCC 8. WARRANTY 9. CUSTOMER SERVICE If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization are required. If you would like to order Skylink’s products or have difficulty getting them to work or download latest information and user manual, please : 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at [email protected] CUSTOMER SERVICE Rm 1303, Block B, Veristrong Industrial Centre, 36 Aupuiwan Street, Fotan, N.T. Hong Kong. Email:[email protected] http://www.skylinkhome.com P/N. 101Z706 ©2009 SKYLINK GROUP

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] I, an officer of Capital Prospect Ltd do hereby authorize Emitel (Mr. Derek Leung) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in & 1.2002 (b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Secretion 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). Dated this __26th____day of _July____2010 By _____________________ _Joe Ng __ Signature Printed Title __Projectl Manager_

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] Re: FCC ID: KUT4BXT Pursuant to 47 CFR 0.459, Capital Prospect Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: • Schematic • Block Diagram • Operation Description This information represents intellectual property of Capital Prospect Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Capital Prospect Ltd. reserves the right to discern which parties can obtain access to this information. Dated this __26th____day of _July____2010 By _____________________ _Joe Ng __ Signature Printed Title __Projectl Manager _

Test Report E4064165701KY2 Type / Model Name: 4B-103, 4B-434, 4B-101, 4B-201 Brand Name: SKYLINK Product Description: KEYCHAIN REMOTE Applicant: Capital Prospect Limited FCC ID: KUT4BXT File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 2 of 16 FCC --- T E S T R E P O R T Test Report No. : E4064165701KY2 25-08-2010 ______________________________________________________________________________________________ Date of issue Type / Model Name: 4B-103, 4B-434, 4B-101, 4B-201 Brand Name : SKYLINK Product Description： KEYCHAIN REMOTE Applicant： Capital Prospect Limited Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 3 of 16 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 AVERAGE FACTOR 9 5.2 RADIATED EMISSION 12 5.3 BANDWIDTH 14 5.4 PROVISION OF MOMENTARY OPERATION 15 6 USED TEST EQUIPMENT AND ACCESSORIES 16 File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 4 of 16 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2007-9-20 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 5 of 16 2 SUMMARY GENERAL REMARKS: The antenna of the EuT is fulfilled the FCC part 15.203. The models: 4B-101, 4B-434, 4B-201 are identical as 4B-103. The 4 models are for different market strategy. The 4B-103 is selected as representative model for testing. FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : 09-07-2010 Testing commenced on : 09-07-2010 Testing concluded on : 25-08-2010 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 6 of 16 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 7 of 16 3.2 Power supply system utilised Power supply voltage: DC 12V(23AE alkaline battery) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 433.9MHz transmitter. When the buttons are pressed, the EuT will transmit the signal by Pulsed Code Modulation to corresponding receiver to change the status of the receiver. The EuT is powered one 12VDC alkaline battery. Tested samples: One Set ( model: 4B-103 ) Serial number: Not Labelled Dimensions: L: 6.8 cm W: 3.6cm H: 1.3 cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transmitting mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable Length Type Line Line termination [m] shielded unshielded N/A Peripheral devices : Kind of equipment Model and/or Manufacturer N/A File No. E4064165701KY2 emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 8 of 16 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC Registration number: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 860-1060 mbar 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 “Uncertainties, statistics and limit modelling – Unce…
