KUTAD105Remote control transceiver

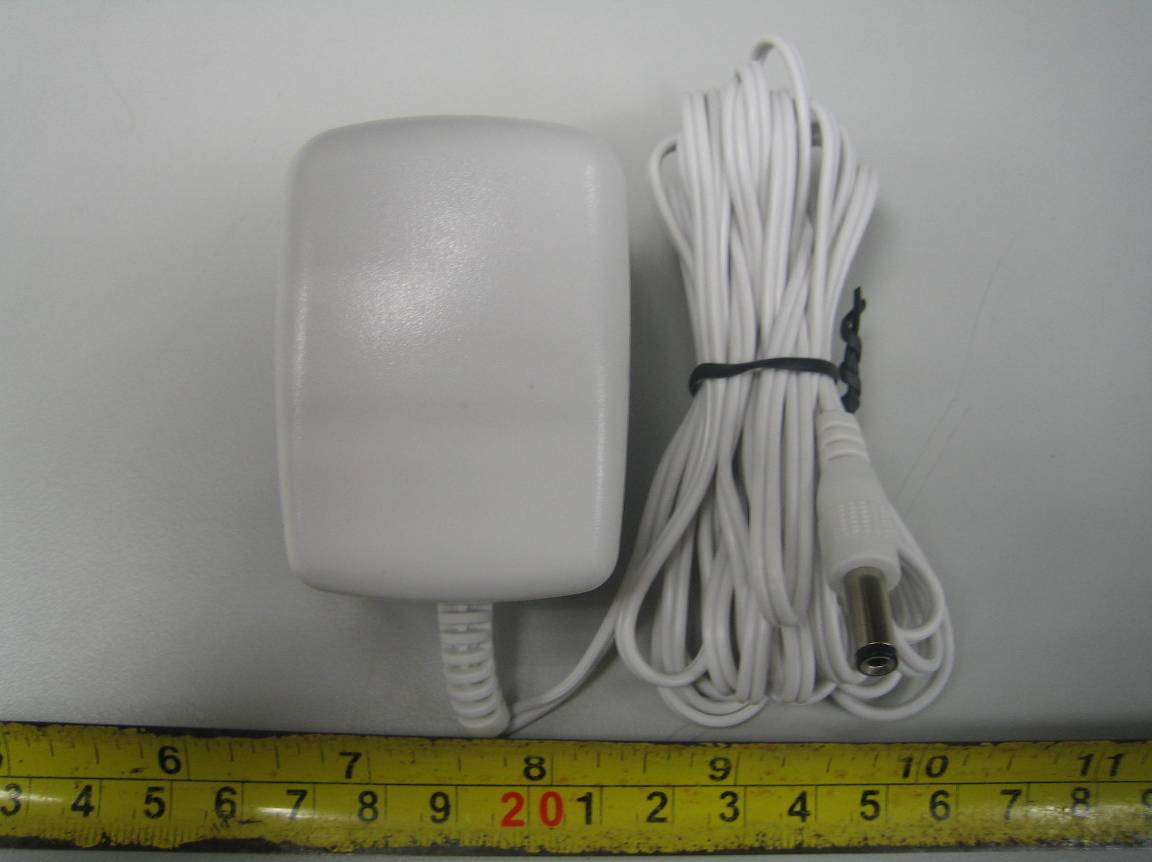

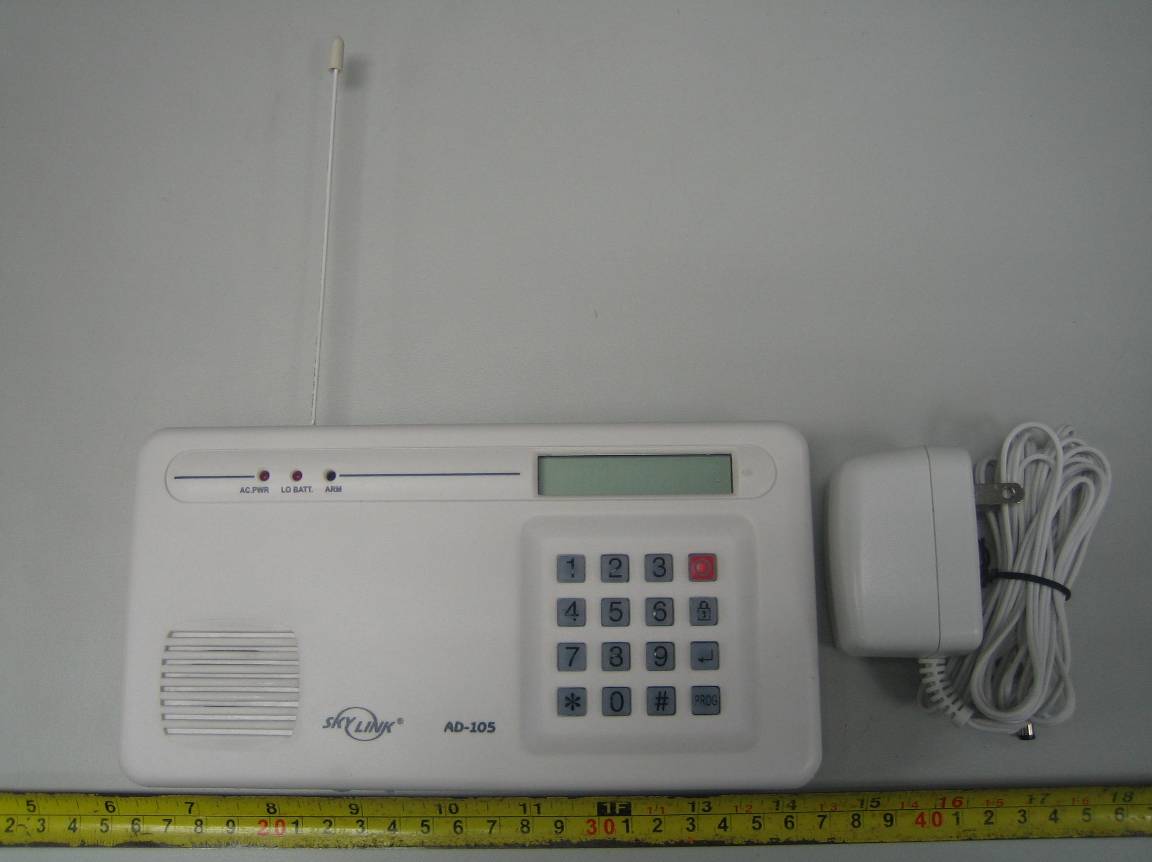

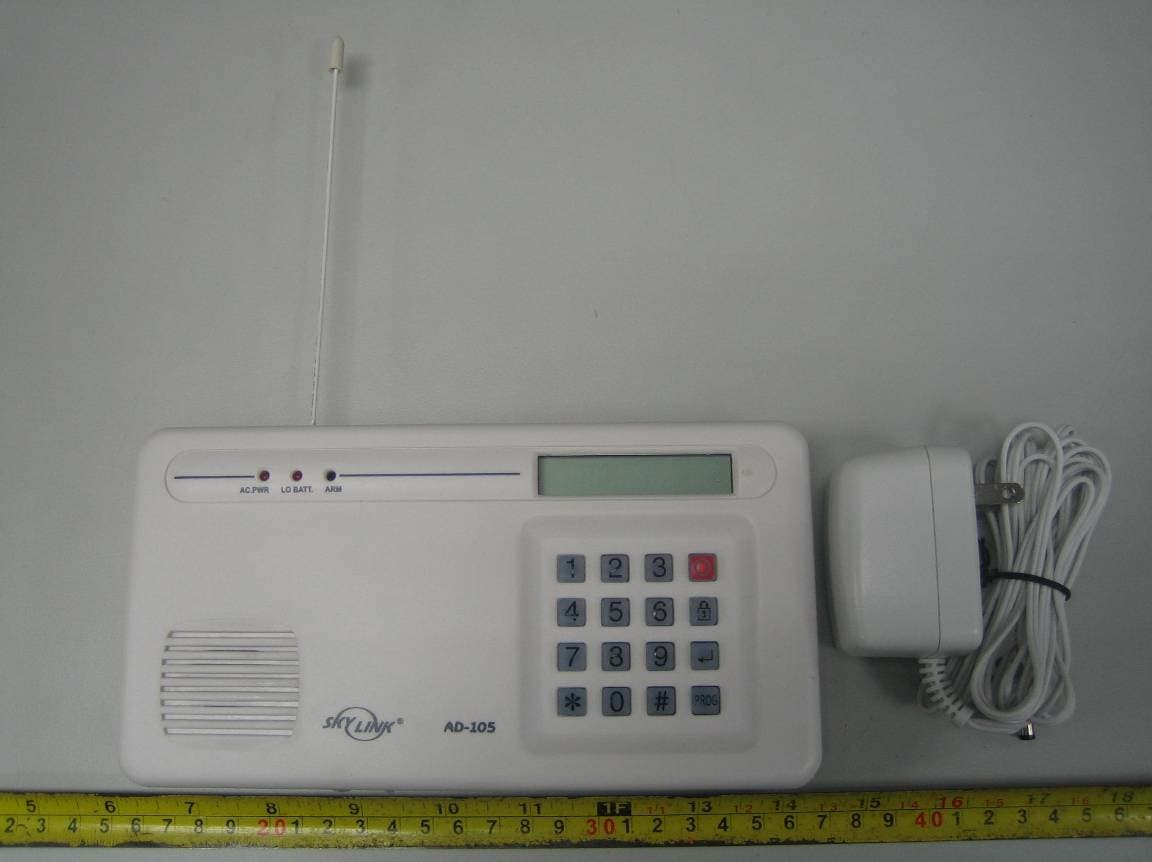

Auto Dialer MODEL: AD-105 / AD-106 USER’S INSTRUCTION OVERVIEW The dialer model AD-105 or AD-106 provides the same feature to dial the pre-programmed phone numbers and sends a personalized pre-recorded message. The model number AD-105 or AD-106 is for different market strategy. LAYOUT LIGHTS ACPWR light on - System is being powered by electrical current. LOBATT light off – Backup battery is connected and working. ARM light on – System is armed SOUNDS Short beep – you have pressed a key in the right order. Two short beeps – dialer is turned on for the first time. Long beep – you have made a mistake Steady repeated beep – the dialer has been triggered in DELAY mode. Keypads Panic – call / end the emergency call Arm – arm / disarm dialer Enter – input the user option Program – enter programming mode / cancel STANDARD programming All programming sequences begin with the Personal Identification Number (PIN). There is only one MPIN which has been factory set at 0 0 0 0. Message playback mode The dialer can be compatible to old dialer. User can choose the message playback mode to option 2. This enables the user to record one 40 seconds. User can choose this mode to option1 such that the dialer can playback one more message to the user to let user know which sensor / zone is triggered. [PWD] + [PROG] + [1] 1 = 9 seconds message + 6*5 seconds messages 2 = 40 seconds message Default is 2 Password change [PWD] + [PROG] + [2] Enter new password -> re-enter new password Default password = 0000 Record a message To record a voice message, press [PWD] + [PROG] + [3] + [d] + [ENTER] The display will show “rEcord” and a beep is generate which alerts you to begin recording. After you are finished recording the message, press [ENTER] key, display will show”PLAY” and play back the message. After playing the message, the display will return to standby mode. Messages record, related to [PROG 1] 0 = main message, 9/40sec 1 = zone 1 message, 2=zone 2 message, 3=zone 3 message ...., every zone messages can record up to 5 seconds. Playback pre-recorded message [PWD] + [ENTER] + [3] + [d] + [ENTER] Message playback, related to [PROG 1] 0 = main message, 9/40sec 1 = zone 1 message, 2=zone 2 message, 3=zone 3 message .... Programming Telephone numbers redial counts and repeat counts [PWD] + [PROG] + [4] + [d] + [ENTER] d= memory 1-9 to store telephone number Telephone no can be 0-9, *, #, P, L [PROG] delete phone no / pause [ARM] pager pause, the display will show “L” as a pager pause. Every phone number can only enter one pager pause. After the telephone number has been stored, another message will appear on the display asking for a redial count. The number of attempts can be changed to dial 1 to 9 times. The repeat time is the number of times the message will be played for that certain phone number. It can be changed from 1 to 9 times. Delete a telephone number from memory [PWD] + [PROG] + [4] + [d] + [PROG] Once the phone number is deleted, the display will return to standby mode. Learn sensor [PWD] + [PROG] + [5] ->trigger sensor ->playback no. (1-6, 0 =disable) Learn remote/sensor within 10 seconds If the sensor is 64 bits sensor, user need to enter playback number after successfully learning the sensor. 0=disable, 1= zone 1 message, 2= zone 2 message ...6=zone 6 message Erase sensor User cannot erase only one specific sensor, the entire memory must be cleared. [PWD] + [PROG] + [6] + [ENTER] Erase remote/sensor, enter to confirm. If you hear a double beep, all transmitters and sensors have been deleted. Program the calling time The calling time is the amount of time the phone will ring until the call is disconnected. If the phone is not picked up within this period of time, the dialer will either call again or advance to the next phone number. The calling time is currently set to 20 seconds. [PWD] + [PROG] + [7] + [d] 1=10sec 2=20sec 3=30sec 4=40sec 5=50sec Default = 2 Program delay duration [PWD] + [PROG] + [8] + [d] Entry/Exit delay 1=instant, enter arm mode instantly. 2=10sec, 3=20sec, 4=30sec, 5= 40sec Default is 1 Program pager pause [PWD] + [PROG] + [9] + [d] User can only enter 1 pager pause in phone no. 1=1sec, 2=2sec,......, 9=9sec Default is 5sec Program dial sequence setting The dialer can dial the preprogrammed phone numbers in two different sequences. [PWD] + [PROG] + [0] + [d] Dialing sequence 1= Dial each phone number once, then repeats sequence. 2= Finishes dialing first phone number, then begins the second number. Default is 2 Standby mode AD105 shows “not rEAdy” in the LCD display, user has to check 1. The main message is recorded properly 2. One of the Telephone no. is entered. AD105 is ready to dial emergency when the LCD display shows “rEAdy”. Arm the dialer [MPIN] + [ARM] Arm LED will goes on. User can exit the premises within the preset delay duration. After this preset delay duration, the dialer will be in arm mode. When any sensor monitored by the dialer is triggered, the dialer will beep for preset duration. This duration allow user to go to the dialer and deactivate it before it begins to dial. If you successfully aborted the call, the display will go back to standby mode. If the dialer has not been deactivated within the preset duration, the dialer will dial the emergency phone numbers. Disarm the dialer [MPIN] + [ARM] Arm LED will goes off. When the dialer is beep for entry, user can disarm the dialer. The dialer will stop beeping and go back to standby mode. But if the dialer is started to dial the emergency phone numbers in arm mode, user can enter correct MPIN in order to terminate the call. User cannot hold the panic button to terminate the call. However, when the dialer is calling the emergency phone numbers in disarm mode, user can hold the panic button to terminate the call. User cannot enter MPIN to terminate the call. Receiving the emergency call When the phone rings at the calling location, the person who answers the phone will hear a message related to the emergency events…

Text truncated - open the document above for the full version.

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] Re: FCC ID: KUTAD105 Pursuant to 47 CFR 0.459, Capital Prospect Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: • Schematic • Block Diagram • Operation Description This information represents intellectual property of Capital Prospect Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Capital Prospect Ltd. reserves the right to discern which parties can obtain access to this information. Dated this __26th____day of _July____2010 By _____________________ _Joe Ng __ Signature Printed Title __Projectl Manager _

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] I, an officer of Capital Prospect Ltd do hereby authorize Emitel (Mr. Derek Leung) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in & 1.2002 (b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Secretion 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). Dated this __26th____day of _July____2010 By _____________________ _Joe Ng __ Signature Printed Title __Projectl Manager_

Test Report E4064161901KY Type / Model Name: AD-105, AD-106 Brand Name: SKYLINK Product Description: AUTO DIALER Applicant: Capital Prospect Limited FCC ID: KUTAD105 FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 2 of 19 FCC --- T E S T R E P O R T Test Report No. : E4064161901KY 26-07-2010 ______________________________________________________________________________________________ Date of issue Type / Model Name: AD-105, AD-106 Brand Name : SKYLINK Product Description： AUTO DIALER Applicant： Capital Prospect Limited Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 3 of 19 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 AVERAGE FACTOR 9 5.2 RADIATED EMISSION 12 5.3 BANDWIDTH 14 5.4 CONDUCTED EMISSION 15 5.5 PROVISION OF MOMENTARY OPERATION 18 6 USED TEST EQUIPMENT AND ACCESSORIES 19 FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 4 of 19 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2007-9-20 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 5 of 19 2 SUMMARY GENERAL REMARKS: The antenna of the EuT is fulfiled the FCC part 15.203. The dialer model AD-105 or AD-106 provides the same feature to dial the pre-programmed phone numbers and sends a personalized pre-recorded message. The model number AD-105 or AD-106 is for different market strategy. The AD-105 is selected as representative model for testing. FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : 24-06-2010 Testing commenced on : 24-06-2010 Testing concluded on : 26-07-2010 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 6 of 19 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT AD-105 Front view AD-105 Rear view FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 7 of 19 3.2 Power supply system utilised Power supply voltage: AC 120V/60Hz or DC 9V Battery 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 434.0MHz transceiver. The main function of the EUT is an automated device which when triggered will dial to pre-programmed telephone numbers for recorded message playback. when trigger signal is occured, the EuT will transmit the signal to the corresponding receiver module to control the device dial to pre-programmed telephone numbers for recorded message playback. The EUT is powered by either 12V with AC adapter or 9V battery. Tested samples: One Set ( model: AD-105 ) Serial number: Not Labelled Dimensions: L: 20.3 cm W: 3.0cm H: 24.5 cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transimitting mode - Operation mode 1: Receiving mode - Operation mode 1: Dialing mode EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable Length Type Line Line termination [m] shielded unshielded Adapter cable 2.5 2-wires LISN RJ11 cable 2.5 2-wires Phone RJ11 cable >3.0 2-Wires Line Peripheral devices : Kind of equipment Model and/or Manufacturer Phone TCL(provided by emitel) FCC ID:KUTAD105 File No. E4064161901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yeung Page 8 of 19 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC …

Text truncated - open the document above for the full version.
