KUTG7MRemote Transmitter

INSTALLTION INSTRUCTIONS MODEL: G7M Learning Type Garage Door Opener Table A 1. Refer to the Table A to select the brand of garage door opener 2. Hold both buttons at the same time for 5 seconds. ! You have 15 seconds to setup otherwise start over again. 3. Ensure the operating frequency is correct based on Table A. Otherwise you should place the rotary switch at a group that transmits at the proper frequency. If you have any questions, problems or missing parts, please call Skylink Customer Support 9:00AM – 5:00PM EST, Monday-Friday. 1-800-304-1187 or Email us at [email protected] www.skylinkhome.com 4. Press the button you want to use. The LED will be off and you have successfully setup the G7M. 5. Follow the instructions of your garage door opener to program the model G7M to the garage door opener. 6. Press the desired button you already setup to operate the opener. DIP switches Type Garage Door Opener 1. Refer to the Table A to select the brand of garage door opener 2. Match the DIP switches setting of your existing remote or garage door opener. If your garage door opener or remote has the 3- position DIP switch, DO NOT use the ‘0’ position, use ‘+’ or ‘-‘. Set the DIP switch in G7M to ‘ON’ f or ‘+’ or ‘OFF’ for ‘-‘ respectively. 3. Hold both buttons at the same time fo r 5 seconds. ! You have 15 seconds to setup otherwise start over again. 4. Ensure the operating frequency is correct based on Table A. Otherwise you should place the rotary switch at a group that transmits at the proper frequency. 5. Press the button you wa nt to use. The LED will be off and you have successfully setup the G7M to operate your garage door opener. Warranty If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization are required. FCC s tatement The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. IC This device complies with Industry Canada licence-e xempt RSS standard(s). Operation is subject to the follow ing two conditions: (1) this device may not cause interfere nce, and (2) this device must accept any interference, inclu ding interference that may cause undesired operation of the device.

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] Re: FCC ID: KUTG7M Pursuant to 47 CFR 0.459, Capital Prospect Ltd request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: • Schematic • Block Diagram • Operation Description This information represents intellectual property of Capital Prospect Ltd and it is subject to competition. This information should not be made routinely available for public inspection, and Capital Prospect Ltd reserves the right to discern which parties can obtain access to this information. Dated this __12th____day of _Jun____2013 By _____________________ _Joe Ng__ Signature Printed Title __Project Manager_

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] Authorization Letter Jun 12, 2013 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam We, the undersigned, hereby authorize Mr Wilson Loke of SGS IECC Limited to act on our behalf in all matter relating to FCC equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS IECC Limited on our behalf shall have the same effect as acts of our own. This authorization is valid for the FCC Certification with FCC ID: _KUTG7M_ and expires on __Dec 2013__. Signature: ______________ Name:_______Joe Ng______________________ Title: ____Project Manager___________________

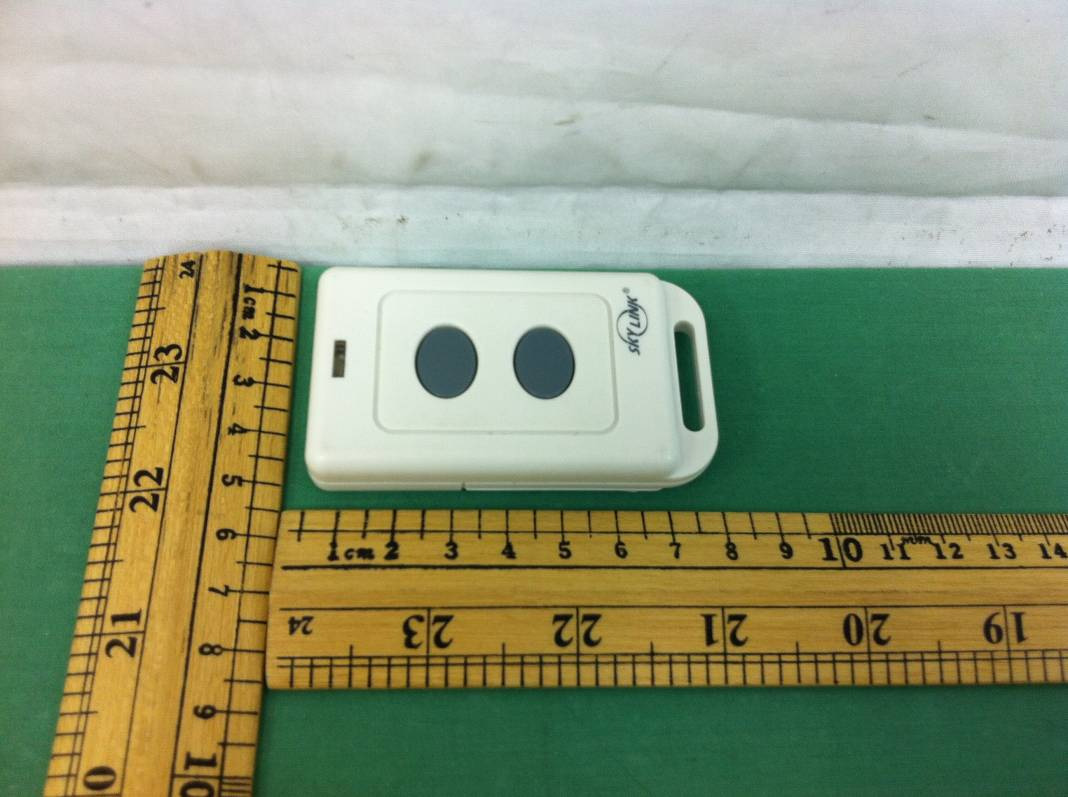

FCC ID: KUTG7M External Photo FCC ID: KUTG7M

PROPRIETARY INFORMATION CPL CAPITAL PROSPECT LTD. MODEL : G7M LABELING DIAGRAM DATE : 12 JUN, 2013 PAGE : 1 OF 1 IC: 4454A-G7MFCC ID: KUTG7M FCC /IC marking - silkscreen or label on the case FRONT SIDE BACK SIDE MODEL:G7M

FCC ID: KUTG7M Internal Photo FCC ID: KUTG7M FCC ID: KUTG7M
