KUTID318Lighting Remote Control

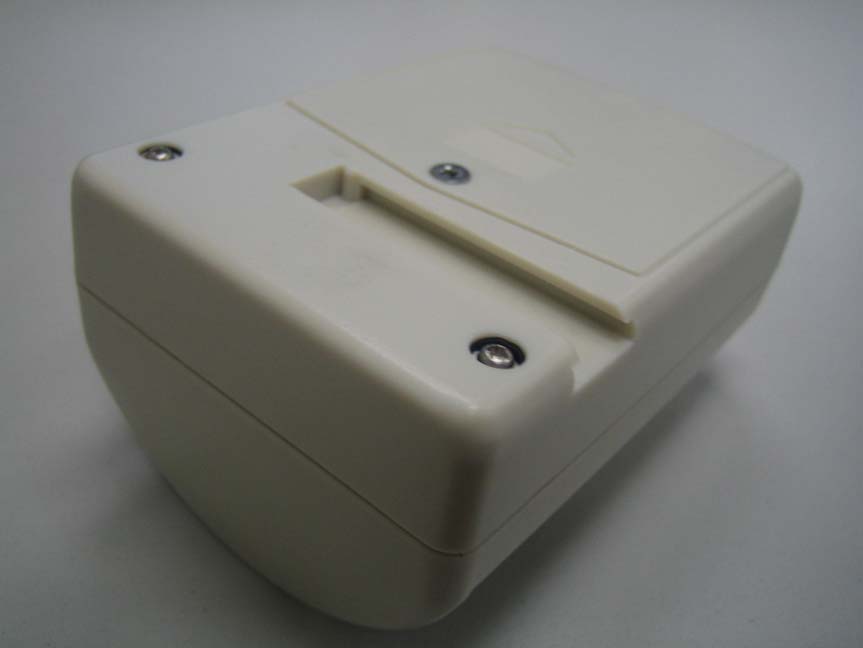

1. INTRODUCTION Motion Sensor Model ID-318 TM Thank you for your purchase of a SkylinkHome Lighting Automation, Motion Sensor, Model ID-318. The Motion Sensor allows you to turn lights on automatically when movement is detected. A built-in timer can turn lights off after a predefined time period. This is ideal for energy saving purposes where the area is not always occupied but lighting is needed when someone is present. A built-in light sensor can also be used so the light will not be on if movement is detected when the monitored area is bright enough. You can customize several settings on the motion sensor, such as: -Timer duration (5 minutes, 30 minutes, 60 minutes) -Light sensor enable / disable (CDS light sensor) -Light sensor brightness threshold (Hi / Lo) -Motion Sensor Sensitivity TM All wireless signal communications within the SkylinkHome lighting system are based on rolling code technology to ensure highest security is used. The following items are included in this package: - Motion Sensor - Ball Joint and Mounting Accessories - 9V Alkaline Battery - User's Instructions Before you can control the lights with the Motion Sensor, you need to program it to the receiver module. Follow the instructions below to program the Motion Sensor to the receiver module. 3. CUSTOMIZING THE MOTION SENSOR There are settings on the motion sensor that you can customize. To customize these settings, open up the battery compartment door and there are a few jumper connectors. Refer to the detail explanations below to customize the motion sensor to suit your needs. Motion Sensor Ball Joint and Mounting Accessories 9V Alkaline Battery 2. PROGRAMMING MOTION SENSOR TO RECEIVER MODULE In order to activate the receiver module with a Motion Sensor, it must be programmed to the receiver module. To program a motion sensor into the receiver module, follow the instructions below. 1. Undo the screws on the back of the motion sensor and remove the battery compartment door. 2. Insert a 9V alkaline battery to power up the motion sensor. 3. Put the receiver module that you plan to program into programming mode. Refer to the User's Instructions of that receiver module. If you are programming the motion sensor to any one of these receiver modules, Model PA-318, PR-318, LS-318, WE-318, WR-318, ensure you program the motion sensor under “Timer Operation” learning sequence of the receiver module. You cannot program the motion sensor to these receiver modules under On / Off operating mode. If you program the motion sensor under Flashing operating mode, when movement is detected, the light will flash for the predefined time period. Please choose carefully on which operating mode you select during programming. 4. Once the receiver module is in programming mode, you may transmit the programming signal from the motion sensor by pressing the “SET” button inside the battery door. When the “SET” button is pressed, the red LED on the front of the motion sensor will flash, indicating a signal is being transmitted to the receiver module. 5. Once the motion sensor is programmed, the receiver module will quit from programming mode. Programming is now completed. You may follow the same instructions to program the motion sensor to different receiver modules, so when the motion sensor is activated, all the receiver modules will be activated. SET Button SEN 1, SEN 2 - This is the sensitivity setting of the motion sensor, where SEN 1 represents high sensitivity and SEN2 represents low sensitivity. High sensitivity can monitor further movement, from up to about 11 meters and less movement is required for activation. Low sensitivity can monitor movement within a shorter distance and more movement is required. SET Button - The SET Button is used for programming the Motion Sensor to the lighting receiver module. 5 min / 30 min / 60 min - This connector allows you to select the timer duration, i.e. how long the light will be on after a motion is detected. You may set the connector at the 5 min position so the light will be on when a motion is detected and off 5 minutes later. You may also remove the connector completely from all 3 settings, i.e. no jumper connector on 5 / 30 / 60 minute. If you remove all 3 connectors, the light will be on when motion is detected and it will not be off by the built-in timer. You must use other device such as a remote control to turn it off. There are some applications where it is desired, such as motion sensor installed in a conference room, it should turn on the lighting when someone walks into the room, but it should remain on until someone leaves the room and turn off the lighting manually. Please refer to “Accessories” section of the instructions for selection of different devices. If you are programming the motion sensor to any one of these receiver modules, Model PA-318, PR-318, LS-318, WE-318, WR-318, these receiver modules have their own timer duration setting. However, when the motion sensor is in used with these receiver modules, the motion sensor timer setting overrides the timer duration setting on these receiver modules. Therefore, when movement is detected by the motion sensor, the light will be on based on the motion sensor timer setting. CDS OFF (Light Sensor) - If this connect is placed, the CDS light sensing function is off, meaning even it is very bright, if movement is detected by the motion sensor, it will still send a signal to turn on the light. If the connector is removed, light sensor function is enabled, meaning the light will only be on if motion is detected when the brightness of the monitored area is low enough. CDS DARK (Light Sensing Threshold) - This connector allows the users to set the light sensing threshold value. CDS DARK CDS OFF SET 5min / 30min / 60min SEN 2 SEN 1 Light Sensor Disabled Light Sensor Enabled Threshold - Dark Threshold - Bright 4. INSTALLATION The motion sensor should be installed at a location where you want to monitor movement, so when movement is detected…
