KUTLS318LIGHTING REMOTE CONTROL

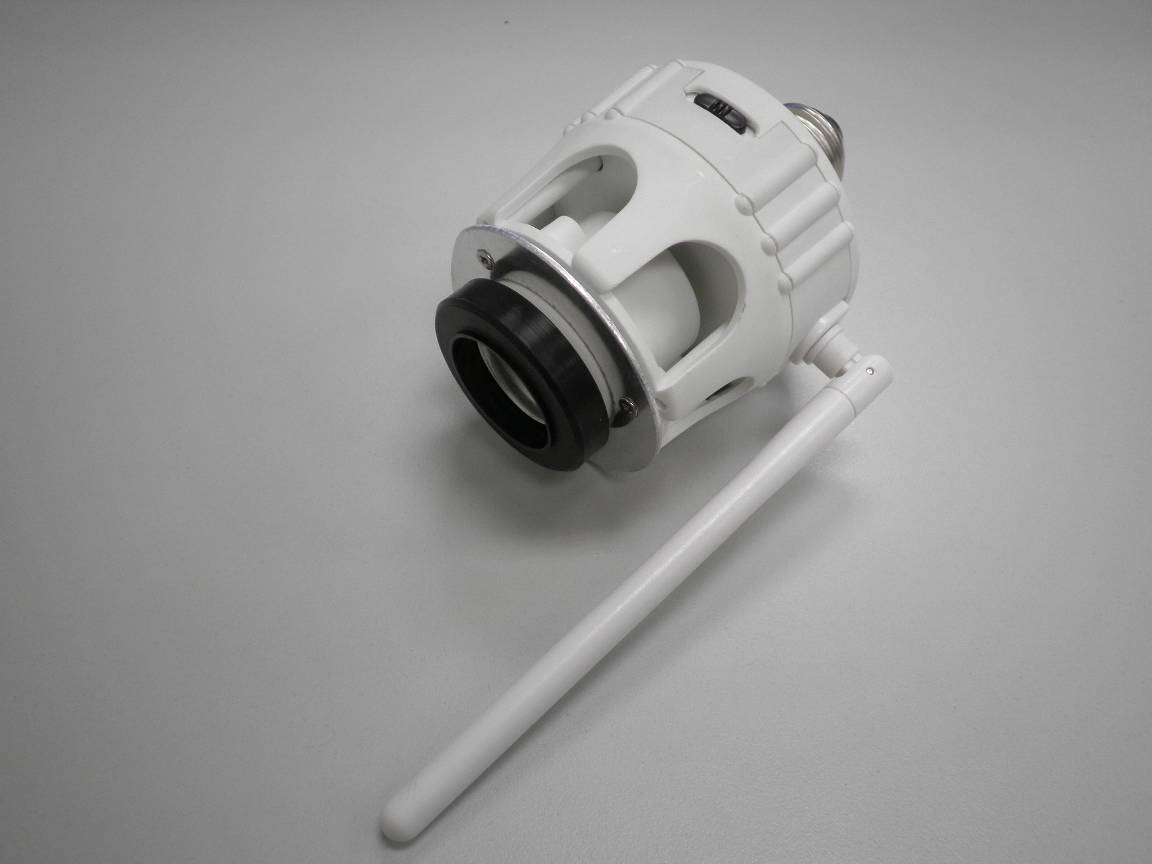

TM Thank you for your purchase of a SkylinkHome lighting receiver, Screw In Lamp Socket Dimmer, Model LS-318. This receiver module allows you to wirelessly turn on and off, dim and brighten different lighting fixtures TM with the SkylinkHome lighting transmitters. The Screw In Lamp Socket Dimmer LS-318 can communicate with up to transmitters, so user has the option to add more transmitters to the system, such as more remote controls, or motion sensors etc. TM All wireless signal communications within the SkylinkHome lighting system are based on rolling code technology to ensure highest security is used. The following items are included in this package: - Screw In Lamp Socket Dimmer - Antenna - User's Instructions 16 1. INTRODUCTION Screw In Lamp Socket Dimmer Model LS-318 Antenna Screw In Lamp Socket Dimmer 2. SETUP There is no wiring involved in setting up the Screw In Lamp Socket Dimmer. Insert the antenna to the Screw In Lamp Socket Dimmer as shown. CAUTION: Turn off the light switch of the empty socket where you plan to install the screw in Lamp Socket Dimmer. Simply screw a light bulb to the fixture end of the Screw In Lamp Socket Dimmer. Then screw the light bulb with the Screw In Lamp Socket Dimmer to an empty socket. Follow the programming instructions below to get started. Note: The antenna should be placed away from the light bulb so it is away from the heat generated by the light bulb. 3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS 4. SET TIMER DURATION 3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS In order to operate the Screw In Lamp Socket Dimmer remotely with a transmitter or sensor, it must be programmed to the Screw In Lamp Socket Dimmer. Each module can be operated by up to 16 different transmitters (or 16 different command signals). There are 3 operating modes with the Screw In Lamp Socket Dimmer: 1) On / Off Mode - When a valid signal is received, it will toggle the load, i.e. turning off or on the light 2) Flashing Mode - When a valid signal is received, the light will flash for a specific period of time, which is the time defined in the timer duration. This works as an alert indication. 3) Timer Mode - When a valid signal is received, the load will be on for a specific period of time, from 1 minute, 5 minutes, 15 minutes, 30 minutes, and 60 minutes You can program multiple transmitters / sensors to the module and each transmitter / sensor can operate in its own mode. To program a transmitter / Sensor into the Screw In Lamp Socket Dimmer, follow the instructions below. 1. Turn off the light and Screw In Lamp Socket Dimmer by the wall switch. OFF OFF 2. Place the operating mode slide switch at the desired position, On/ Off, Flash, or Timer. Operating mode slide switch 3. Turn on the light and Screw In Lamp Socket Dimmer by the wall switch. Light will be on. ON 4. The red LED indication shows the operation mode you have selected: Operating Mode On / Off Flashing Timer LED Indication One Flash Two Flashes Steadily On 5. Ensure the LED indication shows the operation mode you have selected. 6. You can now activate the transmitter or sensor you would like to program. 7. Press the PROG button on the back of the TC transmitter with a sharp object. Red LED on the transmitter will be on steadily. 8. Press the button on the TC transmitter that you would like to program into the module. 9. Once the transmitter is programmed, the red LED on the module flashes quickly then stops flashing, indicating you have successfully programmed the transmitter to the module. 10.You may operate the light with the programmed transmitter. Note: To program other transmitters/sensors (besides TC transmitter), please refer to the instructions of the transmitters/sensors. Note: You must complete the programming sequence within the 15-second interval, otherwise, the module will quit from programming mode and you need to start again from step 1 if the red LED is off. You may follow the same instructions to program additional transmitters or sensors to operate the receiver module. “PROG” switch Press the desired button As mentioned, the timer can be set to the following durations, 1 minute, 5 minutes, 10 minutes, 30 minutes, and 60 minutes. There is only one timer setting, so all transmitters that are programmed in timer mode will have the same timer duration. To set the timer duration, follow the instructions below: 1 2 3 ON/OFF FLASH TIMER Note: Lighting Load The is designed to operate maximum load of 200W at 120VAC. It can dim incandescent light and designated dimming compact fluorescent light. Do not connect other kinds of loading or loading that exceeds this maximum rating. Screw In Lamp Socket Dimmer On / Off Mode Operation 4. SET TIMER DURATION (CONT) 4. ON / OFF OPERATING MODES 4. ON / OFF OPERATING MODES (CONT) 5. FLASHING OPERATING MODES 1. Screw In Lamp Socket Dimmer should be powered up. 2. Turn off the light bulb by a programmed transmitter. The light bulb must be off in order to set the timer duration. ON Light Off SET Button (Black) Red LED (Clear) Number of Flashes 1 2 3 4 5 Timer Duration 1 min. 5 min. 15 min. 30 min. 60 min. 3. Press and hold the SET button for 3 seconds, the red LED flashes once. The number of flash indicates the timer duration: CAUTION DO NOT TOUCH ANY METAL PARTS WHILE PRESSING THE SET BUTTON. MAKING CONTACT WITH METAL PARTS CAN RESULT IN ELECTRICAL SHOCK CAUSING SEVERE OR FATAL INJURY. 4. Continue to hold the SET button until it reaches the desired setting. The status will change every 6 seconds, i.e. hold onto the SET button for another 6 seconds, you will see the number of flashes changes from 1 to 2, 2 to 3 etc. Note: Once the number of flash reaches 5, it will stay at this setting. If you would like to go back to other settings, such as 1 flash, release the button and repeat from step 1 to start over. Once a transmitter (button) is programmed in timer mode, activating this programmed transmitter (button) will turn on the light for the specific timer inte…

Text truncated - open the document above for the full version.

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] I, an officer of Capital Prospect Ltd do hereby authorize Emitel (Mr. Derek Leung) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in & 1.2002 (b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Secretion 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). Dated this __26th____day of _July____2010 By _____________________ _Joe Ng __ Signature Printed Title __Project Manager_

CPL CAPITAL PROSPECT LTD. MODEL : LS-318 LABEL DIAGRAM DATE : 18 SEP, 2010 PAGE : 1 OF 1 LS-318_LABEL.CDR PROPRIETARY INFORMATION SIZE : 38X12mm oo Operating temperature: -25C TO +40C Model : LS-318 FCC ID: KUTLS318 120 V~ AC 60Hz 200 W FOR INDOOR USE ONLY Assembled in China IC: 4454A-LS318 3078242 I.T.E.

FCC Test Report E4064136701KY Type / Model Name: LS-318 Brand Name: SKYLINK Product Description: LIGHTING REMOTE CONTROL Applicant: Capital Prospect Limited FCC ID : KUTLS318 File No. E4064136701KY, page 2 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 FCC -- T E S T R E P O R T Test Report No. : E4064136701KY Oct 20,2010 ______________________________________________________________________________________________ Date of issue Type / Model Name: LS-318 Brand Name : SKYLINK Product Description： LIGHTING REMOTE CONTROL Applicant： Capital Prospect LTD. Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4064136701KY, page 3 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 RADIATED DISTURBANCE (ELECTRIC FIELD) 9 5.2 CONDUCTED DISTURBANCE 11 6 USED TEST EQUIPMENT AND ACCESSORIES 13 File No. E4064136701KY, page 4 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15 Subpart B:2008-10-01 Radio frequency devices-Unintentional Radiators ANSI C63.4:2003 Method of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4064136701KY, page 5 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 2 SUMMARY GENERAL REMARKS: N/A FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : Jan 07, 2010 Testing commenced on : Jun 10, 2010 Testing concluded on : Oct 20, 2010 Reviewed by: Prepared by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4064136701KY, page 6 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Front View Back View File No. E4064136701KY, page 7 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3.2 Power supply system utilised Power supply voltage: AC 120V/60Hz 3.3 Short description of the Equipment under Test (EuT) The EuT is a receiver powered by AC 120V. The receivers are designed as a PCBA product used with other devices to receive the signal from the transmitter. When the device receives the signal from the transmitter, It will responds to activate electronic switch. Number of tested samples: One Serial number: Not Labelled Dimensions: L: 8.0cm W: 8.0cm H: 19.0cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Maximum load + receiving mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable Length Type Line Line termination [m] shieldedunshielded DC Power cable 0.3 2 wire   To Lamp DC Power cable 0.6 2 wire   To Lamp AC power cable 1.0 2 wire   To LISN Peripheral devices: Kind of equipment Model and/or Manufacturer 2*100W Lamp(120V/60Hz) GE File No. E4064136701KY, page 8 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, 518049 China FCC Registration No.: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to ISO 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. File No. E4064136701KY, page 9 of 13 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 5 TEST CONDITIONS AND RESULTS 5.1 Radiated disturbance (electric field) For test instruments and accessories used see section 6 Part I1. 5.1.1 Description of the test location Test location: Semi-Anechoic Chamber Test distance: 3m 5.1.2 Photo documentation of the test set-up 5.1.3 Test result The test was carried out in the following operation mode(s): - Maximum load + receiving mode Frequency range: 30MHz to 2000MHz Min. limit margin -19.6dB at 954.0MHz. The requirements…

Text truncated - open the document above for the full version.
