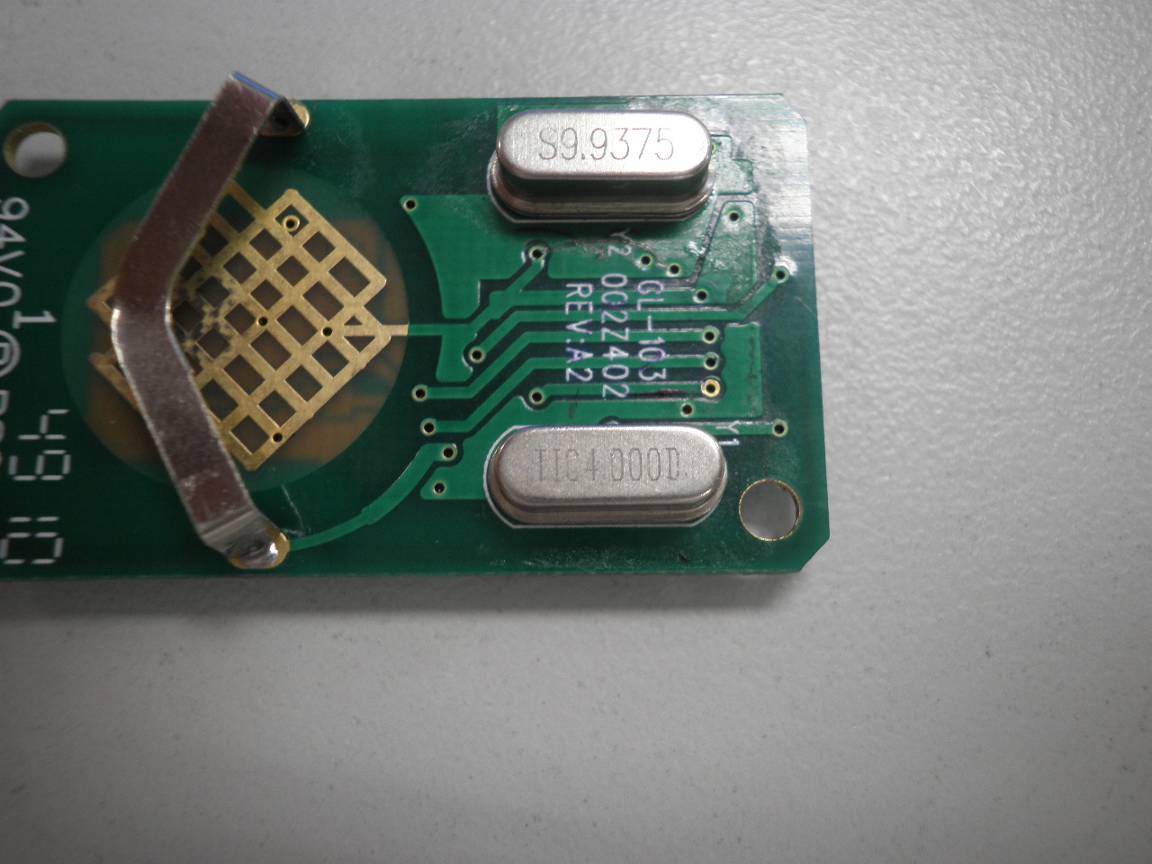

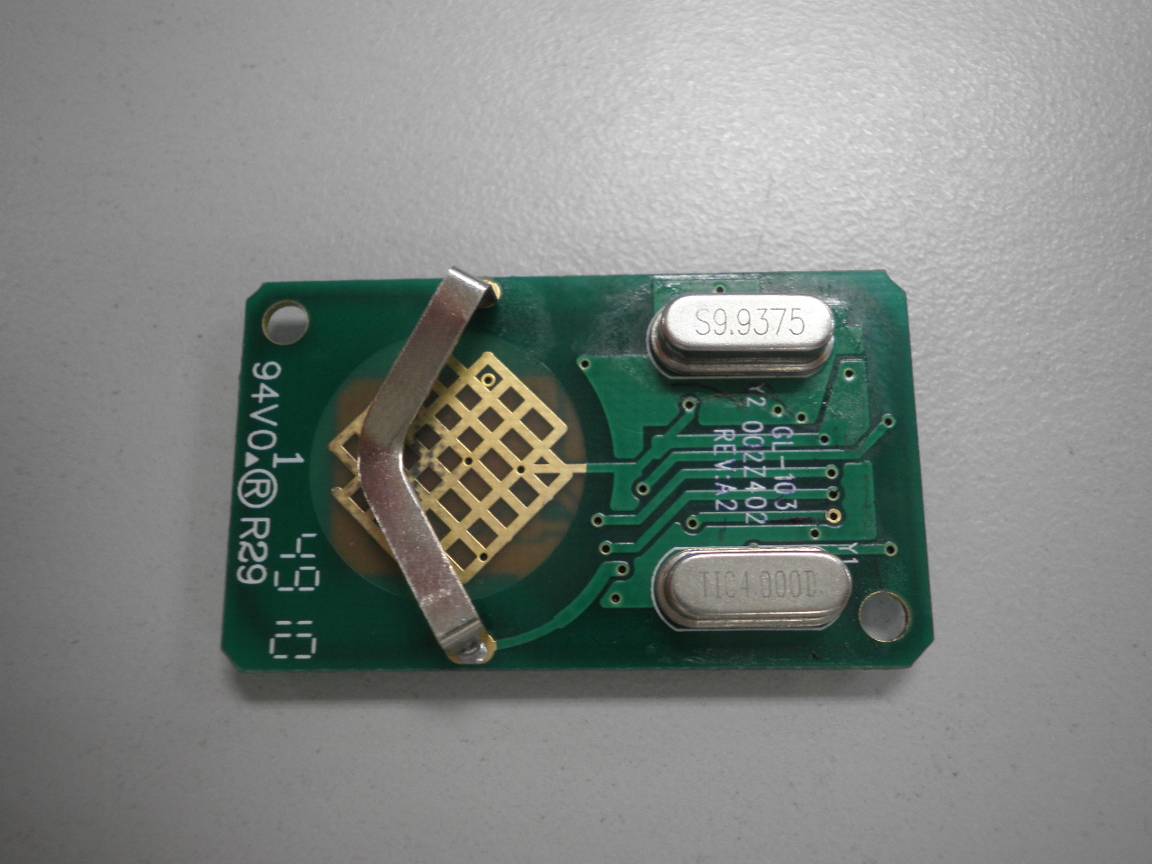

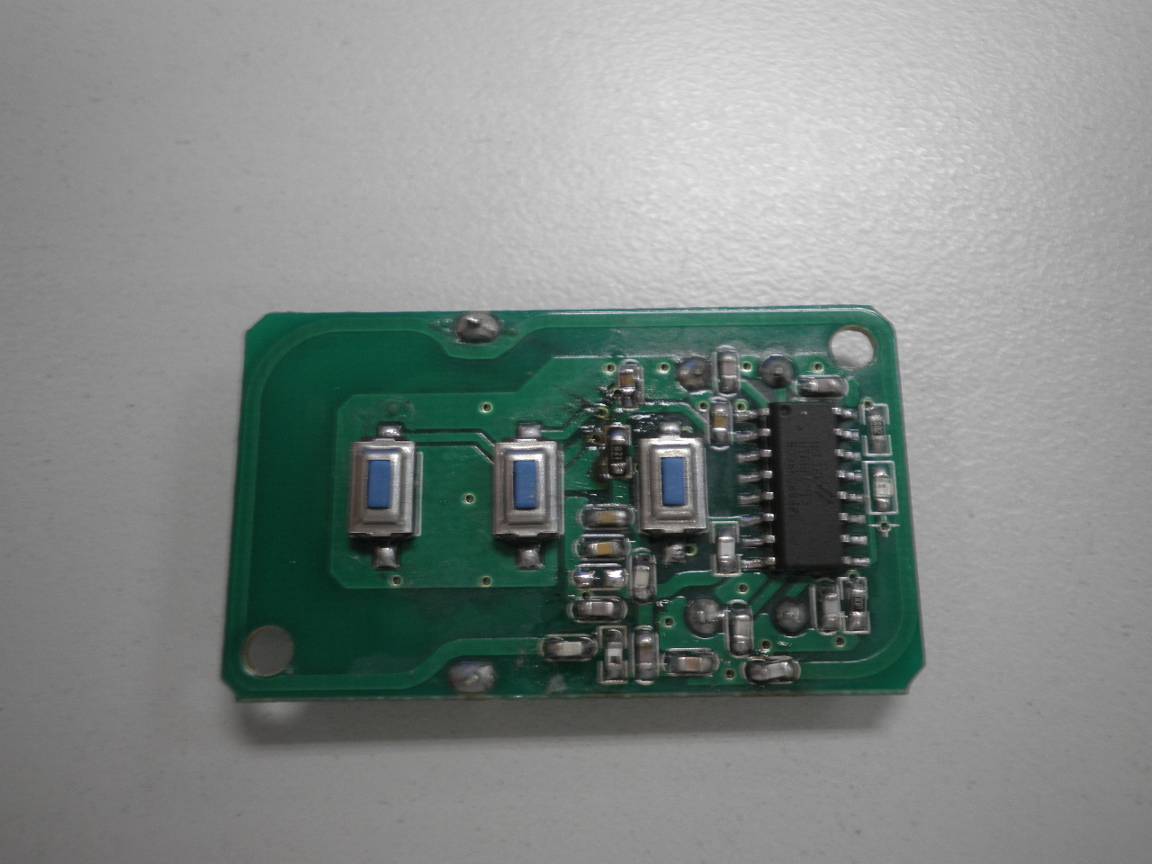

KUTMK318KEYCHAIN TYPE TRANSMITTER

1. INTRODUCTION 3-Button Garage Door Remote Control Model MK-318 In this package, you will find a Skylink ® garage door transmitter with 3V lithium battery. You need to do the programming in order to add the transmitter - remote control to a receiver. Refer to the receiver Smart Button TM GB-318 user’s instruction to set up the unit. 2a. PROGRAM TRANSMITTER TO RECEIVER GB-318 Garage Door Transmitter (Battery inside) 3 Volt lithium battery (CR 2032) (included). It is time to change the battery when the red LED on the transmitter does not turn on when either button is pressed. 4. BATTERY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization are required. 7. WARRANTY 5. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage, et (2) L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionmement. 8. CUSTOMER SERVICE CUSTOMER SERVICE 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email:[email protected] http://www.skylinkhome.com P/N : 101Z993 Patent Pending ©2010 SKYLINK GROUP Smart Button TM GB-318 can learn up to 10 remote controls. To program the transmitter to the receiver, follow the instructions below: 1. Press the learn button on the side of the Smart Button TM GB-318. 2. Once the learn button is pressed, the LED will flash quickly. Release the learn button. 3. Within 30 seconds, press any one of the 3 buttons on the transmitter that you want to program to the receiver. 4. Once the remote control is programmed, the LED will flash slowly, in the same way as it flashes in standby mode. 5. You may now operate the garage door opener with this new remote control. 6. To program this transmitter to control another receiver, repeat process (1) to (4) to program another button on the remote control. You need to do the programming in order to add the transmitter to a Skylink ® Garage Door Opener. Skylink ® Garage Door Opener can learn up to 16 remote controls. To program the transmitter to the Garage Door Receiver, follow the instructions below: 1. Press the LEARN/SET button once on the garage door opener. 2. Once the LEARN/SET buttton is pressed, the LEARN LED will flash. You may release the LEARN/SET button. 3. Within 30 seconds, press any one of the 3 buttons on the transmitter that you want to program to the receiver. 4. Once the transmitter is programmed, the LEARN LED will turn off. 5. You may now operate the garage door opener with this new transmitter. 6. To program a transmitter to control another garage door opener, repeat process (1) to (4) to program another button on the transmitter. 2b. PROGRAM A TRANSMITTER TO THE SKYLINK ® GARAGE DOOR OPENER - EQ SERIES To program the transmitter to the Skylink ® IQ series Garage Door Opener, please follow the user’s instruction from the Garage Door Opener. 3. TROUBLE SHOOTING Q: What can I do if the door opener does not react after I press the button on the transmitter ? A: - Ensure when the button on the transmitter is pressed, the red light on the transmitter comes on. Otherwise, check if the battery is inserted properly. - Make sure the correct button on the transmitter is pressed. - Ensure the wires that were previously connected to the wall mounted door control are not loose. - Ensure the transmitter has been programmed to the receiver. Refer to section 2 for how to program a transmitter to the receiver. 2d. PROGRAM A TRANSMITTER TO THE SKYLINK ® GARAGE DOOR OPENER - IQ SERIES Learn Button There are three buttons on transmitter MK-318, each button can be programed to control Skylink garage door receiver Smart Button TM GB-318 or GB-318-3 or Skylink garage door opener directly. Follow one or more instructions below in Section 2 to program transmitter MK-318 to the receiver or receivers you want to control. Learn Button Smart Button TM GB-318 LED Antenna 2c. PROGRAM A TRANSMITTER TO RECEIVER GB-318-3 To program the transmitter to a Skylink Garage Door Receiver Smart Button TM GB-318-3 (3 doors) , please follow the user’s instruction for the model GB-318-3. If you would like to - find out the up-to-date specifications - know more about features and applications - download documents, i.e. user’s instructions - order Skylink products or if you have difficulty getting products to work, please: 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at [email protected], or 3. call our toll free at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST. Fax (800) 286-1320 6. IC

Req u esl-fsI.legIfdsslla[ly Date: 20ll-06'21 Subject: Confidentialig Request fbr: @ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part ofthe subject FCC application be held confidential. Type of Confidentiality Requested Exhibit I Short Term I Short term I Short Term fl Short Term f] Short Term I Short Term I Short Term fl Short Term I Short term [l Permanent f] Permanent*2 I Permanent I Permanent I Permanent [l Permanent f] Permanent* Block Diagrams External Photos Internal Photos Operation Description/Theory of Operation Parts List & Placement/BOM Tune-Up Procedure Schematics Test Setup Photos User's Manual *Note: Caoital Prosoect Ltd has spent substantial effort in developing this product and it is one ofthe first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confi dentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confi dentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (specify number of dry '_ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notif ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Joe Ns (Print name) 2 - The asterisked items (+) require further.iustification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: "The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable - damage to intemal circuitry. See photographs exhibits that outline the device before and after potting." details. 4_ 022311 -6

:CPL= Rm.03, 13iF-,8lsck. B. Korg =e . fE52i 2Etl2 Thank you, Agency Agreement Expiration Date: cAPITA l, PROSIIF:C'I' I .'r'I). Verist'cng Ind. Centre, 34-.38 Au Pu !";an Slreet. =o Tan, N.T. Hcng 13'1. Fax i852 j 2602 468i Ema : cplh,t@sk1;iinkhon'e-cont Authoritv to Act as Aeent Date: 20ll-07-47 American Certification Body, lnc. 6731 Whittier Avenue Suite C110 Mclean, VA 22101 To Whom It May Concern: emitel(Shenzhen) limited is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certiff that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits. that includes FCC benefits. (Tvnicallv I - 12 months) By: Title: On behalfof; Telephone: (852)26021318 l_ 022311 -6 Joe Ns (Print name)

PROPRIETARY INFORMATION CPL CAPITAL PROSPECT LTD. MODEL : MK-318 LABELING DIAGRAM DATE : 25 JUNE, 2011 PAGE : 1 OF 1 SIZE : 20 X 12mm

FCC Test Report E4064235301KY Type / Model Name: MK-318 Product Description: KEYCHAIN TYPE TRANSMITTER Applicant: Capital Prospect Ltd. FCC ID: KUTMK318 File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 2 of 17 FCC --- T E S T R E P O R T Test Report No. : E4064235301KY July 07, 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name: MK-318 Product Description： KEYCHAIN TYPE TRANSMITTER Applicant： Capital Prospect Ltd. Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 3 of 17 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 ANTENNA REQUIREMENT 9 5.2 AVERAGE FACTOR 10 5.3 RADIATED EMISSION 13 5.4 BANDWIDTH 15 5.5 PROVISION OF MOMENTARY OPERATION 16 6 USED TEST EQUIPMENT AND ACCESSORIES 17 File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 4 of 17 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2009-10-01 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 5 of 17 2 SUMMARY GENERAL REMARKS: N/A FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : July 06, 2011 Testing commenced on : July 06, 2011 Testing concluded on : July 07, 2011 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 6 of 17 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Top View Bottom View File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 7 of 17 3.2 Power supply system utilised Power supply voltage: DC 3V(1 CR2032 button cell battery) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a low-power communication operating at frequency range from 318.0MHz. The remote transmitter has three button switches to activate the transmission. When the buttons are pressed, the EuT will transmit the signal by on-off keying Modulation to corresponding receiver to change the status of the receiver. Tested samples: One Set ( model: MK-318) Serial number: Not Labelled Dimensions: L: 6.0 cm W: 3.0cm H: 1.2cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transmitting mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable Length Type Line Line termination [m] shielded unshielded N/A Peripheral devices : Kind of equipment Model and/or Manufacturer N/A File No. E4064235301KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 8 of 17 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC Registration number: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 860-1060 mbar 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 “Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements” and is documented in the quality system acc. to ISO/IEC 17025. Furthermore, component and process variability of devices similar to …
