KUTPR318Remote control/Security Device Transceiver

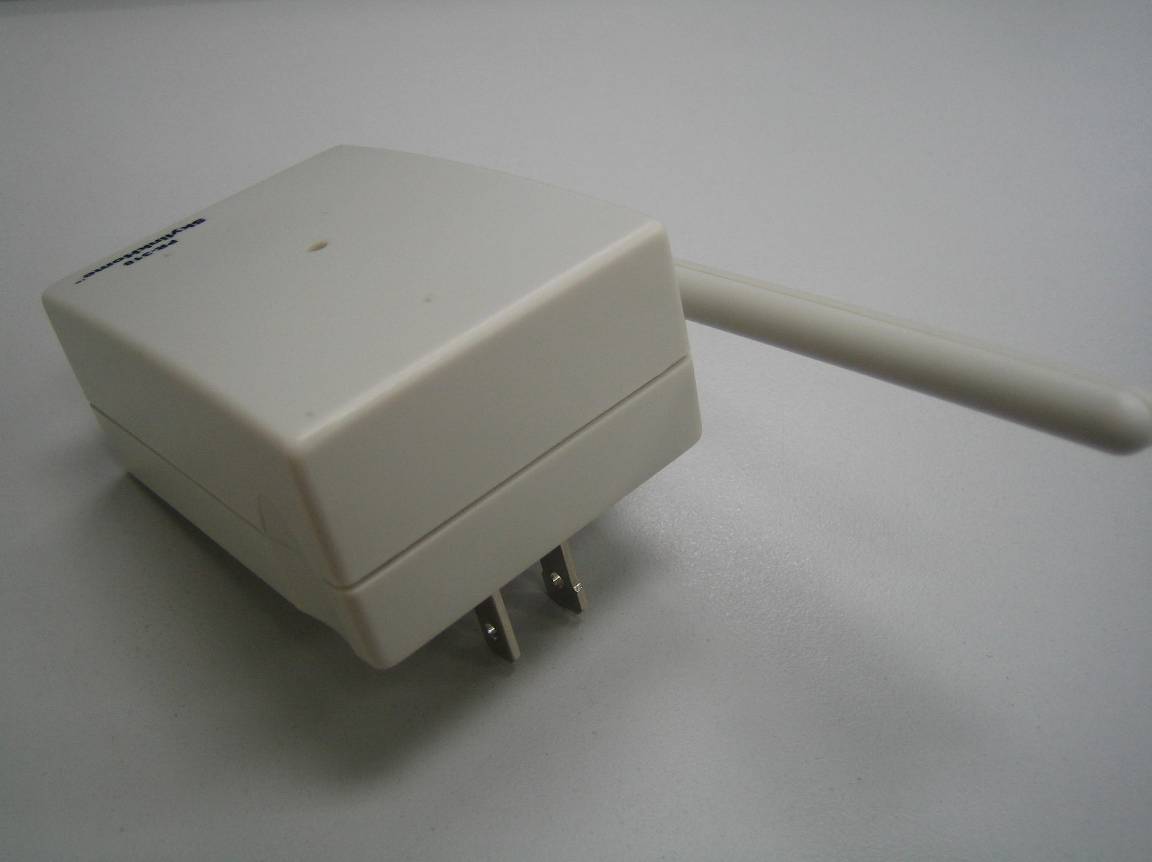

1. INTRODUCTION Plug-In Lighting Module with Repeater Red LED Plug into AC socket, load is on. SET Model PR-318 Thank you for your purchase of a Skylinklighting receiver, Plug-In Lighting Module with Repeater, Model PR-318. This receivermodule allows you to wirelessly turn on and off, dim and brighten different lighting fixtures with the Skylinklighting transmitters. It also repeats signal in order to extend the operating range. The Plug-In Lighting Module with Repeater PR-318 can communicate with up to 16 transmitters, so user has the option to add more transmitters to the system, such as more remote controls, or motion sensors etc. All wireless signal communications within the Skylinklighting system are based on rolling code technology to ensure highest security is used. User’s Instructions Home Home Home The following items are included in this package: Plug-In Lighting Module with Repeater TM TM TM - - 2. SETUP Plug-In Lighting Module with Repeater Simply plug the Plug-In Lighting Module with Repeater to an AC electrical outlet, then plug in a light that you would like to operate to the socket on the Plug-In Lighting Module with Repeater. You may place the antenna in the upright position to have the best reception. Follow the programming instructions below to get started. Plug-In Lighting Module with Repeater Note: Lighting Load Theis designed to operate maximum load of 300W at 120VAC. It can dim incandescent light and designated dimming compact fluorescent light. Do not connect other kinds of loading or loading that exceeds this maximum rating. 3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS 4. SET TIMER DURATION 3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS (CONT) In order to operate the Plug-In Lighting Module with Repeater remotely with a transmitter or sensor, it must be programmed to the Plug-In Lighting Module with Repeater. Each module can be operated by up to 16 different transmitters (or 16 different command signals). There are 3 operating modes with the Plug-In Lighting Modulewith Repeater: 1) On / Off Mode - When a valid signal is received, it will toggle the load, i.e. turning off or on the light 2) Flashing Mode - When a valid signal is received, the light will flash for a specific period of time, which is the time defined in the timer duration. This works as an alert indication. 3) Timer Mode - When a valid signal is received, the load will be on for a specific period of time, from 1 minute, 5 minutes, 15 minutes, 30 minutes, and 60 minutes. This is mainly for energy saving, turning lights on only when the movement is detected (with optional motion sensor) or when a transmitter is activated. You can program multiple transmitters / sensors to the module and each transmitter / sensor can operate in its own mode. To program a transmitter / Sensor into the Plug-In Lighting Module with Repeater, follow the instructions below. 1. Plug in a load to the Plug-In Lighting Module with Repeater. 2. Plug in the module to an AC electrical outlet, the red LED flashes once quickly. The connected load (i.e. light) will be on automatically. 3. Press and hold the “SET” button for about 3 seconds, unit the red LED flashes once. You may now release the “SET” button. 4. The red LED will continue to flash for about 15 seconds. You can now decide the operating mode of the transmitter that you plan to program. Operating Mode On / Off Flashing Timer Number of Flash 1 2 3 4 5 LED Indication One Flash Two Flashes Steadily On Timer Duration 1 min. 5 min. 15 min. 30 min. 60 min. 5. If you are programming a transmitter for On / Off operation, follow steps A) to C). Otherwise, go to step 6. A. Press the PROG button on the back of the TC transmitter witha sharp object. B. Press the button on the TC transmitter that you would like to program into the module. C. Once the transmitter is programmed, the red LED on the module flashes quickly then stops flashing, indicating you have successfully programmed the transmitter to the module. D. You may operate the light with the programmed transmitter. 6. If you are programming a transmitter for Flashing operation, continue to hold the “SET” button for another 6 seconds, until the LED flashes twice at a time. 7. You may now follow steps 5A) to 5C) to complete the programming sequence. 8. If you are programming a transmitter for Timer operation, hold the “SET” button for another 6 seconds, until the LED is on steadily. 9. You may now follow steps 5A) to 5C) to complete the programming sequence. Note: You must complete the programming sequence within the15-second interval, otherwise, the module will quit from programmingmode and you need to start again from step 1 if the red LED is off. You may follow the same instructions to program additional transmitters or sensors to operate the receiver module. Otherwise, go to step 8. continue to Note: To program other transmitters/sensors (besides TC transmitter), please refer to the instructions of the transmitters/sensors. As mentioned, the timer can be set to the following durations, 1 minute, 5 minutes, 10 minutes, 30 minutes, and 60 minutes. There is only one timer setting, so all transmitters that areprogrammed in timer mode and flashing mode will have the same timer duration. To set the timer duration, follow the instructions below: 1. Plug in the module to an AC socket so it is powered on properly. 2. Turn off the connected load by a programmed transmitter. The load must be off in order to set the timer duration. 3. Press and hold the SET button for 3 seconds, the red LED flashes once. The number of flash indicates the timer duration: 4. Continue to hold the SET button until it reaches the desired setting. The status will change every 6 seconds, i.e. hold onto the SET button for another 6 seconds, you will see the number of flashes changesfrom 1 to 2, 2 to 3 etc. This timer duration is used for both under Flashing Operation Mode and Timer Operation Mode. Note: Once the number of flash reaches 5, it will stay a…
