KUTSD001Auto Dialer

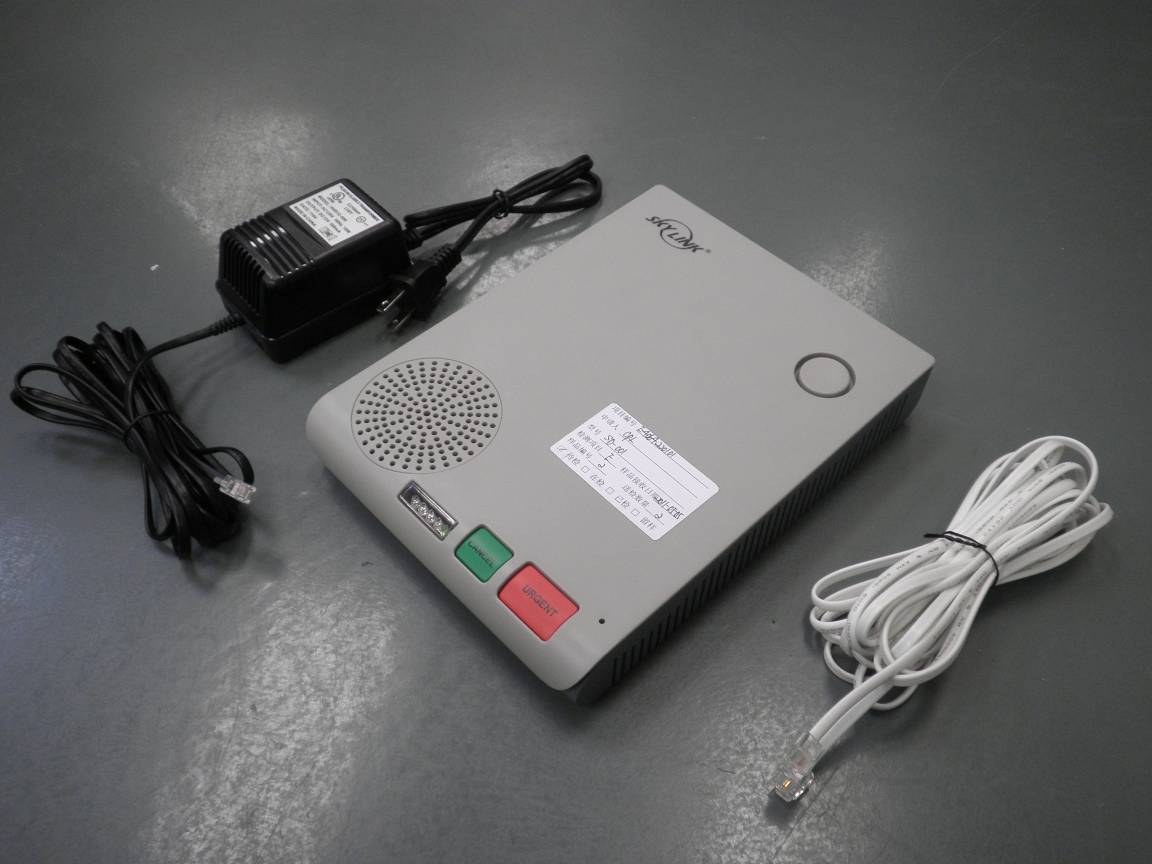

AUTO DIALER – MODEL SD-001 / SD-001R 1. Introduction Congratulations on your purchase of the Auto Dialer Model SD-001R. The SD-001R is an advanced emergency dialer which is connected to a phone line for assistance to monitoring station during emergency thru 2-way voice conversation with Contact ID compatibility. Warning: This system is designed to be installed and programmed by trained professionals. DO NOT ATTEMPT TO MODIFY ANY SETTINGS BY YOURSELF. The RS232 interface is used for update by maintainer. The NC/NO terminal is for the maintainer to install the hardwired device for troubleshooting. No service parts for the end customer. . Consult with your installer or dealer if you experience any problems with the system. In this package, you should find the following: .One Auto Dialer Model SD-001R .One Telephone Cord .One AC adapter .One Rechargeable Battery for the Auto Dialer .One User’s Instructions 2. Main Unit Following diagram shows several key features on the main unit. Emergency Dialer Speaker LED Indication CANCEL Button. URGENT Button Siren / Buzzer Microphone Front URGENT Button – Press this button to activate the emergency call CANCEL Button – Press this button to terminate or cancel the emergency call LED Indication – Displays the status of the dialer Speaker – Speaker for 2-way voice conversation Microphone – Speak to this microphone during 2-way voice conversation POWER LINE PHONE Back On / Off – Turn the dialer On / Off Power – Connect AC adapter for power Line – Connect telephone line Phone – Connect a telephone to share the same phone line NC/NO - The NC/NO terminal is for the maintainer to install the hardwired device for troubleshooting. Warning: DO NOT TURN OFF THE MAIN UNIT. IT SHOULD ALWAYS BE ON OTHERWISE IT WILL NOT FUNCTION DURING ANY EMERGENCY SITUATION. DO NOT DISCONNECT ANY OF THE PHONE LINE OR POWER ADAPTER. IF YOU SEE ANY LOOSE CONNECTIONS, PLEASE CONTACT YOUR INSTALLER IMMEDIATELY. 3. Remote Control (Optional Accessory) LED Speed Dial Button Panic Button Panic Button– Press this button to activate the emergency call Speed Dial Button– Press this button to activate a speed dial call 4. Operation Under normal standby condition, the green LED on the dialer should be on constantly. If the red LED flashes constantly, that means you are having some failure issues. Please refer to section 5 for System Failure. During Emergency – Press URGENT Button During an emergency, you may initiate a call by pressing the “URGENT” red button, this will initiate a call with the monitoring station. You will hear the dial tone that the dialer is calling. Once the line is picked up by the monitoring station, you may start the voice conversation with the operator at the monitoring station. You can speak when the orange LEDs are flashing, indicating the microphone is activated. After the call, there is no need to disconnect the line. The operator will disconnect the line for you. If you initiate a call by accident, press the “CANCEL” green button will stop the call from dialing to the monitoring station. Remote Control (Optional Accessory) You may also initiate a call by pressing the large red button on the remote control. When the button is pressed, LED on the remote will flash indicating a signal is being transmitted to the dialer. Just wait for the operator to pick up the call before you can start the voice conversation. The speed dial button allows you to call a pre- programmed phone number (not monitoring station). When the speed dial button is pressed, it will dial to this phone number. Please consult with your installer so they can program a suitable speed dial number for you. 5. System Failure The system will monitor itself for failures, such as: 1) AC power failure (No AC power from the adapter) 2) Phone line failure (No phone line is connected) 3) Backup battery failure (Backup battery is low) During a system failure, the dialer will beep for 20 seconds and the red LED will flash. When there is a failure condition, you should consult with the installer. You can disable the failure beeping while it is sounding if you press the “CANCEL” green button. 6. FCC The Auto Dialer is approved by the FCC and it complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions : 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undersired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 7. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization are required. 8. Customer Service SKYLINK TECHNOLOGIES INC., 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email: [email protected] Website: http://www.skylinkhome.com © 2011 Skylink Group

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email : [email protected] Multiple Brands Confirmation Letter I, the undersigned, hereby confirm that the submitted sample is said to be the following models numbers / Brand names / type numbers. These models are similar identical, the only differences in between these models are as follows for marketing purpose. Model No.: SD-001 Trade Name: SKYLINK Model No.: SD-001R Trade Name: SKYLINK The sample being submitted to Emitel (ShenZhen) Ltd., for conformity assessment is item no. SD-001 of the list. Name: _ Joe Ng Signature: ____________________ Position: Project Manager Date: May 13, 2011 **********************************************************************************

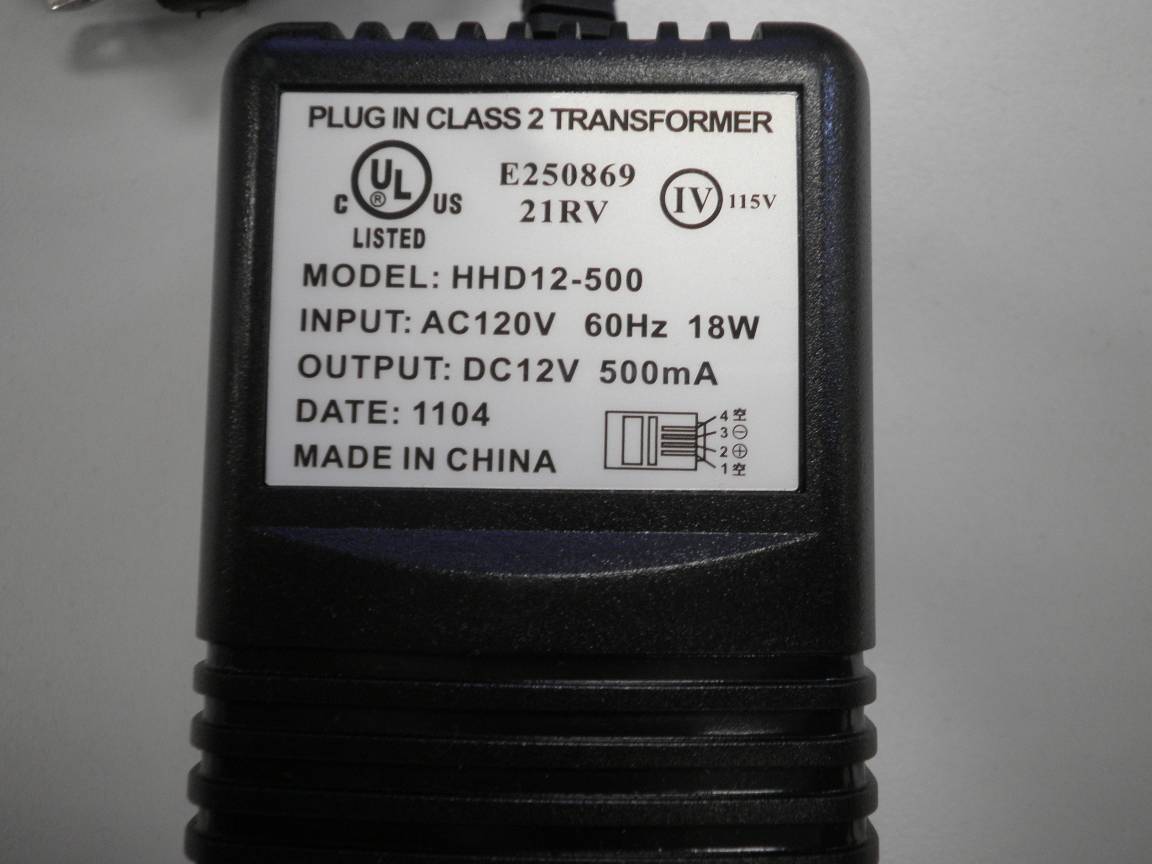

PROPRIETARY INFORMATION LABEL SIZE : 60X32 mm CPL CAPITAL PROSPECT LTD. EMERGENCY DIALER FCC ID : KUTSD001 IC : 4454A - SD001 . Class 2 AC ADAPTER : 12VDC 600mA Complies with Part 68 of FCC Rules.US : 5NXAL01BSD001 FCC REN 0.5BUSOC Jack : RJ11C IC REN 0.3B 3078242 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation. I.T.E. Assembled in China Assemble en Chine ' Model / Modele : SD-001R MODEL : SD-001RLABELING DIAGRAMDATE : 5 MAY, 2011PAGE : 1 OF 1 (R) '

FCC Test Report E4064220102KY Type / Model Name: SD-001, SD-001R Trade name: SKYLINK Product Description: Auto Dialer Applicant: Capital Prospect Ltd. FCC ID: KUTSD001 File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 2 of 17 FCC --- T E S T R E P O R T Test Report No. : E4064220102KY May 23, 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name: SD-001, SD-001R Product Description： Auto Dialer Applicant： Capital Prospect Ltd. Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 3 of 17 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 ANTENNA REQUIREMENT 9 5.2 AVERAGE FACTOR 10 5.3 RADIATED EMISSION 13 5.4 BANDWIDTH 15 5.5 PROVISION OF MOMENTARY OPERATION 16 6 USED TEST EQUIPMENT AND ACCESSORIES 17 File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 4 of 17 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2009-10-01 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 5 of 17 2 SUMMARY GENERAL REMARKS: The model SD-001R is identical as the model SD-001. The model number SD-001 or SD-001R is for different market strategy. The SD-001 is selected as representative model for testing. FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : May 05, 2011 Testing commenced on : May 05, 2011 Testing concluded on : May 23, 2011 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 6 of 17 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Top View Bottom View File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 7 of 17 3.2 Power supply system utilised Power supply voltage: DC 3.6V 1600mAh Rechargeable NiMH battery AC adapter for model: HHD12-500 Input: AC120V 60Hz 18W Output: DC12V 500mA 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 433.92MHz transceiver. The main function of the EUT is an automated device which when triggered will dial to pre-programmed telephone numbers for recorded message playback. when trigger signal is occurred, the EuT will transmit the signal to the corresponding receiver module to control the device dial to pre-programmed telephone numbers for recorded message playback. Tested samples: One Set ( model: SD-001) Serial number: Not Labelled Dimensions: L: 23.0cm W: 17.5 cm H: 3.5 cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transmitting mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable LengthType Line Line termination [m] shielded unshielded Power cable 0.5 2 wires LISN RJ11 cable 3.8 4 wires EuT RJ11 cable 4.6 4 wires Line RJ11 cable 2.0 4 wires Telephone Peripheral devices : Kind of equipment Model and/or Manufacturer Telephone TCL AC adapter HHD12-500 File No. E4064220102KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 8 of 17 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC Registration number: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 860-1060 mbar 4.3 Statement of the measurement uncertainty The data and results referenced in this do…

Text truncated - open the document above for the full version.
