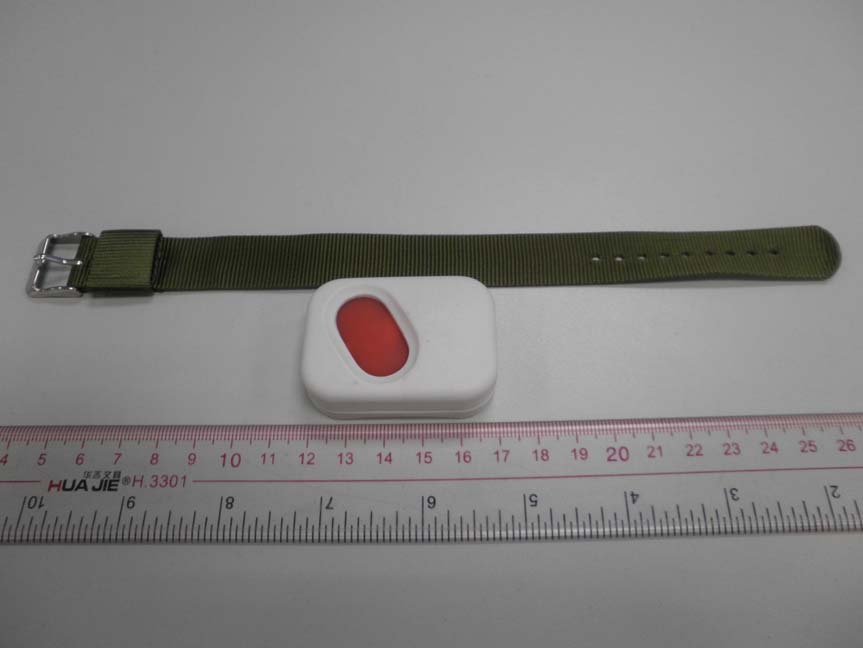

KUTSD004TWatch type transmitter

Skylink Remote Transmitter Model : SD-004T-CH 1. INTRODUCTION The Remote Transmitter allows you to operate the Skylink’s dialer SD-001. This remote control is water resistant and shock resistant, it allows you to carry this transmitter all the time. 2. LEARN REMOTE TRANSMITTER TO DIALER MODEL SD-001 Once the dialer is in programming mode, the green LED will flash one at a time that means you can now add remote controls or sensors to the dialer. 1) Press red button when the green LED is flashing one at a time, as Enter to select this programming mode (Add Remote Controls / Sensors). 2) You will now see both red and green flash one at a time. The red LED now represents you have entered the “Add Remote Controls / Sensors” programming mode. The green LED represents the location you want to add the new remote controls or sensors. There are 4 different locations, 1, 2, 3, or 4. 3) To select location 1, press red button as “Enter” when the green LED is flashing once. 4) Once the location is selected, the dialer will emit 3 beeps indicating you can now activate the remote control or sensor you would like to add to the dialer. Note: If you press green button again to skip, you will quit from programming. 3. OPERATION Press the button for 1 second and release, this will activate the “learned” Skylink dialer. 4. BATTERY The remote control operates on 3-volt lithium battery that is installed at the factory. This battery do not need to be replaced if used under normal condition. There are no servicing parts inside the unit, please do not attempt to open the case. Warranty void if case is opened. 5. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase is required. 6. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 7. CUSTOMER SERVICE SKYLINK TECHNOLOGIES INC., 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email: [email protected] Website: http://www.skylinkhome.com © 2011 Skylink Group

PROPRIETARY INFORMATION MODEL : SD-004T-CH LABEL DIAGRAM DATE :3 May, 2011 PAGE : 1 OF 1 CPL CAPITAL PROSPECT LTD MODEL:SD-004T-CH FCC LABEL BOTTOM CASE LABEL SIZE = 25 X 15 mm IC : 4454A-SD004TIC : 4454A-SD004T FCC ID : KUTSD004TFCC ID : KUTSD004T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) This device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) This device must accept any interference received, including interference that may cause undesired operation. SKYLINK TECHNOLOGIES CANADASKYLINK TECHNOLOGIES CANADA ASSEMBLED IN CHINAASSEMBLED IN CHINA IC:4454A-SD004T FCC ID : KUTSD004T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) This device must accept any interference received, including interference that may cause undesired operation. SKYLINK TECHNOLOGIES CANADA ASSEMBLED IN CHINA MODEL : SD-004T-CH MODEL : SD-004T-CHMODEL : SD-004T-CH

FCC Test Report E4064219901KY Type / Model Name: SD-004T-CH Product Description: Watch type transmitter Applicant: Capital Prospect Ltd. FCC ID: KUTSD004T File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 2 of 17 FCC --- T E S T R E P O R T Test Report No. : E4064219901KY May 11, 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name: SD-004T-CH Product Description： Watch type transmitter Applicant： Capital Prospect Ltd. Address： Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 3 of 17 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 ANTENNA REQUIREMENT 9 5.2 AVERAGE FACTOR 10 5.3 RADIATED EMISSION 13 5.4 BANDWIDTH 15 5.5 PROVISION OF MOMENTARY OPERATION 16 6 USED TEST EQUIPMENT AND ACCESSORIES 17 File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 4 of 17 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15:2009-10-01 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 5 of 17 2 SUMMARY GENERAL REMARKS: N/A FINAL ASSESSMENT: The equipment under test fulfils the FCC requirements cited in test standard listed in section 1. Date of receipt of test sample : April 21, 2011 Testing commenced on : April 21, 2011 Testing concluded on : May 11, 2011 Checked by: Tested by: Ivan Toa Technical Manager Kidd Yang Engineer File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 6 of 17 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Top View Bottom View File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 7 of 17 3.2 Power supply system utilised Power supply voltage: DC 3V(1CR2032 button cell) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 433.92MHz transmitter. When the buttons are pressed, the EuT will transmit the signal by on-off keying Modulation to corresponding receiver to change the status of the receiver. Tested samples: One Set ( model: SD-004T-CH) Serial number: Not Labelled Dimensions: L: 24.5 cm W: 3.5 cm H: 1.6 cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transmitting mode - - EuT configuration: The following interface cables and peripheral devices were connected during the measurements: Interface cables: Interface cable Length Type Line Line termination [m] shielded unshielded N/A Peripheral devices : Kind of equipment Model and/or Manufacturer N/A File No. E4064219901KY emitel (Shenzhen)Limited, Building 2，No.171 Meihua Road , Futian District, Shenzhen, P.R.China。 Phone: +86 (755) 8318 2012 Fax: +86 (755) 8312 3810 Email: [email protected] 4_F510_25_Rev2_0 / Date of release: 05-01-2009 / Author: Kidd Yang Page 8 of 17 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R. China Laboratory registration numbers: FCC Registration number: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 860-1060 mbar 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 “Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements” and is documented in the quality system acc. to ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer does have the sole responsibility for the continued compli…
