KUTTC318Lighting Remote Control

TM Thank you for your purchase of a SkylinkHome Lighting Automation, Transmitter, Model TC-318-1 / TC-318-2 / TC-318-3. This transmitter allows you to wirelessly operate different lighting fixtures with the TM SkylinkHome lighting receiver modules. TM All wireless signal communications within the SkylinkHome lighting system are based on rolling code technology to ensure highest security is used. The following items are included in this package: - TC Series Transmitter - Mounting Bracket and Accessories - Lithium Battery CR-2032 - User's Instructions The 1-Button Transmitter can control one light, with 1 receiver module. The 2-Button Transmitter can control two lights, with 2 receiver modules. The 3-Button Transmitter can control three lights, with 3 receiver modules. Installing Battery The transmitter is powered by a lithium battery CR-2032. Follow the instructions below to install the battery to the transmitter. 1. INTRODUCTION 2. PROGRAMMING TRANSMITTERS TO RECEIVER MODULE 4. BRIGHTNESS CONTROL OPERATION In order to operate the receiver module remotely with a transmitter, it must be programmed to the receiver module. To program a transmitter into the receiver module, follow the instructions below. 1. Put the receiver module that you plan to program into programming mode. Refer to the User's Instructions of that receiver module. 2. Once the receiver module is in programming mode, use a sharp object to press the “PROG” switch on the back of the transmitter. The red LED on the transmitter will be on. 3. Press the number button on the transmitter that you plan to operate this receiver module with. Red LED will flash then off. 4. Once the transmitter is programmed, the receiver module will quit from programming mode. 5. You may operate the light with the programmed transmitter. You may follow the same instructions to program different buttons on the transmitter to different receiver module. 1. Slide out the battery door from the unit. 2. Insert the CR-2032 lithium battery to the battery holder. Positive side facing up. 3. Insert the battery door to the transmitter. The red LED on the front of the unit will be on for 1 second. 1-Button Transmitter 2-Button Transmitter 3-Button Transmitter 1-Button Transmitter Model TC-318-1 Model TC-318-2 Model TC-318-3 3. ON / OFF OPERATION Pressing the programmed button on the transmitter once will toggle the light that is connected to the receiver module, i.e. if the light is off, pressing the button turns on the light, vice versa. When the programmed button is pressed, the red LED flashes briefly indicating signal is transmitting. Besides turning on and off the light, you may also control the brightness of the light if the receiver module and the light bulb is dimmable, i.e. either incandescent light and designated dimming compact fluorescent light. To change the brightness, first turn on the light. Press and hold the programmed button on the transmitter will change its brightness. Hold onto the button until the desired brightness is reached, then release the button. Press and hold the same button again on the transmitter to change the brightness again in the opposite way (i.e. Dim to brighten or brighten to dim), until the desired brightness is reached, then release the button. 5. ERASING TC SERIES TRANSMITTERS You may erase a transmitter from the receiver module, but you cannot erase a specific device, you must erase all the wireless devices, then program the ones you want to keep. Follow the instructions below to erase programmed transmitters. 1. Power off the lighting receiver module. 2. Use a sharp object to press the PROG button on the back of the transmitter. 3. Press and hold the programmed number button on the transmitter for at least 2 seconds. Do not release this button until step 5. 4. Power up the lighting receiver module, you will hear beeping and the light will be on. 5. You may release the button on the transmitter. 6. When the button is release, the light connected to the receiver module will be off, indicating you have successfully erased all the devices from the lighting receiver. “PROG” switch Press the desired button 2-Button Transmitter 3-Button Transmitter Before you can control the lights with the transmitter, you need to program different buttons on the transmitter to various receiver modules. Follow the instructions below to program the transmitter to different receiver modules. + + CR2032 Slide out battery door Battery door with holder LED on for 1 second Positive side up Insert battery door with battery Mounting Bracket Accessories Erasing TC series transmitters from the Dimmable Receiver Module model MD-318 or On / Off Receiver Module model MR-318 Lithium battery 6. BATTERY 7. FCC 8. CUSTOMER SERVICE The Remote Control is approved by the FCC and it complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions : 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible of compliance could void the user’s authority to operate the equipment. If you would like to order Skylink’s products or have difficulty getting them to work or download latest information and user manual, please : 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at [email protected], or 3. call our toll free at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST. Fax (800) 286-1320 CUSTOMER SERVICE 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email:[email protected] http://www.skylinkhome.com P/N. 101A396 Patent Pending ©2010 SKYLINK GROUP When the operating range is reduced, or when the red LED does not flash during operation, it is time to replace the battery. Follow the same procedure as installing the battery in section 1 of this manual to replace the battery. Note: Dispose of old batteries promptly and properly. 9. ACCES…

Text truncated - open the document above for the full version.

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] Re: FCC ID: KUTTC318, KUTTM318, KUTID318, KUTTB318 Pursuant to 47 CFR 0.459, Capital Prospect Ltd request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: • Schematic • Block Diagram • Operation Description This information represents intellectual property of Capital Prospect Ltd and it is subject to competition. This information should not be made routinely available for public inspection, and Capital Prospect Ltd reserves the right to discern which parties can obtain access to this information. Dated this __8th____day of _Feb____2010 By _____________________ _Joe Ng__ Signature Printed Title __ Project Manager_

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email: [email protected] I, an officer of Capital Prospect Ltd. do hereby authorize Emitel (Mr. Wilson Loke) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in & 1.2002 (b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Secretion 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). Dated this __8th____day of _Feb____2010 By _____________________ _Joe Ng__ Signature Printed Title __Project Manager_

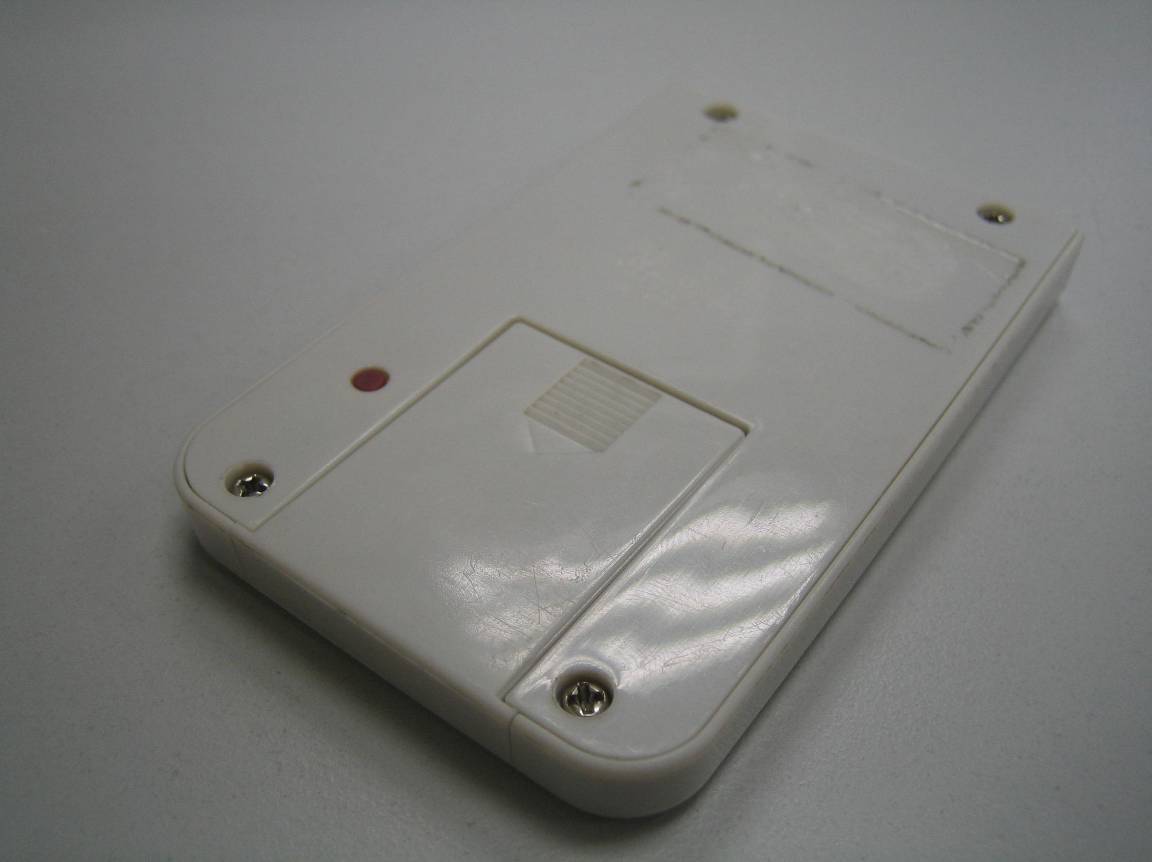

FCC ID: KUTTC318

FCC ID: KUTTC318 FCC ID: KUTTC318

FCC Test Report E4064135801KYS1 TC-318-1、TC-318-2、TC-318-3、TC-318-10、 Type / Model Name: TC-318-7, TC-318-14 Product Description: Lighting remote control Applicant: Capital Prospect Ltd. FCC ID: KUTTC318 FCC ID:KUTTC318 File No. E4064135801KYS1, page 2 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 FCC -- T E S T R E P O R T Test Report No. : E4064135801KYS1 March 15, 2010 ______________________________________________________________________________________________ Date of issue This report supercedes our previous report, E40641358KYS1, dated January 13, 2010 Type / Model Name : TC-318-1, TC-318-2, TC-318-3, TC-318-10, TC-318-7, TC-318-14 Product Description : Lighting remote control Applicant : Capital Prospect LTD. Address : Room 03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Test Result according to the standards listed in clause 1 test standards: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:KUTTC318 File No. E4064135801KYS1, page 3 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 AVERAGE FACTOR 9 5.2 RADIATED EMISSION 12 5.3 BANDWIDTH 14 5.4 PROVISION OF MOMENTARY OPERATION 15 6 USED TEST EQUIPMENT AND ACCESSORIES 16 FCC ID:KUTTC318 File No. E4064135801KYS1, page 4 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15, July 10, 2008 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Method of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ID:KUTTC318 File No. E4064135801KYS1, page 5 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 2 SUMMARY GENERAL REMARKS: Model: TC-318-1, TC-318-2, TC-318-3, TC-318-7 and TC-318-10 are identical to TC-318-14 except no. of keys. The model: TC-318-1, TC-318-2, TC-318-3, TC-318-7, TC-318-10 and TC-318-14 have one key, two keys, three keys, seven keys, ten keys and forteen keys respectively. The TC-318-14 is selected as representative model for testing. FINAL ASSESSMENT: The equipment under test fulfils the technical requirement cited in section 15.231 of FCC Part 15 Date of receipt of test sample : December 30, 2009 Testing commenced on : December 30, 2009 Testing concluded on : November 13, 2009 Reviewed by: Prepared by: Wilson Loke Senior Manager Kidd Yang Engineer FCC ID:KUTTC318 File No. E4064135801KYS1, page 6 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT TC-318-3 Front View FCC ID:KUTTC318 File No. E4064135801KYS1, page 7 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 Back View 3.2 Power supply system utilised Power supply voltage: 3VDC(CR2032 lithium battery) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 318MHz transmitter. The main function of the EUT is acted as a remote control to operate difference lighting fixture with the lighting receiver modules. When the buttons are pressed, the transmitter will transmit the signal by Pulsed Code Modulation to the corresponding lighting receiver module to control the lighting fixture on/off and bightness. The EUT is powered by one 3VDC lithium battery. Number of tested samples: One Serial number: Not Labelled Dimensions: L: 8.5cm W: 5.5cm H: 1.0cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transimitting mode - Operation mode 2: N/A - Operation mode 3: N/A EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - None Model : - Model : - Model : - Model : - Model : - Model : FCC ID:KUTTC318 File No. E4064135801KYS1, page 8 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, 518049 China FCC Registration No.: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to ISO 17025. Furthermore, component and process variability of devices similar to that tested may result in additional devi…
