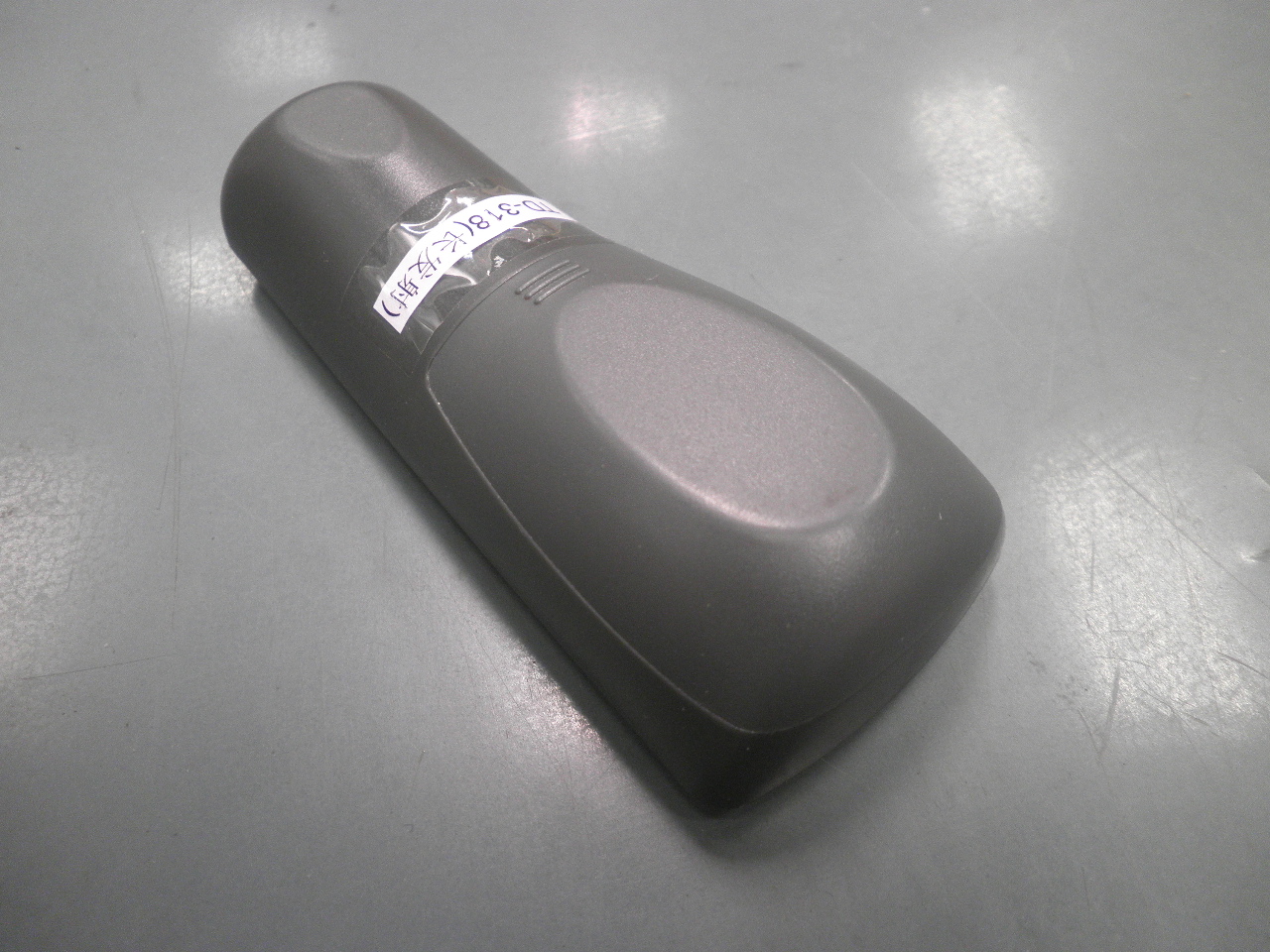

KUTTD318LCD Deluxe Remote Transmitter

SkylinkHome LCD Deluxe Remote Model: TD-318 Preliminary Manual 1. lntroduction SkylinkHomerM LCD Deluxe Remote allows you to wirelessly operate SkylinkHomerM various wireless receiver controls. This LCD Deluxe Remote provides the timer feature to allow you to turn on/off the receiver controls in a preset time. Use this remote, you can control almost everything in your home such as Lighting ON/OFF and dimming in different location, open and close your gate or garage door, arm and disarm your security system, operate the window curtains, cook your coffee every early morning, open and or close the swing doors, turn on or turn off the fan or Exhaust fan for your bath room. All wireless signal communications within the SkylinkHomerM system are based on rolling code technology to ensure highest security is used. The following items are included in this package: - One LCD Deluxe Remote - User's lnstructions LCD Deluxe Remole Layoul SU MO TU WE TH FR SA i I I TTMER icon ttM e LCD Layout 2. Power Up Insert 2 AAA batteries (not included) to the remote, its LCD display will turn on and red LED will flash once. Press the button on the remote, the red LED should flash. The remote is now powered properly. If the LCD display does not turn on or red LED does not flash when button is pressed, refer to Section “Battery” of this manual for details. Photo of Battery Installation Before you start to control the lights (or small appliances, etc.) connected to the receiver controls with this remote and with preset schedule. Please setup the time in the remote. 3. Setup week and clock During the standby mode, the LCD display will show the week and clock. The clock is in 24 hours format. The time is 9:18 AM, Friday. Press the [PROG] button twice to enter the week and clock programming mode. The PROG icon will stay on and the WEEK icon will flash in the LCD display. Use the Up [2], Down [8], Left [4] and Right [6] and Enter [5] buttons to adjust the week and clock. Use the Left [4] or Right [6] button to select the program sequence. The selected sequence will flash and the PROG icon will stay on during the programming. Use the Up [2] or Down [8] for increment or decrement the setting. Program sequence: Week <- -> Hour <- -> Minute <- -> Week. Press Enter [5] to confirm the changes, thus the remote will back to standby mode or waits for 15 seconds to leave the programming mode. 4. Programming the LCD Deluxe Remote to Receiver Control In order to operate the receiver control with this LCD Deluxe Remote, it must be programmed to the receiver control. The LCD Deluxe Remote can transmit 4 types of command: 1) Individual Operation – Control one light only, i.e. the ceiling light in the family room. 2) Zone Operation – Controls one specific zone or area, which consists of multiple lights, i.e. all lights in the kitchen. 3) Scene Operation – Allow you to set specific atmosphere, where each light has a preset brightness and the scene may consist of multiple lights. i.e. common scenes are morning scene, evening scene, movie scene etc. 4) Timer Operation – Allow you to set specific timer to turn on or off the lights or zone or scene control. You may assign the buttons to specific lights and zones. Number Button Lights Zone 1 Family Room Floor Light Zone 1 2 Family Room Ceiling Light Zone 1 3 Kitchen Floor Light Zone 2 4 Kitchen Ceiling Light Zone 2 5 Bedroom Floor Light Zone 3 6 Bedroom Ceiling Light Zone 3 7 Master Bedroom Floor Light Zone 4 8 Master Bedroom Ceiling Light Zone 4 9 Front Yard Light Zone 5 10 Back Yard Light Zone 5 You may use the following table to fill in the lights or small appliances you would like to control and their zone numbers, this will give you a clear direction during the programming process. Number Button Lights Zone Programming for Individual Operation: To program a remote to the receiver control, a “Learn” code must be transmitted, follow the instructions below to transmit the “Learn” code to the receiver control. 1. Put the receiver control that you plan to program into programming mode. Refer to the User’s Instructions of that receiver control. 2. During the standby mode, the LCD display will show the week and clock. Press the [PROG] button once to enter the Individual Programming mode. The Signal icon and red LED stay on for 15 seconds. 3. Once the receiver control is in programming mode, press the button [1 – 9] on the remote that you plan to use to transmit the “Learn” code. Red LED will flash, then off. The LCD display will back to week and clock. 4. Once the remote is programmed, the receiver control will quit from programming mode and the programmed remote is ready to be used now. Programming for Zone Operation: In the above table, both the Family Room Ceiling Light and Family Room Floor Light are in zone 1. You need to assign the zone 1 signal to both receiver controls in these 2 locations. That means for Light 1 in the example, you need to program the following signals: - Button 1 to Light 1 based on Programming for Individual Operation - Zone 1 Command to Light 1 base on Programming Zone Operation For Light 2 in the example, you need to program the following signals: - Button 2 to Light 2 based on Programming for Individual Operation - Zone 1 Command to Light 2 base on Programming Zone Operation To assign a zone to a receiver control, follow the instructions below: 1. Put the receiver control that you plan to program into programming mode. Refer to the User’s Instructions of that receiver control. 2. During the standby mode, the LCD display will show the week and clock. Press the [PROG] button 3 times to enter the Zone Programming mode. The Signal icon and ZONE icon and red LED stay on for 15 seconds. 3. Once the receiver control is in programming mode, press the button, i.e. [1] for zone 1. Red LED will flash then off. The LCD display will back to week and clock. 4. Once the remote is programmed, the receiver control will quit from programming mode and the programmed remote is read…
