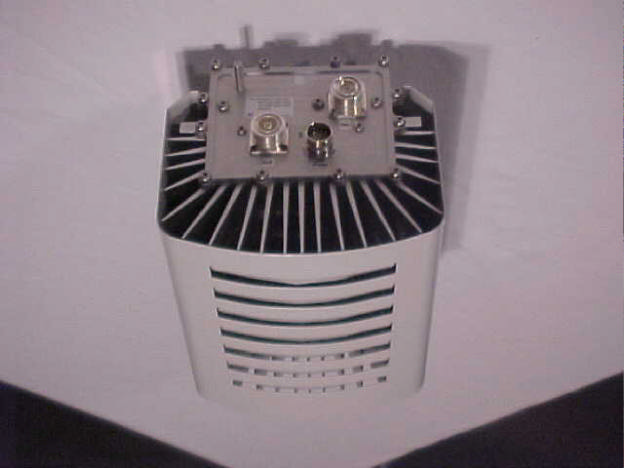

L6G922801Tower Top Power Apmilfier/Booster

ALLGON SYSTEM AB - Proprietary Technical Specification for PCS Tower Top Power Amplifier [Allgon 9256] Preliminary - Subjected to change without notice Rev.pA0 File: 93651 Page 1 (19)29 Mar 00 TOWER TOP POWER AMPLIFIER PCS 1900MHZ / 20W STANDALONE TECHNICAL SPECIFICATION ALLGON SYSTEM AB - Proprietary Technical Specification for PCS Tower Top Power Amplifier [Allgon 9256] Preliminary - Subjected to change without notice Rev.pA0 File: 93651 Page 2 (19)29 Mar 00 1INTRODUCTION.......................................................................................................................................... 3 1.1P URPOSE ............................................................................................................................................... 3 1.2S COPE ................................................................................................................................................... 3 1.3R EVISION H IS TORY .................................................................................................................................... 3 1.4R ELATED D OCUMENTS ............................................................................................................................. 3 1.5A BBREVIATIONS ....................................................................................................................................... 3 1.6D E F INITIONS ............................................................................................................................................ 3 2PRODUCT VARIANT DEFINITION................................................................................................................ 5 2.1D EFINITION OF THE AVAILABLE VARIANTS ....................................................................................................... 5 2.2O PTIONAL FUNCTION SELECTION G UIDE ........................................................................................................ 5 3SYSTEM OVERVIEW................................................................................................................................... 6 3.1G ENERAL ............................................................................................................................................... 6 3.2P RINCIPLE O F O PERATION ......................................................................................................................... 7 4ELECTRICAL SPECIFICATION................................................................................................................... 10 4.1A BSOLUTE M AXIMUM R ATINGS .................................................................................................................. 10 4.2G ENERAL P ARAMETERS .......................................................................................................................... 10 4.3T RANSMIT P ATH P ARAMETERS .................................................................................................................. 11 4.4R ECEIVE P ATH P ARAMETERS ................................................................................................................... 13 4.5F IL TE R P ARAMETERS .............................................................................................................................. 14 4.6P OWER S UPPLY P ARAMETERS ................................................................................................................. 14 5MECHANICAL SPECIFICATION.................................................................................................................. 15 5.1P HYSICAL P ARAMETERS .......................................................................................................................... 15 5.2I NTERFACES ......................................................................................................................................... 15 5.3M OUNTING ............................................................................................................................................ 16 6ENVIRONMENTAL SPECIFICATION........................................................................................................... 17 6.1O PERATING C ONDITIONS .......................................................................................................................... 17 6.2S TORAGE AND T RANSPORTATION .............................................................................................................. 17 6.3E LECTROMAGNETIC C OMP A TIB IL ITY (EMC) ................................................................................................. 18 6.4L IGHTNING P ROTECTION ........................................................................................................................... 18 7RELIABILTIY SPECIFICATION................................................................................................................... 18 7.1O PERATING L IF E .................................................................................................................................... 18 7.2T HEORETICAL MTBF .............................................................................................................................. 18 7.3F IELD PROVEN MTBF ............................................................................................................................19 8SAFETY SPECIFICATION.......................................................................................................................... 19 8.1T OXIC M ATERIALS .................................................................................................................................. 19 8.2S AFETY C LASSIFICATIONS ........................................................................................................................ 19 9SERVICE AND MAINTENANCE ..........................................................................…

Text truncated - open the document above for the full version.

ALLGON TELECOM, Ltd. 7317 Jack Newell Blvd. North, Fort Worth, Texas 76118 www.allgon.com Telephone: (817) 595-9999 Fax: (817) 595-7999 Toll Free: 1-888-ALLGON1 September 24, 1999 Subject: Request for Confidentiality FCC ID: L6G922801 Gentlemen: In reference to Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act, Allgon Enterprises, Inc. is requesting withholding from public information all schematics. The request for confidentiality is due to a very competitive market and necessity to keep proprietary design by Allgon Telecom, LTD intact. The requested schematics will be submitted in a package labeled as “Confidential”. Sincerely, Tim Purvis Product Engineer Allgon Telecom, LTD. cc: Chris Harvey MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230

FCC ID: L6G922801Correspondence Number: 13643 Frank, This letter should explain the confusion of the RF power input vs. output for this device. This EUT is a Tower Top Power Amplifier for use with GMSK modulation of FCC Pt. 24 Subpart E transmitters. It is used to recover the losses of a signal from the Base Transceiver Station (BTS, at the base of the antenna tower) to the Antenna (on the tower at some location above the BTS). This device can amplify all signals by 7dB. Base stations connected to this device will have power at the block edges that is restricted to comply with the emission limitations of 24.238. The maximum RF power input at the block edges in order for this device to comply with 24.238 is 34.6dBm. All other channels can accept a signal of 36dBm and still comply with the emission limitations. The 34.6dBm input will produce an output at the block edges of 14 Watts. The 36dBm input will produce an output of 20Watts. We have provided supplemental data to show the compliance at 20Watts output for this device at channels other than the block edges. This information is contained in the revised report titled EMI1313a rev 1.pdf, with changes to pages 4, 5, 10 and 11.

ALLGON SYSTEM AB - Proprietary Technical Specification for PCS Tower Top Power Amplifier [Allgon 9256] Preliminary - Subjected to change without notice Rev.pA0 File: 93647 Page 1 (19)29 Mar 00 TOWER TOP POWER AMPLIFIER PCS 1900MHZ / 20W STANDALONE TECHNICAL SPECIFICATION ALLGON SYSTEM AB - Proprietary Technical Specification for PCS Tower Top Power Amplifier [Allgon 9256] Preliminary - Subjected to change without notice Rev.pA0 File: 93647 Page 2 (19)29 Mar 00 1INTRODUCTION.......................................................................................................................................... 3 1.1P URPOSE ............................................................................................................................................... 3 1.2S COPE ................................................................................................................................................... 3 1.3R EVISION H IS TORY .................................................................................................................................... 3 1.4R ELATED D OCUMENTS ............................................................................................................................. 3 1.5A BBREVIATIONS ....................................................................................................................................... 3 1.6D E F INITIONS ............................................................................................................................................ 3 2PRODUCT VARIANT DEFINITION................................................................................................................ 5 2.1D EFINITION OF THE AVAILABLE VARIANTS ....................................................................................................... 5 2.2O PTIONAL FUNCTION SELECTION G UIDE ........................................................................................................ 5 3SYSTEM OVERVIEW................................................................................................................................... 6 3.1G ENERAL ............................................................................................................................................... 6 3.2P RINCIPLE O F O PERATION ......................................................................................................................... 7 4ELECTRICAL SPECIFICATION................................................................................................................... 10 4.1A BSOLUTE M AXIMUM R ATINGS .................................................................................................................. 10 4.2G ENERAL P ARAMETERS .......................................................................................................................... 10 4.3T RANSMIT P ATH P ARAMETERS .................................................................................................................. 11 4.4R ECEIVE P ATH P ARAMETERS ................................................................................................................... 13 4.5F IL TE R P ARAMETERS .............................................................................................................................. 14 4.6P OWER S UPPLY P ARAMETERS ................................................................................................................. 14 5MECHANICAL SPECIFICATION.................................................................................................................. 15 5.1P HYSICAL P ARAMETERS .......................................................................................................................... 15 5.2I NTERFACES ......................................................................................................................................... 15 5.3M OUNTING ............................................................................................................................................ 16 6ENVIRONMENTAL SPECIFICATION........................................................................................................... 17 6.1O PERATING C ONDITIONS .......................................................................................................................... 17 6.2S TORAGE AND T RANSPORTATION .............................................................................................................. 17 6.3E LECTROMAGNETIC C OMP A TIB IL ITY (EMC) ................................................................................................. 18 6.4L IGHTNING P ROTECTION ........................................................................................................................... 18 7RELIABILTIY SPECIFICATION................................................................................................................... 18 7.1O PERATING L IF E .................................................................................................................................... 18 7.2T HEORETICAL MTBF .............................................................................................................................. 18 7.3F IELD PROVEN MTBF ............................................................................................................................19 8SAFETY SPECIFICATION.......................................................................................................................... 19 8.1T OXIC M ATERIALS .................................................................................................................................. 19 8.2S AFETY C LASSIFICATIONS ........................................................................................................................ 19 9SERVICE AND MAINTENANCE ..........................................................................…

Text truncated - open the document above for the full version.

March 29, 2000 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Allgon Telecom, Ltd. 7317 Jack Newell Blvd. North Fort Worth, Texas 76118 Equipment:Towertop Power Amplifier, Model: 9228.01 FCC ID: L6G922801 Specification:47 CFR Part 24 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Allgon Telecom Ltd.. for the Licensed Certification of their Model: 9228.01, Towertop Power Amplifier. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 24, for a Towertop Power Amplifier. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory EMI1313A- 2 -March 29, 2000 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:Towertop Power Amplifier, Model 9228.01 FCC ID::L6G922801 Specification:47 CFR 24 On Behalf of the Applicant:Allgon Telecom ,Ltd. 7317 Jack Newell Blvd. North FortWorth, TX 76118 Manufacturer:Allgon Telecom , Ltd. 7317 Jack Newell Blvd. North FortWorth, TX 76118 Manufacturer’s Mr. Tim Purvis Representative Test Date(s):Feb. 2 through 14, 2000 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu Project Engineer, MET Laboratories EMI1313A- 3 -March 29, 2000 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Allgon Telecom Ltd.., as verification of the compliance of the Allgon Towertop Power Amplifier, Model 9228.01 to the requirements of 47CFR 24. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer5/25/00annual EMCOBiconical Antenna 31043/9/00annual EMCOEMCO Log Periodic Antenna2/16/01annual EMCODouble Ridge Guided Horn2/8/01annual Hewlett Packard8594EM Analyzer11/18/00annual Rhode & Swartz (X3)SMIQ 03 Digital Signal Gen.N/A (Verified using HP8563A) N/A SolarLISN7/26/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The Towertop Power Amplifier was configured with AC power supply modules and a digital signal generator was used to simulate various PCS (i.e. GMSK Modulation type) RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47CFR2.1053, 24.238(a) 5.2Occupied Bandwidth: 47CFR2.1049, Input vs. Output 5.3RF Power Output: 47CFR 2.1046, 24.232(b),(c) 5.4Spurious Emission at Antenna Terminals: (downlink) 47CFR 2.1051, 24.238(a) 5.6Spurious Emission at Antenna Terminals +/- 1MHz: 47CFR 2.1051, 24.238(b) 5.7AC Line Conducted Emissions: 47CFR 15.107 EMI1313A- 4 -March 29, 2000 E(V/m) 1m 49.2X14 1 E(V/m) 1m 26.25V/mor148.5dbμV 4310Log(14)54.46dB 148.5dBμV54.46dB94.04dBμV@1m E(V/m) 3m 49.2X14 3 E(V/m) 3m 8.75V/mor138.8dbμV 138.854.4684.38dBμV@3m 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:2.1053; 24.238(a) 6.1.2TEST DATE(S):11 Feb. 2000 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz". Preliminary radiated emission measurements were performed inside a shielded chamber with all digital signal generators on and terminated. The frequency list from the preliminary measurements was used as a guide for making final measurements on a 10 meter open area test site. The unit was scanned over the frequency range of 9 kHz to 20 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 14 watts: P o = 14 W As per 2.1046 (a), it is assumed this power is to be fed to a radio frequency load. Using a conversion formula for distance, the field strength at one meter can be derived: As per 24.238(a), the spurious emissions must be attenuated by 43 + 10 log(P) which is: Therefore, the limit for spurious emissions is: At 3 meters measurement distance, the limit is; According to 24.238(a), all signals must be attenuated by 54.46 dB. Therefore, the limit for spurious emissions for a test distance of 3 meters is: EMI1313A- 5 -March 29, 2000 6.1.4RESULTS: Carrier Emission:14 Watts FREQUENCY (MHZ) EUT AZIMUTH (Degrees) ANTENNAEUT RADIATION (dBμV) ANTENNA FACTOR (dB/m) TEST DISTANCE (m) CABLE LOSS (dB) FIELD STRENGTH (dBuV/m) LIMITS @ 3m (dBuV/m) POL (H/V) HGT (m) 39.830180 H1.5 30.812.3 31.1 44.284.39 39.830 135 V2 25.610.7 31.1 37.484.39 74.600 180 H1.5 16.7 8.2 31.6 26.584.39 74.600 90 V2 16.4 8.5 31.6 26.584.39 168.700 225 H2.5 15.8 15.2 32.4 33.484.39 168.700 180 V1.5 14.3 16.3 32.4 33.084.39 208.020180 H1.5 17.…

Text truncated - open the document above for the full version.

May 8, 2000 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Allgon Telecom, Ltd. 7317 Jack Newell Blvd. North Fort Worth, Texas 76118 Equipment:Towertop Power Amplifier, Model: 9228.01 FCC ID: L6G922801 Specification:47 CFR Part 24 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Allgon Telecom Ltd.. for the Licensed Certification of their Model: 9228.01, Towertop Power Amplifier. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 24, for a Towertop Power Amplifier. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory EMI1313A- 2 -May 8, 2000 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:Towertop Power Amplifier, Model 9228.01 FCC ID::L6G922801 Specification:47 CFR 24 On Behalf of the Applicant:Allgon Telecom ,Ltd. 7317 Jack Newell Blvd. North FortWorth, TX 76118 Manufacturer:Allgon Telecom , Ltd. 7317 Jack Newell Blvd. North FortWorth, TX 76118 Manufacturer’s Mr. Tim Purvis Representative Test Date(s):Feb. 2 through 14, 2000 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu Project Engineer, MET Laboratories EMI1313A- 3 -May 8, 2000 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Allgon Telecom Ltd.., as verification of the compliance of the Allgon Towertop Power Amplifier, Model 9228.01 to the requirements of 47CFR 24. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer5/25/00annual EMCOBiconical Antenna 31043/9/00annual EMCOEMCO Log Periodic Antenna2/16/01annual EMCODouble Ridge Guided Horn2/8/01annual Hewlett Packard8594EM Analyzer11/18/00annual Rhode & Swartz (X3)SMIQ 03 Digital Signal Gen.N/A (Verified using HP8563A) N/A SolarLISN7/26/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The Towertop Power Amplifier was configured with AC power supply modules and a digital signal generator was used to simulate various PCS (i.e. GMSK Modulation type) RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47CFR2.1053, 24.238(a) 5.2Occupied Bandwidth: 47CFR2.1049, Input vs. Output 5.3RF Power Output: 47CFR 2.1046, 24.232(b),(c) 5.4Spurious Emission at Antenna Terminals: (downlink) 47CFR 2.1051, 24.238(a) 5.6Spurious Emission at Antenna Terminals +/- 1MHz: 47CFR 2.1051, 24.238(b) 5.7AC Line Conducted Emissions: 47CFR 15.107 EMI1313A- 4 -May 8, 2000 E(V/m) 1m ' 49.2X20 1 E(V/m) 1m '31.37V/mor149.9dbμV 43%10Log(20)'56.0dB 149.9dBμV&56.0dB'93.9dBμV@1m E(V/m) 3m ' 49.2X20 3 E(V/m) 3m '10.46V/mor140.4dbμV 140.4&56.0'84.4dBμV@3m 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:2.1053; 24.238(a) 6.1.2TEST DATE(S):11 Feb. 2000 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz". Preliminary radiated emission measurements were performed inside a shielded chamber with all digital signal generators on and terminated. The frequency list from the preliminary measurements was used as a guide for making final measurements on a 10 meter open area test site. The unit was scanned over the frequency range of 9 kHz to 20 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 14 watts: P o = 20 W As per 2.1046 (a), it is assumed this power is to be fed to a radio frequency load. Using a conversion formula for distance, the field strength at one meter can be derived: As per 24.238(a), the spurious emissions must be attenuated by 43 + 10 log(P) which is: Therefore, the limit for spurious emissions is: At 3 meters measurement distance, the limit is; According to 24.238(a), all signals must be attenuated by 56.0 dB. Therefore, the limit for spurious emissions for a test distance of 3 meters is: EMI1313A- 5 -May 8, 2000 6.1.4RESULTS: Carrier Emission:14 Watts FREQUENCY (MHZ) EUT AZIMUTH (Degrees) ANTENNAEUT RADIATION (dBμV) ANTENNA FACTOR (dB/m) TEST DISTANCE (m) CABLE LOSS (dB) FIELD STRENGTH (dBuV/m) LIMITS @ 3m (dBuV/m) POL (H/V) HGT (m) 56.390H127.6511.02231.374084.39 56.390V120.410.64831.3732.484.39 160.50H1.513.114.9732.39830.584.39 160.50V1.516.7615.1432.39834.384.39 228.50H111.511.432.925.884.39 228.50V111.416.4632.930.884.39 320.5990H118.6214.435433.466736.584.39 320.5990V118.9113.923633.4667…
