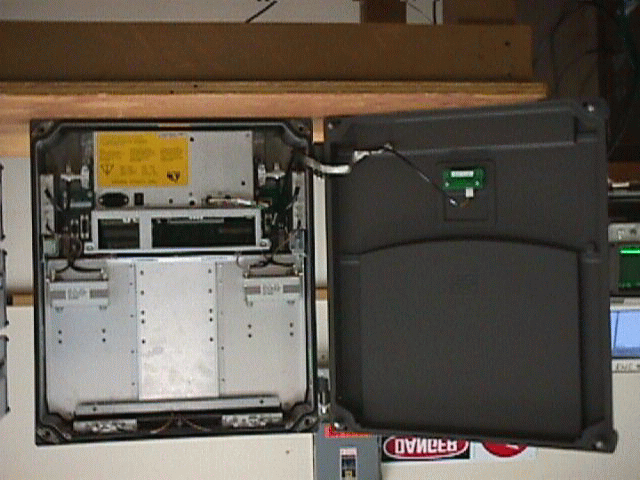

L6GAR4200AAR4200A Band Selective Repeater

ALLGON TELECOM, Ltd. 7317 Jack Newell Blvd. North, Fort Worth, Texas 76118 www.allgon.com Telephone: (817) 595-9999 Fax: (817) 595-7999 Toll Free: 1-888-ALLGON1 November 17, 1999 Subject: Request for Confidentiality FCC ID: L6GAR4200A Gentlemen: In reference to Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act, Allgon Enterprises, Inc. is requesting withholding from public information all schematics. The request for confidentiality is due to a very competitive market and necessity to keep proprietary design by Allgon Telecom, LTD intact. The requested schematics will be submitted in a package labeled as “Confidential”. Sincerely, Tim Purvis Product Engineer Allgon Telecom, LTD. cc: Chris Harvey MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230

September 21, 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Allgon Enterprises, Inc. 7317 Jack Newell Blvd. North Fort Worth, Texas 76118 Equipment:AR4200A Band Selective Repeater Rev.B FCC ID: L6GAR4200A Specification:47 CFR 22 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Allgon Enterprises, Inc. for the Licensed Certification of their Model: AR4200A Band Selective Repeater Rev.B. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 22, for a Cellular Repeater. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:AR4200A Band Selective Repeater Rev.B FCC ID::L6GAR4200A Specification:47 CFR 22 On Behalf of the Applicant:Allgon Enterprises, Inc. 7317 Jack Newell Blvd. North Fort Worth, TX 76118 Manufacturer:Allgon Enterprises, Inc. 7317 Jack Newell Blvd. North Fort Worth, TX 76118 Manufacturer’s Mr. Tim Purvis Representative Test Date(s):Sep 16 thru Sep21, 1999 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 22 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu EMC Engineer, MET Laboratories 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Allgon Enterprises, Inc., as verification of the compliance of the Allgon AMPS Cellular Repeater, Model 4200A Rev.B to the requirements of 47CFR 22. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer1/29/00annual EMCOBiconical Antenna 31042/9/00annual EMCOEMCO Log Periodic Antenna3/20/00annual EMCODouble Ridge Guided Horn3/20/00annual Hewlett Packard8594EM Analyzer11/18/00annual Rhode & Swartz (X3)SMIQ 03 Digital Signal Gen.N/A (Verified using HP8563A) N/A SolarLISN6/30/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The Cellular Repeater was configured with AC power supply modules and a digital signal generator was used to simulate various CDMA (i.e. QPSK Modulation type),TDMA and FM cellular RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47 CFR 2.1053, 22.901(d)(2), 22.917(e) 5.2Occupied Bandwidth: 47 CFR 2.1049, Input vs. Output 5.3RF Power Output: 47 CFR 2.1046, 22.913(a) 5.4Spurious Emission at Antenna Terminals (uplink & downlink): 47 CFR 2.1051, 22.917(e) 5.5Intermodulation Spurious Emissions-3 Tone Simultaneous RF Injection (uplink & downlink): 47 CFR 2.1051, 22.917(e). 5.6AC Line Conducted Emissions: 47 CFR 15.107 E(V/m) 1m ' 49.2X4 1 E(V/m) 1m '14.0V/mor143dbμV 43%10Log(4)'49dB 143dBμV&49dB'94dBμV@1m E(V/m) 3m ' 49.2X4 3 E(V/m) 3m '4.67V/mor133.4dbμV 133.4&49'84.38dBμV@3m 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:47 CFR 2.1053; 22.109(d); 22.917(e) 6.1.2TEST DATE(S):Sep.16, 1999 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz". Preliminary radiated emission measurements were performed inside a shielded chamber with all digital signal generators on and terminated. The frequency list from the preliminary measurements was used as a guide for making final measurements on a 10 meter open area test site. The unit was scanned over the frequency range of 30MHz to 9 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 4 watts: P o = 4 W As per 2.993 (a), it is assumed this power is to be fed to a half-wave tuned dipole. Using a conversion formula for distance, the field strength at one meter can be derived: As per 22.917(e), the spurious emissions must be attenuated by 43 + 10log(P) which is: Therefore, the limit for spurious emissions is: At 3 meters measurement distance, the limit is; According to 22.917(e), all signals must be attenuated by 49 dB. Therefore, the limit for spurious emissions for a test distance of 3 meters is: 6.1.4RESULTS: Carrier Emission:4 Watts FREQUENCY (MHz) EUT AZIMUTH (Degrees) ANTENNAEUT RADIATION (dBμV) ANTENNA FACTOR (dB/m) TEST DISTANCE (m) CABLE LOSS (dB) AMP GAIN MINUS FILTER LOSS (dBμV) FIELD STRENGTH (dBuV/m) LIMITS @ 3m (dBuV/m) POL (H/V) HGT (m) 41.10H221.212.031.2n/a34.484.38 41.145V1.522.910.831.2n/a34.984.38 206.290H2.521.717.932.7n/a42.384.38 206.290V1.522.…
