Technical data Allgon Microwave Radio 23 GHz –1200 Frequency band 21.2 – 23.6 GHz Duplex frequency 1200 MHz Modulation Continuous Phase Modulation Frequency stability +/- 10 ppm Output power -10 - +20 dBm Power control > 30 dB dynamic range, software adjustable in 0.1 dB steps Traffic capacity Software configurable from 2x1.544 up to 17x1.544 Mbit/s Receiver thresholds and bandwidth Capacity @BER=10E-6 Bandwidth (Typical thresholds) 2x1.544 Mbit/s -89 dBm 2.5 MHz 4x1.544 Mbit/s -87 dBm 5 MHz 8x1.544 Mbit/s -84 dBm 10 MHz 17x1.544 -81 dBm 20 MHz Antenna gain 1ft 34.0 dBi 2ft 39.5 dBi Traffic interface DS1 standard acc to ITU-T. G.703, Power consumption, 4x1.544 Mbit/s < 40 W Power supply 20 - 70 VDC, any polarity Environmental robustness According to ETSI standards Temperature ranges Radio Unit -45 ° C to +65 ° C Baseband Unit -25 ° C to +45 ° C (excl. Ethernet TIU) Management Physical interfaces: RS232 DTE (PC) RS232 DCE (modem) Ethernet 10BaseT Embedded Control Channel Keypad and display Local protocols Web server VT100 interface Remote protocols Built-in SNMP Web server and e-mail Forward error correction Included as standard Dimensions (HxWxD) Radio Unit 185x185x80 mm. (excl. handle) Baseband Unit 44x483x277 mm. (1U, 19") Antenna Unit 1 ft 380x380x170 Antenna Unit 2 ft 630x630x270 Weight Radio Unit 2.5 kg Baseband Unit 3.5 kg Antenna Unit 6.5 kg, 1 ft. including mounting bracket

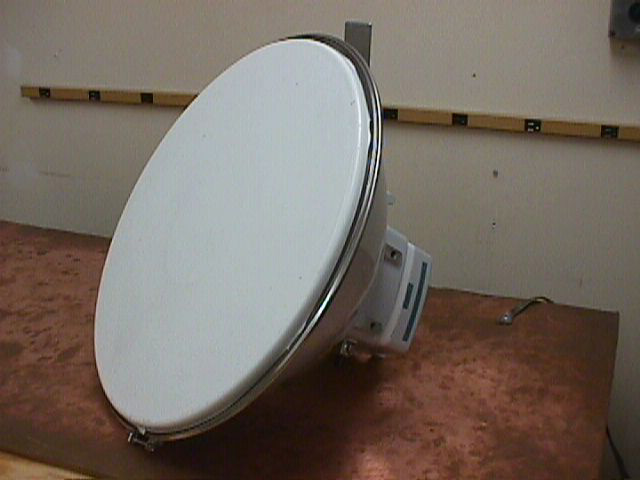

Antenna Unit, 2 ft high performance, 23 GHz Product numberWAAF00104/21 Electrical Specifications Frequency range21.2 – 23.6 GHz Gain, minimum39.0 dBi Beamwidth, nominal1.7° Return Loss> 15 dB Cross-polar discrimination> 30 dB Front-to-back ratio> 66 dB Mechanical Specifications DimensionsØ630 mm x 270 mm Weight, including bracket8.5 kg . Comments According to: BAPT 211 ZV 02/23 Klasse 2, MPT 1409 high performance, ETS 300 198 high performance, ETS 300 833 class 3, FCC Article 47 Part 101 Category A

Unit is factory aligned and calibrated at time of manufacture. It is designed to retain calibration for the life of product. No field tuneup necessary.
