L7KWTFA-01

Nokia Solutions and Networks

GSM 800 Transciever

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 13, 2003
Application Purpose: Original Equipment
Date of Application: Feb 13, 2003
Equipment Note: GSM 800 Transciever
Frequency Range: 869.00000000 - 894.00000000
Company: Nokia Solutions and Networks
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

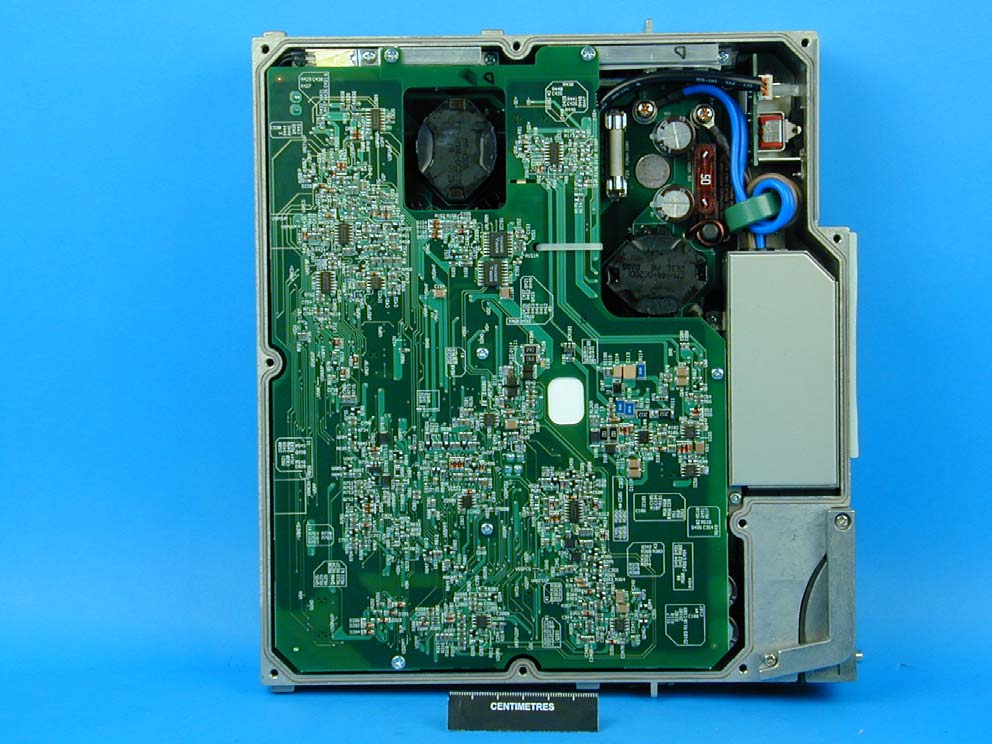

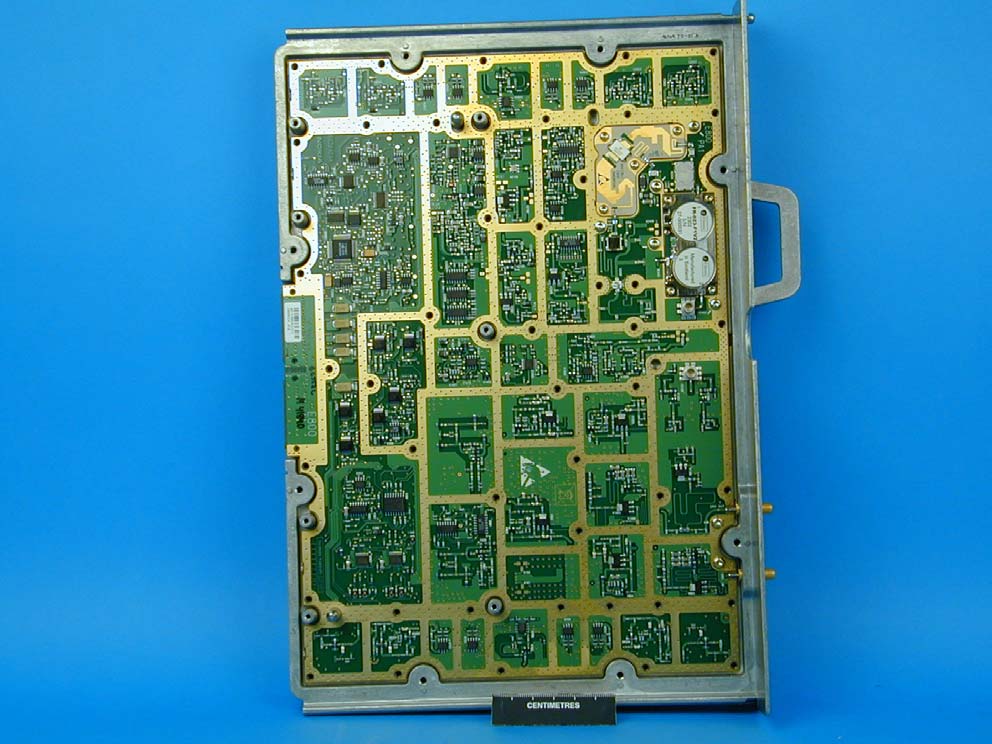

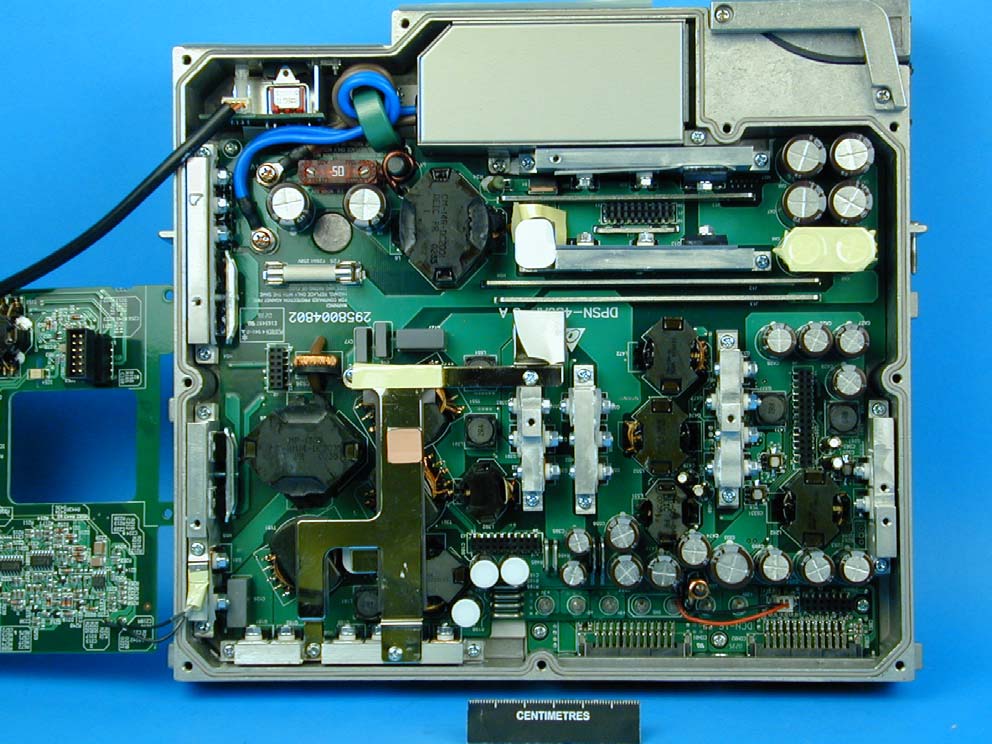

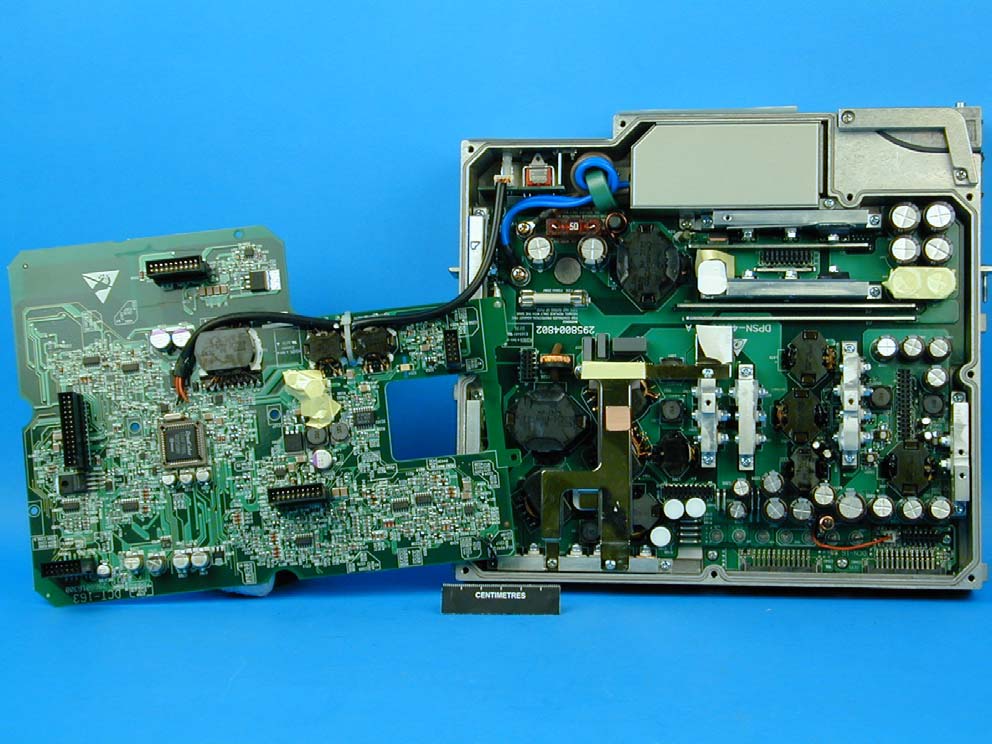

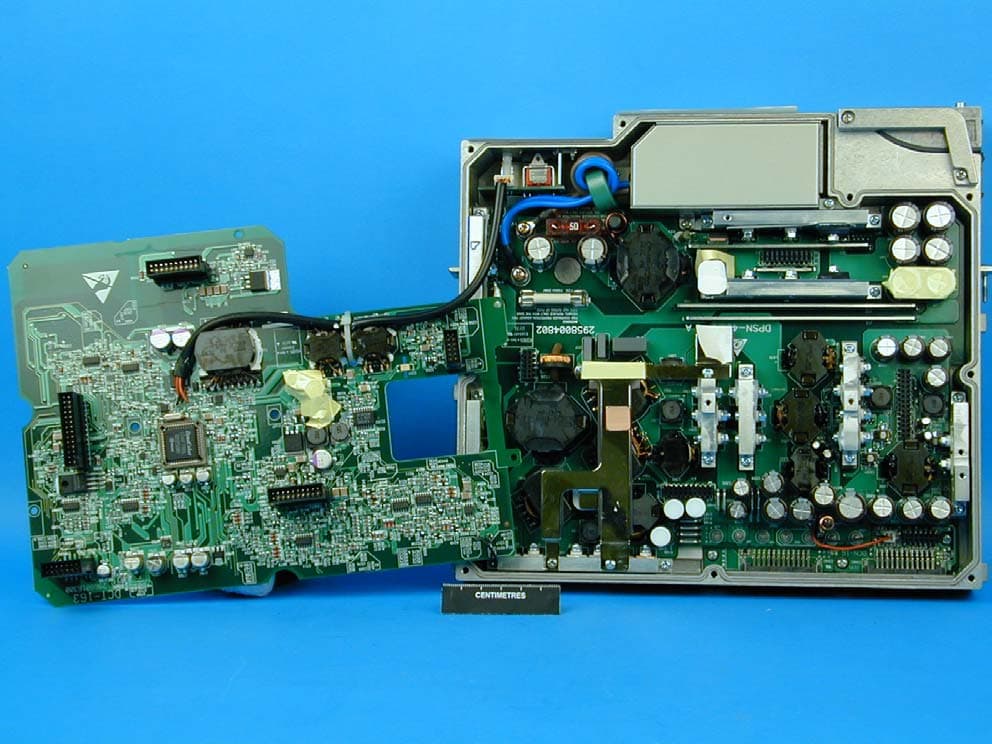

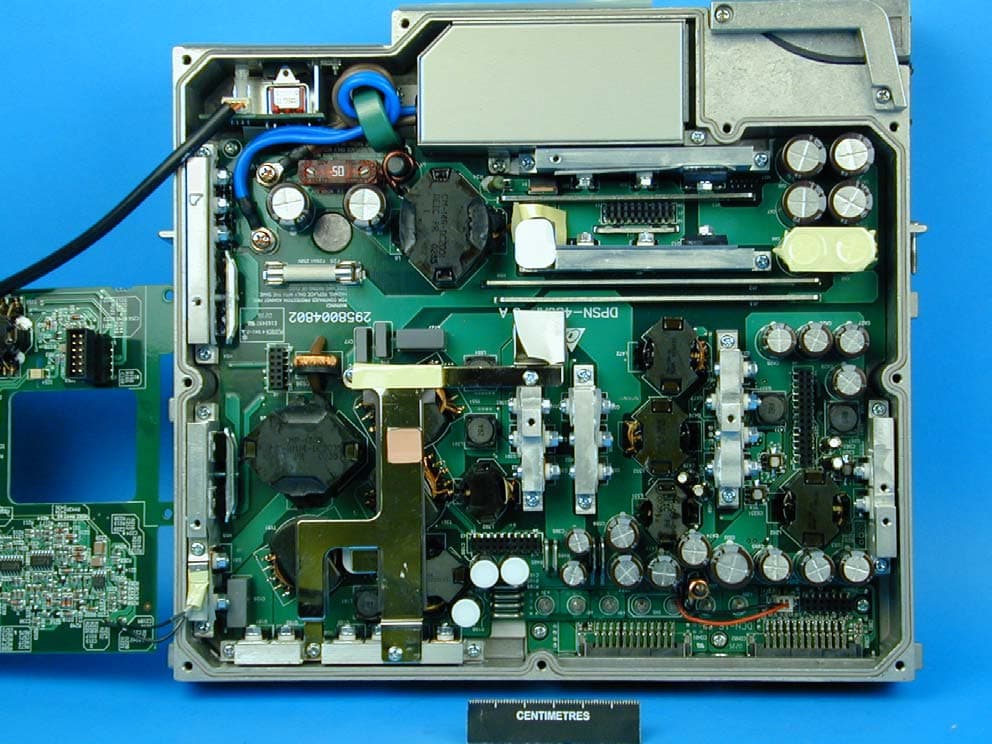

Internal Photos

Parts List/Tune Up Info

Test Report

Contact Information

Applicant

Steve Mitchell

[email protected]972-936-7500Fax: 972-936-7273

Technical Contact

Nokia UK LtdAndrew Parry

[email protected]+44 1276 603634

Stanhope Road · Surrey · United Kingdom

Non-Technical Contact

Nokia UK LtdAndrew Parry

[email protected]+44 1276 603634

Test Firm

TUV SUD Product ServiceJensen Adams

[email protected]44-1489-558252Fax: 44-11489-558101

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22	869 MHz - 894 MHz	3.16 W	339KGXW	1000 ppm

Confidentiality

Long Term

Grant Notes

The Power Output is listed at the antenna terminals; the higher output represents the equipment in GMSK mode; the lower in 8PSK mode. The antenna(s) used with this transmitter must be fix-mounted. This transmitter must only be operated in the grantees Model MetroSite Edge Base Transceiver Station. This transmitter may be operated in conjunction with up to 3 transmitters with FCC id L7KWTPA-01 and up to 3 transmitters with FCC id L7KWTFA-01 subject to a maximum of 4 transmitters within the same housing. RF exposure compliance is addressed at the time of licencing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of Section 1.1307(b)(3) . End-users, maintenance staff, and installers must be provided with antenna installation and transmitting operating conditions for satisfying RF exposure compliance. Subject to FCC regulations 2.1046 and 24.232 - This certificate has been granted on the condition that the following channels are blocked and not used for radio communications using either GSM or EDGE modulation schemes: Channels 128, 181-183, 231-233, 239-240, and 251
