LCGFMI43Capacitive level sensor with BLE communication

Level measurement in hygienic applications Field of application • Universally applicable, also for small vessels and tight installation conditions • Very fast response times to changes in level, e.g. in filling plants • Suitable for interface measurement • For low relative permittivity media, e.g. oils, nitrogen, hydrogen • Measuring range: 0.05 to 4 m (0.2 to 13 ft); > 4 m (13 ft) on request • Process pressure range: Vacuum up to 100 bar (1 450 psi) • Process temperature range: –80 to 200 °C (–112 to 392 °F) Benefits • Multi-frequency measuring technology to achieve high accuracy and reliable build- up compensation even under difficult conditions • No adjustment necessary during commissioning (factory adjustment) • Robust, FDA-compliant materials for maximum safety • International Ex certificates, WHG (German Resources Act) overfill protection system, hygienic approvals • Heartbeat Technology - continuous diagnostics, traceable in-situ device verification and predictive maintenance • Bluetooth® wireless technology for commissioning, operation and maintenance • CIP and SIP capability - Degree of protection: IP66/68/69 ProductsSolutionsServices Technical Information Liquicap FMI43 Capacitance level measurement TI01895F/00/EN/01.26-00 71777803 2026-07-01 Liquicap FMI43 2Endress+Hauser Table of contents Communication-specific symbols................... Symbols for certain types of information............. Symbols in graphics........................... List of abbreviations........................... Graphic conventions........................... Function and system design................... Measuring principle........................... Multi-frequency measuring technology.............. Interface measurement between two media........... Measurement behavior and stability................ Measuring system............................ Communication and data processing................ Dependability............................... Input .................................... Measured variable............................ Measuring range............................. About this document ....................... Safety symbols .............................. Performance characteristics .................. Response time .............................. Reference operating conditions ................... Maximum measurement error .................... Temperature dependency ....................... Output: 4–20 mA/IO-Link . . . . . . . . ........ Supply voltage .............................. Power consumption ........................... Equipotential bonding ......................... Failure signal ............................... Load ..................................... Damping .................................. Protocol-specific data .......................... Breaking capacity ............................ Overvoltage protection ......................... Terminal assignment .......................... Certificates and approvals ................... General material compliance ..................... Material compliance for contact with food ............ Hygienic design compliance ..................... CRN approval ............................... HART certification ............................ RoHS .................................... cGMP .................................... TSE (BSE) compliance (ADI free - Animal Derived Ingredients) .......................... ASME B31.3/31.1 ............................ ASME BPE ................................. Display and user interface ................... Operation concept ............................ Languages ................................. LED ..................................... Local display ............................... Remote operation ............................ System integration ........................... Mechanical construction .................... Design and dimensions ........................ Weight ................................... Materials .................................. Process .................................. Process temperature range ...................... Process pressure range ......................... Process pressure limits ......................... Storage temperature .......................... Operating altitude ............................ Climate class ............................... Degree of protection .......................... Pollution degree ............................. Vibration resistance ........................... Shock resistance ............................. Environment .............................. Ambient temperature range ..................... Installation ............................... Installation location ........................... Orientation ................................ Factory calibration ............................ Resolution ................................. Influence of process pressure ..................... Reaction time ............................... 23 23 24 25 14 42 42 Pressure dependency .......................... Available device plugs ......................... Pressure/temperature ratings .................... 35 35 35 15 15 15 14 14 12 12 37 6 6 9 Supported operating tools ....................... Electromagnetic compatibility (EMC) ............... 4 4 4 4 5 12 12 12 12 13 15 15 15 Warm-up time .............................. 16 16 16 22 22 22 22 22 23 23 23 Installation instructions ........................ 15 Pressure equipment with permitted pressure less than 200 bar, no pressure-bearing volume ............... 23 23 24 Surface roughness ............................ 13 13 13 13 14 42 42 42 42 42 42 43 43 43 43 38 38 39 40 41 41 37 20 20 16 17 11 11 11 10 10 10 10 11 4 4 Liquicap FMI43 Endress+Hauser3 Identification............................... Application packages....................... Heartbeat Technology......................... Accessories............................... Device-specific accessories...................... Service-specific accessories...................... Online tools.......…

Text truncated - open the document above for the full version.

Applicable EU This device meets the requirements of the Radio Equipment Directive RED 2014/53/EU. The standards applied are listed in the Declaration of Conformity. The EU declaration of conformity is available at the following internet address: www.endress.com Canada and United States English This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This document is applicable for FMI43-1 and FMI43-2 models. Changes or modifications made to this equipment not expressly approved by Endress+Hauser SE+Co. KG may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC & ISED radiation exposure limits set forth for an uncontrolled environment when it is installed to be operated in fixed or mobile operating conditions. Français Le présent appareil est conforme aux CNR d'industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : • L'appareil ne doit pas produire de brouillage, et • L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Les changements ou modifications apportés à cet appareil non expressément approuvés par Endress+Hauser SE+Co. KG peuvent annuler l'autorisation FCC d'utiliser cet appareil. Cet appareil est conforme aux limites d'exposition aux rayonnements d'ISDE établies pour un environnement non contrôlé lorsqu'il est installé pour fonctionner dans des conditions de fonctionnement fixes ou mobiles. ProductsSolutionsServices Process pressure measurement Special Documentation Radio approvals Liquicap FMI43 SDxxxxP/00/EN/xx.xxxx 71xxxxxx 2026-06-02 SD0xxxxP 2Endress+Hauser Mexico IFETEL notice La operación de este equipo está sujeta a las siguientes dos condiciones: • (1) es posible que este equipo o dispositivo no cause interferencia perjudicial • (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada A0042674 Malaysia HIDF18000085 A0042675 Japan Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese Telecommunications Business Law (電気通 信事業法). This device should not be modified (otherwise the granted designation number will become invalid). Taiwan 根據 NCC LP0002低功率射頻器材技術規範_章節3.8.2： 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功 能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使 用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 產品名稱 Endress+Hauser 產品型號 FMI43-1, FMI43-2 產地德國 製造商 Endress+Hauser SE+Co.KG SDxxxxP Endress+Hauser3 Thailand A0042673 Qatar Importer No: FT-2887 United Arab Emirates ictQATAR Type Approval reg. No.: • FMI43-1: • FMI43-2: A0060063  1FMI43-1 SD03477P 4Endress+Hauser A0060064  2 Singapore FMI43-2 Complies with IDMA Standards DA108204 A0042672 Indonesia FMI43-1 • Cert. ID: xxxxxx/xxxx/2026 • PLG ID: 4962 A0060067 FMI43-2 • Cert. ID: xxxxxx/xxxx/2026 • PLG ID: 4962 A0060068 SD0xxxxP Endress+Hauser5 Brazil A0039064 Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados South Africa xxxx-xx-xxxxx A0060066 Australia A0029561

Internal EUT photographs FMI43-2 Examiner:Daniel BRUSCHINSKIRevision:01 Date of issue: 28.07.2026Order Number: 26-110475page 1 of 5 Housing parts * * This photograph was provided by the applicant. Internal EUT photographs FMI43-2 Examiner:Daniel BRUSCHINSKIRevision:01 Date of issue: 28.07.2026Order Number: 26-110475page 2 of 5 Housing with display * * This photograph was provided by the applicant. Internal EUT photographs FMI43-2 Examiner:Daniel BRUSCHINSKIRevision:01 Date of issue: 28.07.2026Order Number: 26-110475page 3 of 5 All PCBs connected - view 1 *All PCBs connected - view 2 * Mainboard - side 1 *Mainboard - side 2 * * These photographs were provided by the applicant. Internal EUT photographs FMI43-2 Examiner:Daniel BRUSCHINSKIRevision:01 Date of issue: 28.07.2026Order Number: 26-110475page 4 of 5 Terminal board - top view *Terminal board - bottom view * Visualisation board, top view * Visualisation board, bottom view * * These photographs were provided by the applicant. Antenna Radio chip Internal EUT photographs FMI43-2 Examiner:Daniel BRUSCHINSKIRevision:01 Date of issue: 28.07.2026Order Number: 26-110475page 5 of 5 Sensor board - side 1 *Sensor board - side 2 * * These photographs were provided by the applicant.

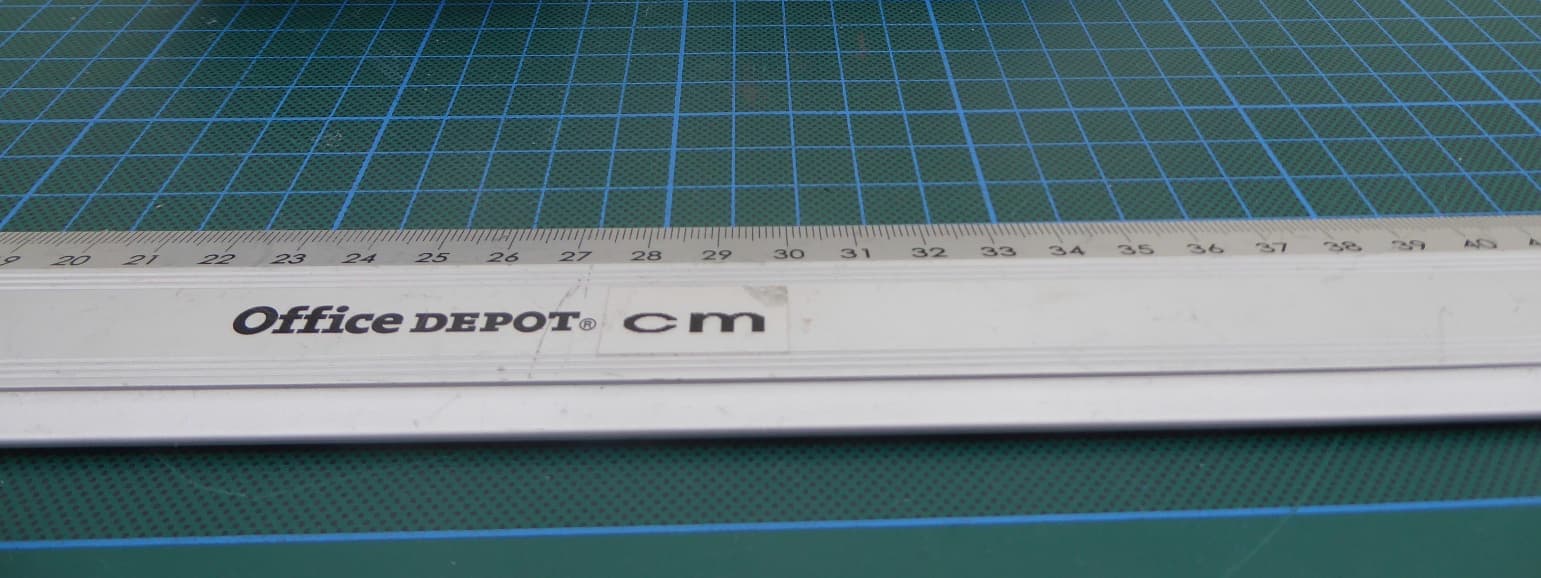

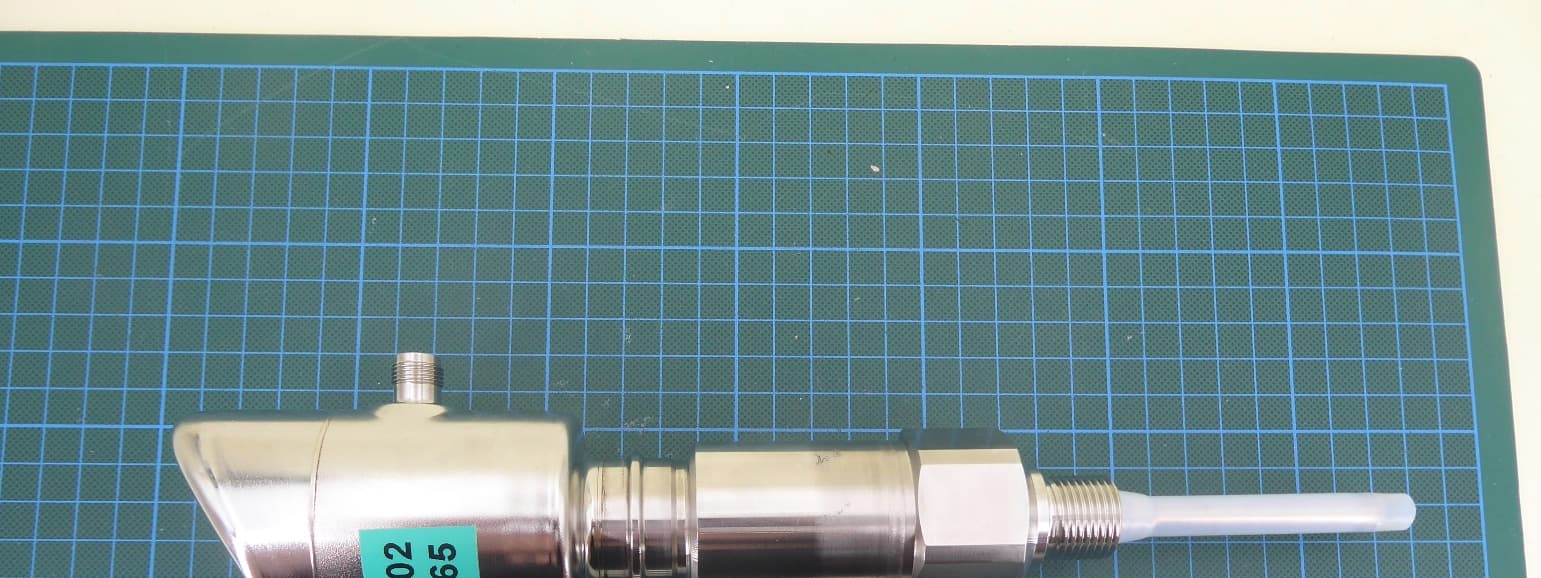

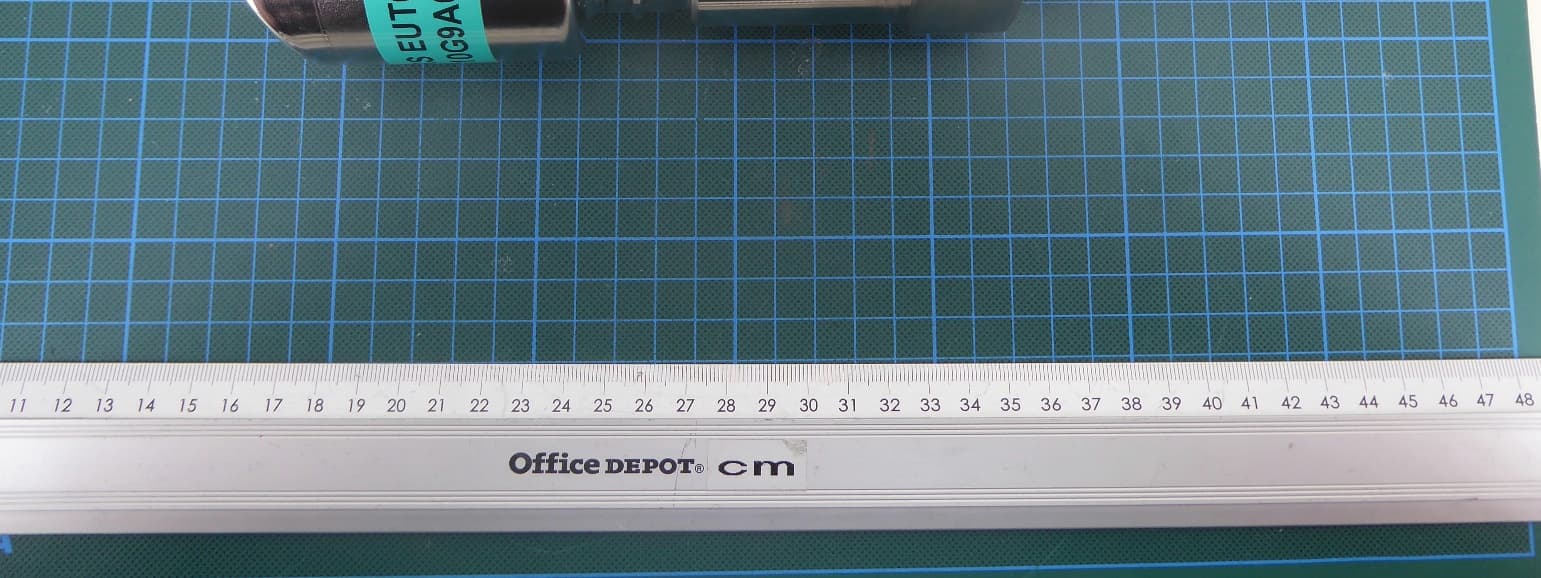

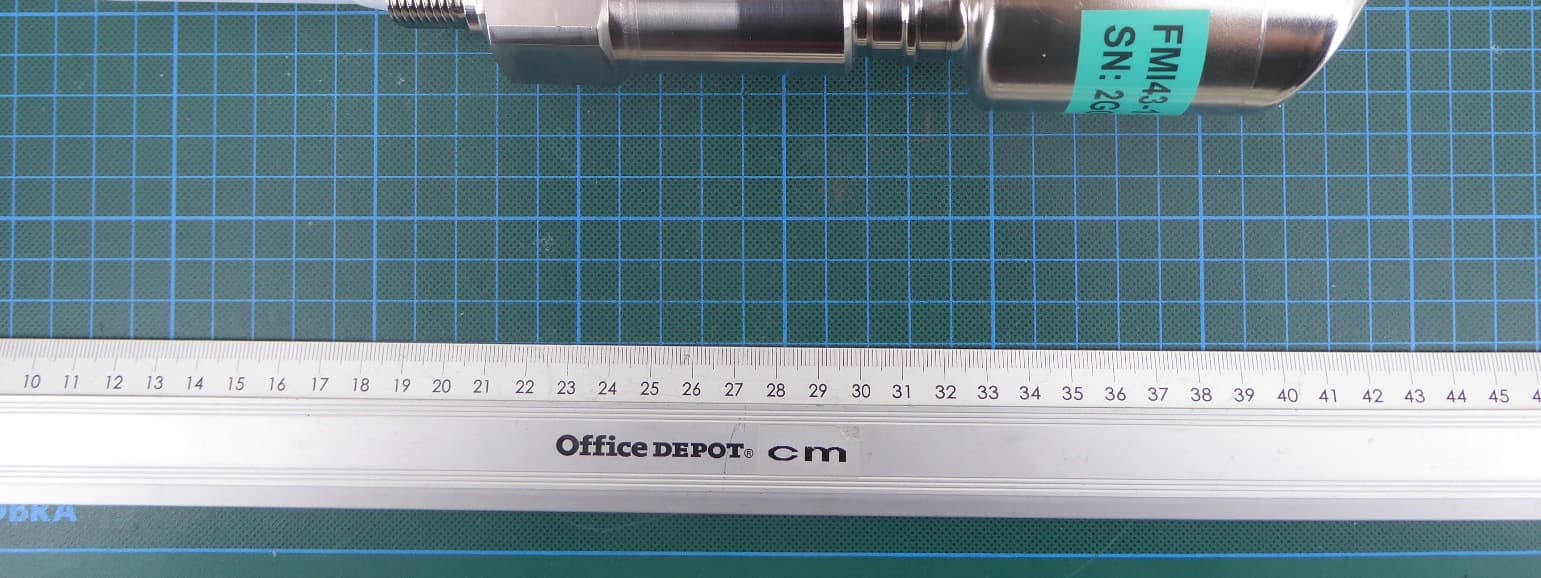

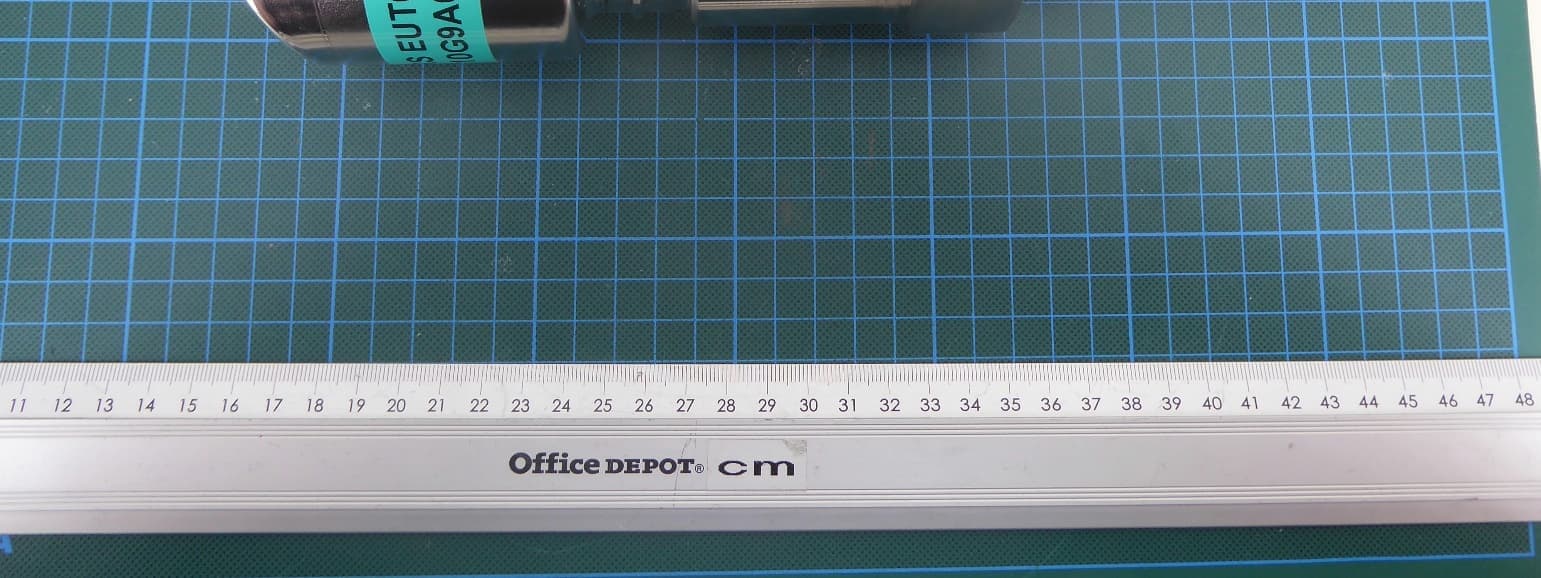

Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 1 of 15 Test setups radiated emissions EUT – Position 1 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 2 of 15 EUT – Position 2 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 3 of 15 EUT – Position 3 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 4 of 15 9 kHz – 30 MHz Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 5 of 15 30 MHz – 1 GHz Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 6 of 15 1 GHz – 18 GHz Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 7 of 15 18 GHz – 26.5 GHz Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 8 of 15 Test setup conducted @ antenna port Conducted EUT – Top view Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 9 of 15 Conducted EUT – Bottom view Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 10 of 15 Conducted EUT – side view 1 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 11 of 15 Conducted EUT – side view 2 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 12 of 15 Conducted EUT – side view 3 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 13 of 15 Conducted – side view 4 Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 14 of 15 Test setup - conducted @ antenna port Annex A Test setup photos Examiner:Martin EPPINGERReport Number: F260475E5 Date of issue: 22.07.2026Order Number: 26-110475page 15 of 15 Test setup AC power line conducted emissions Test setup – AC power line conducted emissions
