LCGFMR09Level Probing Radar

TI412F/00/en/09.06 Technical Information Micropilot S FMR540 Level-Radar Smart Transmitter for continuous and non-contact precision level measurement. For custody transfer and inventory control applications with NMi and PTB approvals. Application The Micropilot S is used for highly accurate level measurement in storage tanks and can be applied in custody transfer applications. It meets the relevant requirements according to OIML R85 and API 3.1B. Typical areas of application are: • The with parabolic antenna is excellently suited for free space applications up to 40 m (131 ft). • The with horn antenna is suitable for free space applications that disallow the use of a parabolic antenna due to tank/nozzle geometry. The FMR540 with DN200 (8") parabolic antenna offers high beam focussing of 4° and is therefore ideally suited to applications with nozzles situated close to the tank wall. The FMR540 with DN100 (4") horn antenna is designed for all small nozzles sizes. Your benefits • Better than 1 mm accuracy. • National approvals (NMi, PTB) for custody transfer. • Applicable as stand-alone system or tied into tank gauging systems via the Tank Side Monitor NRF590. • Cost-effective and simple installation via 4-wire cable with HART and 24V DC intrinsically safe power supply. • low cost, low weight UNIversal flanges • top target positioners to compensate any flange inclination • easy on-site operation via menu-driven alphanumeric display • easy commissioning, documentation and diagnostics via operating software (ToF Tool - Fieldtool Package or FieldCare) • HART communication. Micropilot S FMR540 2Endress+Hauser Table of contents Function and system design. . . . . . . . . . . . . . . . . . . . . 3 Measuring principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Equipment architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Custody transfer applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Integrated in tank gauging system . . . . . . . . . . . . . . . . . . . . . . . . . 6 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Measured variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Antenna selection for Micropilot S-series . . . . . . . . . . . . . . . . . . . 7 Measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Measuring range depending on sensor type and media group . . . . . 8 Measuring conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Operating frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Output signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Signal on alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Linearization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Galvanic isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Auxiliary energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Terminal assignment 4...20 mA with HART . . . . . . . . . . . . . . . . 11 Load HART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Cable entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Residual ripple HART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Max noise HART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 mm accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Overvoltage protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Performance characteristics. . . . . . . . . . . . . . . . . . . . 13 Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Reference operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Maximum measured error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Software reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Long-term drift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Influence of ambiente temperature . . . . . . . . . . . . . . . . . . . . . . . 13 Proof of accuracy of custody transfer versions . . . . . . . . . . . . . . . 13 Non-repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Inventory control versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Operating conditions: Installation . . . . . . . . . . . . . . . 14 Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Beam angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installation on tank FMR540 . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 FMR540 with top target positioner . . . . . . . . . . . . . . . . . . . . . . . 18 Integrated air purge connection . . . . . . . . . . . . . . . . . . . . . . . . . 18 Operating conditions: Environment . . . . . . . . . . . . . . 19 Ambient temperature range . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: May 18, 2010 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: LCGFMR09 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : TÜV SÜD SENTON GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

Model Variants and Antennas Model Description Main - Electronic RF-Module Antennas FMR54X Tank-Gauging Radar Own Electronic RF-Modul E+H without Power-Amplifier 200mm-Parabol 4“ - Horn FMR24X FMR240 FMR244 FMR245 Liquid-Radar HART; PA FF (in develop.) RF-Modul E+H withoutPower-Amplifier 1.5“ - Horn 2“ - Horn 3“ - Horn 4“ - Horn 1.5“ - Horn 3“ plated 2“ plated Horn 3“ plated Horn filled

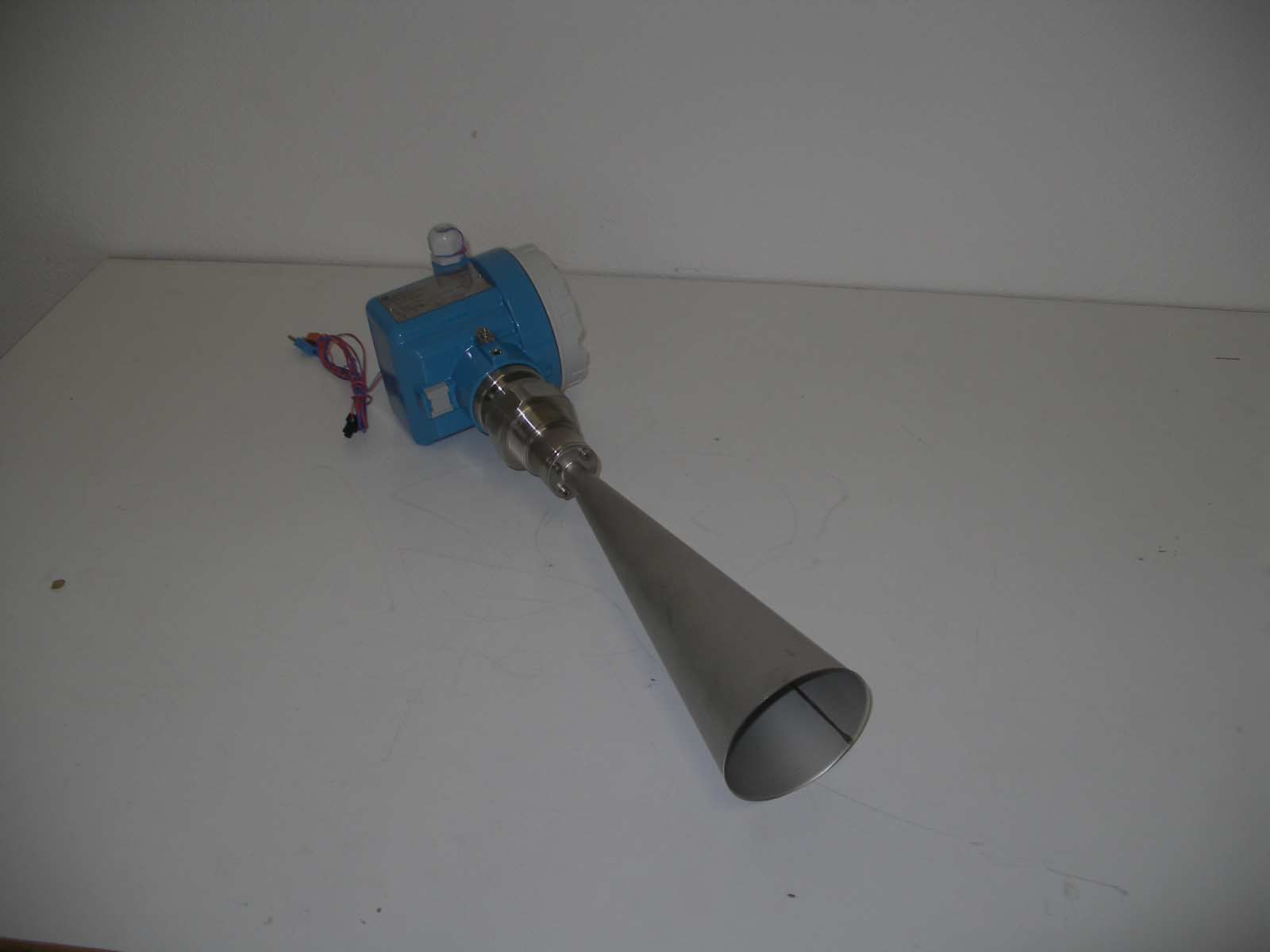

FCC ID: LCGFMR09 Parabolic antenna FCC ID: LCGFMR09 Horn antenna

FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09

FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID LCGFMR09 IC: 2519A-FMR09 FCC ID LCGFMR09 IC: 2519A-FMR09 FCC ID LCGFMR09 IC: 2519A-FMR09

FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09 FCC ID: LCGFMR09

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 1 of 32 Pages Straubing, May 17, 2010 T E S T - R E P O R T No. 50511-061106-2(Edition 3) for FMR24X / FMR25X / FMR54X Tank Level Probing Radar Applicant: Endress & Hauser GmbH & Co. KG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 2 of 32 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data ..................................................................................................... 5 3 Identification of the Test Laboratory ........................................................................... 6 4 Summary .................................................................................................................... 7 5 Operation Mode and Configuration of EUT................................................................. 8 6 Measuring Methods .................................................................................................... 9 6.1 Conducted AC powerline emission ....................................................................... 9 6.2 Radiated emission in Fully Anechoic Room ....................................................... 11 6.3 Radiated emission at Open Field Test Site ........................................................ 13 6.4 Desensitization of pulsed Emissions .................................................................. 14 7 Photographs Taken During Testing .......................................................................... 15 8 Test Results .............................................................................................................. 19 8.1 Occupied Bandwidth ........................................................................................... 20 8.2 Designation of Emissions ................................................................................... 22 8.3 Duty Cycle Measurement ................................................................................... 23 8.4 Restricted bands of operation............................................................................. 25 8.5 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 26 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 28 8.7 Radiated Emission Measurement 30 MHz to 110 GHz ..................................... 29 9 Referenced Regulations ........................................................................................... 30 10 Revision History ........................................................................................................ 31 11 Charts taken during testing ....................................................................................... 32 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 3 of 32 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : FMR24X / FMR25X / FMR54X Serial number(s): N/A Manufacturer: Endress & Hauser GmbH & Co. KG Type of equipment: Tank Level Probing Radar (TLPR) Version: As delivered FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 24.05 - 27.00 GHz Frequency range: 24.05 - 27 GHz GHz Operating frequency: 25.9 GHz (nominal) Type of modulation: 1G08P0NAN Pulse train: 558.5 ns Pulse width: 2.79 ns Number of RF-channels: 1 Channel spacing: Not Applicable Designation of emissions 2 : 1G08P0NAN Type of antenna: See table overleaf Size/length of antenna: Type Gain Length Tested Plated horn 80 mm / 3" 26 dBi N/A Yes Horn antenna 100 mm / 4" 26 dBi 282 mm Yes Parabolic antenna 200 mm 34 dBi N/A Yes Type of power supply: DC supply Specifications for power supply: nominal voltage: 24 V minimum voltage: 16 V maximum voltage: 36 V 1 Type designation of the system if EUT consists of more than one part. 2 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 4 of 32 Pages Variants and antennas covered by this report Model Description Main - Electronic RF-Module Antennas 1 FMR25X Solid-Radar HART, PA FF (in develop.) RF-Modul E+H with Power-Amplifier 200mm-Parabol 3“ - Horn 4“ - Horn 2 FMR54X Tank-Gauging Radar Own Electronic Same as in 1, without Power-Amplifier 200mm-Parabol 4“ - Horn 3 FMR24X FMR240 FMR244 FMR245 Liquid-Radar Same as in 1 Same as in 1, without Power-Amplifier 1.5“ - Horn 2“ - Horn 3“ - Horn 4“ - Horn 1.5“ - Horn 3“ plated 2“ plated Horn 3“ plated Horn filled Note: By combining the underlined two RF modules and 3 antennas , all the variants listed above are covered. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 5 of 32 Pages 2 Administrative Data Application details Applicant (full address): Endress & Hauser GmbH & Co. KG Hauptstraße 1 D 79689 Maulburg Germany Contact person: Mr. Ralf Reimelt Contract identification: Receipt of EUT: 10 May 2007 Date(s) of test: September 2007 Note(s): Report details Report number: 50511-061106-2 Issue date: 17 May 2010 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 3) Page 6 of 32 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory Accreditation: DAR-Registration No. DAT-P-171/94-02 FCC Test Site registrati…

Text truncated - open the document above for the full version.

Page 1 of 1 Test Equipment List with Calibration Data Date of test: 09/2007 Test report number(s): 50511-061106-2 TypeInv.-No.Type DesignationManufacturer LastNext Date of Calibration Calibration OrganizationSerial Number 1025ESVPRohde & Schwarz 10/200604/2008Rohde & SchwarzTest receiver881120/024 1028ESHS10Rohde & Schwarz 04/200710/2008Rohde & SchwarzTest receiver860043/016 1569ESMIRohde & Schwarz 04/200710/2009Rohde & SchwarzTest receiver839379/013 1711ESPI7Rohde & Schwarz 03/200709/2008Rohde & SchwarzEMI Test Receiver836914/0002 1078R3271Advantest 03/200609/2008Rohde & SchwarzSpectrum analyser0505 0023 1666FSP30Rohde & Schwarz 02/2006 10/2007Rohde & SchwarzSpectrum analyser100063 1142R14601Advantest 11/200605/2008SentonPreamplifier13120026 1651CPA9231ASchaffner Electrotest 02/200708/2008SentonPreamplifier3393 1684AFS3-00100800-32-LNMITEQ 06/2005 06/2008SentonPreamplifier847743 1059ESH3-Z5Rohde & Schwarz 12/200512/2008Rohde & SchwarzV-network894785/005 1060ESH3-Z5Rohde & Schwarz 01/200701/2010Rohde & SchwarzV-network862770/021 1218ESH3-Z5Rohde & Schwarz 05/200505/2008Rohde & SchwarzV-network830952/025 1016HFH2-Z2Rohde & Schwarz 01/2006 12/2007Rohde & SchwarzLoop antenna882964/0001 15163115EMCO Elektronik 05/200505/2008ARCDouble ridged waveguide horn antenna9508-4553 1518HK116Rohde & Schwarz 02/200708/2008Rohde & SchwarzBiconical Antenna842204/01 1519HL223Rohde & Schwarz 01/200707/2008Rohde & SchwarzLogarithmic-periodic antenna841516/23 1722VULB 9163Schwarzbeck 10/200604/2008SchwarzbeckTRILOG Broadband Antenna9163-188 1802VULB 9163Schwarzbeck 01/2006 03/2008SchwarzbeckTRILOG Broadband Antenna9163-214 Date of next calibration contains maximum tolerance of six months for devices with calibration cycles less than three years.Note:

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 1 of 33 Pages Straubing, 14 December 2010 T E S T - R E P O R T No. 50511-061106-2(Edition 4) for FMR24X / FMR25X / FMR54X Tank Level Probing Radar Applicant: Endress & Hauser GmbH & Co. KG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 2 of 33 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 5 3 Identification of the Test Laboratory ........................................................................... 6 4 Summary .................................................................................................................... 7 5 Operation Mode and Configuration of EUT................................................................. 8 6 Measuring Methods .................................................................................................... 9 6.1 Conducted AC powerline emission....................................................................... 9 6.2 Radiated emission in Fully Anechoic Room ....................................................... 11 6.3 Radiated emission at Open Field Test Site ........................................................ 13 6.4 Desensitization of pulsed Emissions .................................................................. 14 7 Photographs Taken During Testing .......................................................................... 15 8 Test Results .............................................................................................................. 19 8.1 Occupied Bandwidth........................................................................................... 20 8.2 Designation of Emissions ................................................................................... 22 8.3 Duty Cycle Measurement ................................................................................... 23 8.4 Restricted bands of operation............................................................................. 25 8.5 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 26 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 28 8.7 Radiated Emission Measurement 30 MHz to 110 GHz ..................................... 29 9 Referenced Regulations ........................................................................................... 31 10 Revision History ........................................................................................................ 32 11 Charts taken during testing ....................................................................................... 33 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 3 of 33 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : FMR24X / FMR25X / FMR54X Serial number(s): N/A Manufacturer: Endress & Hauser GmbH & Co. KG Type of equipment: Tank Level Probing Radar (TLPR) Version: As delivered FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 24.05 - 27.00 GHz Frequency range: 24.05 - 27 GHz GHz Operating frequency: 25.9 GHz (nominal) Type of modulation: 1G08P0NAN Pulse train: 558.5 ns Pulse width: 2.79 ns Number of RF-channels: 1 Channel spacing: Not Applicable Designation of emissions 2 : 1G08P0NAN Type of antenna: See table overleaf Size/length of antenna: Type Gain Length Tested Plated horn 80 mm / 3" 26 dBi N/A Yes Horn antenna 100 mm / 4" 26 dBi 282 mm Yes Parabolic antenna 200 mm 34 dBi N/A Yes Type of power supply: DC supply Specifications for power supply: nominal voltage: 24 V minimum voltage: 16 V maximum voltage: 36 V 1 Type designation of the system if EUT consists of more than one part. 2 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 4 of 33 Pages Variants and antennas covered by this report Model Description Main - Electronic RF-Module Antennas 1 FMR25X Solid-Radar HART, PA FF (in develop.) RF-Modul E+H with Power-Amplifier 200mm-Parabol 3“ - Horn 4“ - Horn 2 FMR54X Tank-Gauging Radar Own Electronic Same as in 1, without Power-Amplifier 200mm-Parabol 4“ - Horn 3 FMR24X FMR240 FMR244 FMR245 Liquid-Radar Same as in 1 Same as in 1, without Power-Amplifier 1.5“ - Horn 2“ - Horn 3“ - Horn 4“ - Horn 1.5“ - Horn 3“ plated 2“ plated Horn 3“ plated Horn filled Note: By combining the underlined two RF modules and 3 antennas , all the variants listed above are covered. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 5 of 33 Pages 2 Administrative Data Application details Applicant (full address): Endress & Hauser GmbH & Co. KG Hauptstraße 1 D 79689 Maulburg Germany Contact person: Mr. Ralf Reimelt Contract identification: Receipt of EUT: 10 May 2007 Date(s) of test: September 2007 December 2010 Note(s): Report details Report number: 50511-061106-2 Issue date: 14 December 2010 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 6 of 33 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory Accreditation: DAR-Registration No. DAT-P-171/94-02 FCC …

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 6) Page 1 of 32 Pages Straubing, 07 March 2011 T E S T – R E P O R T No. 50511-061106-2(Edition 6) for FMR24X / FMR25X / FMR54X Tank Level Probing Radar Applicant: Endress & Hauser GmbH & Co. KG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 2 of 32 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ......................................................... 3 2 Administrative Data ..................................................................................................... 5 3 Identification of the Test Laboratory ............................................................................ 6 4 Summary .................................................................................................................... 7 5 Operation Mode and Configuration of EUT ................................................................. 8 6 Measuring Methods .................................................................................................... 9 6.1 Conducted AC powerline emission ....................................................................... 9 6.2 Radiated emission in Fully Anechoic Room ........................................................ 11 6.3 Radiated emission at Open Field Test Site ......................................................... 13 6.4 Desensitization of pulsed Emissions .................................................................. 14 7 Photographs Taken During Testing .......................................................................... 15 8 Test Results .............................................................................................................. 19 8.1 Occupied Bandwidth ........................................................................................... 20 8.2 Designation of Emissions ................................................................................... 22 8.3 Duty Cycle Measurement ................................................................................... 23 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ................... 25 8.5 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 27 8.6 Radiated Emission Measurement 30 MHz to 110 GHz ..................................... 28 9 Referenced Regulations ........................................................................................... 30 10 Revision History ........................................................................................................ 31 11 Charts taken during testing ....................................................................................... 32 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 3 of 32 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 FMR24X / FMR25X / FMR54X : Serial number(s): N/A Manufacturer: Endress & Hauser GmbH & Co. KG Type of equipment: Tank Level Probing Radar (TLPR) Version: As delivered FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 24.05 – 27.00 GHz Frequency range: 24.05 – 27 GHz GHz Operating frequency: 25.9 GHz (nominal) Type of modulation: 1G50P0NAN Pulse train: 558.5 ns Pulse width: 2.79 ns Number of RF-channels: 1 Channel spacing: Not Applicable Designation of emissions 2 1G50P0NAN : Type of antenna: See table overleaf Size/length of antenna: Type Gain Length Tested Plated horn 80 mm / 3” 26 dBi N/A Yes Horn antenna 100 mm / 4” 26 dBi 282 mm Yes Parabolic antenna 200 mm 34 dBi N/A Yes Type of power supply: DC supply Specifications for power supply: nominal voltage: 24 V minimum voltage: 16 V maximum voltage: 36 V 1 Type designation of the system if EUT consists of more than one part. 2 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 4 of 32 Pages Variants and antennas covered by this report Model Description Main – Electronic RF-Module Antennas 1 FMR25X Solid-Radar HART, PA FF (in develop.) RF-Modul E+H with Power-Amplifier 200mm-Parabol 3“ – Horn 4“ – Horn 2 FMR54X Tank-Gauging Radar Own Electronic Same as in 1, without Power-Amplifier 200mm-Parabol 4“ – Horn 3 FMR24X FMR240 FMR244 FMR245 Liquid-Radar Same as in 1 Same as in 1, without Power-Amplifier 1.5“ – Horn 2“ – Horn 3“ – Horn 4“ – Horn 1.5“ – Horn 3“ plated 2“ plated Horn 3“ plated Horn filled Note: By combining the underlined two RF modules and 3 antennas , all the variants listed above are covered. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 5 of 32 Pages 2 Administrative Data Application details Applicant (full address): Endress & Hauser GmbH & Co. KG Hauptstraße 1 D 79689 Maulburg Germany Contact person: Mr. Ralf Reimelt Contract identification: Receipt of EUT: 10 May 2007 Date(s) of test: September 2007 December 2010 Note(s): Report details Report number: 50511-061106-2 Issue date: 14 December 2010 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 (Edition 4) Page 6 of 32 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory Accreditation: DAR-Registration No. DAT-P-171/94-02 FCC Test Site registration number 90926 Industry Canada Test site registration: IC 3050 Contact person: Mr. Joha…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 Page 16 of 32 Pages Test setup for conducted DC powerline emission measurement - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 Page 17 of 32 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50511-061106-2 Page 18 of 32 Pages Test setup for radiated emission measurement (fully anechoic room) - continued -
