LCGFMR5XKLLevel Probing Radar

DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and slurries • Encapsulated PVDF or PP cladded horn antenna • Maximum measuring range: 40 m (131 ft) • Process temperature: –40 to +130 °C (–40 to +266 °F) • Process pressure: –1 to +3 bar (–14.5 to +43.5 psi) • Accuracy: ± 2 mm • International explosion protection certificates; WHG; marine approvals • Linearity protocol (3-point, 5-point) Your benefits • Reliable measurement even for changing product and process conditions • HistoROM data management for easy commissioning, maintenance and diagnostics • Highest reliability due to Multi-Echo Tracking • SIL2 according to IEC 61508, SIL3 in case of homogeneous or heterogeneous redundancy • Seamless integration into control or asset management systems • Intuitive user interface in national languages •Bluetooth® wireless technology for commissioning, operation and maintenance via free iOS / Android app SmartBlue • Easy proof test for SIL and WHG • Heartbeat Technology™ Products SolutionsServices Technical Information Micropilot FMR50 Free space radar unbekannt unbekannt DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT Micropilot FMR50 2V. 10, Rev. 2, 1-10-2019Endress+Hauser Table of contents Wichtige Hinweise zum Dokument..............4 Symbols....................................4 Terms and abbreviations........................6 Registered trademarks..........................7 Function and system design...................8 Measuring principle............................8 Input....................................10 Measured variable............................10 Measuring range.............................10 Operating frequency..........................13 Transmitting power...........................13 Output..................................14 Output signal...............................14 Signal on alarm..............................15 Linearization...............................15 Galvanic isolation............................15 Protocol-specific data..........................15 Power supply.............................20 Terminal assignment ..........................20 Device plug connectors.........................28 Supply voltage..............................29 Power consumption...........................31 Current consumption..........................31 Power supply failure..........................32 Potential equalization.........................32 Terminals.................................32 Cable entries ...............................32 Cable specification............................32 Overvoltage protection.........................33 Performance characteristics..................34 Reference operating conditions...................34 Maximum measured error.......................34 Measured value resolution......................35 Reaction time...............................35 Influence of ambient temperature.................35 Installation...............................36 Installation conditions.........................36 Measuring conditions..........................39 Installation in vessel (free space)..................40 Installation in stilling well.......................44 Installation in bypass..........................46 Container with heat insulation....................48 Environment..............................49 Ambient temperature range.....................49 Ambient temperature limits.....................49 Storage temperature..........................50 Climate class...............................50 Altitude according to IEC61010-1 Ed.3..............50 Degree of protection..........................51 Vibration resistance...........................51 Cleaning the antenna..........................51 Electromagnetic compatibility (EMC)...............51 Process..................................52 Process temperature, Process pressure..............52 Dielectric constant............................52 Mechanical construction....................53 Dimensions................................53 Weight...................................58 Materials: GT19 housing (plastic)..................59 Materials: GT20 housing (die-cast aluminum, powder- coated)...................................60 Materials: Antenna and process connection...........61 Materials: Weather protection cover................62 Operability...............................63 Operating concept............................63 Local operation..............................64 Operation with remote display and operating module FHX50...................................64 Operation via Bluetooth® wireless technology..........65 Remote operation............................66 Integration in tank gauging system.................69 SupplyCare inventory management software..........70 Certificates an approvals....................73 CE mark...................................73 RoHS.....................................73 RCM-Tick marking............................73 Ex approval................................73 Dual seal according to ANSI/ISA 12.27.01............73 Functional safety.............................73 WHG.....................................73 Pressure equipment with allowable pressure ≤ 200 bar (2 900 psi)..........................73 Radio standard EN302729......................74 Radio standard EN 302372......................75 FCC......................................75 Industry Canada.............................75 Japanese radio approval........................75 CRN approval...............................75 Track record................................76 Test, Certificate..............................77 Hard-copy product documentation.................77 Other standards and guidelines...................78 Ordering information.......................79 Ordering information..........................79 3-point linearity protocol.......................80 5-point linearity protocol.....................…

Text truncated - open the document above for the full version.

DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and slurries • Horn antenna (FMR51); flush mounted, completely filled PTFE horn antenna (FMR52) • Maximum measuring range: 70 m (230 ft) • Process temperature: –196 to +450 °C (–321 to +842 °F) • Process pressure: –1 to +160 bar (–14.5 to +2 320 psi) • Accuracy: ± 2 mm • International explosion protection certificates; WHG; marine approvals • Linearity protocol (3-point, 5-point) Your benefits • Reliable measurement even for changing product and process conditions • HistoROM data management for easy commissioning, maintenance and diagnostics • Highest reliability due to Multi-Echo Tracking • SIL2 according to IEC 61508, SIL3 in case of homogeneous or heterogeneous redundancy • Seamless integration into control or asset management systems • Intuitive user interface in national languages •Bluetooth® wireless technology for commissioning, operation and maintenance via free iOS / Android app SmartBlue • Easy proof test for SIL and WHG • Heartbeat Technology™ Products SolutionsServices Technical Information Micropilot FMR51, FMR52 Free space radar unbekannt unbekannt DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT DRAFT Micropilot FMR51, FMR52 2V. 10, Rev. 3, 1-10-2019Endress+Hauser Table of contents Wichtige Hinweise zum Dokument.............. 4 Symbols....................................4 Terms and abbreviations........................6 Registered trademarks..........................7 Function and system design................... 8 Measuring principle............................8 Input....................................10 Measured variable............................10 Measuring range.............................10 Operating frequency..........................15 Transmitting power...........................15 Output..................................16 Output signal...............................16 Signal on alarm..............................17 Linearization...............................17 Galvanic isolation............................17 Protocol-specific data..........................17 Power supply.............................22 Terminal assignment ..........................22 Device plug connectors.........................30 Supply voltage..............................31 Power consumption...........................33 Current consumption..........................33 Power supply failure..........................34 Potential equalization.........................34 Terminals.................................34 Cable entries ...............................34 Cable specification............................34 Overvoltage protection.........................35 Performance characteristics..................36 Reference operating conditions...................36 Maximum measured error.......................36 Measured value resolution......................37 Reaction time...............................37 Influence of ambient temperature.................37 Influence of gas layer..........................37 Gas phase compensation with external pressure sensor (PROFIBUS PA, FOUNDATION Fieldbus).............38 Installation...............................39 Installation conditions.........................39 Measuring conditions..........................43 Mounting cladded flanges.......................44 Installation in vessel (free space)..................44 Installation in stilling well.......................48 Installation in bypass..........................51 Container with heat insulation....................53 Environment..............................54 Ambient temperature range.....................54 Ambient temperature limits.....................54 Storage temperature..........................62 Climate class...............................63 Altitude according to IEC61010-1 Ed.3..............63 Degree of protection..........................63 Vibration resistance...........................63 Cleaning the antenna..........................63 Electromagnetic compatibility (EMC)...............63 Process..................................64 Process temperature, Process pressure..............64 Dielectric constant............................66 Mechanical construction....................67 Dimensions................................67 Weight...................................77 Materials: GT18 housing (stainless steel, corrosion- resistant)..................................78 Materials: GT19 housing (plastic)..................79 Materials: GT20 housing (die-cast aluminum, powder- coated)...................................80 Materials: Antenna and process connection...........81 Materials: Weather protection cover................83 Operability...............................84 Operating concept............................84 Local operation..............................85 Operation with remote display and operating module FHX50...................................85 Operation via Bluetooth® wireless technology..........86 Remote operation............................87 Integration in tank gauging system.................90 SupplyCare inventory management software..........91 Certificates an approvals....................94 CE mark...................................94 RoHS.....................................94 RCM-Tick marking............................94 Ex approval................................94 Dual seal according to ANSI/ISA 12.27.01............94 Functional safety.............................94 WHG.....................................94 Sanitary compatibility.........................94 NACE MR 0175 / ISO 15156.....................95 NACE MR 0103.............................95 Pressure equipment with allowable pressure ≤ 200 bar (2 900 psi)..........................95 Marine certificate............................95 Radio standard EN302729......................95 Radio standard EN 302372......................96 FCC..........................…

Text truncated - open the document above for the full version.

24/09/2019 T UV SUD BABT TCB O ctagon House, Segensworth Road, Fareham, Hampshire, P 015 5RL Confidentiality Request FCC ID: L CGFMR5XKL Endress+Hauser £TI1 People for Process Automation Contact Ralf Reimelt Phone 0049-7622281890 [email protected] Pursuant to Sections 0.457(d)(1 )(ii) and 0.459 of the Commission's Rules, Endress+Hauser GmbH + Co. KG, Hauptstrasse 1, 79689 Mau/burg, Germany, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1 )(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Q Jl 1+ �M,ur Name: Ralf Reimelt Title: Dipl.-ing

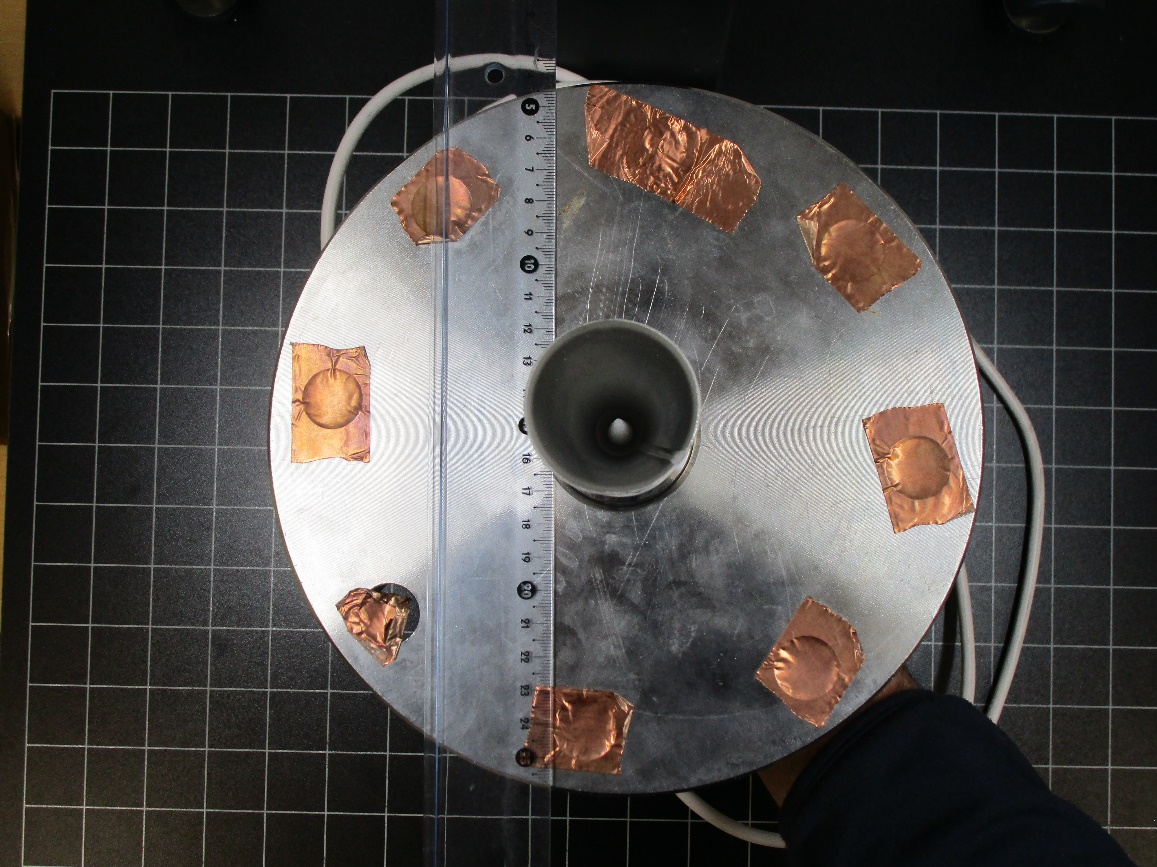

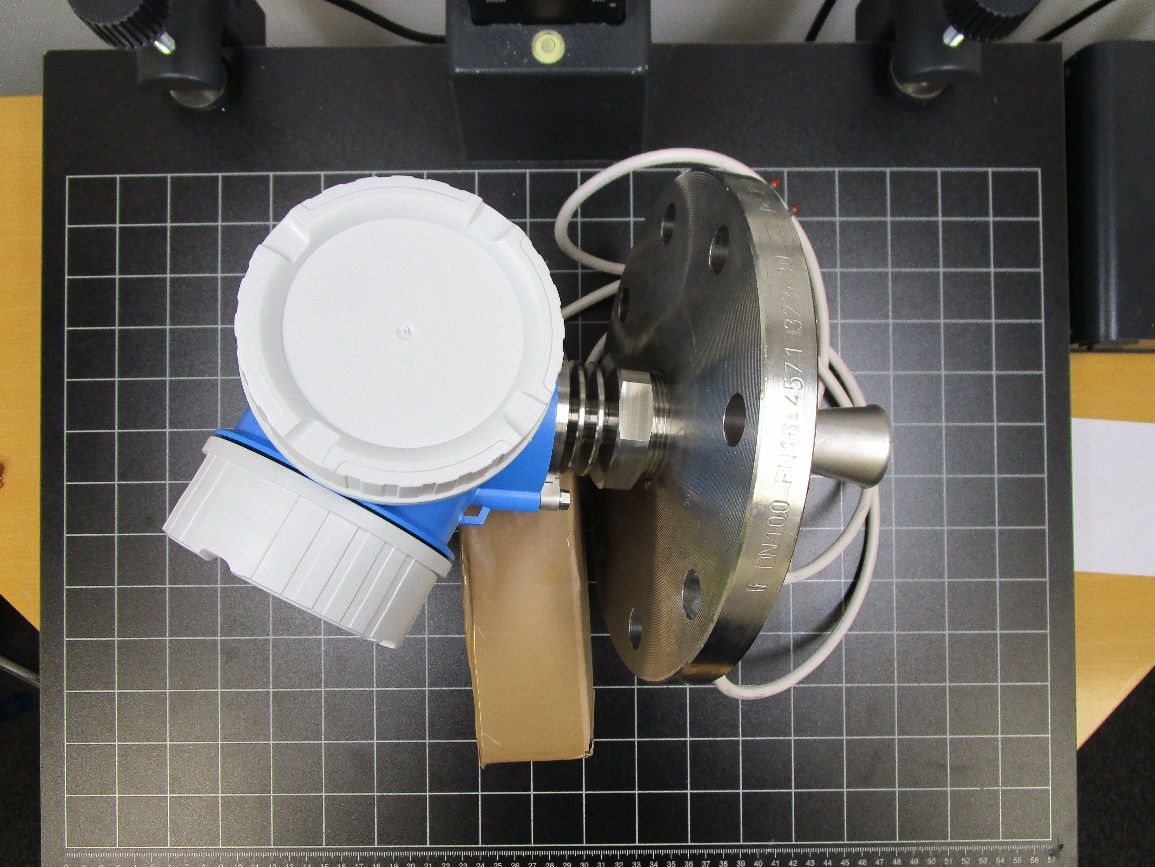

FMR50L FMR52L FMR51L

Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.de ed.com/imprint Managing Directors: Dr. Peter Havel (CEO) Dr. Jens Butenandt Patrick van Welij Phone: +49 (0) 9421 55 22-0 Fax: +49 (0) 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany TÜV SÜD Product Service RESPONSIBLE FOR NAME DATE SIGNATURE Project Management Matthias Stumpe 2020-02-28 SIGN-ID 333569 Authorised Signatory Markus Biberger 2020-02-28 SIGN-ID 333581 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with CFR 47, Part 15, Subpart C and ISED RSS-Gen Issue 5 March 2019 Amendment 1, RSS-211 Issue 1 March 2015. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Matthias Stumpe 2020-02-28 SIGN-ID 333570 Laboratory Accreditation DAkkS Reg. No. D-PL-11321-11-02 Laboratory recognition Registration No. BNetzA-CAB-16/21-15 Industry Canada test site registration 3050A-2 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with CFR 47, Part 15, Subpart C and ISED RSS-Gen Issue 5 March 2019 Amendment 1, RSS-211 Issue 1 March 2015. Report on the FCC and IC Testing of the Endress+Hauser SE+Co.KG K-Band Level Probing Radar. Model: FMR50L / FMR51L / FMR52L In accordance with CFR 47, Part 15, Subpart C and ISED RSS-GEN Issue 5, RSS-211 Issue 1 Prepared for: Endress+Hauser SE+Co.KG Hauptstraße 1D 79689 Maulburg Germany FCC ID: LCGFMR5XKL IC: 2519A-5KL COMMERCIAL-IN-CONFIDENCE Date: 2020-02-28 Document Number: TR-20351-65854-01 | Issue: 08 Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 94 Contents 1 Report Summary ......................................................................................................................... 2 1.1 Report Modification Record ........................................................................................................... 2 1.2 Introduction .................................................................................................................................... 3 1.3 Brief Summary of Results ............................................................................................................. 4 1.4 Product Information ....................................................................................................................... 5 1.5 Deviations from the Standard ...................................................................................................... 10 1.6 EUT Modification Record ............................................................................................................ 10 1.7 Test Location ............................................................................................................................... 11 2 Test Setups ................................................................................................................................ 12 3 Test Details ................................................................................................................................ 16 3.1 AC Power Line Conducted Emissions ........................................................................................ 16 3.2 Fundamental Emission Bandwidth .............................................................................................. 19 3.3 Fundamental Emission for Pulsed Transmitters ......................................................................... 24 3.4 Frequency stability ...................................................................................................................... 33 3.5 Unwanted emissions ................................................................................................................... 40 3.6 Restricted bands of operation ..................................................................................................... 70 3.7 Antenna beamwidth..................................................................................................................... 82 3.8 Antenna Side Lobe Gain ............................................................................................................. 83 3.9 Exposure of Humans to RF Fields .............................................................................................. 91 4 Measurement Uncertainty ........................................................................................................ 92 Annex: 10 pages Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 94 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 2019-08-14 2 Test Results for radar type FMR50T and FMR51T removed from report 2019-09-25 3 Chapter 2.3 – test results verified and corrected 2019-11-29 4 Updated RSS-211 to Issue 1 TLPR removed from Equipment Test Configuration Chapter 2.9 – Test results corrected 2019-12-06 5 Test results for radar model P2, P4 and P5 removed from report Chapter “Test Setups” added to test report 2019-12-16 6 Transmitter Duty Cycle Calculation added to chapter 3.9 2020-01-17 7 Chapter “Exposure of Humans to RF Fields” revised”. 2020-02-05 8 Chapter “3.3 Fundamental Emission for Pulsed Transmitters” updated  Resulting overall correction factor calculation revised  Level calculation for Peak, RMS and Average Power revised  Plots for 28MHz RBW measurements in…

Text truncated - open the document above for the full version.

Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 33 of 94 3.4 Frequency stability 3.4.1 Specification Reference FCC 47 CFR Part 15C, Clause 15.215(c) Industry Canada RSS-GEN 3.4.2 Equipment Under Test and Modification State P2LPR, S/N: N/A - Modification State 0 Frequency stability was performed only once because all EUTs an EUT configurations contain the same electronic and transceiver hardware. 3.4.3 Date of Test 2019-08-07 3.4.4 Test Method The test was performed in accordance with ANSI C63.10 KDB 890966 D01 RSS-Gen 3.4.5 Environmental Conditions Ambient Temperature 25,0 °C Relative Humidit y 56,0 % 3.4.6 Test Results Normal operation mode: Measurement with pulsed signal Operating Conditions 10 dB Bandwidth (MHz) f-10dB lower (GHz) f-10 upper (GHz) 10.2V DC / +20°C 893.61 24.45045 25.34406 34.5V DC / +20°C 895.41 24.48105 25.37646 24V DC / -20°C 1029.8 24.65823 25.68803 24V DC / -10°C 1011.2 24.47116 25.48236 24V DC / 0°C 1046.9 24.43605 25.48295 24V DC / +10°C 1001.9 24.45255 25.45445 24V DC / +20°C 878.61 24.45735 25.33596 24V DC / +30°C 980.3 24.43156 25.41186 24V DC / +40°C 907.11 24.45405 25.36116 24V DC / +50°C 915.21 24.44265 25.35786 Table 10 Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 34 of 94 Fundamental Emission -10 dB Bandwidth – 10.2V DC / +20°C Fundamental Emission -10 dB Bandwidth – 34.5V DC / +20°C Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 35 of 94 Fundamental Emission -10 dB Bandwidth – 24.0V DC / -20°C Fundamental Emission -10 dB Bandwidth – 24.0V DC / -10°C Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 36 of 94 Fundamental Emission -10 dB Bandwidth – 24.0V DC / 0°C Fundamental Emission -10 dB Bandwidth – 24.0V DC / +10°C Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 37 of 94 Fundamental Emission -10 dB Bandwidth – 24.0V DC / +20°C Fundamental Emission -10 dB Bandwidth – 24.0V DC / +30°C Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 38 of 94 Fundamental Emission -10 dB Bandwidth – 24.0V DC / +40°C Fundamental Emission -10 dB Bandwidth – 24.0V DC / +50°C FCC 47 CFR Part 15, Limit Clause 15.215 and Industry Canada RSS GEN, Limit Clause 6.11 Emission shall fall fully into designated frequency band 24.05 to 29.00 GHz. Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 39 of 94 3.4.7 Test Location and Test Equipment Used This test was carried out in Fully Anechoic Room no. 2. T-ID Designation Type Last Cal. Next Cal. 19125 Horn antenna 3160-09 Verified 19383 Double ridged waveguide horn antenna 3115 2017-02 2020-02 19442 Horn antenna 3160-10 Verified 19946 Horn antenna 24240-20 Verified 22553 Waveguide mixer FS-Z170 2016-08 2019-08 25849 Waveguide mixer FS-Z60 2017-04 2020-04 25850 Waveguide mixer FS-Z90 2016-12 2019-12 25851 Waveguide mixer FS-Z110 2016-11 2019-11 27898 Horn antenna 26240-20 Verified 27899 Horn antenna 27240-20 Verified 39897 EMI test receiver ESW44 2019-02 2020-02 36954 Harmonic Mixer FS-Z220 2018-03 2021-03 36955 Harmonic Mixer FS-Z325 2018-02 2021-02 37863 Horn antenna 30240-20 WG30 Verified 37864 Horn antenna 32240-20 WG32 Verified 38401 ULTRALOG Antenna HL562E 2018-05 2021-05 Table 11 Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 40 of 94 3.5 Unwanted emissions 3.5.1 Specification Reference FCC 47 CFR Part 15C, Clause 15.209 Industry Canada RSS-GEN 3.5.2 Equipment Under Test and Modification State P2LPR, S/N: N/A - Modification State P4LPR, S/N: N/A - Modification State P5LPR, S/N: N/A - Modification State 3.5.3 Date of Test 2018-07-30 to 2019-08-06 3.5.4 Test Method The test was performed in accordance with ANSI C63.10 RSS-GEN 3.5.5 Environmental Conditions Ambient Temperature 22,0 °C Relative Humidit y 31,0 % Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 41 of 94 3.5.6 Test Results EUT: P2LPR in LPR operation (radar without tank) Normal operation mode: Measurement with pulsed signal -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 9k203050100k200 3005001M2M 3M5M10M20 30M Level in dBμV/m Frequency in Hz Preview Result 1-QPKFCC 15.209 mag (10 m) Final_Result QPKFinal_Result CAV Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 42 of 94 Final Results: Frequency QuasiPeak Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dB ms kHz cm deg dB 228.840000 13.00 46.00 33.00 1000.0 120.000 133.0 V -14.0 13.6 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 30M 5060 80100M200300400500 8001G Level in dBμV/m Frequency in Hz Preview Result 1V-PK+Preview Result 1H-PK+ FCC 15.209_3mFinal_Result QPK Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 43 of 94 Final Results: Frequency MaxPeak CAverage Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB 7871.750000 --- 42.07 53.98 11.91 1000.0 1000.000 395.0 V 27.0 46.2 7871.750000 55.66 --- 73.97 18.31 1000.0 1000.000 395.0 V 27.0 46.2 0 10 20 30 40 50 60 70 80 90 100 1G2G3G4G5G67 8.2G Level in dBμV/m Frequency in Hz Preview Result 2V-AVGPreview Result 1V-PK+Preview Result 2H-AVG Preview Result 1H-PK+FCC 15.209 3 m PKFCC 15.209 3 m AV Final_Result PK+Final_Result CAV Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 44 of 94 Final Results: Frequency MaxPeak Average Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB 17857.900000 --- 59.58 63.50 3.92 2.5 1000.000 150.0 H 42.0 48.0 17951.326667 63.14 --- 83.50 20.36 2.5 1000.000 150.0 H 0.0 48.3…

Text truncated - open the document above for the full version.

Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 65 of 94 Final Results: Frequency MaxPeak Average Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB 40477.500000 74.09 --- 95.60 21.51 2.5 1000.000 150.0 V 22.0 44.2 41046.875000 --- 69.60 75.60 6.00 2.5 1000.000 150.0 H 12.0 44.2 10 20 30 40 50 60 70 80 90 100 40 42 44 46 48 50 52 54 56 58 60 Level in dBμV/m Frequency in GHz Preview Result 2V-AVGPreview Result 1V-PK+Preview Result 2H-AVG Preview Result 1H-PK+FCC 15.209 (0.25m) PKFCC 15.209 (0.25m) AV Final_Result PK+Final_Result AVG Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 66 of 94 Final Results: Frequency MaxPeak Average Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB 60014.062500 --- 74.38 75.60 1.22 2.5 1000.000 150.0 V 178.0 47.8 60075.000000 79.96 --- 95.60 15.64 2.5 1000.000 150.0 V 350.0 47.8 10 20 30 40 50 60 70 80 90 100 60 65 70 75 80 85 90 Level in dBμV/m Frequency in GHz Preview Result 2V-AVGPreview Result 1V-PK+Preview Result 2H-AVG Preview Result 1H-PK+FCC 15.209 (0.25m) PKFCC 15.209 (0.25m) AV Final_Result PK+Final_Result AVG Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 67 of 94 Final Results: Frequency MaxPeak Average Limit Margin Meas. Time Bandwidth Height Pol Azimuth Corr. MHz dBμV/m dBμV/m dBμV/m dB ms kHz cm deg dB/m 103906.666667 --- 80.14 89.56 9.42 2.5 1000.000 150.0 H 283.0 50 107688.444445 82.92 --- 109.56 26.64 2.5 1000.000 150.0 H 0.0 50 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 90 95 100 105 110 Level in dBμV/m Frequency in GHz Preview Result 2H-AVGPreview Result 1H-PK+Preview Result 2V-AVG Preview Result 1V-PK+FCC 15.209 (5cm) PKFCC 15.209 (5cm) AV Final_Result PK+Final_Result AVG Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 68 of 94 FCC 47 CFR Part 15, Limit Clause 15.209 The emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: RSS 210 and Industry Canada RSS GEN, Limit Clause The emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100** 3 88-216 150** 3 216-960 200** 3 Above 960 500 3 Frequency (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100** 3 88-216 150** 3 216-960 200** 3 Above 960 500 3 Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 69 of 94 3.5.7 Test Location and Test Equipment Used This test was carried out in Semi Anechoic Room no. 8. T-ID Designation Type Last Cal. Next Cal. 19125 Horn antenna 3160-09 Verified 19383 Double ridged waveguide horn antenna 3115 2017-02 2020-02 19442 Horn antenna 3160-10 Verified 19946 Horn antenna 24240-20 Verified 22553 Waveguide mixer FS-Z170 2016-08 2019-08 25849 Waveguide mixer FS-Z60 2017-04 2020-04 25850 Waveguide mixer FS-Z90 2016-12 2019-12 25851 Waveguide mixer FS-Z110 2016-11 2019-11 27898 Horn antenna 26240-20 Verified 27899 Horn antenna 27240-20 Verified 39897 EMI test receiver ESW44 2019-02 2020-02 36954 Harmonic Mixer FS-Z220 2018-03 2021-03 36955 Harmonic Mixer FS-Z325 2018-02 2021-02 37863 Horn antenna 30240-20 WG30 Verified 37864 Horn antenna 32240-20 WG32 Verified 38401 ULTRALOG Antenna HL562E 2018-05 2021-05 Table 12 Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 70 of 94 3.6 Restricted bands of operation 3.6.1 Specification Reference FCC 47 CFR Part 15C, Clause 15.205 Industry Canada RSS-GEN 3.6.2 Equipment Under Test and Modification State P2LPR, S/N: N/A - Modification State 0 P4LPR, S/N: N/A - Modification State 0 P5LPR, S/N: N/A - Modification State 0 3.6.3 Date of Test 2019-08-06 3.6.4 Test Method The test was performed in accordance with ANSI C63.10 RSS-GEN 3.6.5 Environmental Conditions Ambient Temperature 25,0 °C Relative Humidit y 58,0 % Document Number: TR-20351-65854-01 | Issue: 08 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 71 of 94 3.6.6 Test Results EUT: P2LPR in LPR operation (radar without tank) Normal operation mode: Measurement with pulsed signal Restricted Band 22.01 to 23.12 GHz 40 45 50 55 60 65 70 75 80 85 22.01 22.1 22.2 22.3 22.4 22.5 22.6 22.7 22.8 22.9 23 23.12 Level in dBμV/m Frequency in GHz Preview Result 2H-AVGPreview Result 1H-PK+Preview Result 2V-AVG Preview Result 1V-PK+FCC 15.209 (1m) PKFCC 15.209 (1m) AV Final_Result PK+Final_Result …
