LEMGAE3030ADSL Modem

Garnet ADSL Ethernet Modem GAE-3030 User’s Guide Ver. 2.1 Garnet Systems Co., Ltd. All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Garnet Systems Co., Ltd. Contents Chapter 1. Overview ------------------------------------------ 3 1.1 Introduction ------------------------------------------------------ 3 1.2 Features ----------------------------------------------------------- 3 1.3 Specifications --------------------------------------------------- 4 Chapter 2. Installation ---------------------------------------- 5 2.1 Before Installation -------------------------------------------- 5 2.2 Delivery Check --------------------------------------------------- 5 2.3 Hard Ware Installation ----------------------------------------- 7 2.4 Soft Ware Installation ------------------------------------------ 7 2.5 Ethernet Bridge Configuration ----------------------------- 8 2.6 Ethernet Router Configuration ----------------------------- 8 2.7 IPoA Routing ----------------------------------------------------- 9 2.8 PPP Routing ------------------------------------------------------ 10 2.9 NAT ------------------------------------------------------------------ 11 2.10 DHCP Server ---------------------------------------------------- 11 2.11 Updating Npimage -------------------------------------------- 12 2.12 PHY Flash Update ------------------------------------------- 13 2.13 VCI/VPI Value Configuration ------------------------------- 14 2.14 RFC 1483 (PPP over Ethernet) S/W Installation ----- 16 Chapter 3. Appendix ----------------------------------------- 17 3.1 Connector Specification --------------------------------------------- 17 3.2 Warranty ------------------------------------------------------------ 18 3.2 Regulatory information ----------------------------------------- 19 GARNET GAE-3030 3 Chapter 1. Overview 1.1 Introduction Garnet ADSL(Asymmetric Digital Subscriber Line) Modem GAE-3030 is an External stand-alone modem that provides users faster connectivity than conventional access technologies by offering up to 8 Mbps of downstream line rate and up to 640 Kbps of upstream over existing phone lines, which is asymmetric. It also provides interoperability and industry standards and protocols. Garnet ADSL Modem supports either G.992.1(G.dmt) or Splitterless G.992.2(G.lite) standards via software upgrades. Garnet ADSL Modem is suitable to be installed into PC, with Plug and Play function in Windows95/98. Garnet ADSL Modem supports Windows NT, 2000 as well as Rinux and Macintosh. 1.2 Features ??Using Garnet ADSL Modem, you will experience stable, high speed Internet access and can connect to other multimedia service networks that ADSL delivers over existing PSTN copper wires. ??Garnet ADSL Modem, using existing phone lines, can help greatly reduce cost for installing new lines, i.e. optical cables, for high speed network transmission. ??Compared with conventional dial-up modems, Garnet ADSL Modem provides high speed network access always on, irrespective of subscriber numbers. You can simultaneously have phone conversation. ??Garnet ADSL Modem offers multiple applications such as Internet access, messenger service, E-mail, file transfer, data download and upload and etc. ??Garnet ADSL Modem is a customer premise terminal, co-operating with Central Office equipments. So, the Central Office can effectively manage subscriber network. GARNET GAE-3030 4 ??Garnet ADSL Modem users can easily monitor with network monitoring program, which enables users to see speed of data streams, supports physical connect and disconnect and diagnose hardware malfunctioning. 1.3 Specifications ??Dimension : 135(L) x 188(W) x 35.5(H) ??Operating Temperature : 0~45 o C ??Operating Humidity : 10% to 90%, non-condensing ??Power Consumption: 5W ??Standards : ANSI T1.413 Issue 2 / ITU-T G.992.1, G.992.2 ??Frequency Range : 0.11~1.1MHz(Down) / 30KHz~110KHz(Up) ??Modulation : DMT (Discrete Multi Tone) ??Data Rates : Downstream : Max. 8Mbps, Upstream : Max. 960Kbps ??Interface : 10Base-T Ethernet ??O/S : Win95, Win98, Win NT4.0(Service Pack 3 or higher), Win2000 Rinux, Macintosh ??Minimum System Requirements : Pentium 300MHz CPU, 64MB RAM, 20MB HDD ??Virtual Path & Channel : 8bits VPI, 16bits VCI Address ??WAN Protocol : RFC1483, RFC2364 Note : Data Rates can differ according to distance between DSLAM and modem, wire gauge, PC specification and other network environments. Trademark Notification Garnet™ is a registered trademark of Garnet Systems Co., Ltd. Windows™ and Internet Explorer™ is a registered trademark of Microsoft Corporation. Ethernet™ is a trademark of Xerox Corporation. GARNET GAE-3030 5 Chapter 2. Installation 2.1 Before Installation Please be advised that if you do not yet subscribe phone service, it is impossible to get ADSL service. In this case, please contact your local service provider to have new telephone service. And please be informed that telephone service providers do not service all ADSL applications. Please contact your local Central Office on the applications and ADSL service providers may support different service protocols. Prior to installation, please contact your service providers for Service Protocols. 2.2.Delivery Check following materials are provided in the package A. ADSL Ethernet Modem – GAE-3030 B. Power Adapter – 110/240V, 50/60Hz C. Console Cable – DB-9 RS-232 port cable D. RJ45 10base-T Ethernet Cable E. RJ-11 telephone line F. User Guide If you have two or more phones in one phone line, one or more Micro filters are needed to prevent signal disturbance. To purchase micro filters, please contact your service provider. GARNET GAE-3030 6 <Figure 1. One example for ADSL Network Configuration> POTS Micro Telephone Ro Telephone EXchange Internet PSTN Micro filter arne Garnet ADSL Modem Ethernet GARNET GAE-3030 7 2.3 HardWare Installation To install modem into PC, follow below steps. 1. Turn of…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA HELIUM SDRAM 4Mx16 FLASH 2Mx8 I90135 I80234 SP3232 ES2009 THS6022 AD8016 HYBRID DB-9 CONNECTOR RJ-45 CONNECTOR RJ-JJ CONNECTOR MA0-13 DQ0-15 PA[00-15] PD[00-07] PSTROBE0-1 RX ADDR[0-3] RXDATA [0-7] TXDATA [0-7] RX[0-3] TX[0-3] UARTTX,RX XDIA,B XDDA,B XRDP,M GAE-3030 BLOCK DIAGRAM PD[00-07] VCXO VCXO_CTRL VCXO_OUT U1 EMI Choak Coil <Doc><RevCode> <Title> B 11Friday, March 16, 2001 Title SizeDocument NumberRev Date:Sheetof DQM0 DQM1 SDRAM CS0 SDRAM_SCLK SDRAM_CLKE SDRMA_WE RAS CAS RESETIN RESETIN RX CLK RXEN#RXSO C TXSO C TXCL K TX EN# ETH_DATA ETH_LINK XTALP XTALN ADSL_LINK ALE_ 135# RDY_1 35# RESET_OU T# VCXOI XTALI CTRLIN CLKM CLWD RESET_OUT# TX_HYBRIDP TX_HYBRIDN RX_HYBRIDP RX_HYBRIDN 3.3V 3.3V 12 T2 PE65855 12 43 T1 ADSL Transformer 1 2 + E1 10uF 1 2 12 20MHZ 1 2 12 12 12 12 12 1212 12

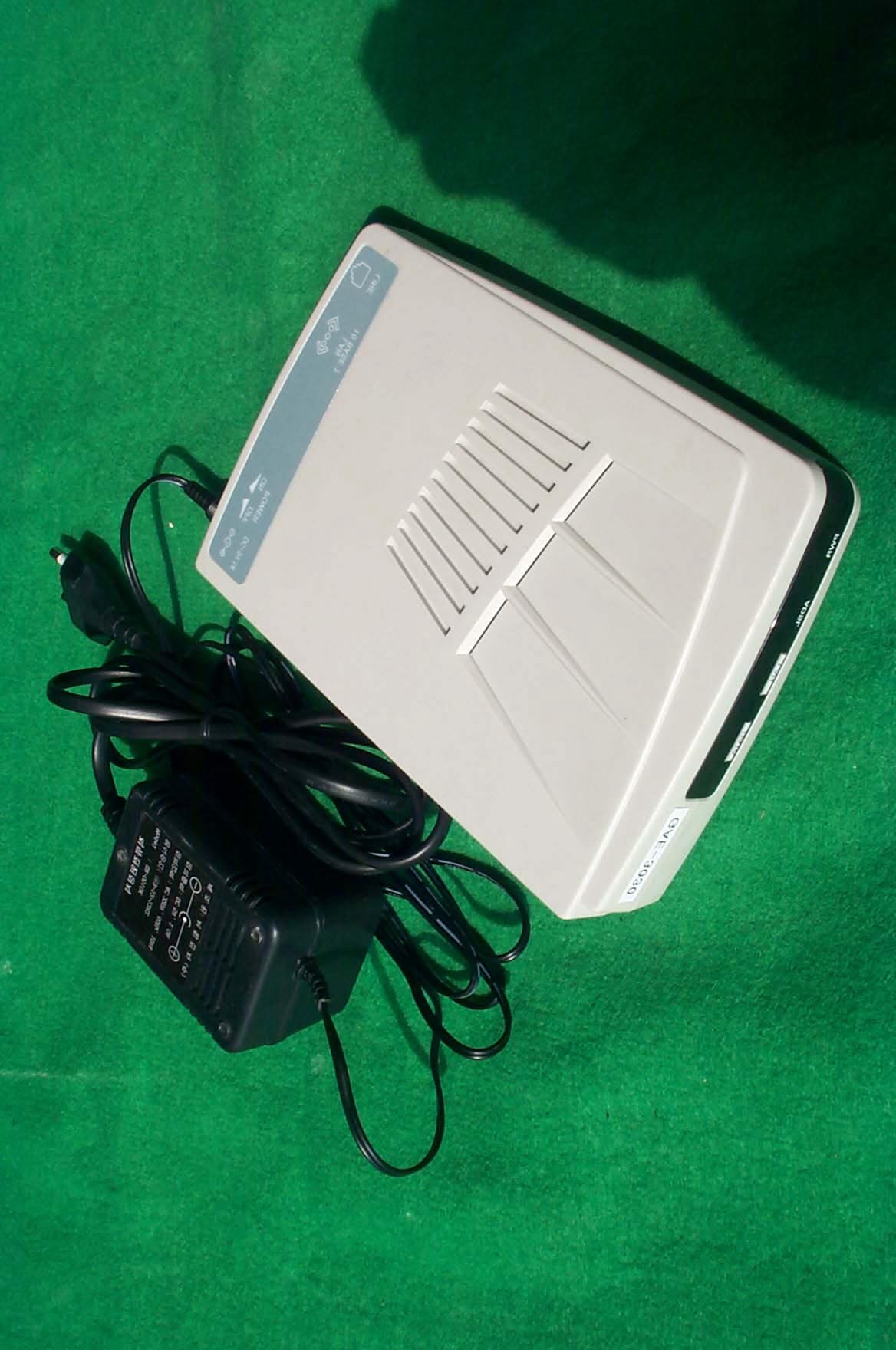

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01039 FCC ID : LEMGAE3030 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01039 FCC ID : LEMGAE3030

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01039 FCC ID : LEMGAE3030 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : LEMGAE3030 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-01039 FCC ID : LEMGAE3030 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-01039 FCC ID : LEMGAE3030 SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-01039 FCC ID : LEMGAE3030

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 Certificate of Compliance Test Report No.: SKTOS-01039 NVLAP CODE : 200220-0 Applicant: Garnet Systems Co., Ltd. Applicant Address: MYUNGSUNG Bldg., 545-7, DOGOK-DONG, KANGNAM-GU, SEOUL, KOREA Product: ADSL MODEM FCC ID: LEMGAE3030 Model No.: GAE-3030 Receipt No.: SKE20010314-199 Date of receipt: Mar. 14, 2001 Date of Issue: Apr. 04, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B /This Class B digital apparatus complies with Canadian ICES-003 Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.T.Lee/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Signature Signature Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS 10 862970/019 04.2001 Artificial Mains Network KNW-407 M63284 07.2001 EMI Receiver ESHS10 385871/002 11.2001 Artificial Mains Network ESH3-Z5 836679/018 11.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Mar. 14, 2001 Date of Test : Mar. 19, 2001 ~ Apr. 03, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 3. Description of the tested samples The EUT is ADSL Modem. 3.1 Rating and Physical Characteristics • Dimension : 135(L) x 188(W) x 35.5(H) • Operating Temperature : 0~45°C Operating Humidity : 10% to 90%, non-condensing Power Consumption : 5W Standards : ANSI T1.413 Issue 2 / ITU-T G.992.1, G.992.2 Frequency Range : 0.11 ~ 1.1MHz(Down) / 30KHz ~110KGz(Up) Modulation : DMT (Discrete Multi Tone) Data Rates : Downstream : MAX. 8Mbps, Upstream : Max. 960Kbps Interface : 10Base-T Ethernet O/S : Win95, Win98, Win NT4.0(Service Pack 3 or higher), Win2000, Rinux, Macintosh Minimum System Requirements : Pentium 300MHz CPU, 64MB RAM, 20MB HDD Virtual Path & Channel : 8bits VPI, 16bits VCI Address WAN Protocol : RFC1483, RFC2364 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01039 FCC ID : LEMGAE3030 4. Measurement Conditions Testing Input Voltage of EUT is supplied by Adaptor (Adaptor Input Voltage : AC 120V, 60Hz / Adaptor Output Voltage : DC 5V, 1A) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT is tested to communication mode. (up and down load mode) 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Printer H.P 2225C 3245S12493 DSI6XU2225 Monitor Samsung SyncMaster750P PG17HS9U/ADC Doc Keyboard I-GANG IGK-2000i 100060126134 HQKBITS9001 Mouse Logitech M-S48 LZA93274466 DZL211153 Mouse(USB) Logitech M-BE55 LZE02551778 Doc INNO Dispenser Biopia BD-2000 N/A Doc Adaptor Surim SR-0510K N/A N/A Personal Computer Mother board Micro-Star MS-6161 96K6262664G1144716 DoC Power supply HIPRO HP-235ATXA6 F3-9911252206 DoC FDD Drive Panasonic JU-257A604P 62638 DoC HDD Quantum Pro Drive LPS 9442203B DoC SK TECH CO., LTD. Page 7 of 13 SKT SKT…
