LEMGAN-1030ADSL Modem

Garnet ADSL Modem PCI GAN-1030 User’s Guide ver 3.3 All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Garnet Systems Co., Ltd. All specifications are subject to change without notice. 2 FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 3 Contents CHAPTER 1. OVERVIEW 1.1 I NTRODUCTION ............................................................................................................................... 2 1.2 F EATURES ....................................................................................................................................... 2 1.3 S PECIFICATIONS ............................................................................................................................ 2 CHPATER 2. INSTALLATION 2.1 B EFORE I NSTALLATION .............................................................................................................. 5 2.2 D ELIVERY C HECK ........................................................................................................................ 6 2.3 GAN-1030 PCI C ARD I NSTALLATION .................................................................................. 8 2.4 W INDOWS 98 SE S OFTWARE I NSTALLATION .................................................................. 10 2.5 R UNNING THE G ARNET DSL N ETWORK D EVICES ......................................................... 15 CHAPTER 3. UNINSTALLING THE SOFTWARE 3.1 U NINSTALLING IN THE W INDOWS 98 ................................................................................... 17 CHAPTER 4 APPENDIX 4.1 T ROUBLE S HOOTING .............................................................................................................. 20 2 GARNET GAN-1030 Chapter 1. Overview 1.1 Introduction Garnet ADSL(Asymmetric Digital Subscriber Line) Modem GAN-1030 is an internal PC card(PCI) that provides users faster connectivity than conventional access technologies by offering up to 8 Mbps of downstream line rate and up to 640 Kbps of upstream over existing phone lines, which is asymmetric. It also provides interoperability and industry standards and protocols. Garnet ADSL Modem supports either G.992.1(G.dmt) or Splitterless G.992.2(G.lite) standards via software upgrades. Garnet ADSL Modem is suitable to be installed into PC, with Plug and Play function. 1.2 Features z Using Garnet ADSL Modem, you will experience stable, high speed Internet access and can connect to other multimedia service networks that ADSL delivers over existing PSTN copper wires. z Garnet ADSL Modem, using existing phone lines, can help greatly reduce cost for installing new lines, i.e. optical cables, for high-speed network transmission. z Compared with conventional dial-up modems, Garnet ADSL Modem provides high- speed network access always on, irrespective of subscriber numbers. You can simultaneously have phone conversation. z Garnet ADSL Modem offers multiple applications such as Internet access, messenger service, E-mail, file transfer, data download and upload and etc. z Garnet ADSL Modem is a customer premise terminal, co-operating with Central Office equipments. So, the Central Office can effectively manage subscriber network. z Garnet ADSL Modem users can easily monitor with network monitoring program, which enables users to see speed of data streams, supports physical connect and disconnect and diagnose hardware malfunctioning. 1.3 Specifications z Dimension : 145(L)mm X 75(W)mm X 21(H)mm z Operating Temperature : 0~45 o C z Operating Humidity : 10% to 90%, non-condensing 3 GARNET GAN-1030 z Power Consumption: 5.35W z Frequency Range : 0.11~1.1MHz(Down) / 30KHz~110KHz(Up) z Modulation : DMT (Discrete Multi Tone) z Data Rates : Downstream : Max. 8Mbps Upstream : Max. 640Kbps z Interface : PCI Specification 2.1 or higher z Minimum System Requirements : - Pentium-based PCI bus PC, Pentium 400MHz or higher PCI slot , 32M bytes RAM - Monitor Minimum Resolution of 1024 x 768 - CD-ROM drive - 30M bytes for Software only z Virtual Path & Channel : 8bits VPI, 16bits VCI Address z WAN Protocol : RFC1483, RFC2364 ☞ ☞☞ ☞ Note : Data Rates can differ according to distance between DSLAM and modem, wire gauge, PC specification and other network environments. ☞ ☞☞ ☞ Trademark Notification ▶ ▶▶ ▶ Garnet ™ is a registered trademark of Garnet Systems Co., Ltd. ▶ ▶▶ ▶ Windows ™ and Internet Explorer ™ is a registered trademark of M…

Text truncated - open the document above for the full version.

A A B B C C D D E E 44 33 22 11 20441 Line Driver 20431 Analog Front End 11627 ADSL Data Pump P46 PCI Bus I/F PCI BUS E2PROM DI DO VCXO 35.328Mhz GAN-1030 BLOCK DIAGRAM F1 F2 RV1 C11C83 T1J1 3.0 GAN-1030 11Tuesday, December 26, 2000 Title SizeDocument NumberRev Date:Sheetof Line Driver <Value> AFE <Value> DMT <Value> PCI <Value> R RING TIP T OUTP_TX OUTM_TX nDRVPWRAFETX1 AFERX1 AFERX0 FA[0:9] FD[0:15] nCBE[0:3]AD[0:31] PCICLK RJ11 1 2 3 4 A T R A1 L6 L5 6 10 7 9 5 2 4 1 SIDAC 2 1 FUSE FUSE

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01027 FCC ID : LEMGAN-1030 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01027 FCC ID : LEMGAN-1030

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01027 FCC ID : LEMGAN-1030 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : LEMGAN-1030 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

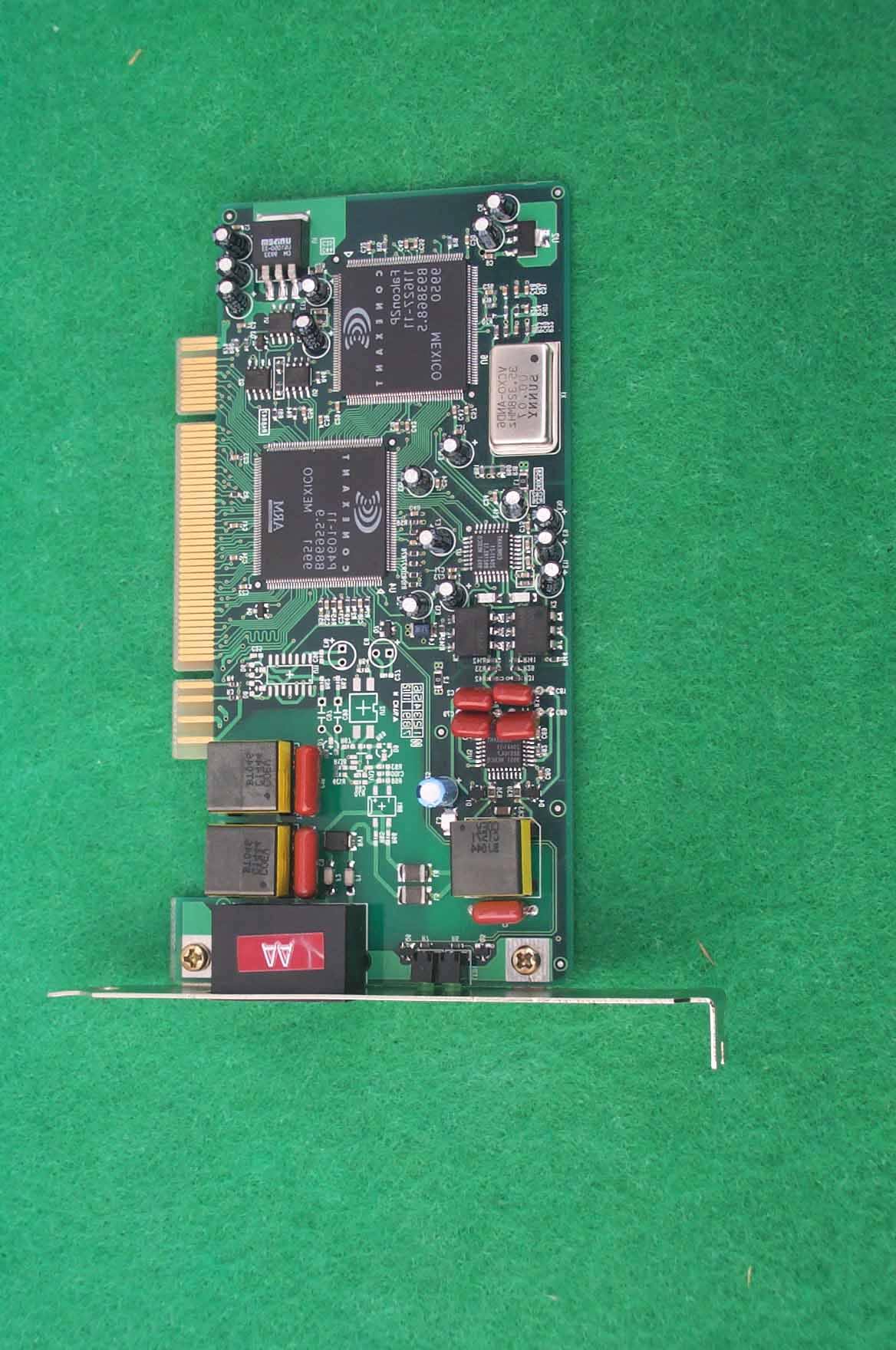

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01027 FCC ID : LEMGAN-1030 Internal Photographs of EUT

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 Certificate of Compliance Test Report No.: SKTOS-01027 NVLAP CODE : 200220-0 Applicant: GARNET SYSTEMS Co., Ltd. Applicant Address: MYUNGSUNG Bldg., 545-7, DOGOK-DONG, KANGNAM-GU, SEOUL, KOREA Product: ADSL Modem FCC ID: LEMGAN-1030 Model No.: GAN-1030 Receipt No.: SKE20001219-934 Date of receipt: Dec. 19, 2000 Date of Issue: Mar. 12, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.T.Lee/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Dec. 19, 2001 Date of Test : Jan . 26, 2001~ Feb. 12, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 3. Description of the tested samples The EUT is ADSL Modem. 3.1 Rating and Physical Characteristics •Dimension : 145(L) x 75(W) x 21(H)mm •Power Consumption : 0.11 ~ 1.1MHz(Down) / 30KHz ~ 110KHz (Up) •Modulation : DMT (Discrete Multi Tone) •Data Rates : Downstream : Max. 8Mbps Upstream : Max. 640Kbps •Interface : PCI Specification 2.1 or higher •Minimum System Requirements : - Pentium-based PCI bus PC, Pentium 400MHz or higher PCI slot, 32M bytes RAM - Monitor Minimum Resolution of 1024 X 768 - CD-ROM drive - 30M bytes for Software only •Virtual Path & Channel : 8bits VPI, 16bits VCI Address •WAN Protocol : RFC1483, RFC2364 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz 4.1 Modes of Operation The EUT was in the following operation mode during all testing; Installed at PC, The EUT tested in mode of UP & Down loading data. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Monitor Samsung SyncMaster750P PG17HS9U/ADC Doc PC H.P Brio BA 600 SG03603357 Doc Printer H.P 2225C 3245S12493 DSI6XU2225 Keyboard I-GANG IGK-2000i 100060126134 HQKBITS9001 Mouse 1 Logitech M-S48 LZA93274466 HQKBITS9001 Mouse 2 Logitech M-BE55 LZE02551778 Doc Joystick Logitech J-ZA10 LZS01651409 Doc Speaker CAMAC CMK600 N/A Doc Mic N/A N/A N/A N/A INNO dispenser Biopia BD-2000 N/A Doc Telephone LG telecom GS-460F 009KC20109 N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-01027 FCC ID : LEMGAN-1030 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark Video interface cable 1.5m Shield None PC power cable 1.2m Non-Shield None Monitor power cable 1.5m Non-Shield None Printer power cable 1.5m Non-Shield None Printer interface cable 1.5m Shield None Teline 1.2m Non-Shield None Keyboard interface ca…
