LGYBT260146Bluetooth Module

User Manual and Technical Guide The O'Neil microFlash Series of Printers By O'Neil Product Development ii • •• • Introduction User Manual and Technical Guide The O'Neil microFlash Series of Printers O’Neil Product Development, Inc. 8 Mason Irvine, CA 92618 949.458.0500 • Fax 949.458.0708 www.oneil-pdi.com Version 7.2, 2/19/2003 Declaration of Conformity Application of Council Directives: 89/336/EEC, 73/23/EEC Manufacturer’s Name: O’Neil Product Development Inc. Manufacturer’s Address: 8 Mason, Irvine, CA, 92618, USA Importer’s Name: O’Neil Product Development Importer’s Address: Witan Court, 285 Upper Forth Street Witan Gate West, Centeral Milton Keys United Kingdom, MK9 1EH Type Of Equipment: Printers (Information Technology Equipment) Equipment Class: Commercial and Light Industry Models: Year Mfg.: Conforms to the following standards: MicroFlash2 1997- EN55022 (1987), EN50082-1 (1992), EN60950 (1992) A1,A2,A3 MicroFlash3 1997- EN55022 (1987), EN50082-1 (1992), EN60950 (1992) A1,A2,A3 MicroFlash4t 1999- EN55022 (1995), EN50082-1 (1997), EN60950 (1992) A1,A2,A3,A4,A5 (A11) MicroFlash4tCR 1999- EN55022 (1995), EN50082-1 (1997), EN60950 (1992) A1,A2,A3,A4,A5 (A11) 2t 1998- EN55022 (1987), EN50082-1 (1992), EN60950 (1992) A1,A2,A3,A4 2tCR 1998- EN55022 (1995), EN50082-1 (1997), EN60950 (1992) A1,A2,A3,A4 2I 1998- EN55022 (1987), EN50082-1 (1992), EN60950 (1992) A1,A2,A3,A4 8I 1997- EN55022 (1987), EN50082-1 (1992), EN60950 (1992) A1,A2,A3 I the undersigned, hereby declare that the equipment specified above conforms to the above directives(s) and standards(s). Place: Orange County, CA USA Date: August 4, 1999 Full Name: Kenneth Carlson Position: Director of Electrical Engineering iv • •• • Introduction User Manual and Technical Guide The O'Neil microFlash Series of Printers FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for class B computing device, Pursuant to FCC Rules. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Industry Canada Requirement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Bluetooth Module This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter within 20 centimeters. Manufacturer’s Perfomance Criteria Printers MF2TH2 Radio and MF4TH2 Radio has shown susceptibility to electrostatic discharges (ESD) at the metal print head platter. This ESD susceptibility has caused the printer to lose its radio frequency (RF) link while processing a print job. To recover it may be necessary to retry the print job on the HHC or cycle power to the printer. Warranty Limited Warranty The microFlash 2/3 printer is warranted by O’Neil Product Development, Inc. to the original purchaser, to be free from defects in materials and workmanship for one (1) year from the date of original purchase. The microFlash 2t/ 2tCR/ 2I/ 2iCR/ 4t/ 4tCR printer is warranted by O’Neil Product Development, Inc. to the original purchaser, to be free from defects in materials and workmanship for (1) year from the date of original purchase (OEM’s 90 days from the date of purchase). O’Neil makes no other warranties, expressed or implied, including implied warranties of merchantability and fitness for purpose. During the warranty period, if a component is proved to be defective, O’Neil will repair or replace it, at its option, with no charge for parts or labor, when returned to O’Neil or an O’Neil Authorized Service Center with dated proof of purchase. This warranty does not apply to appearance items, batteries or to any component which has been misused, defaced, altered or modified, or which has been serviced or repaired by other than an O’Neil Authorized Service Center. This manual and any examples herein are provided ‘as is’ and are subject to change without notice. O’Neil Product Development, Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose. Acceptance of the microFlash Printer is conditional on the acceptance of this warranty. If the buyer does not accept the terms of this warranty, he is to return the product in its original condition within 10 days of receipt and O’Neil Product Development, Inc. will refund any money advanced by the buyer toward its purchase. No Liability for Negligent Use In no event shall O’Neil Product Development, Inc. be held liable for any damages whatsoever (including, without limitations, damages for loss of profits, business interruption, loss of information, or other pecuniary loss) arising out of negligence in use and care of the microFlash Print…

Text truncated - open the document above for the full version.

Subj:
Cellular Modems and Bluetooth
Date:
3/5/01 11:32:18 AM Pacific Standard Time
From: [email protected] (Frank Coperich) To: [email protected] CC: [email protected] (Joe Dichoso), [email protected] (Rich Fabina)
In response to your question(s) below: 3.) The Bluetooth approval procedures are listed below: BLUETOOTH APPROVALS For all devices, the following items, 1-12, are common to all Bluetooth devices and will not vary from one device to another. The list can be copied and pasted into the filing. 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don*t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 * 2480 MHZ. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it*s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behavior for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB*s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB*s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB*s (4 bits) (Input 1) and the 27 MSB*s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behavior for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHZ. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. Therefore all Bluetooth devices comply with the FCC dwell time require…

Text truncated - open the document above for the full version.

DATE: 03-01-2004 Federal Communications Commission 7435 Oakland Mils Road Columbia, MD 21046 Dear Commission, This is a letter of authorization to accept Compatible Electronics, Inc. as an agent for O’Neil Product Development Inc., for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following O’Neil Product Development Products: Bluetooth Radio Modules Portable Printers with Radios Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please accept this letter as an attestation that neither O’Neil Product Development Inc. nor any of its officers, directors, of persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C.853(a). In addition, O’Neil Product Development Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing O’Neil Product Development Inc. to be denied federal benefits. If you have any further questions or need additional information, please fell free to give me a call at 949-458-0500 Sincerely, _____________ Ken Carlson [email protected] Director Of Electrical Engineering World Headquarters 8 Mason Irvine, CA 92618-2705 Tel: 949.458.0500 Fax: 949.458.0708

03-27-2004 Request for a modular approval - FCC ID: LGYBT260146 Dear Application Examiner, the O’Neil Product Development Bluetooth Module BT260146 is seeking FCC authorization as a modular transmitter. The requirement of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See the external photos. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside of the IC. It buffers the data inputs from UART and USB terminal. 3. The modular transmitter must have its own power supply regulation The IC contains an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested integral antenna or with an antenna that has less antenna gain. Requirements for the use of external antennas are specified in the antenna information exhibit. (See Mitsubishi Antenna AHD1403- 244ST61) 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The module was fixed in test/programming board during the test. See also the test report and Test setup photos. 6. The modular transmitter must be labeled with its own FCC ID number The EUT will be labeled with its own FCC ID number. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 03-27-2004 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output is 3.00 dBm (1.995 mW), the maximum antenna gain is –4.7 dBd (-2.55 dBi) = numeric gain 0.556 The maximum permissible exposure is defined in 47 CFR 1.1310 as 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4pR² Smax = 1mW/cm², P = 1.995 mW, linear power gain relative to the isotropic radiator = -2.55 dBi = 0.556 (numeric gain), R = distance in cm Solving for R, the 1mW/cm² li mit is reached in a distance of 0.2971 cm to the transmitting antenna. The module has to be integrated in a way that the minimum distance of 0.2971 cm is ensured so a statement in the users manual is not necessary. Please contact us if you have any additional questions. Best Regards Ken Carlson Director of Electrical Engineering O’Neil Product Development Inc. 8 Mason Irvine CA 92618 949-458-0500 Fax 949-206-6980

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 April 5, 2004 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure of O’Neil Product Development documents. Gentlemen: As appointed agent for O’Neil Product Development, 8 Mason, Irvine, California, 92618, we would like to request that the Block Diagrams, Schematics, and Theory of Operation submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

Apr. 09. 2002 NO.TPQ-2D02Z TECHNICAL REPORT SURFACE MOUNTABLE CHIP ANTENNAProduct name： AHD1403-244ST01Item： MITSUBISHI MATERIALS CORPORATION ADVANCED PRODUCTS COMPANY REFERENCE Drawing NoPage Surface mountable chip antenna AHD1403-244ST01 Specification RJC-AP-0003E1/4 Mitsubishi Materials Corporation Type AHD1403-244ST01Date July.26.2001 1. Scope of application The specification is applied to surface mountable chip Antenna AHD1403-244ST01. 2. Part Number System (Ex.) A H D 1 4 0 3 – 2 4 4 ST01 T (1) (2) (3) (3) (4) (5) (1) Series AHD : AHD series (2) Length 14 : Length L=14mm (rounded off to the first digit place). (3) Width 03 :Width W=3mm (rounded off to the first digit place). (4) center frequency 244 : center frequency f0 = 2440MHz (indicated in upper 3digit of center frequency f0[MHz] ) (4) MMC internal code ex) ST01 (5) Packaging form T : Tape package 4000pcs./reel 3. Structure 3-1. material Base material Al 2 O 3 based ceramic Conductor Ag based thick film 3-2. Size and Dimensions See Fig.1. 3-3. Terminal description See Fig.1. 3-4. Visual No major defects that would effect the life or use of the components 3-5. Standard evaluation board and Land pattern See Fig.2. and Fig.3. 4. Operating temperature range -25 ْ C to +85 ْ C 5. Electrical Characteristics Table.1 Electrical characteristics [Note] Electrical characteristics should be measured on our evaluation board Details of evaluation board is shown in Fig.2.and Fig.3. DescriptionValue Impedance 50Ω Frequency range 2400MHz to 2484MHz V.S.W.R at B.W 3.0max REFERENCE Drawing NoPage Surface mountable chip antenna AHD1403-244ST01 Specification RJC-AP-0003E2/4 Mitsubishi Materials Corporation 6. Precautions 6.1. Handling Excessive stress or mechanical shock may damage to products , therefore , please be careful in handling or transporting products and assemblies with this product . 6.2. Storage Products should be stored as it packaged ( as sealed up ) under normal temperature and humidity . To avoid degradation or destruction of products , please do not store under conditions below. - In an atmosphere containing corrosive gas (SO x , NO x , Cl 2 , NH 3 etc.) - Dusty Place - Humid place , where water condenses Stored products should be used within 3 months of receipt ( If once the seal of covertape is broken , please use immediately ) If this period is exceeded please verify solderability of products . [ Recommended storage condition ] Temperature -10 ْ C to 40 ْ C Humidity 15 %R.H. to 85 %R.H REFERENCE Drawing NoPage Surface mountable chip antenna AHD1403-244ST01 Specification RJC-AP-0003E3/4 Mitsubishi Materials Corporation Fig.1. Dimensions (Unit:mm) 13.5 +0.2 -0.2 3.0 +0.2 -0.2 0.8 +0.1 -0.1 (1) (2) (1) (2) (3) (3) (3) (3) (3)(3) 3.00 +0.10 -0.10 9.00 +0.20 -0.20 1.00 +0.10 -0.10 (0.25) (0.25) ： conductor <Terminal description> (1) ： Gnd (2) ： Feeding electrode (3) ： fixing electrode (Should be connected with floating pad) REFERENCE Drawing NoPage Surface mountable chip antenna AHD1403-244ST01 Specification RJC-AP-0003E4/4 Mitsubishi Materials Corporation 7.3 2.55.0 15.0 8.0 2.2 25.0 1.0 1.5 2.0 1.0 1.4 1.5 2.0 9.0 6.0 1.0 1.0 3.75 3.75 3.0 0.5 0.4 25.0 9.06.0 3.4 3.8 1.2 1.2 1.21.21.2 1.6 1.61.6 1.6 1.6 3.0 [Land pattern］ [ Solder resist pattern] SMA connector Micro Strip Line (50ohm) Chip antenna Fig.2. Outline of standard evaluation board Fig.3. Dimensions of Land pattern (Unit : mm) Substrate : FR- 4 (Both print) Thickness : 0.8mm Cupper : 0.035mm Size : W=25mm , L=50mm Φ [ Backside pattern of substrate (top view)] Ground plane Through hole Connected to backside GND plane Through hole Φ0.4 REFERENCE Drawing NoPage Surface mountable chip antenna AHD series characteristic specification RJC-AQ-0003E1/ 3 Mitsubishi Materials Corporation. Type AHD seriesDate December.10.2001 1. Scope of application This specification is applied to surface mountable chip Antenna AHD series. 2. Climatic Quality ItemTest MethodPerformance Cold test Test temperature : -25°C ± 3°C Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Dry heat test Test temperature : +85°C ± 2°C Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Damp heat Test Test temperature : +60°C ± 2°C Test relative humidity : 90% 95% Test duration : 1000hrs +48,-0 hrs After completion of the test, allow the sample to stand under the standard condition for at 2hrs. After the test ,shall satisfy the band width specification. Temperature cycle Test (+85 °C ) (ordinary temp) (-20 °C ) Fig.1. Operations per One Cycle One cycle is the operation shown in Fig.1 . This cycle is repeated 65 times After completion of the test, allow the sample to stand under the standard conditions for at 2hrs. After the test ,shall satisfy the band width specification. 30min 30min 3min3min REFERENCE Drawing NoPage Surface mountable chip antenna AHD series characteristic specification RJC-AQ-0003E2/ 3 Mitsubishi Materials Corporation. 3. Solderability ItemTest MethodPerformance Solderability Test Immerse into melted solder. Solder : H63A Flux : Rosin 25wt% (According to JIS C2571) Soldering temperature : 230°C ± 3°C Duration of immersion : 5sec. ± 1sec Preheating : 150°C , 60sec. At least 90% of the terminal electrode must be covered with new solder. Resistance to reflow soldering Heat Test Reflow soldering temperature : Peak temperature : 240°C Keeping time at peak temp : within 5sec Solder : Sn63/Pb37 solder paste Temperature profile : see fig.2. After the test, shall satisfy the band width specification. Visual : No mechanical damage REFERENCE Drawing NoPage Surface mountable chip antenna AHD series characteristic specification RJC-AQ-0003E3/ 3 Mitsubishi Materials Corporation. Preheating 100°C - 150°C 60sec - 100sec 30sec - 40sec…

Text truncated - open the document above for the full version.

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 3.00 dBm + (-2.55) dBi EIRP = 0.45 dBm (1.046 mW) Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) – worst case Power density at the specific separation: S = PG/(4R 2 Π) S = (1.995 x 0.556) / (4 x 20 2 x Π ) S = 0.00022 mW/cm 2 Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna – worst case R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2. The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √PG/4Π R = √(1.995 x 0.556) / 4Π R = 0.2971 cm Where P = Power input to the antenna (mW). G = Numeric power gain of the antenna – worst case R = The safe estimated separation that the user must maintain from the antenna (cm) The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (02.55 dBi/10) G = .5556

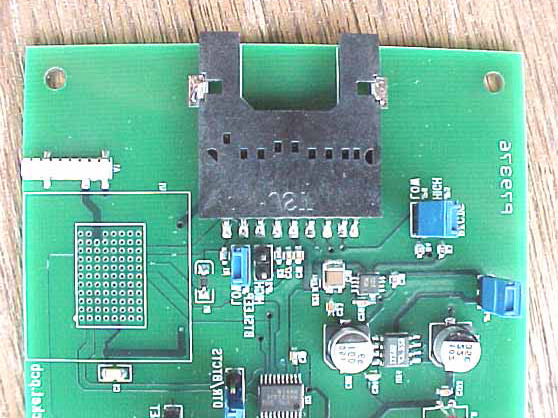

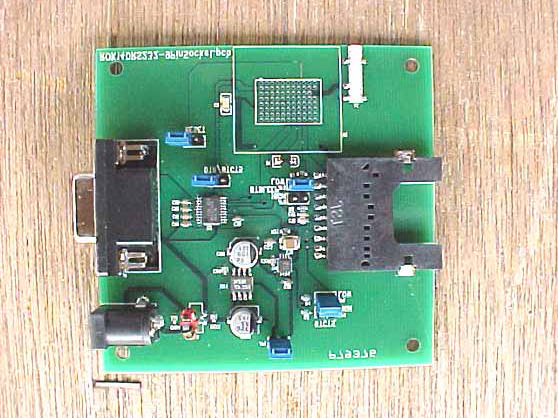

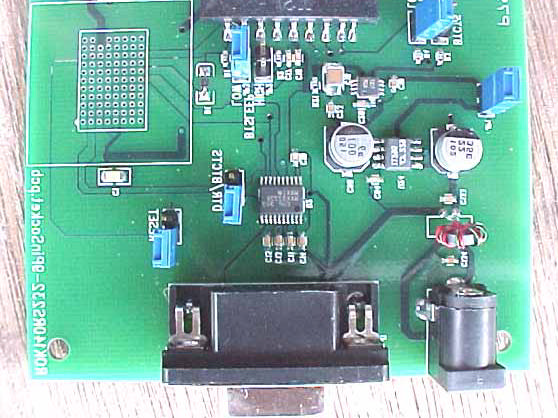

Report Number: B40305D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT260146 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 24 FCC PART 15, SUBPART B and C TEST REPORT for BLUETOOTH MODULE MODEL: BT260146 Prepared for O’NEIL PRODUCT DEVELOPMENT 8 MASON IRVINE, CALIFORNIA 92618-2705 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 22, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 24 2 2 2 17 53 100 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40305D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT260146 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 24 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. CHARACTERISTICS OF THE TRANSMITTER 15 7.1 Transmitter Power 15 7.2 Channel Number and Frequencies 15 7.3 Antenna Gain 15 8. TEST PROCEDURES 16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 17 8.3 20 dB Bandwidth 19 8.4 Peak Output Power 20 8.5 RF Antenna Conducted Test 20 8.6 RF Band Edges 21 8.7 Carrier Frequency Separation 21 8.8 Number of Hopping Frequencies 21 8.8 Average Time of Occupancy Test 22 8.9 Spectral Density Test 23 9. CONCLUSIONS 24 Report Number: B40305D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT260146 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 24 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: B40305D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT260146 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 24 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Bluetooth Module Model: BT260146 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: O’Neil Product Development 8 Mason I…

Text truncated - open the document above for the full version.
