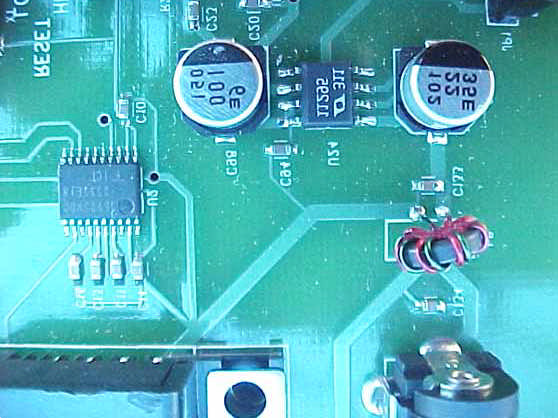

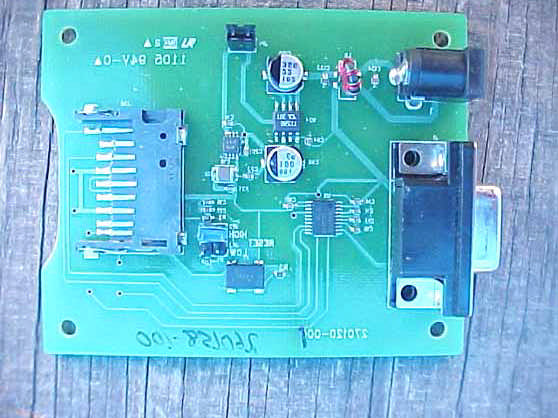

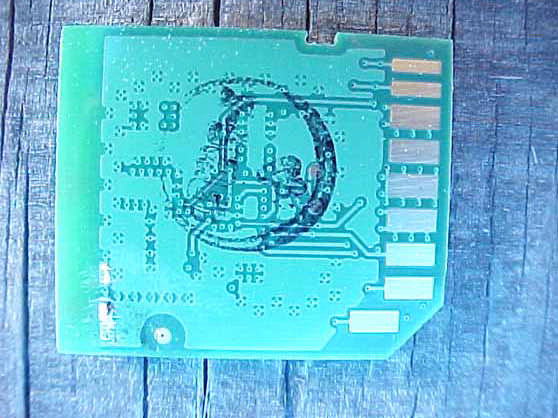

LGYBT261159Bluetooth Module

User's Guide OC-2 SERIES OF PRINTERS LP3.book Page 1 Wednesday, April 12, 2006 4:41 PM LP3.book Page 2 Wednesday, April 12, 2006 4:41 PM TA B L E O F C O N T E N T S OC-2 Printer Views 6 Front View 6 Back View 6 Right Side View 7 Left Side View 7 Setting Up Your Printer 8 Unpacking Your Printer 8 Installing Batteries 8 Removing Batteries9 Charging the Batteries9 Determining the Batteries' Condition 10 Loading Printable Media 11 Printing a Self-Test 13 Connecting the Printer 13 Installing a Data Cable13 Bluetooth and/or 802.11 b Parameters15 Configuring the Printer 15 Using the Belt Clip 16 Installing the Belt Clip 16 Removing the Belt Clip 16 Using the Control Panel 17 Audio Indicators 17 Battery Status LED 18 Power Button/LED 19 Media Function Button/LED 19 Radio Button/LED 20 Reset Button/LED 20 Using a CardReader 21 General Guidelines 21 LP3.book Page 3 Wednesday, April 12, 2006 4:41 PM TA B L E O F C O N T E N T S Using External Charging 22 Overview 22 Maintenance and Troubleshooting 23 Maintenance Guidelines 23 Preventative Maintenance 23 Troubleshooting 24 Help Desk 24 Supplies 25 For more information 25 LP3.book Page 4 Wednesday, April 12, 2006 4:41 PM LP3.book Page 5 Wednesday, April 12, 2006 4:41 PM OC-2 SERIES OF PRINTERS USER'S GUIDE 6 OC-2 Printer Views Front View Back View Figure X Figure X LP3.book Page 6 Wednesday, April 12, 2006 4:41 PM OC-2 PRINTER VIEWS 7 Right Side View Left Side View Figure X Figure X LP3.book Page 7 Wednesday, April 12, 2006 4:41 PM OC-2 SERIES OF PRINTERS USER'S GUIDE 8 Setting Up Your Printer Use the following information to set up your printer: •Unpacking Your Printer on page 8 •Installing Batteries on page 8 •Loading Printable Media on page 11 •Printing a Self-Test on page 13 •Connecting the Printer on page 13 •Configuring the Printer on page 15 In addition to the steps outlined in each section, additional information may be included if it applies to, or expands upon, the step being discussed. Unpacking Your Printer Before using the printer, remove all packaging material and inspect the printer for possible shipping damage. If the printer has been damaged: •Contact the shipping company and file a damage report. •Contact O’Neil Product Development, Inc. •Keep all shipping materials. Installing Batteries 1. Remove any packaging material (if applicable). 2. Position the battery with its contacts facing toward the battery cavity as shown in Figure X. Figure X Figure X LP3.book Page 8 Wednesday, April 12, 2006 4:41 PM SETTING UP YOUR PRINTER 9 3. Slide the battery into the battery cavity so that the edge of the battery hits the battery stop as shown in Figure X. The printer beeps one time when the first battery is installed. Do not force the battery into the battery cavity. When inserted properly, the battery easily slides and locks into place. If the battery does not easily slide into place, re- insert the battery. 4. Close the printer's cover. 5. Charge the batteries (batteries are shipped uncharged). For more information, see Charging the Batteries on page 9. Removing Batteries 1. Lift the battery up and out of the battery cavity while sliding it to the left (Figure X). 2. Remove the battery from the battery cavity. Charging the Batteries If the batteries are low when the printer turns on, the battery status LED displays red. For more information, see Using the Control Panel on page 17 . Perform the following procedure to charge the batteries: 1. Verify the battery is installed correctly. 2. Plug the AC adapter into the printer's power port (Figure X). Figure X LP3.book Page 9 Wednesday, April 12, 2006 4:41 PM OC-2 SERIES OF PRINTERS USER'S GUIDE 10 3. Plug the AC Adapter's power cord into an appropriate power source. 4. Charge the batteries. The Battery Status LED turns red while the batteries are charging and turns green when the batteries are fully charged. One complete charge takes 4 to 5 hours. Determining the Batteries' Condition The battery status LED displays the batteries' condition. When the battery status LED is solid red, the batteries must be charged; when solid orange, the batteries are at low power; when solid green, the batteries are charged. The batteries' voltage varies between 6.2 and 8.4 volts. For information on battery error conditions, see Using the Control Panel on page 17 . Power port Figure X Figure X LP3.book Page 10 Wednesday, April 12, 2006 4:41 PM SETTING UP YOUR PRINTER 11 Loading Printable Media Use the following procedure to load printable media: 1. Position the printer so that the O'Neil logo is facing you (Figure X). 2. Press and hold the printhead release button (Figure X). 3. Lift the printer's cover. 4. Place the paper roll between the metal paper roll holders as shown in Figure X. Make sure the paper exits “over” the roll and is firmly in place. 5. Unroll enough paper so that paper exits the printer (Figure X). Media Guidelines Media widthReceipt Paper: 2.25” Label Media: Roll capacity diameter Receipt Paper: 2.25” Label Media: Media typesReceipt paper media, thermal paper, hang tag stock. * Depending on the type of media used, you may need to configure your printer. For more information, see Configuring the Printer on page 15 . Figure X Figure X LP3.book Page 11 Wednesday, April 12, 2006 4:41 PM OC-2 SERIES OF PRINTERS USER'S GUIDE 12 6. Close the printer's printhead cover. The printer's printhead cover “snaps” into place when completely closed. 7. Verify the media exits straight. 8. Push the Media Function button one time to advance the media (Figure X). 9. At either edge of the printer's printhead cover are serrated corners. Tear the media by pulling up and away from the printer's (Figure X). Warning: The tear bar and printhead cover's surface may be hot and/or sharp. Use caution when handling the printhead and tear bar. Figure X Figure X Figure X Figure X Figure X LP3.book Page 12 Wednesday, April 12, 2006 4:41 PM SETTING UP YOUR PRINTER 13 Printing a Self-Test 1. Press and hold the power button for approx…

Text truncated - open the document above for the full version.

Subj:
Cellular Modems and Bluetooth
Date:
3/5/01 11:32:18 AM Pacific Standard Time
From: [email protected] (Frank Coperich) To: [email protected] CC: [email protected] (Joe Dichoso), [email protected] (Rich Fabina)
In response to your question(s) below: 3.) The Bluetooth approval procedures are listed below: BLUETOOTH APPROVALS For all devices, the following items, 1-12, are common to all Bluetooth devices and will not vary from one device to another. The list can be copied and pasted into the filing. 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don*t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 * 2480 MHZ. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it*s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behavior for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB*s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB*s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB*s (4 bits) (Input 1) and the 27 MSB*s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behavior for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHZ. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. Therefore all Bluetooth devices comply with the FCC dwell time require…

Text truncated - open the document above for the full version.

LW T ab c Inches0.374 ± .0080.079 ± .0080.047 + .004/ -.0080.053 ± .008 0.043 ± .0040.010 ± .004 mm9.5 ± 0.2 2.0 ± 0.21.2 + 0.1/- 0.21.35 ± 0.21.1 ± 0.10.25 ± 0.1 Terminal Configuration 1INPUT 2NC Mechanical Dimensions “High Frequency Ceramic Solutions” 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Input PowerImpedanceOperating Temperature RangeReel Qty 3 Watts max50 Ω-40 to +85°C1000 Part FrequencyPeak GainAve. GainReturn Number(MHz)(XZ-V)(XZ-V)Loss 2450AT45A100_2400 - 25003.0 dBi typ.1.0 dBi typ. 9.5 dB min. 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 1 of 3 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Mounting Considerations Mount these devices with brown colored side facing up. Line width should be designed to provide 50Ωimpedance matching characteristics. a) Without Matching Circuit (moderate bandwidth)b) With Matching Circuit* (wide bandwidth) *Matching circuit and component values will depend on PCB layout. “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 2 of 3 Test Board for Electrical Characteristic Measurements Typical Return Loss for P/N 2450AT45A100 a) Without Matching Circuitb) With Matching Circuit “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 3 of 3 Typical Radiation Patterns for P/N 2450AT45A100

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Monday, May 08, 2006 4:23 PM To: '[email protected]' Cc: '[email protected]' Subject: FCC ID: LGYBT261159 5/18/2006 Mr. Fujimoto: In order for processing of this application (FCC ID: LGYBT261159) to continue, the following issue(s) will have to be addressed: 1) There was no data sheet in the test report for spurious emissions below 1 GHz. Was this frequency range investigated? 2) The block diagram submitted is not sufficient. As per 2.1033(b)(5), it must show the frequency of all oscillators in the device, and indicate the signal path and frequency at each block, including any intermediate frequencies. 3) The operational description needs to be more specific to the actual usage of the device. A generic datasheet is not sufficient. 4) The user’s manual must contain the statement required by section 15.21 of the FCC rules. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is LGYBT261159-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Fax (714) 579-1850

Correspondence by Project Project Number: Correspondence NumberMemo LGYBT261159-1 1. The emissions were investigated from 10 kHz to 1000 MHz in Lab D. The test report has been revised to include this data sheet. 2. Please see the block diagram exhibit for more infromation. 3. Please see the additonal operational description in the exhibits. 4. Please see the revised owner's manual in the exhibits. -96102798

MPE Calculations For RF Exposure Requirements Bluetooth Module Model: BT261159 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (0.4943* 1.995) / (4 * 1 2 * π) S = 0.0784736126 mW/cm 2 (at 1 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) – 6.03 dBm G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (1 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 1 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (3 dBi/10) G = 1.995

Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 23 FCC PART 15, SUBPART B and C TEST REPORT for BLUETOOTH MODULE MODEL: BT261159 Prepared for O’NEIL PRODUCT DEVELOPMENT 8 MASON IRVINE, CALIFORNIA 92618-2705 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 21, 2006 REPORT APPENDICES TOTAL BODY A B C D E PAGES 23 2 2 2 17 78 124 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 23 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION of TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Transmitter Power 14 7.2 Channel Number and Frequencies 14 7.3 Antenna Gain 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.3 20 dB Bandwidth 18 8.4 Peak Output Power 19 8.5 RF Antenna Conducted Test 19 8.6 RF Band Edges 20 8.7 Carrier Frequency Separation 20 8.8 Number of Hopping Frequencies 20 8.8 Average Time of Occupancy Test 21 8.9 Spectral Density Test 22 9. CONCLUSIONS 23 Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 23 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 23 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Bluetooth Module Model: BT261159 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: O’Neil Product Development 8 Mason Irvine, California 92618-2705 Test Dates: April 7, 10, and 11, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 23 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 30 MHz – 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.209 3 Spurious Radiated RF Emissions, 10 kHz – 30 MHz and 1000 MHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) 4 Fundamental and Emissions…

Text truncated - open the document above for the full version.

Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page E1 APPENDIX E DATA SHEETS Report Number: B60411B1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Bluetooth Module Model: BT261159 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page E2 CONDUCTED EMISISONS DATA SHEETS COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 4/10/2006 15:16:52 Graph for Peak FCC Conducted EmissionsO'Neil Product DevelopmentBluetooth ModuleModel: BT261159 - 115 VACBlackLead LI-215 12090 9-1-05FCC Class B - Black Lead AMPLITUDE [dBuV] 102030405060708090 100110 0.15 30 1 10 FCC - Class B - Quasi-peak FCC - Class B - Average COMPATIBLE ELECTRONICS page 1/1 4/10/2006 15:16:52 O'Neil Product Development Bluetooth Module Model: BT261159 - 115 VAC FCC Class B - Black Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 13 highest peaks above -50.00 dB of FCC - Class B - Average limit line Peak criteria : 3.00 dB, Curve : Peak Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 0.51041.64 46.00 -4.36 2 0.25546.18 51.60 -5.41 3 1.78137.41 46.00 -8.59 4 1.02137.37 46.00 -8.63 518.72440.61 50.00 -9.39 622.07640.39 50.00 -9.61 720.82540.26 50.00 -9.74 819.95040.20 50.00 -9.80 9 1.27636.18 46.00 -9.82 10 2.29836.15 46.00 -9.85 1110.79238.02 50.00-11.98 1211.56137.77 50.00-12.23 13 9.16036.70 50.00-13.30 ------------------------------------------------- COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 4/10/2006 15:28:15 Graph for Peak FCC Conducted EmissionsO'Neil Product DevelopmentBluetooth ModuleModel: BT261159 - 115 VACWhiteLead LI-215 12090 9-1-05FCC Class B - White Lead AMPLITUDE [dBuV] 102030405060708090 100110 0.15 30 1 10 FCC - Class B - Quasi-peak FCC - Class B - Average COMPATIBLE ELECTRONICS page 1/1 4/10/2006 15:28:15 O'Neil Product Development Bluetooth Module Model: BT261159 - 115 VAC FCC Class B - White Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 18 highest peaks above -50.00 dB of FCC - Class B - Average limit line Peak criteria : 3.00 dB, Curve : Peak Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 0.50541.54 46.00 -4.46 2 0.25846.28 51.51 -5.22 3 1.02137.87 46.00 -8.13 419.03141.69 50.00 -8.31 522.31041.12 50.00 -8.88 620.05940.84 50.00 -9.16 7 1.53636.21 46.00 -9.79 8 4.36136.15 46.00 -9.85 9 0.61136.15 46.00 -9.85 1020.82540.10 50.00 -9.90 1115.97639.80 50.00-10.20 1217.47839.69 50.00-10.31 1311.94038.93 50.00-11.07 1415.22938.85 50.00-11.15 1513.19737.72 50.00-12.28 1610.79237.56 50.00-12.44 1729.85137.36 50.00-12.64 18 7.10036.56 50.00-13.44 ------------------------------------------------- COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 4/10/2006 15:50:20 Graph for Peak & Average FCC Conducted EmissionsO'Neil Product DevelopmentBluetooth ModuleModel: BT261159 - 230 VACBlackLead LI-215 12090 9-1-05FCC Class B - Black Lead AMPLITUDE [dBuV] 102030405060708090 100110 0.15 30 1 10 FCC - Class B - Quasi-peak FCC - Class B - Average COMPATIBLE ELECTRONICS page 1/1 4/10/2006 15:50:20 O'Neil Product Development Bluetooth Module Model: BT261159 - 230 VAC FCC Class B - Black Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 50 highest peaks above -50.00 dB of FCC - Class B - Average limit line Peak criteria : 1.00 dB, Curve : Peak Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 0.424 46.31 47.37 -1.06* 2 0.634 43.15 46.00 -2.85* 3 0.21147.80 53.18 -5.38 4 0.84438.96 46.00 -7.04 5 0.26343.18 51.33 -8.15 6 1.26237.48 46.00 -8.52 7 0.52437.44 46.00 -8.56 8 1.07236.97 46.00 -9.03 9 1.68036.81 46.00 -9.19 10 0.45937.22 46.71 -9.49 11 2.10036.43 46.00 -9.57 12 1.70836.41 46.00 -9.59 13 1.52836.30 46.00 -9.70 14 0.49436.34 46.09 -9.76 1520.93539.85 50.00-10.15 16 0.72435.65 46.00-10.35 17 3.76135.48 46.00-10.52 18 3.12435.42 46.00-10.58 19 0.88535.36 46.00-10.64 20 4.50435.33 46.00-10.67 21 1.87935.32 46.00-10.68 22 3.96635.30 46.00-10.70 23 2.78135.29 46.00-10.71 24 2.73635.29 46.00-10.71 25 2.50135.27 46.00-10.73 26 4.69635.24 46.00-10.76 27 1.95035.22 46.00-10.78 2821.49039.12 50.00-10.88 29 1.16035.08 46.00-10.92 30 3.64435.07 46.00-10.93 31 0.54435.04 46.00-10.96 32 3.27735.04 46.00-10.96 33 4.31635.02 46.00-10.98 3419.54139.02 50.00-10.98 35 1.13634.98 46.00-11.02 36 2.99534.91 46.00-11.09 37 0.78834.86 46.00-11.14 38 1.54434.80 46.00-11.20 39 3.92434.79 46.00-11.21 4020.27838.78 50.00-11.22 41 2.37134.76 46.00-11.24 42 0.60134.75 46.00-11.25 43 3.36534.74 46.00-11.26 4418.62238.70 50.00-11.30 45 3.49234.65 46.00-11.35 46 1.81034.61 46.00-11.39 47 2.63734.58 46.00-11.42 48 0.93934.56 46.00-11.44 49 0.91934.56 46.00-11.44 50 4.98034.56 46.00-11.44 -------------------------------------------------- *Please See the Average Readings on the Next Page and on the Plot COMPATIBLE ELECTRONICS page 1/1 4/10/2006 15:50:20 O'Neil Product Development Bluetooth Module Model: BT261159 - 230 VAC FCC Class B - Black Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 4 highest peaks above -50.00 dB of FCC - Class B - Average limit line Peak criteria : 0.00 dB, Curve : Average Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 0.42430.37 47.37-17.00 2 0.63427.69 46.00-18.31 3 0.64427.31 46.00-18.69 4 0.59822.84 46.00-23.16 ------------------------------------------------- COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 4/10/2006 15:40:51 Graph for Peak & Aver…
