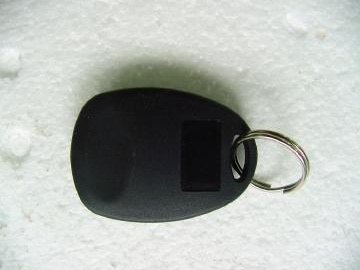

ETC Report No.:ET90R-04-014-01 Sheet 1 of 1 Sheets FCC ID.: LJL010301T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rear View of EUT

Proposed FCC ID Label Format Model :VS320GN “Complies with Canada RSS210 Genius Made in Taiwan FCC ID:LJL010301T

ETC Report No.:ET90R-04-014-01 Sheet 1 of 2 Sheets FCC ID.: LJL010301T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Internal View of EUT 4. Component View of Main Board ETC Report No.:ET90R-04-014-01 Sheet 2 of 2 Sheets FCC ID.: LJL010301T Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Solder View of Main Board


 !"#$%    &   & '
(
  &    & '
(


Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Vehicle Security (TX) FCC ID. : LJL010301T MODEL : VS320GN Working Frequency : 433.964MHz for APPLICANT : LITE-ON AUTOMOTIVE CORPORATION ADDRESS : 37, CHUNG YANG ROAD, N.E.P.Z. KAHOHSIUNG 811, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET90R-04-014-01 ETC Report No.:ET90R-04-014-01 FCC ID.: LJL010301T Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : LITE-ON AUTOMOTIVE CORPORATION 37, CHUNG YANG ROAD, N.E.P.Z. KAHOHSIUNG 811, TAIWAN, R.O.C. Manufacturer : LITE-ON AUTOMOTIVE CORPORATION 37, CHUNG YANG ROAD, N.E.P.Z. KAHOHSIUNG 811, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Vehicle Security (TX) b) Trade Name : ---- c) Model No. : VS320GN d) FCC ID : LJL010301T e) Working Frequency : 433.964MHz f) Power Supply : DC 3V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (1999) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Apr. 16, 2001 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90R-04-014-01 FCC ID.: LJL010301T Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT.............................................................................................................................5 3.1 APPLICABLE STANDARD.........................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................5 3.3 TEST DATA.................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION..........................................................................................................................................8 3.5 ACTIVATE TIME........................................................................................................................................................................8 3.6 CALCULATION OF DUTY FACTOR.........................................................................................................................................8 3.7 RADIATED TEST EQUIPMENT.................................................................................................................................................9 3.8 MEASURING INSTRUMENT SETUP.........................................................................................................................................9 3.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................................10 4. BANDWIDTH OF EMISSION...............................................................................................................................................11 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH............................................................................................11 4.2 BANDWIDTH TEST EQUIPMENT...........................................................................................................................................11 4.3 PLOT GRAPHIC OF BANDWIDTH..........................…
