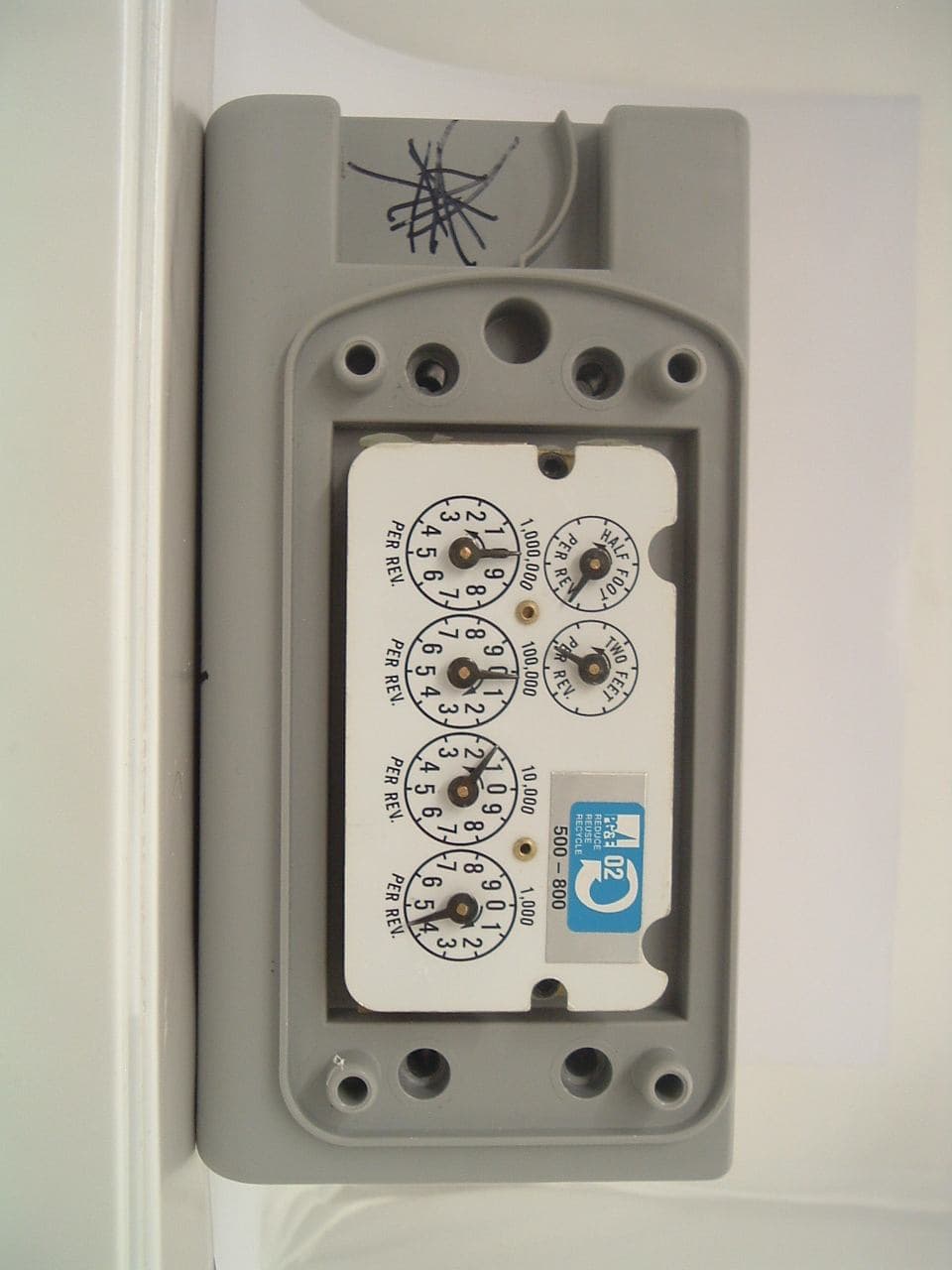

LLB10004X2LLB10004X2 METER TRANSCEIVER UNIT

Aclara Technologies LLC Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 05/15/2012 Users Manual FCC ID: LLB10004X2 The LLB10004X2 has no user adjustment or controls and are installed by factories trained personnel at the manufacturing facility .Aclara RF Systems formally Hexagram LLB10004X2 devices are shipped to the customer in the sealed LLB10004X2 enclosures. Thus, NO operational access can be made in the field, without breaking the factory sealed enclosure. The FCC wants you to know..... This equipment has been tested and complies with Part 15 and Part 90 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, try to correct the interference by one or more of the following measures: • Reorient or relocate the equipment. • Increase the separation distance between the affected equipment and receiver. • Consult Hexagram, Inc. for help. Any changes or modifications to this equipment not expressly approved by the Hexagram, Inc. could void the authorization to operate the equipment. FCC RF Exposure Guidelines Hexagram’s low power RF devices and their antennas must be fixed- mounted on indoor or outdoor permanent structure(s) providing a separation distance of at least 20 cm from all persons during normal operation. This device is not designed (and it has no external connection) to operate in conjunction with any other antennas or transmitters. No other operating instructions for satisfying RF exposure compliance are needed. This unit has no user or installer serviceable parts, and requires no field adjustment or calibration. Units are sealed at the factory, and disruption of this seal could void the authorization to operate the equipment. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

05/15/2012 Aclara Technologies LLC Former HEXAGRAM,Inc. Federal Communications Commission 30400 Solon Road. Office of Engineering and Technology Solon, OH 44139 Equipment Approval Services 440-528-7200 RE : Request for Confidentiality Attached Form 731 – Application FCC ID: LLB10004X2 Dear Sir or Madam: Aclara Technologies LLC, Former Hexagram Inc. does not wish to publicly disclose certain technical information which is enclosed with this application. This material contains critical trade secrets and we request that the Commission withhold this information from public inspection pursuant to the provisions of Section 0.457(d) and 0.459 of the Commissions Rules and Section 552(b) (4) of the Freedom of Information Act. MATERIAL TO BE HELD CONFIDENTIAL: File Name Description Pages LLB10004X2 Schematic.pdf Two pages LLB10004X2 Bill of Material Page 1.pdf, One page LLB10004X2 Bill of Material Page 2.pdf, One page LLB10004X2 Block Diagram.pdf, One page LLB10004X2 Operational Description.pdf, One page Aclara and its customers have a Master Agreement that states (paragraph 13): “Purchaser agrees that ACLARA’s drawings and data, processes, reports, technical data, detailed drawings, internal photographs and specifications, know how, technical information and other information furnished under this Agreement are confidential and shall be treated as confidential by Purchaser and its employees, as Agents and Representatives.” The LLB10004X2 device is permanently sealed. Sealing procedure is included. Opening the MTU cannot be performed without cutting the sealed unit, resulting in PCB fracture and dislodging of ICs along with other components. This will result in product failure. The indicators of destruction caused by opening the enclosure are visual. The seal that forms is sufficiently strong to prevent the seal being broken by hand; mechanical means (band saw, hot knife, etc.) are typical necessary. Any attempt made to destroy the sealing and view the contents would cause destruction and the device would not operate in the environment if it were to be opened. The above listed materials are confidential and are not available to the public or end user. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

Page 1 of 14 Master Agr-rev06.22.11 MASTER AGREEMENT This Master Agreement is made and entered into as of the ___ day of _____, 201_ (the “Effective Date) by and between: Aclara RF Systems Inc. an Ohio corporation 30400 Solon Road Solon, OH 44139 (Referred to herein as “ACLARA”) and (Referred to herein as (“Purchaser”) Collectively, ACLARA and Purchaser may be referred to as “Parties.” Whereas, ACLARA has developed a proprietary Radio Frequency (RF) communication system comprised of equipment and software (the “STAR® Network System”) that provides for communication with electric, gas and water meters and other devices; and Whereas, Purchaser desires to acquire from ACLARA a STAR Network System to be utilized by Purchaser for the automated meter reading of residential, industrial and commercial meters and for other purposes; Now, Therefore, in consideration of the mutual covenants set forth herein, and intending to be legally bound, the Parties agree as follows: 1. Definitions. The following words and phrases shall have the following meanings for the purposes of this Master Agreement. a) “Master Agreement” means this document and the following Exhibits all of which are attached hereto and made a part hereof, and any amendments, modifications or supplements thereto or attachments incorporated therein: i) Exhibit A—List of Deliverables and Pricing ii) Exhibit B—Software License Agreement iii) Exhibit C—Warranties b) “Deliverables” mean the Equipment, Software License and Services listed on Exhibit A—List of Deliverables and Pricing. Page 2 of 14 Master Agr-rev06.22.11 c) “Commercially Reasonable Efforts” means taking all such steps and performing in such a manner as a well managed company would undertake where it was acting in a determined, prudent and reasonable manner. . d) “Contract Manufacturers” means those entities that manufacture proprietary ACLARA designed equipment. e) “ACLARA Licensed Software” shall have the meaning as it is defined in Exhibit B—Software License Agreement. f) “ACLARA Personnel” means all employees of ACLARA, ACLARA’s subcontractors and their employees, or any other personnel assigned by ACLARA to provide work pursuant to this Master Agreement. ACLARA Personnel shall not include any Purchaser Personnel. g) “Delivery” means, in the case of Equipment purchased hereunder, the loading of the equipment on the means of transport of the carrier selected by ACLARA pursuant to Article 9, below. ”Delivery” means, in the case of Services provided hereunder, the periodic performance of such Services as described herein. h) “Equipment” means that equipment described on Exhibit B—List of Deliverables, Pricing and Delivery Dates that is manufactured by ACLARA or by a Contract Manufacturer. “Equipment” shall not include equipment manufactured by a third party not a Contract Manufacturer, purchased by ACLARA and re-sold pursuant to this Master Agreement. i) “Project Schedule” shall mean the schedule developed in accordance with Article 3, below. j) “Purchaser Personnel” means all employees of Purchaser, Purchaser’s subcontractors and their employees, or any other persons or entities assigned by Purchaser to provide materials, services or labor in furtherance of Purchaser’s installation, deployment and use of Purchaser’s STAR Network System. Purchaser Personnel shall not include any ACLARA Personnel. k) “Services” shall mean those services to be performed by ACLARA as described in herein. l) “Third Party Licensed Software” shall have the meaning as it is defined in Exhibit B—Software License Agreement. Page 3 of 14 Master Agr-rev06.22.11 m) “Work” means all obligations, duties and responsibilities of the Parties necessary to be performed by them in order to accomplish all of their respective obligations under this Master Agreement. 2. Work. Upon the effective date of this Master Agreement, ACLARA shall provide all necessary equipment, software, management, supervision, materials, tools, supplies, facilities and resources necessary to perform its Work in accordance with the terms of this Master Agreement. Upon the effective date of this Master Agreement, Purchaser shall provide all necessary management, supervision, resources and materials required (but not to be supplied by ACLARA hereunder) to perform its Work in accordance with the terms of this Master Agreement. 3. Project Schedule. ACLARA and Purchaser shall meet as expeditiously as possible after the execution of this Agreement to discuss the Start Up Checklist or Project Schedule and related matters (“the kickoff meeting”). Program Managers from ACLARA and Purchaser are responsible for monitoring the Start Up Checklist or Project Schedule so that the delivery dates shown on Exhibit B are met. 4. Term. The term of this Master Agreement shall become effective on the date first above written and shall continue in full force and effect (unless earlier terminated in accordance with this Master Agreement) for a period of ___ months. The Work shall be substantially accomplished within this period unless the Parties agree to an extension of the term of this Master Agreement. Notwithstanding such termination, certain rights and obligations arising under this Master Agreement, including, but not limited to, those contained in Exhibit C—Software License Agreement shall survive the termination of this Master Agreement. The term of this Master Agreement may be extended by mutual agreement of the Parties. The Parties acknowledge that Purchaser may desire to purchase additional equipment following the Expiration of this Agreement. In such case, any such purchases shall be at such prices and delivery shall occur on such dates as the Parties may then agree. All other terms and conditions contained in this Master Agreement shall apply to such Purchases. 5. Time for Performance. a) ACLARA shall use Commercially Reasonable Efforts to deliver the Equipment and Software and provide the Services within the times set forth on Exhibit A. Purchaser u…

Text truncated - open the document above for the full version.

.75 .25 NOTES: 1) MATERIAL: 4 MIL PRINTABLE POLYESTER/HIGH STRENGTH ACRYLIC SOLVENT ADHESIVE (AVERY) FASSON SPEC #72828 OR EQUIVALENT 2) BACKGROUND COLOR TO BE PANTONE 429 GRAY 3) TEXT TO BE MINIMUM OF 0.06" HIGH 4) TEXT COLOR TO BE BLACK D C B A A B C D SCALE: SIZE CAD FILE: DWG. NO. B SHEET1OF1 REV. DATE APPROVALS DRAWN CHECKED RESP ENG MFG ENG QUAL ENG UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES MATERIAL FINISH DO NOT SCALE DRAWING APPLICATION USED ONNEXT ASSY 123 456 7 8 8 7 6 5 4 32 1 REVISIONS REV. DATE APPROVED SEE NOTES .XX=.010 .XXX= .005 .XXXX= .0005 1/2 1/64 DJG05/04/12 091-LLB10004X2 4:1 091-LLB10004X2 N/A A 05/04/12 DESCRIPTION A BY DJG 05/04/12DJG DJG05/04/12 INITIAL RELEASE LABEL, FCC ID, LLB10004X2 DJG THE WRITTEN PERMISSION OF ACLARA RF SYSTEMS INC. IS PROHIBITED. ACLARA RF SYSTEMS INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF (C) 2011 ACLARA RF SYSTEMS INC. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.

Aclara Technologies LLC Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 05 15 2012 Field Calibration and Tune-Up Procedure FCC ID: LLB10004X2 Aclara Technologies LLC, Formerly Hexagram’s low power RF devices have passed through extensive testing and calibration Procedures while in the factory. We test the LLB10004X2 units in production at the customer operating frequency of 467.3125MHz and measure the conducted power at 30 dBm with +/- 1.5 dB tolerance. The transmit power level is fixed and is set using a software setting in the Transceiver. The Hexagram’s low power RF devices are shipped to the customer in the sealed enclosures. Therefore, no additional calibration, tuning is required in the field. No adjustments can be made in the field, without breaking the factory sealed enclosure. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

Aclara Technologies LLC Former HEXAGRAM Inc. 30400 Solon Road . Solon, OH 44139 440-528-7200 05/15/2012 LLB10004X2 RF Exposure calculations Based on FCC 1.1307 & 2.1091, FCC OET Bulletin 65. (1) Categorically Exclusion from RF exposure Evaluation: According to FCC regulations, RF exposure evaluation is Categorically Excluded if transmitter’s operation frequency is less than 1.5 GHz and ERP is less than 1.5 watt. (2) Absolute Maximum specifications of LLB10004X2 transmitter • Operational frequency band 450 MHz to 470 MHz. • The LLB10004X2 transmitter is measured for Max RF Power = 0.661 W. • Absolute Maximum transmission time (duration) for any Hexagram transmitters does not exceed 100 mS (0.10second). • Transmission period – Absolute maximum is 4 transmissions per hour. • All Hexagram Transmitters utilize FSK modulation. (3) Average RF Power Calculation: FCC regulations on permissible RF exposure are not based on peak envelope power (PEP), but on average power (P_ave) over a 30-minute time period for uncontrolled environments. As mentioned in (2), during any 30 minute Hexagram MTU can transmit only two times. Duration = 0.10 second. With maximum RF radiation equal to 0.661 W, the Average RF Power over 30 minutes is: P_ave (worst case) at 30 minute = 0.661W*30* [0.10sec/((30*60)sec)] = 0.661*30* 0.000055 = 1.1mW (4) Maximum Radiated Power Density prediction (S): To predict power density (S) at distance R=20 cm from transmitter with P_ave = 0.00007W, next formula is used: S = P_ave/(4*(PI)*R^2) For the worst of the worst worst-case prediction of power density at or near a transmitter surface let’s use: S = P_ave/((PI)*R^2) = 1.1 mW/(4*3.14*20cm*20cm) = 0.217uW/cm^2. This is the worst case of the near field power density of LLB10004X2 transmitter. (5) Maximum Permissible Exposure (MPE): AS FCC require, the maximum permissible exposure for general public in “uncontrolled situation” at 20 cm is: MPE = 460MHz/1500 = 1.228 mW/cm^2. By comparing results in (4) and (5), S=0.217uW/cm^2 < MPE=1.228 mW/cm^2. We see that LLB10004X2 fully complies with RF safety at a distance of 20 cm. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

James R. Pollock 30400 Solon Road Solon Ohio 44139 (440)528-7200 ENGINEERING TEST REPORT RADIO-FREQUENCY EMISSIONS TEST REPORT FOR HIGH READ-RATE GAS METER TRANSMITTING UNIT Model 2010-004X2 FCC ID: LLB10004X2 May 4, 2012 Report Prepared by Agency Certification Control Technician ACLARA TECHNOLOGIES LLC LLB10004X2 2 TEST REPORT INTRODUCTION The Aclara Model 2010-004X2 transceiver is a “Meter Transmitting Unit” (MTU) designed to provide remote meter reading capability for a gas meter. The transceiver is self- powered and mounts directly on a gas meter. On board batteries provide power. The transmitter provides a very short, intermittent radio frequency transmission to send a remote reading of the meter to a data collector unit. A microprocessor provides timing, control and data processing functions. The internal antenna is inaccessible to the user and no external antenna is provided. Two prototype units were used as a test subjects for this report. The unit used for each test is identified under the test procedure. This report presents the data obtained in support of an application for Certification under Part 90 of the FCC rules and RSS-119-iss11 of Industry Canada. MEASUREMENTS PERFORMED Low Frequency Emissions Page 3 Power Output and Spurious Emissions Page 4 with test set up photographs Occupied Bandwidth Page 11 Frequency Stability vs. Temperature Page 13 Frequency Stability vs. Supply Voltage Page 14 Transient Stability Page 16 Test Information Page 20 LLB10004X2 3 LOW FREQUENCY EMISSIONS Low frequency emissions were examined from 9 kHz to 330 MHz using an active loop antenna and a biconical antenna. Non-harmonic emissions above 330 MHz to 1000 MHz were determined with tuned dipoles. All emissions observed between 9 kHz and 1 GHz, other than the harmonics of the transmitter were determined to be more than 20 dB below the limit levels for spurious emissions of Part 90.210 and RSS-119. TEST EQUIPMENT USED Spectrum Analyzer Tektronix Model WCA 280A SN: J300168 Cal Due: 4/26/2012 Antennas AH Systems Model SAS-563B Active Loop SN::424 Frequency Range 1 kHz – 30 MHz Cal Date: 2/21/2012 Cal Due: 2/21/2013 AH Systems Model FCC-4 Tuned Dipole SN: 592A Frequency Range 325 – 1000 MHz Cal Date: 8/19/2011 Cal Due: 8/19/2012 AH Systems Model SAS-540 Biconical SN: 705 Frequency Range 20 MHz – 330 MHz Cal Date: 9/23/2011 Cal Due: 9/23/2012 Tests Performed: April 2, 2012 Unit Tested: 2010-004X2 SN: 80003148 LLB10004X2 4 POWER OUTPUT AND SPURIOUS EMISSIONS Within the tuning range of 450 – 470 MHz, the transmitter portion of the Model 2010- 004X2 (EUT) was examined at three fundamental frequencies and their harmonics. All measurements below 1 GHz were made at a 3-meter distance on the Smith Electronics open area test site located at 8200 Snowville Road, Brecksville, OH. Data pertinent to this site is on file with the FCC (Reg. #90938) and Industry Canada (Site# 4541A-1). The harmonic measurements above 1 GHz were made at a distance of 1 meter over a suitable ground plane. The measurements were made using the substitution method described in TIA/EIA-603-C. Tuned dipoles were used for measurements below 1000 MHz and a wave-guide antenna was used above 1000 MHz. A spectrum analyzer was used as a receiver. The transmitter was placed on a remotely rotatable, non-conducting test stand. This general set up is shown in Pictorial 1. Because of the intermittent nature of the normally operating transmitter, the transmitter was forced to transmit continuously with a 30 seconds on and 30 seconds off cycle for these measurements. Power to the meter necessary to sustain the transmission was provided by an external 6 V battery. With the transmitter powered and the test receiver tuned to the unmodulated signal, the transmitter under test was rotated to the position of maximum signal. The receiving antenna was then varied between 1 and 4 meters in height to again maximize the signal. Measurements were made with the antennas positioned both vertically and horizontally and the maximum signals recorded. Peak detection was used for the signals below 1000 MHz and average detection above 1000 MHz. After the maximum received meter readings were obtained for each frequency and polarity, the transmitter under test was removed from the area and replaced by a signal generator and transmitting antenna. With the transmit antenna placed as close as possible to the position of the test unit, the signal generator was activated at a test frequency. With the signal detected, the receiving antenna was positioned for maximum reception. The signal generator output was then adjusted until the received signal was equal to the previously received signal from the unit under test. These measurements were repeated for each frequency and antenna orientation and the maximum values obtained are noted in Tables 1a – 1c. In order to convert the signal generator output value to equivalent radiated power from a dipole, the following equation is used: P d = P g – cable loss(dB) + antenna gain(dB d ) where: P d is the dipole equivalent power in dBm, P g is the generator output into the substitution antenna, also in dBm, and “antenna gain” is the dB gain of the substitution antenna with respect to a theoretical dipole. According to 90.210(d)(3) all emissions greater than 12.5 kHz from the center of the authorized band shall be attenuated below the unmodulated carrier by 50 + 10log(P). The determined power outputs, the required harmonic attenuation as well as the attenuation for each harmonic are found in Tables 1a – 1c. LLB10004X2 5 PICTORIAL 1 ACLARA MODEL 2010-004X2 MTU OUTPUT POWER AND SPURIOUS EMISSIONS TYPICAL TEST SETUP LLB10004X2 6 PICTORIAL 2 ACLARA MODEL 2010-004X2 MTU OUTPUT POWER AND SPURIOUS EMISSIONS TYPICAL TEST SETUP EUT 2010-004X2 Meter Head External Battery LLB10004X2 7 TABLE 1a ACLARA MODEL 2010-004X2 TRANSMITTER SUBSTITUTION METHOD 450 MHz Horizontal 3 meter measurement using tuned dipole antenna Freq. (MHz) Gen. Output (dB) Coax Loss (…

Text truncated - open the document above for the full version.

LLB10004X2 Test Setup Photos
