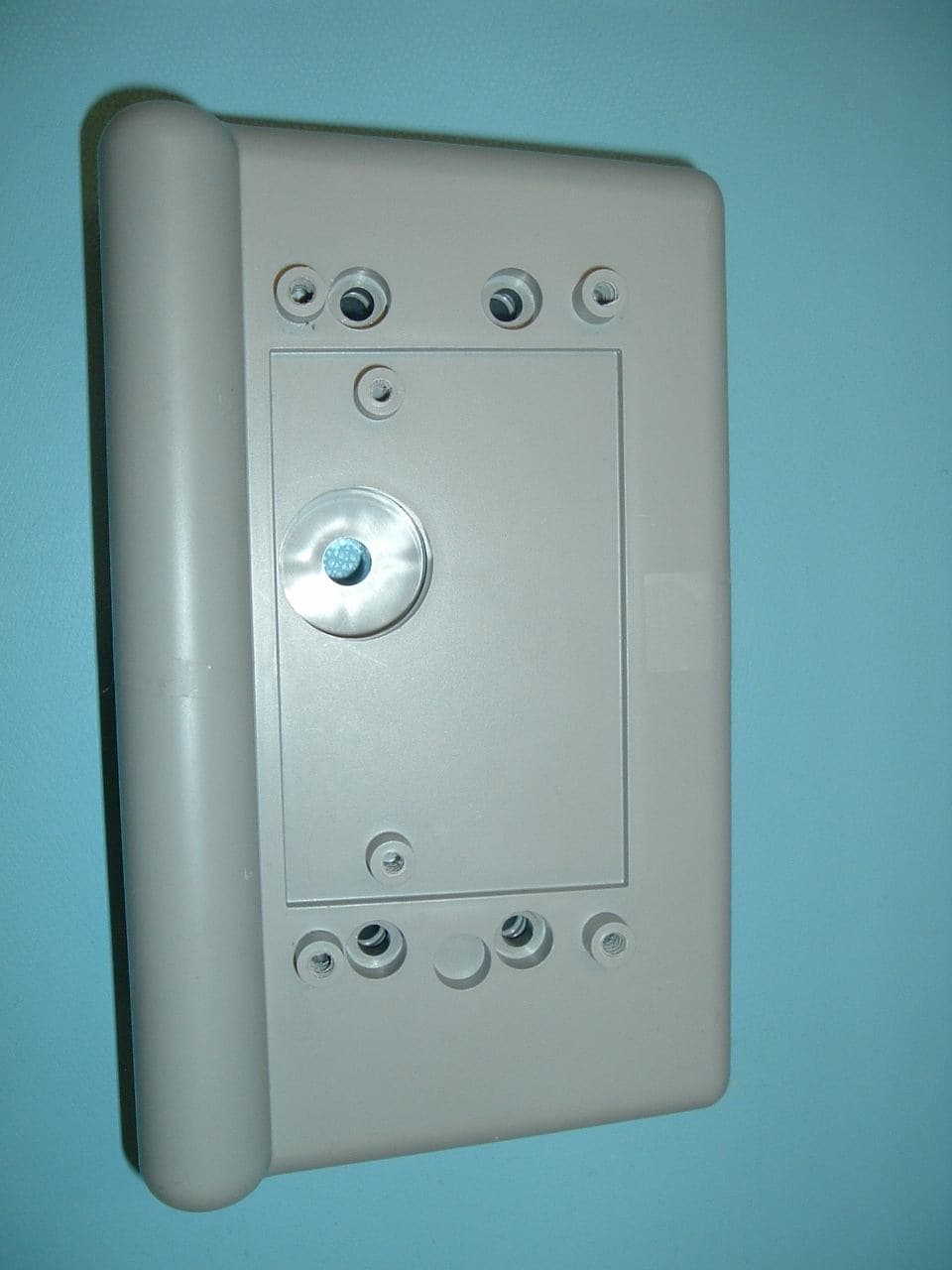

LLB11005SLLB11005S METER TRANSCEIVER UNIT

Aclara Technologies LLC Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 03/28/12 Users Manual FCC ID: LLB11005S The LLB11005S has no user adjustment or controls and are installed by factories trained personnel at the manufacturing facility .Aclara RF Systems formally Hexagram LLB11005S devices are shipped to the customer in the sealed LLB11005S enclosures. Thus, NO operational access can be made in the field, without breaking the factory sealed enclosure. The FCC wants you to know..... This equipment has been tested and complies with Part 15 and Part 90 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, try to correct the interference by one or more of the following measures: • Reorient or relocate the equipment. • Increase the separation distance between the affected equipment and receiver. • Consult Hexagram, Inc. for help. Any changes or modifications to this equipment not expressly approved by the Hexagram, Inc. could void the authorization to operate the equipment. FCC RF Exposure Guidelines Hexagram’s low power RF devices and their antennas must be fixed- mounted on indoor or outdoor permanent structure(s) providing a separation distance of at least 20 cm from all persons during normal operation. This device is not designed (and it has no external connection) to operate in conjunction with any other antennas or transmitters. No other operating instructions for satisfying RF exposure compliance are needed. This unit has no user or installer serviceable parts, and requires no field adjustment or calibration. Units are sealed at the factory, and disruption of this seal could void the authorization to operate the equipment. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

Page 1 of 14 Master Agr-rev06.22.11 MASTER AGREEMENT This Master Agreement is made and entered into as of the ___ day of _____, 201_ (the “Effective Date) by and between: Aclara RF Systems Inc. an Ohio corporation 30400 Solon Road Solon, OH 44139 (Referred to herein as “ACLARA”) and (Referred to herein as (“Purchaser”) Collectively, ACLARA and Purchaser may be referred to as “Parties.” Whereas, ACLARA has developed a proprietary Radio Frequency (RF) communication system comprised of equipment and software (the “STAR® Network System”) that provides for communication with electric, gas and water meters and other devices; and Whereas, Purchaser desires to acquire from ACLARA a STAR Network System to be utilized by Purchaser for the automated meter reading of residential, industrial and commercial meters and for other purposes; Now, Therefore, in consideration of the mutual covenants set forth herein, and intending to be legally bound, the Parties agree as follows: 1. Definitions. The following words and phrases shall have the following meanings for the purposes of this Master Agreement. a) “Master Agreement” means this document and the following Exhibits all of which are attached hereto and made a part hereof, and any amendments, modifications or supplements thereto or attachments incorporated therein: i) Exhibit A—List of Deliverables and Pricing ii) Exhibit B—Software License Agreement iii) Exhibit C—Warranties b) “Deliverables” mean the Equipment, Software License and Services listed on Exhibit A—List of Deliverables and Pricing. Page 2 of 14 Master Agr-rev06.22.11 c) “Commercially Reasonable Efforts” means taking all such steps and performing in such a manner as a well managed company would undertake where it was acting in a determined, prudent and reasonable manner. . d) “Contract Manufacturers” means those entities that manufacture proprietary ACLARA designed equipment. e) “ACLARA Licensed Software” shall have the meaning as it is defined in Exhibit B—Software License Agreement. f) “ACLARA Personnel” means all employees of ACLARA, ACLARA’s subcontractors and their employees, or any other personnel assigned by ACLARA to provide work pursuant to this Master Agreement. ACLARA Personnel shall not include any Purchaser Personnel. g) “Delivery” means, in the case of Equipment purchased hereunder, the loading of the equipment on the means of transport of the carrier selected by ACLARA pursuant to Article 9, below. ”Delivery” means, in the case of Services provided hereunder, the periodic performance of such Services as described herein. h) “Equipment” means that equipment described on Exhibit B—List of Deliverables, Pricing and Delivery Dates that is manufactured by ACLARA or by a Contract Manufacturer. “Equipment” shall not include equipment manufactured by a third party not a Contract Manufacturer, purchased by ACLARA and re-sold pursuant to this Master Agreement. i) “Project Schedule” shall mean the schedule developed in accordance with Article 3, below. j) “Purchaser Personnel” means all employees of Purchaser, Purchaser’s subcontractors and their employees, or any other persons or entities assigned by Purchaser to provide materials, services or labor in furtherance of Purchaser’s installation, deployment and use of Purchaser’s STAR Network System. Purchaser Personnel shall not include any ACLARA Personnel. k) “Services” shall mean those services to be performed by ACLARA as described in herein. l) “Third Party Licensed Software” shall have the meaning as it is defined in Exhibit B—Software License Agreement. Page 3 of 14 Master Agr-rev06.22.11 m) “Work” means all obligations, duties and responsibilities of the Parties necessary to be performed by them in order to accomplish all of their respective obligations under this Master Agreement. 2. Work. Upon the effective date of this Master Agreement, ACLARA shall provide all necessary equipment, software, management, supervision, materials, tools, supplies, facilities and resources necessary to perform its Work in accordance with the terms of this Master Agreement. Upon the effective date of this Master Agreement, Purchaser shall provide all necessary management, supervision, resources and materials required (but not to be supplied by ACLARA hereunder) to perform its Work in accordance with the terms of this Master Agreement. 3. Project Schedule. ACLARA and Purchaser shall meet as expeditiously as possible after the execution of this Agreement to discuss the Start Up Checklist or Project Schedule and related matters (“the kickoff meeting”). Program Managers from ACLARA and Purchaser are responsible for monitoring the Start Up Checklist or Project Schedule so that the delivery dates shown on Exhibit B are met. 4. Term. The term of this Master Agreement shall become effective on the date first above written and shall continue in full force and effect (unless earlier terminated in accordance with this Master Agreement) for a period of ___ months. The Work shall be substantially accomplished within this period unless the Parties agree to an extension of the term of this Master Agreement. Notwithstanding such termination, certain rights and obligations arising under this Master Agreement, including, but not limited to, those contained in Exhibit C—Software License Agreement shall survive the termination of this Master Agreement. The term of this Master Agreement may be extended by mutual agreement of the Parties. The Parties acknowledge that Purchaser may desire to purchase additional equipment following the Expiration of this Agreement. In such case, any such purchases shall be at such prices and delivery shall occur on such dates as the Parties may then agree. All other terms and conditions contained in this Master Agreement shall apply to such Purchases. 5. Time for Performance. a) ACLARA shall use Commercially Reasonable Efforts to deliver the Equipment and Software and provide the Services within the times set forth on Exhibit A. Purchaser u…

Text truncated - open the document above for the full version.

.XX= 03/28/12 .0005 1/2 ECO 11### - INITIAL RELEASE D C B A A B C D SIZE SCALE: CAD FILE: DWG. NO. 1 SHEET 1 REV. DATE APPROVALS DRAWN CHECKEDRESP ENG MFG ENGQUAL ENG UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES MATERIAL FINISH DO NOT SCALE DRAWING APPLICATION USED ON NEXT ASSY 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 B DJG LABEL, FCC ID, LLB11005S DJG REV. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF .010 THE WRITTEN PERMISSION OF ACLARA RF SYSTEMS INC . IS PROHIBITED. DATE ACLARA RF SYSTEMS INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT OF .XXX= SEE NOTES REVISIONS .005 091-LLB11005S N/A .XXXX= 1/64 DJG 4:1 03/28/12 A 11/21/11 APPROVED 091-LLB11005S A DESCRIPTION DJG BY DJG 03/28/12 (C) 2011 ACLARA RF SYSTEMS INC. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL. P R E L I M I N A R Y 0 3 / 2 8 / 1 2 NOTES:1) MATERIAL: 4 MIL PRINTABLE POLYESTER/HIGH STRENGTH ACRYLIC SOLVENT ADHESIVE(AVERY) FASSON SPEC #72828 OR EQUIVALENT 2) BACKGROUND COLOR TO BE PANTONE 429 GRAY3) TEXT TO BE MINIMUM OF 0.06" HIGH4) TEXT COLOR TO BE BLACK .75 .25

Aclara Technologies LLC Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 Mar. 28, 2012 Field Calibration and Tune-Up Procedure FCC ID: LLB11005S Aclara Technologies LLC, Formerly Hexagram’s low power RF devices have passed through extensive testing and calibration Procedures while in the factory. We test the LLB11005S units in production at the customer operating frequency of 467.3125MHz and measure the conducted power at 25.6 dBm with +/- 1.5 dB tolerance. The transmit power level is fixed and is set using a software setting in the Transceiver. The Hexagram’s low power RF devices are shipped to the customer in the sealed enclosures. Therefore, no additional calibration, tuning is required in the field. No adjustments can be made in the field, without breaking the factory sealed enclosure. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

Aclara Technologies LLC Former HEXAGRAM Inc. 30400 Solon Road . Solon, OH 44139 440-528-7200 03/28/2012 LLB11005S RF Exposure calculations Based on FCC 1.1307 & 2.1091, FCC OET Bulletin 65. (1) Categorically Exclusion from RF exposure Evaluation: According to FCC regulations, RF exposure evaluation is Categorically Excluded if transmitter’s operation frequency is less than 1.5 GHz and ERP is less than 1.5 watt. (2) Absolute Maximum specifications of LLB11005S transmitter • Operational frequency band 450 MHz to 470 MHz. • The LLB11005S transmitter is measured for Max RF Power = 0.224 W. • Absolute Maximum transmission time (duration) for any Hexagram transmitters does not exceed 100 mS (0.10second). • Transmission period – Absolute maximum is 4 transmissions per hour. • All Hexagram Transmitters utilize FSK modulation. (3) Average RF Power Calculation: FCC regulations on permissible RF exposure are not based on peak envelope power (PEP), but on average power (P_ave) over a 30-minute time period for uncontrolled environments. As mentioned in (2), during any 30 minute Hexagram MTU can transmit only two times. Duration = 0.10 second. With maximum RF radiation equal to 0.224 W, the Average RF Power over 30 minutes is: P_ave (worst case) at 30 minute = 0.224W*30* [0.10sec/((30*60)sec)] = 0.224*30* 0.000055 = 0.36mW (4) Maximum Radiated Power Density prediction (S): To predict power density (S) at distance R=20 cm from transmitter with P_ave = 0.00007W, next formula is used: S = P_ave/(4*(PI)*R^2) For the worst of the worst worst-case prediction of power density at or near a transmitter surface let’s use: S = P_ave/((PI)*R^2) = 0.36 mW/(4*3.14*20cm*20cm) = 71uW/cm^2. This is the worst case of the near field power density of LLB11005S transmitter. (5) Maximum Permissible Exposure (MPE): AS FCC require, the maximum permissible exposure for general public in “uncontrolled situation” at 20 cm is: MPE = 460MHz/1500 = 1.228 mW/cm^2. By comparing results in (4) and (5), S=71uW/cm^2 < MPE=1.228 mW/cm^2. We see that LLB11005S fully complies with RF safety at a distance of 20 cm. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

James R. Pollock 30400 Solon Road Solon Ohio 44139 (440)528-7200 ENGINEERING TEST REPORT RADIO-FREQUENCY EMISSIONS TEST REPORT FOR HIGH READ-RATE GAS METER TRANSMITTING UNIT OCCUPIED BANDWIDTH TRANSIENT BEHAVIOR Model 2011-005, Rev. C FCC ID: LLB11005S March 28, 2012 Report Prepared by Agency Certification Control Technician ACLARA TECHNOLOGIES LLC 2 TEST REPORT INTRODUCTION The Aclara Model 2011-005 transceiver is a “Meter Transmitting Unit” (MTU) designed to provide remote meter reading capability for a gas meter. The transceiver is self-powered and mounts directly on a gas meter. On board batteries provide power. The transmitter provides a very short, intermittent radio frequency transmission to send a remote reading of the meter to a data collector unit. A microprocessor provides timing, control and data processing functions. The internal antenna is inaccessible to the user and no external antenna is provided. Two identical units were used as a test subjects for this report. The unit used for each test is identified under the test procedure. This report presents the data obtained in support of an application for Certification under Part 90 of the FCC rules. MEASUREMENTS PERFORMED Occupied Bandwdth Page 3 Transient Behavior Page 5 3 OCCUPIED BANDWIDTH The emissions close to the center of the specified channel are limited by the emissions masks described in 90.210. For the frequency range of the 2011-005 transmitter, Mask D is specified. From the center frequency of the band ±5.625 kHz, 0 dB of attenuation is required. From 5.625 kHz to 12.5 kHz from the center frequency, attenuation must be at least 7.27(f d – 2.88 kHz) dB, where f d is the displacement frequency from the center of the band in kHz. At more than 12.5 kHz from the band center, the attenuation must be 70 dB or 50 + 10 log(P), whichever is less. The maximum dipole equivalent power was determined to be 23.5 dBm or 0.224 W and 50 + 10 log(0.224) equals 43.5 dB. The mask measurement was a conducted measurement, and as seen in Fig. 1, the measured output power was 25.1 dBm so the maximum allowed is shown on the plot as -20 dBm or 45.1 dB below the measured level. Both modulated and unmodulated transmissions were stored on the spectrum analyzer display. The plot of Fig. 1 shows both signals with Mask D superimposed on the plot. The plot indicates that the modulated emission does comply with the requirement for occupied bandwidth as found in 90.210. For purposes of this test, the modulated signal was PN9 modulated at the specified 7200 bits per second data rate. Fig. 1 Hexagram Model 2011-005 Emissions Mask -20.0 dBm 4 TEST EQUIPMENT USED Spectrum Analyzer Tektronix Model WCA 280A SN: J300168 Cal Due: 4/26/2012 Antenna Direct Measurement Test Performed March 28. 2012 Unit Tested: 2011-005 Rev. C SN: 80003090 5 TRANSIENT STABILITY The transient stability measurements indicate the variation in tuned frequency during the brief interval of time during the start of the transmission and at the end of the transmission. The Model 2011-005 transmitter was tested for transient frequency behavior using the test method of TIA/EIA-603-C. A block diagram of the test setup is seen in Fig. 2. A Hexagram model 9975G-WB receiver was used. The storage oscilloscope was triggered by the output of the RSSI output of the receiver. Appropriate delay was provided by the digital delay circuitry of the oscilloscope. The 1 kHz test signal was provided by the Marconi signal generator. The generator’s output control was used to insure that the test signal was at least 50 dB below the received signal level from the 2011-005. Transmitter Under Test 2011-005 RF Signal Generator Marconi 2955 Variable Attenuator Combining “Tee” Variable Delay Storage Oscilloscope Agilent 54622D Test Receiver 9975G-WB Fig. 2 Transient Frequency Behavior Test Setup RSSI Output trigger 6 Test Requirements The test requirements per 90.214 are: 1. Frequency deviation during t 1 (10 ms duration after t on ) may be greater than ±12.5 kHz because the output power is less than 6 Watts. 2. Frequency deviation during t 2 (25 ms duration after t 1 ) must be less than ±6.25 kHz. 3. Frequency deviation after t 2 must be less than ±2.5 ppm, or ±1150 Hz at 460 MHz. 4. Frequency deviation during t 3 (10 ms duration after transmitter is turned off) may exceed ±12.5 kHz because output power is less than 6 Watts. Test Data Figures 3 through 7 show the Model 2011-005 transient frequency characteristics. The limit masks are indicated on each of the figures. Fig. 3 ±12.5 kHz modulated test signal . ±12.5 kHz = 3.00 V ±6.25 kHz = 1.50 V ±1.15 kHz = 276 mV +12.5 kHz -12.5 kHz 7 Fig. 4 Start of Transmission Fig. 5 Full Transmission +1150 Hz -1150 Hz +6.25 kHz -6.25 kHz 35 mS Start Start Shut Off 10 msec 35 msec 8 Fig. 6 Turn Off Transient The modulated signal appears well within the allowed 10 ms and does not exceed ±12.5 kHz beyond 10 ms. TEST EQUIPMENT USED Signal Generator Marconi Model 2955 RF Test Set S/N 132061 Cal Due: 2/25/2012 Test Receiver Hexagram 9975G-WB w/ RSSI trigger output Oscilloscope Agilent Model 54622D SN: MY40003551 Cal Due: 2/28/12 Test Performed November 30, 2011 Unit Tested: 2011-005 Rev. C SN: 80003090 +12.5 kHz -12.5 kHz 10 mS Turn Off

Product Safety Engineering, Inc 12955 Bellamy Brothers Blvd. Dade City, FL 33525 352-588-2209 TEST REPORT Project Number 12175 Report Issue Date: 03/27/2012 Applicant: Aclara RF Systems 30400 Solon Road Solon, Ohio 44139 Product: Model - 2011-005 Rev C FCC ID: LLB11005S Gas Meter Transmitting Unit Test dates: 03/16/2012 - 03/19/2012 Receive Date: 03/16/2012 For the purpose of demonstrating compliance with FCC Part 90 Prepared by: Steven E. Hoke - EMC Site Manager FCC Registered Test Site Number 160606 This report may only be reproduced in full without written permission from Product Safety Engineering, Inc. Aclara Technologies LLC FCC ID: LLB11005S Page 1 of 11 Table of Contents Page 2 Table of contents Page 3-4 Test procedures Page 5 Equipment Calibration Page 6 Power Output and Spurious Emissions Page 7 Occupied Bandwidth Test Data Page 8 Frequency Stability vs. Temperature Page 9 Frequency Stability vs. Supply Voltage Page 10 Transient Stability (Separate report) Page 11 ERP Setup Photos Aclara Technologies LLC FCC ID: LLB11005S Page 2 of 11 Test Procedures EUT description: The Model - 2011-005 Rev C transceiver is designed to provide remote meter reading capability with the American Rockwell family of gas meters. The transceiver is mounted within the meter enclosure. The transmitter provides a very short intermittent RF transmission to provide a remote reading of the meter. A microprocessor provides timing, control and data processing functions. The built in antenna is inaccessible to the user and no provision is made for an external antenna. The receiver can be used to request a meter reading or other options available in the system. Power Output: The EUT operates in the frequency range of (450 - 470) MHz. The first step in the measurement process was to measure the field strength of the fundamental frequency at the lowest, highest and middle operating frequency. These measurements are made in both the vertical and horizontal polarity. The maximum field strength is reported by raising and lowering the measuring antenna height between (1-4) meters and by rotating the EUT (360) degrees. The measurement distance is (3) meters. The field strength measurements continue as described above for up to the tenth harmonic of each fundamental frequency. Once the field strength of each signal is recorded, the EUT is replaced with a substitution antenna and signal generator. The substitution antenna is placed at the same height as the EUT had been. The combination of antenna and signal generator is then adjusted to reproduce the recorded field strength at each frequency. The ERP is then calculated by the following: ERP = PG - CL + ANT ERP = Effective Radiated Power (dBm) PG = Signal Generator Output (dBm) CL = Cable loss (dB) ANT = antenna gain (dBd) dBd = (antenna gain dBi) - (2.2 dB) The measurements were made using the standard ANSI/TIA-603-C-2004. Occupied Bandwidth: The occupied bandwidth was measured with the EUT set to low, medium and high transmit frequencies. The emissions mask used was that specified in Part 90.210 (d). Radiated Spurious Emissions: The radiated spurious emissions measurements were measured with the EUT set to low, medium and high transmit frequencies. Based upon the low output power of this device, all spurious and harmonic signals are limited to (-20) dBm. This is based upon the calculation stated in 90.210(d)(3). The field strength of the spurious emissions were measured in the same manner as the power output measurements and then the substitution method was used to establish the power level expressed in dBm. Frequency Stability vs. Supply Voltage: One of the internal batteries was disconnected and replaced with an external variable power supply. The frequency was measured at the normal battery voltage of (7.20) VDC and again with the external power supply adjusted to an (85%) level or (6.12) volts. This was repeated with the external DC voltage adjusted to (8.28) VDC. The maximum allowed deviation is (2.5) ppm or (1,150) Hz at (460) MHz. Aclara Technologies LLC FCC ID: LLB11005S age 3 of 11 Frequency Stability vs. Temperature: The fundamental frequency was measured at an ambient temperature of (20) degrees C and recorded. The transmitter was then placed in a container along with a small section of dry ice and the environment was adjusted until a low temperature of (-30) degrees C was achieved. The transmitter was allowed to stabilize for (30) minutes at this temperature and then the frequency was again measured with a spectrum analyzer. The environment was allowed to warm to (-20) degrees C and the measurement process was repeated. The environment was moved to a maximum temperature of (+80) degrees C in (10) degree increments, allowed to stabilize for (30) minutes and the frequency was re-measured. Aclara Technologies LLC FCC ID: LLB11005S Page 4 of 11 TEST EQUIPMENT CALIBRATION INFORMATION Manufacturer Model Description Serial Number Cal Due Date Hewlett Packard 8566B Spectrum Analyzer 2421A00526 10/13/12 Hewlett Packard 85662A Display 2403A07352 10/13/12 Hewlett Packard 85650A Quasi-Peak Adapter 2043A00209 10/13/12 Hewlett Packard 8447D Preamp 1937A03247 09/06/12 Hewlett Packard 8449B Preamp 3008A00320 04/11/12 Hewlett Packard 8648B Signal Generator 3443U00312 09/08/12 Hewlett Packard 8672A Signal Generator 2211A02426 03/21/12 Electro-Metrics BIA-30 Biconical Antenna 3852 04/01/12 EMCO 3148 Log Periodic Antenna 00075741 01/17/13 Electro-Metrics 3115 Double Ridge Guide Antenna 3810 05/25/13 Schwarzbeck UHAP-10db Dipole antenna set 175 12/22/12 ETS Lindgren 3117 Double Ridge Guide Antenna 00109296 01/12/13 Agilent 7402A Spectrum Analyzer US39150137 07/18/12 Fluke 52 Digital Thermometer 447533 02/17/13 Hewlett Packard DC Power Supply N/A Fluke 87V DVM 95570315 03/02/13 Aclara Technologies LLC FCC ID: LLB11005S Page 5 of 11 Power Output and Spurious Emissions Model 2011-005 Rev C March 16 – 19, 2012 Freq Generator Equivalent Antenna Limit Margin MHz Level Power Polarit…

Text truncated - open the document above for the full version.

Aclara RF SystemsFCC ID: LLB11005X Page 11 of 11 OUTPUT POWER AND SPURIOUS EMISSIONS SETUP PHOTOGRAPHS
